10-34  CAB



Important Operations

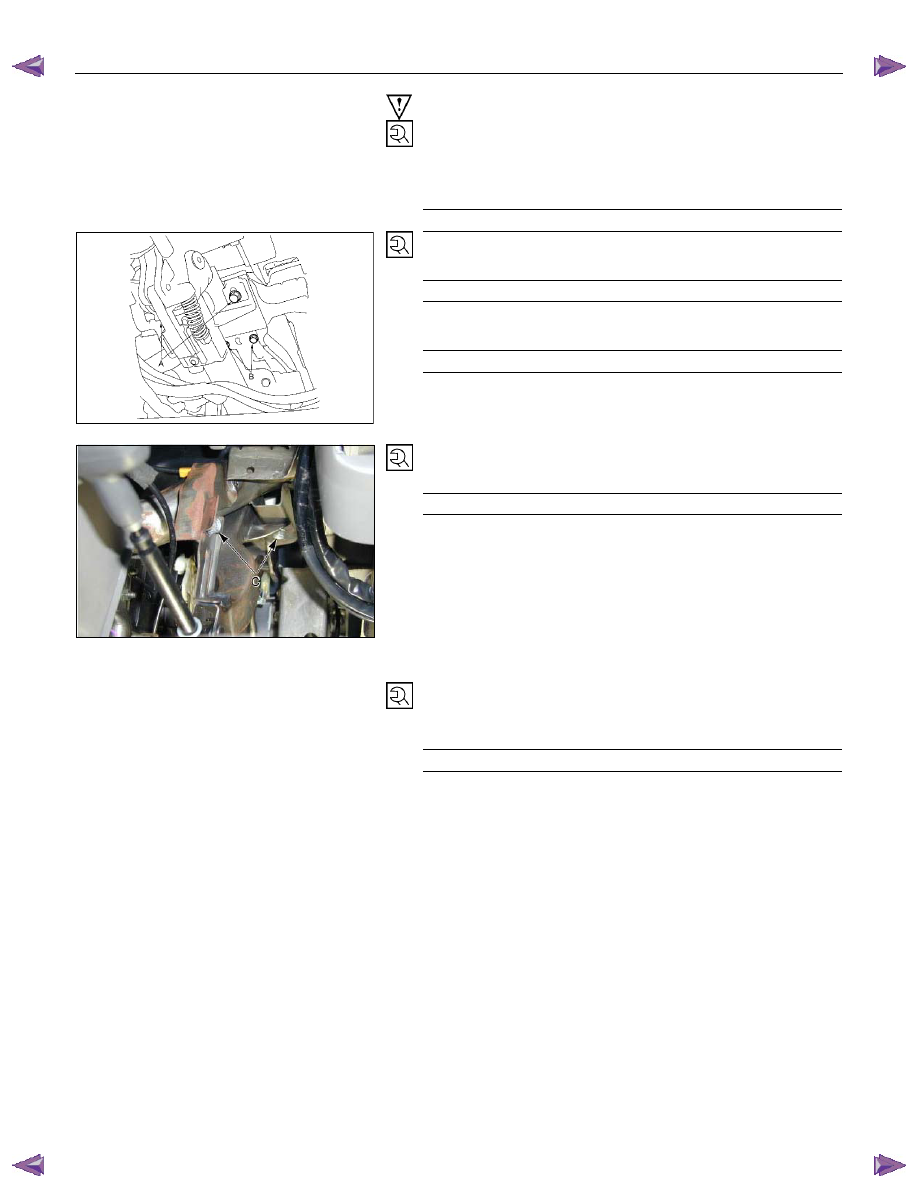

17. Instrument Panel Assembly & Cross Beam

1)  Tighten the 4 bolts fixing the cross beam and body panel

to the specified torque.

Torque N

⋅m (kgf⋅m/lb⋅ft)

19 (1.9/14)





RUW5A0SH002801

2)  A Bolt: Steering Column to Cross Beam

Torque N

⋅m (kgf⋅m/lb⋅ft)

20 (2.0/14)



B Bolt: Pedal Bracket to Cross Beam

Torque N

⋅m (kgf⋅m/lb⋅ft)

15 (1.5/11)





3)  C Bolt: Parking Brake Bracket to Cross Beam

Torque N

⋅m (kgf⋅m/lb⋅ft)

15 (1.5/11)





23. Steering Wheel/Steering Cowl

•  Tighten the steering wheel fixing nut to the specified

torque.

Torque N

⋅m (kgf⋅m/lb⋅ft)

34 (3.5/25)







CAB  10-35

FLOOR CONSOLE

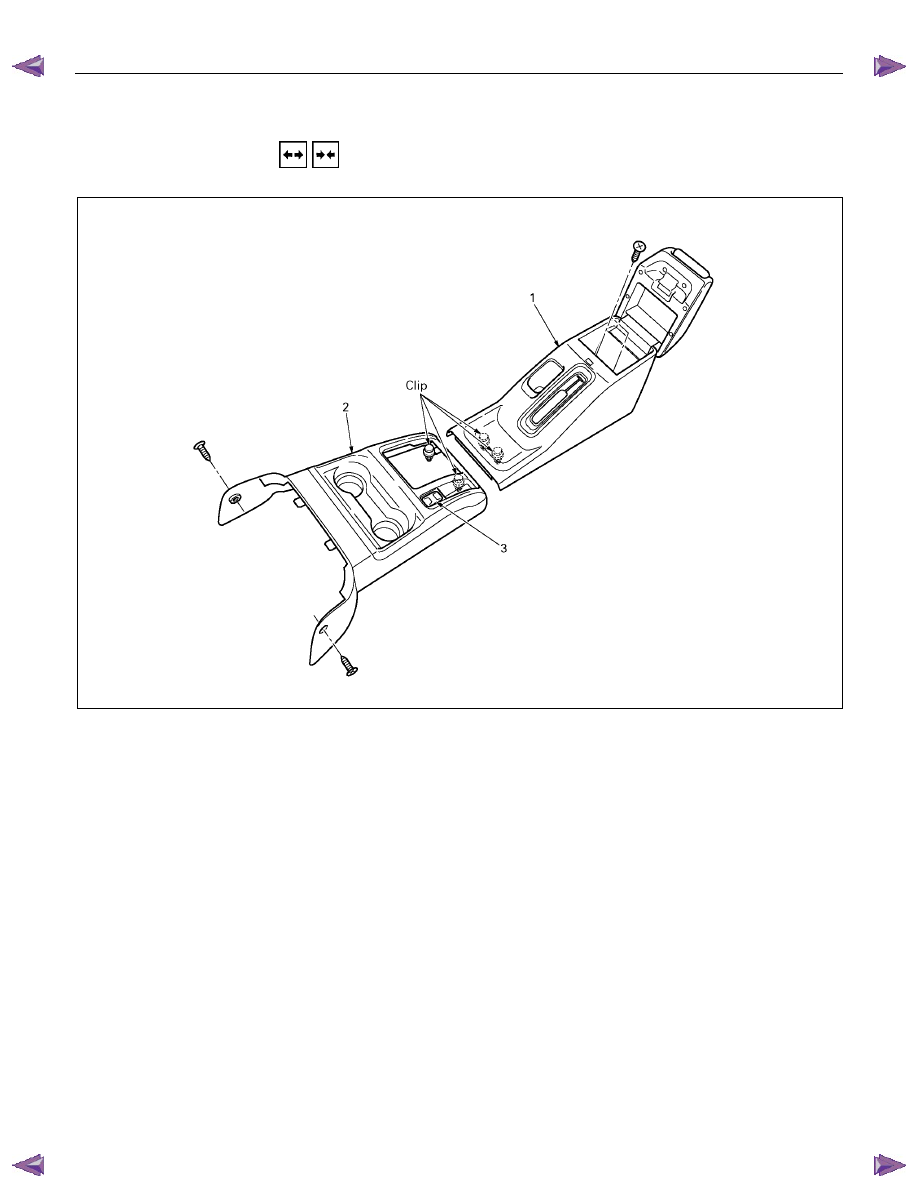

  REMOVAL AND INSTALLATION







A/T Model

Removal Steps

▲  1. Rear floor console (Bucket seat model

only)

▲  2. Front floor console


3. 3rd start switch







Installation Steps



3. 3rd start switch



2. Front floor console



1. Rear floor console (Bucket seat model

only)





10-36  CAB



Important Operations - Removal

1.  Rear Floor Console (Bucket Seat Model Only)

1)  Open the rear console lid and remove 2 screws.

2) Pull out the front part of the rear console at the 2 clip

positions.

2.  Front Floor Console

1)  Remove the 2 screws.

2)  Pull out the rear part of the front console at the 2 clip

positions and disconnect the switch connecter.

3)  Remove the front console by pull it out rear-ward.



CAB  10-37

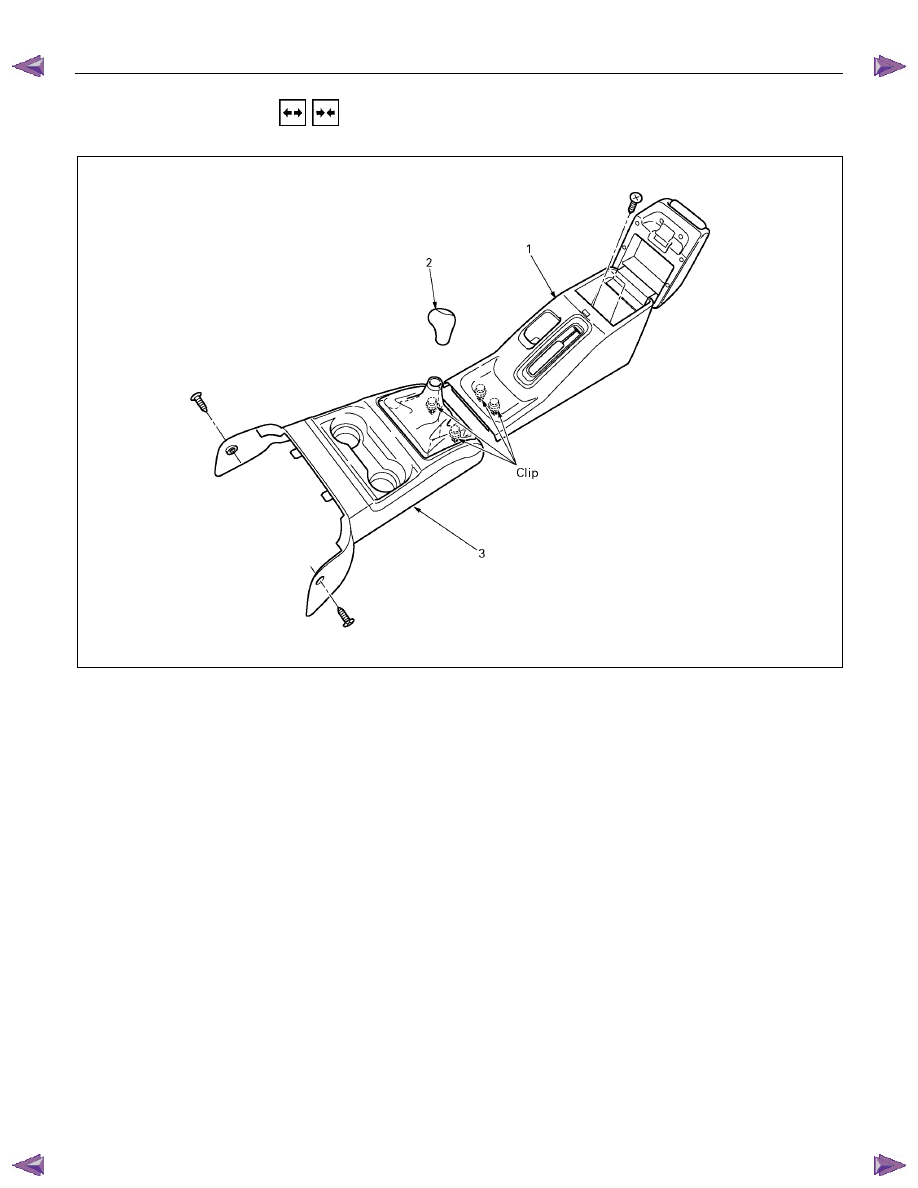

  REMOVAL AND INSTALLATION







M/T Model

Removal Steps

▲  1. Rear floor console (Bucket seat model

only)



2. Shift knob

▲  3. Front floor console






Installation Steps



3. Front floor console



2. Shift knob



1. Rear floor console (Bucket seat model

only)
