9A1-62  RESTRAINT CONTROL SYSTEM



DTC B0051 (Flash Code 51) Air Bag Squib Circuit Activated (Crash)








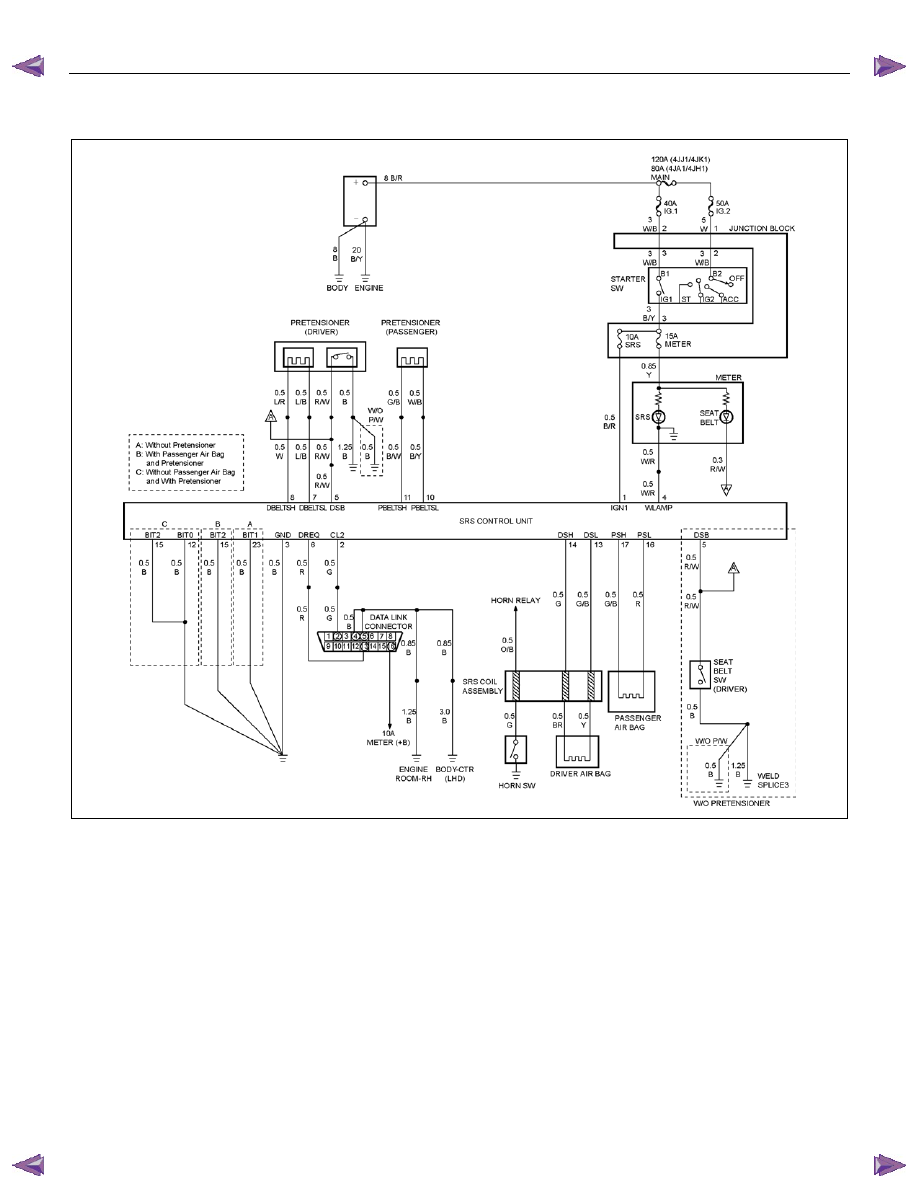

RTW79ALF000301



Circuit Description

The SRS control unit contains a sensor which converts
vehicle velocity changes to an electrical signal. The
electrical signal generated is processed by the SRS
control unit and then compared to a value stored in
memory. When the generated signal exceeds the
stored value, the SRS control unit will cause current to
flow through the air bag assembly deploying the air
bags and causing DTC B0051 to set.



DTC Will Set When

The SRS control unit detects a frontal crash, up to 30
degrees off the centerline of the vehicle, of sufficient
force to warrant deployment of the air bags.





Action Taken

SRS control unit turns “ON” the “SRS” warning lamp
and records “Crash Data”, and sets a diagnostic trouble
code.



DTC Will Clear When

The SRS control unit is replaced.



DTC Chart Test Description

Number(s) below refer to step number(s) on the
diagnostic chart:
2.  If the air bag assembly(s) has not deployed, DTC

B0051 may have been falsely set.

3.  If DTC B0051 has set with no signs of frontal impact,

the diagnostic trouble code has been falsely set.

RESTRAINT CONTROL SYSTEM  9A1-63



DTC B0051 (Flash Code 51) Air Bag Squib Circuit Activated (Crash)

WARNING:  DURING SERVICE PROCEDURES. BE VERY CAREFUL WHEN HANDLING A SRS CONROL UNIT.
NEVER STRIKE OR JAR THE SRS CONTROL UNIT.  NEVER POWER UP THE SRS WHEN THE SRS CONTROL
UNIT IS NOT RIGIDLY ATTACHED TO THE VEHICLE. ALL SRS CONTROL UNIT AND MOUNTING BRACKET
FASTENERS MUST BE CAREFULLY TORQUED AND THE ARROW MUST BE POINTING TOWARD THE FRONT
OF THE VEHICLE TO ENSURE PROPER OPERATION OF THE SRS. THE SRS CONTROL UNIT COULD BE
ACTIVATED AND CAUSE DEPLOYMENT RESULTING IN PERSONAL INJURY.


Step Action

Yes

No

1

Was the “SRS Diagnostic System Check” performed?

Go to Step 2.

Go to the “SRS

Diagnostic System

Check”

2

Ignition switch is at “LOCK”.
Have air bag assemblies been deployed?

Replace

components and

perform

inspections as

directed in “repairs

and inspections

required after an

accident” in this

section.

clear diagnostic

trouble codes.

Repeat “SRS

Diagnostic System

Check”

Go to Step 3

3

Inspect the front of the vehicle and undercarriage for signs of
impact.
Were signs of impact found?

Replace

components and

perform

inspections as

directed in

“Repairs and

Inspections

Required After An

Accident” in this

section.

Clear diagnostic

trouble codes.

Repeat “SRS

Diagnostic System

Check”

Ignition switch

“LOCK”.

Replace SRS

control unit.

Reconnect all SRS

system

components,

ensure all

components are

properly mounted.

Repeat “SRS

Diagnostic System

Check”



9A1-64  RESTRAINT CONTROL SYSTEM



DTC B0052 (Flash Code 52) Pretensioner Squib Circuit Activated (Crushed)








RTW79ALF000301



Circuit Description

The SDM contains a sensing device which converts
vehicle velocity changes to an electrical signal. The
electrical signal generated is processed by the SDM
and then compared to a value stored in memory. When
the generated signal exceeds the stored value, the
SDM will cause current to flow through the pretensioner
seat belt deploying the pretensioner seat belt and
causing DTC B0052 to set.


DTC Will Set When

The SRS control unit detects a frontal crash, up to 30
degrees off the centerline of the vehicle, of sufficient
force to warrant deployment of the pretensioner seat
belt.




Action Taken

SRS control unit turns “ON” the “SRS” warning lamp
and records “Crash Data”, and sets a diagnostic trouble
code.


DTC Will Clear When

The SRS control unit is replaced.


DTC Chart Test Description

Number(s) below refer to step number(s) on the
diagnostic chart:
2. If the pretensioner seat belt assemblies have not

deployed, DTC B0052 may have been falsely set.

3.  If DTC B0052 has set with no signs of frontal impact,

the diagnostic trouble code has been falsely set.

RESTRAINT CONTROL SYSTEM  9A1-65



DTC B0052 (Flash Code 52) Pretensioner Squib Circuit Activated (Crash)

WARNING:  DURING SERVICE PROCEDURES. BE VERY CAREFUL WHEN HANDLING A SRS CONROL UNIT.
NEVER STRIKE OR JAR THE SRS CONTROL UNIT.  NEVER POWER UP THE SRS WHEN THE SRS CONTROL
UNIT IS NOT RIGIDLY ATTACHED TO THE VEHICLE. ALL SRS CONTROL UNIT AND MOUNTING BRACKET
FASTENERS MUST BE CAREFULLY TORQUED AND THE ARROW MUST BE POINTING TOWARD THE FRONT
OF THE VEHICLE TO ENSURE PROPER OPERATION OF THE SRS. THE SRS CONTROL UNIT COULD BE
ACTIVATED AND CAUSE DEPLOYMENT AND RESULTING IN PERSONAL INJURY.


Step Action

Yes

No

1

Was the “SRS Diagnostic System Check” performed?

Go to Step 2.

Go to the “SRS

Diagnostic System

Check”

2

Ignition switch “LOCK”.
Have the pretensioner seat belt assemblies been deployed?

Replace

components and

perform

inspections as

directed  in

“repairs and

inspections

required  after an

accident” in this

section.

clear diagnostic

trouble codes.

Repeat “SRS

Diagnostic System

Check”

Go to Step 3

3

Inspect the front of the vehicle and undercarriage for signs of
impact.
Were signs of impact found?

Replace

components and

perform

inspections as

directed  in

“Repairs and

Inspections

Required  After An

Accident” in this

section.

Clear diagnostic

trouble codes.

Repeat “SRS

Diagnostic System

Check”

Ignition switch is at

“LOCK”.

Replace SRS

control unit.

Reconnect all SRS

system

components,

ensure all

components  are

properly mounted.

Repeat “SRS

Diagnostic System

Check”
