8A-574  ELECTRICAL-BODY AND CHASSIS

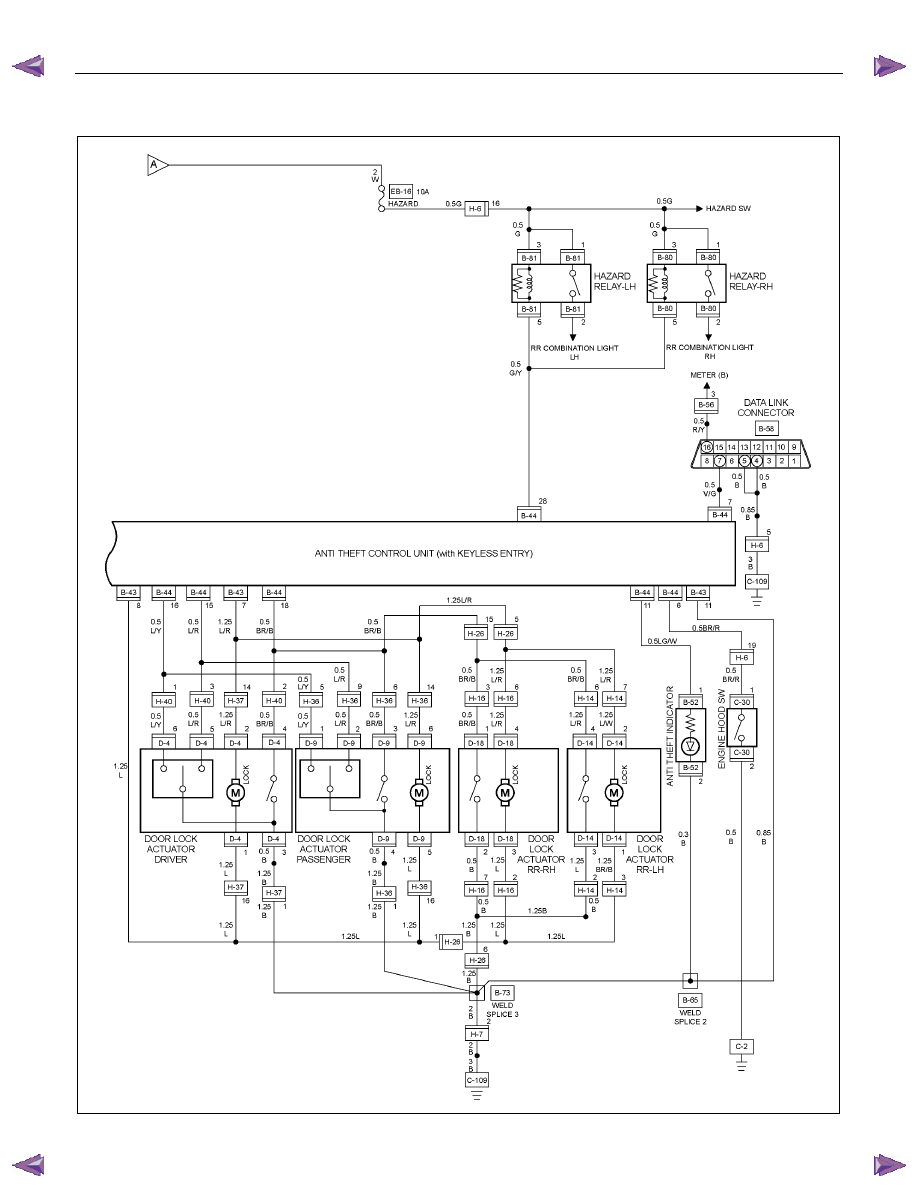

CIRCUIT DIAGRAM C24SE (LHD)

Sheet 2/2












RTW680XF015801

ELECTRICAL-BODY AND CHASSIS  8A-575

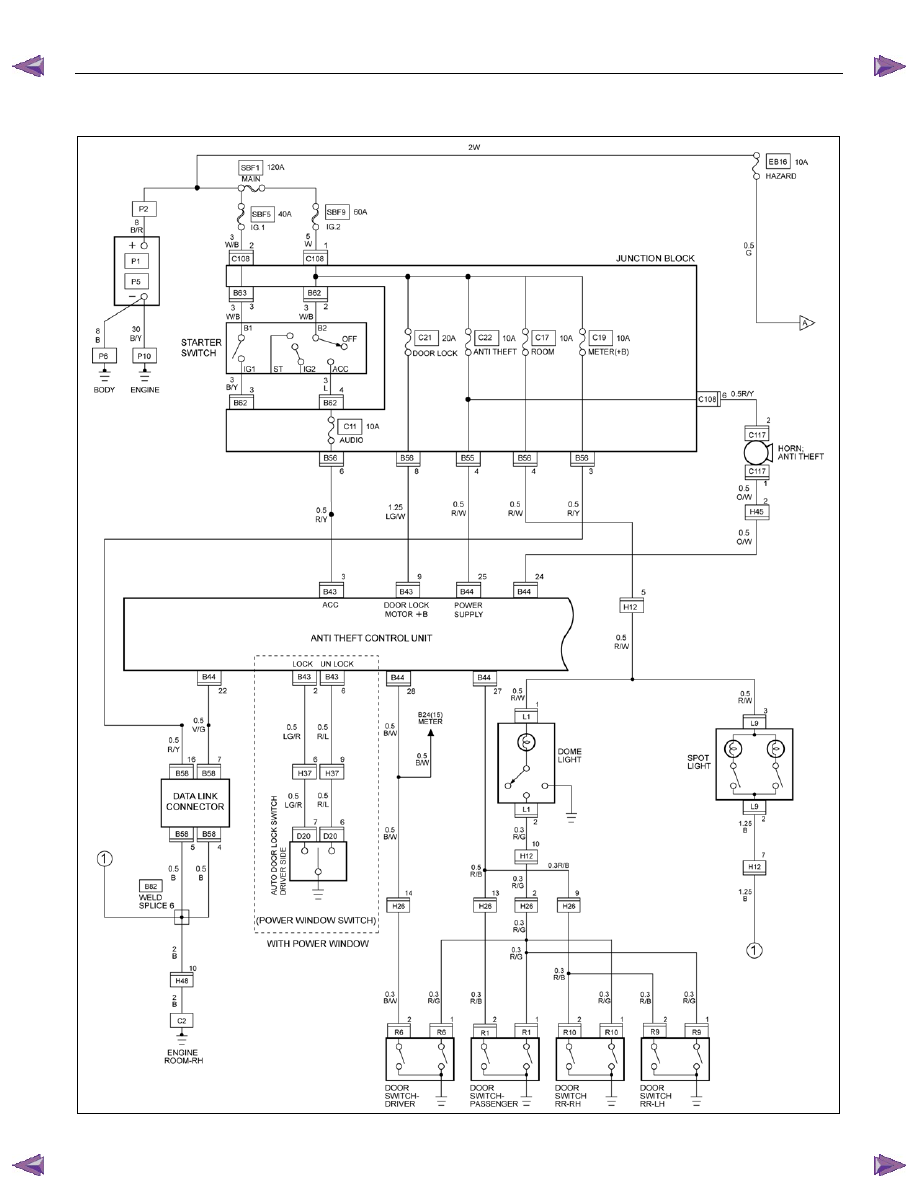

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (LHD)

Sheet 1/2








RTW78AXF029701

8A-576  ELECTRICAL-BODY AND CHASSIS

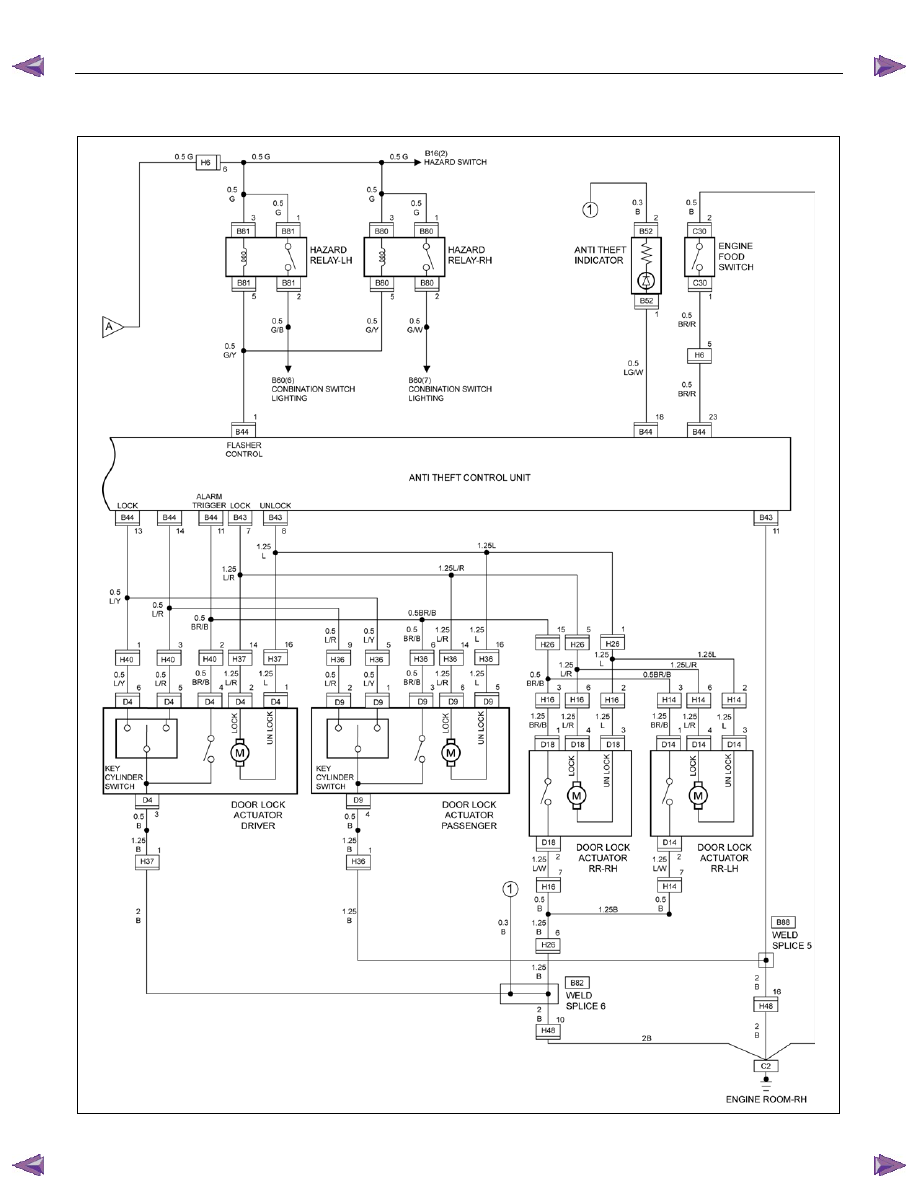

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (LHD)

Sheet 2/2










RTW78AXF029801



ELECTRICAL-BODY AND CHASSIS  8A-577

ANTI THEFT INDICATOR




Removal

1.  Disconnect the battery ground cable.







RTW78ASH001801

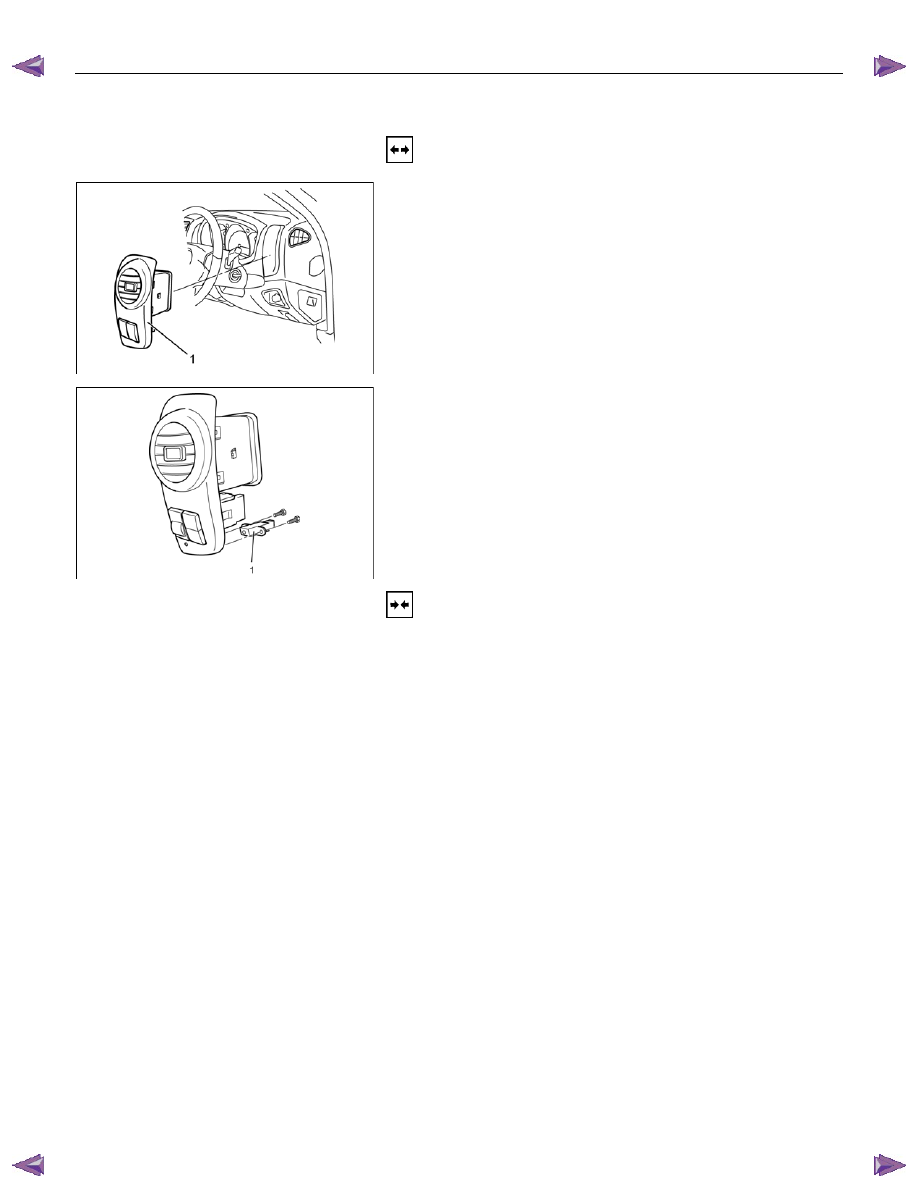

2.  Remove the side ventilation grille (1).









RTW78ASH001701



3.  Disconnect the indicator connector and screw from the

backside of the side ventilation grille to remove the anti theft

indicator (1).





Installation

To install, follow the removal steps in the reverse order, noting
the following point.
1.  Push in the switch with your fingers until it locks securely.
