8A-490 ELECTRICAL-BODY AND CHASSIS

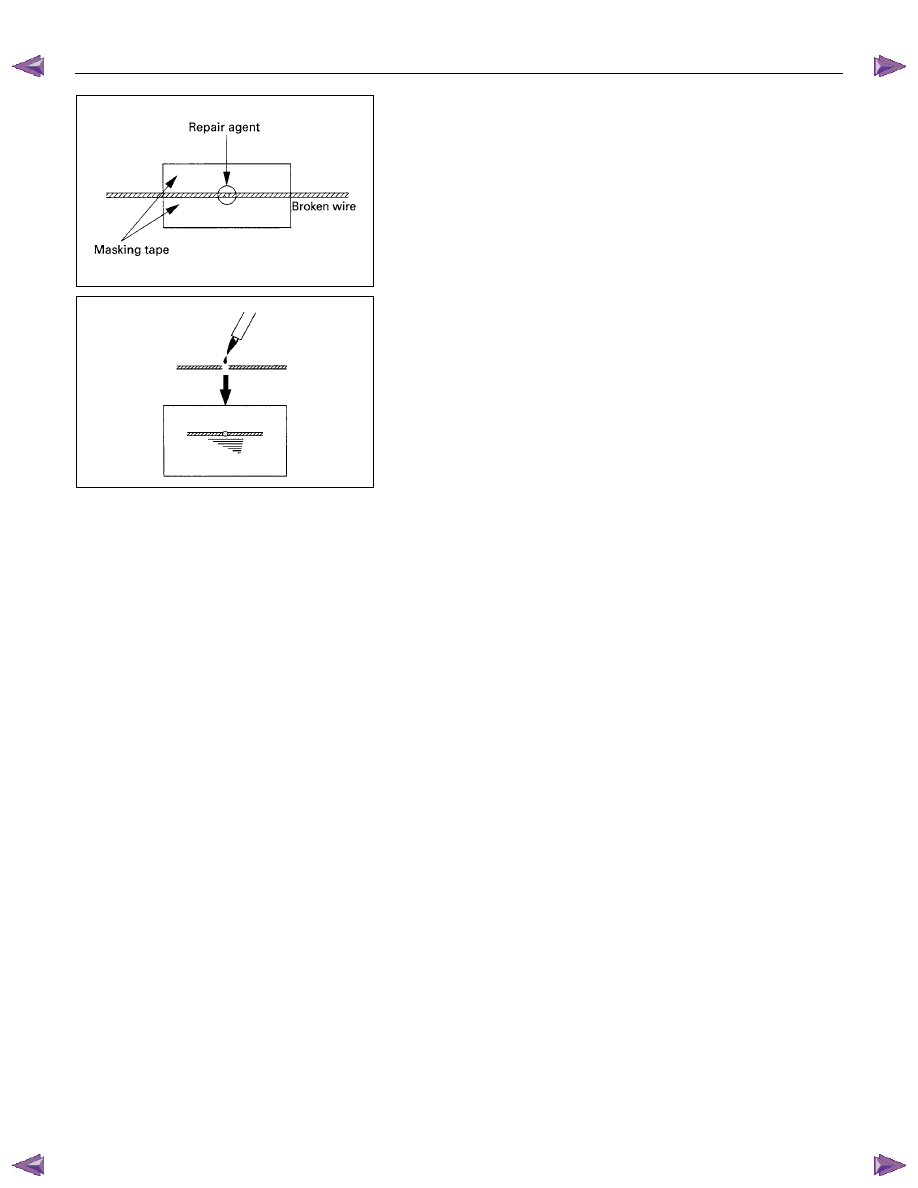

REPAIR OF BROKEN HEAT WIRE (1) Clean broken wire tips with white gasoline. (2) Place masking tape along both sides of wire to be repaired.
(3) Thoroughly mix the repair agent (Dupont paste No. 4817 or equivalent). (4) Using a fine tip brush, apply a small amount to the wire. (5) After a couple of minutes, remove the masking tape. (6) Allow to stand at least 24 hours. |
