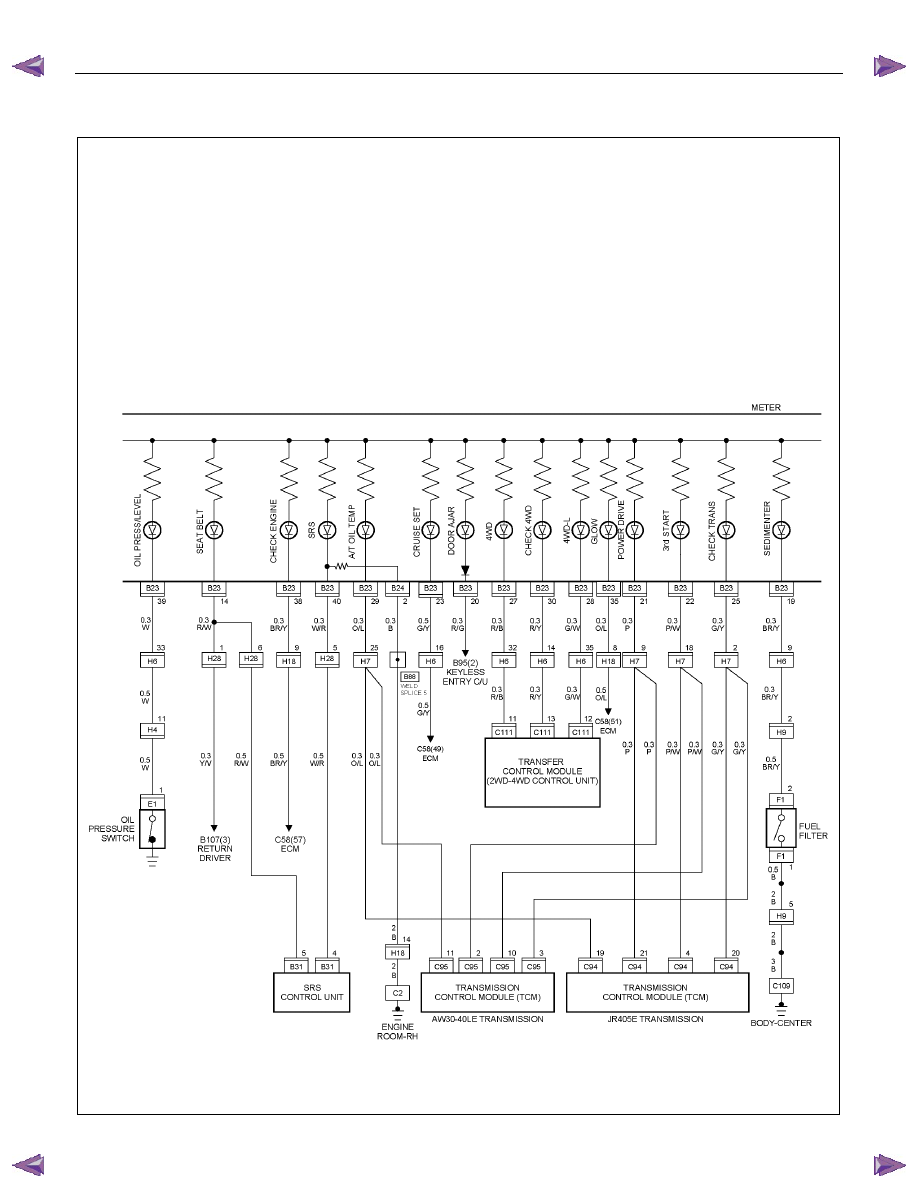

8A-318  ELECTRICAL-BODY AND CHASSIS



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA

Sheet 2/3



























RTW78AXF011901

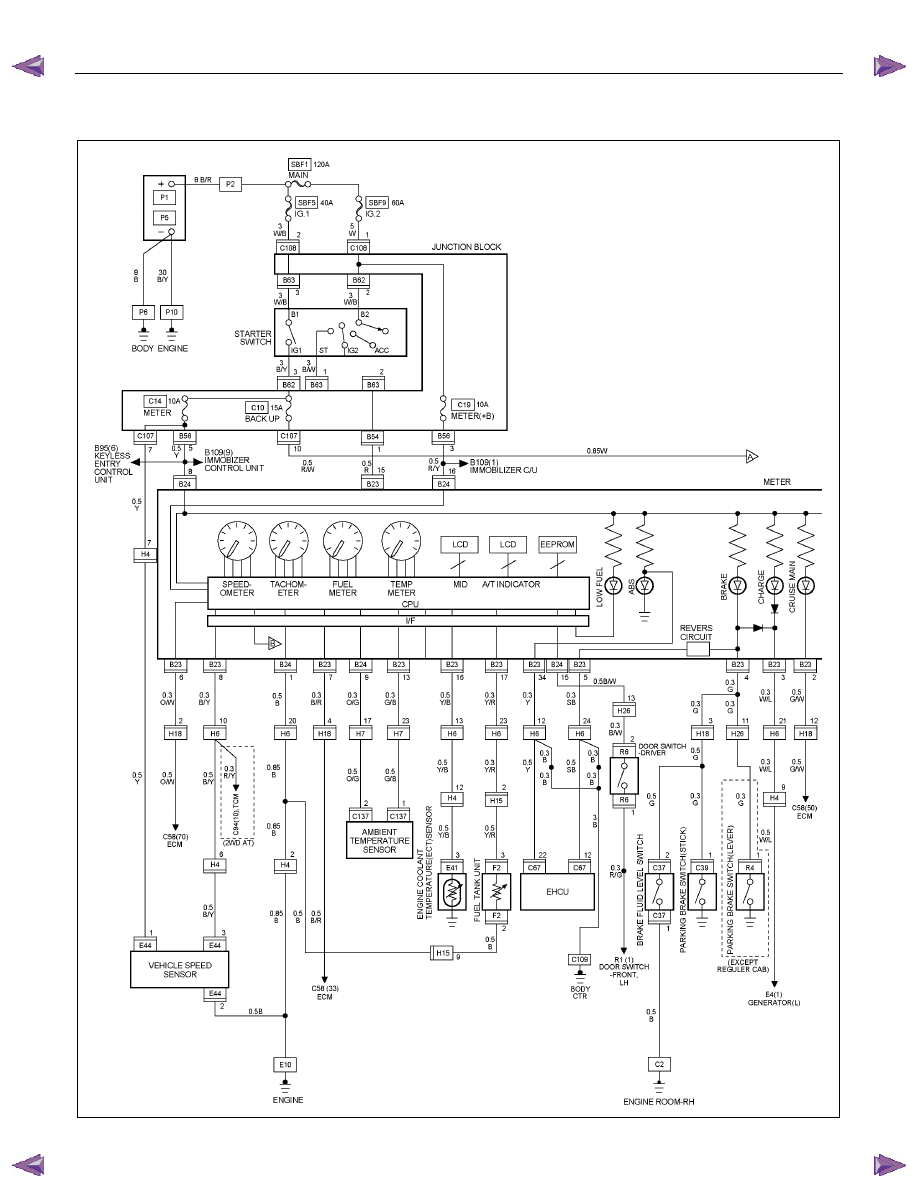

ELECTRICAL-BODY AND CHASSIS  8A-319



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA

Sheet 3/3

















RTW78AXF012001

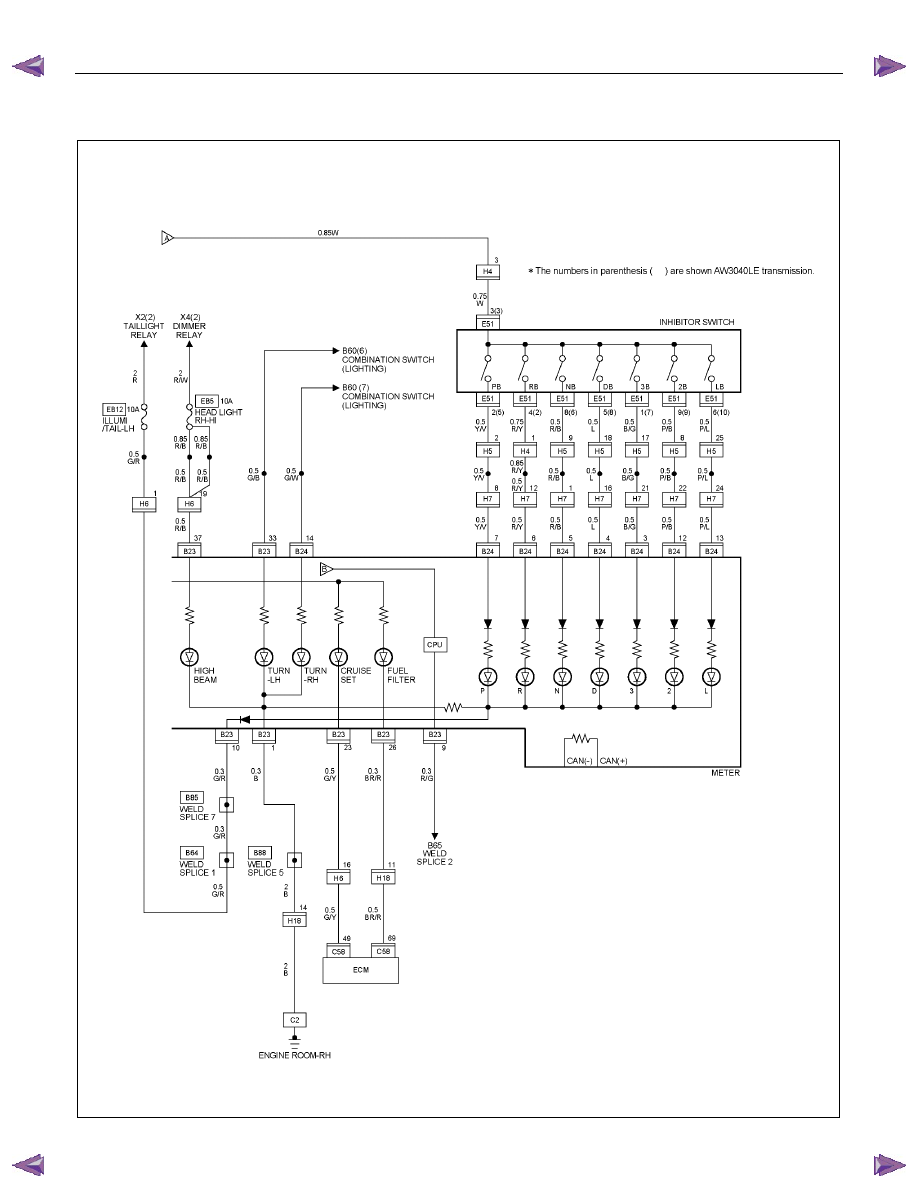

8A-320  ELECTRICAL-BODY AND CHASSIS



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) EXCEPT SOUTH AFRICA

Sheet 1/3











RTW78AXF032501

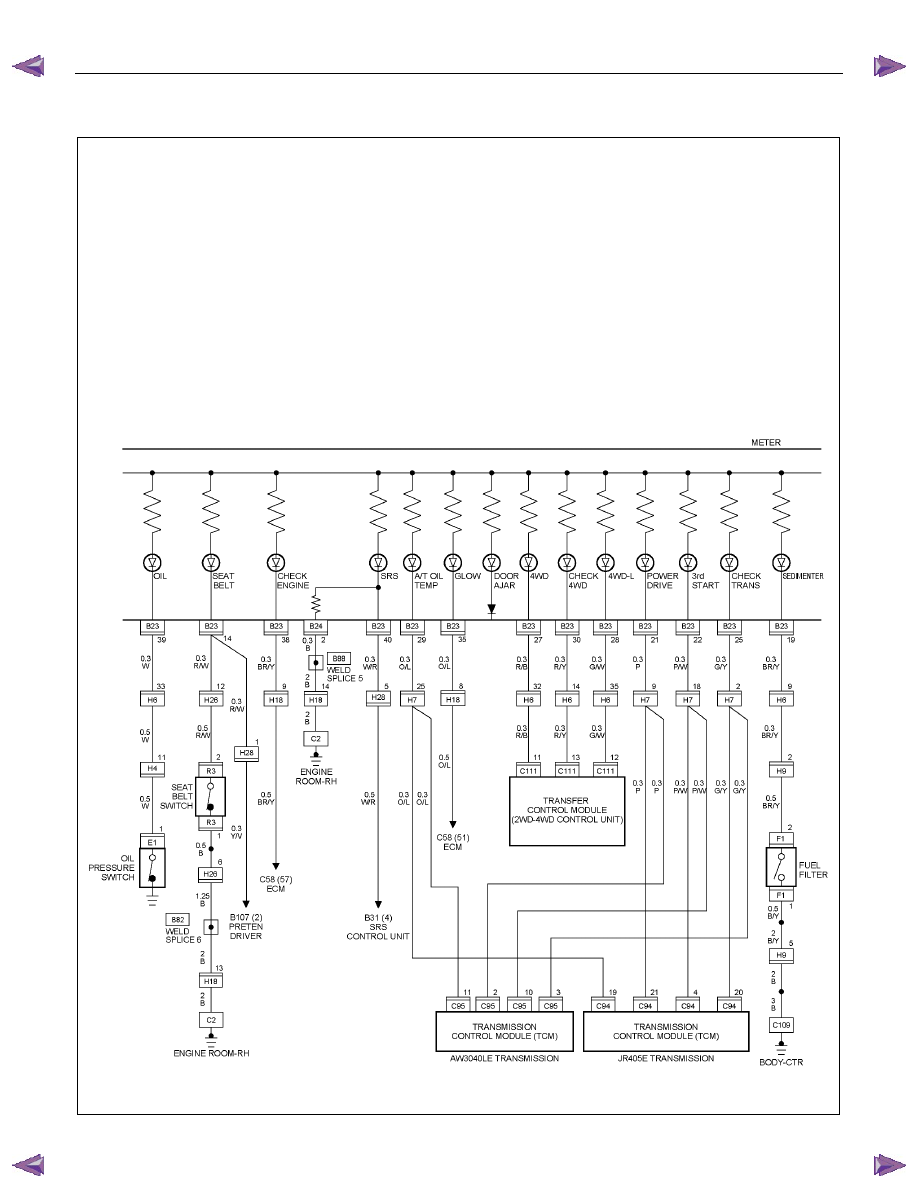

ELECTRICAL-BODY AND CHASSIS  8A-321



CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) EXCEPT SOUTH AFRICA

Sheet 2/3























RTW78AXF032601
