8A-278  ELECTRICAL-BODY AND CHASSIS



  REMOVAL AND INSTALLATION







WIPER AND WASHER SWITCH

Removal

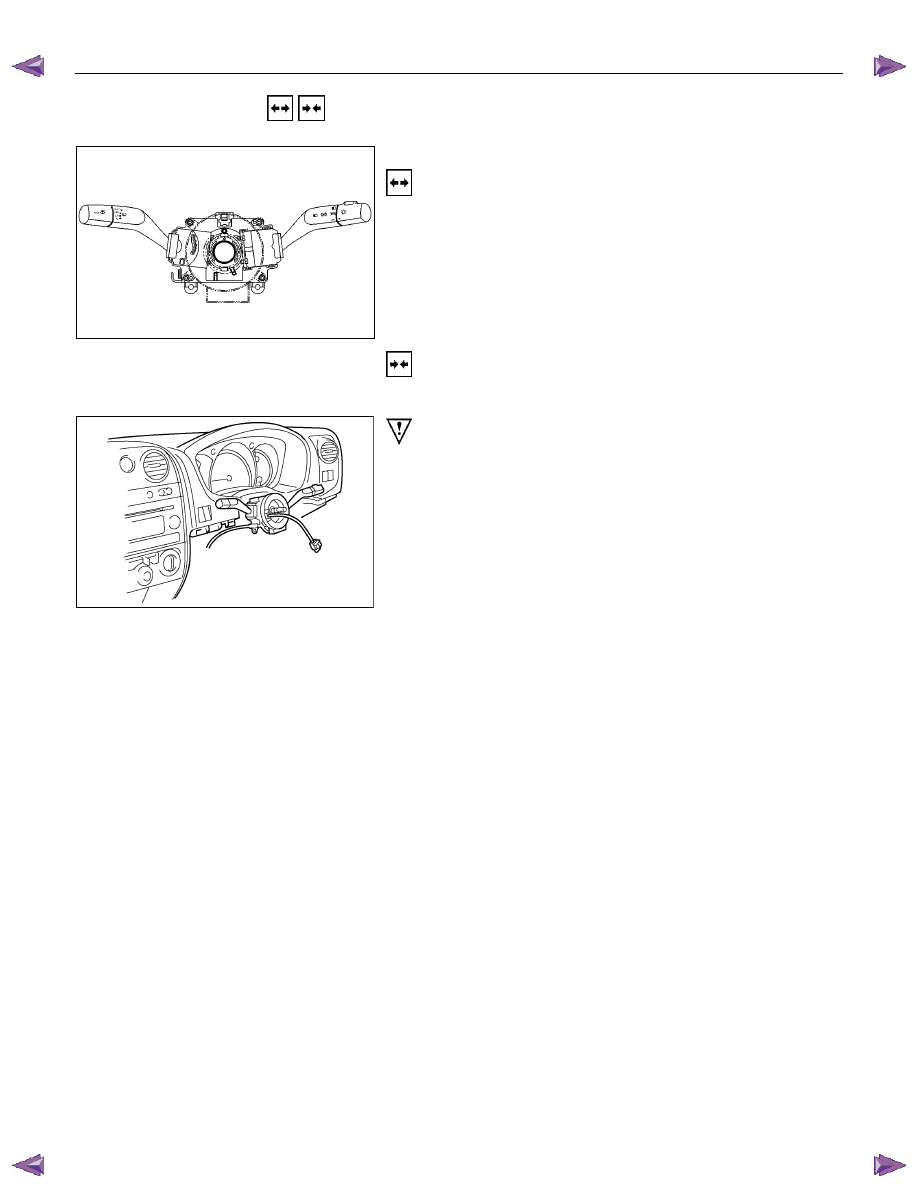

Refer to the removal steps of the LIGHTING SWITCH
(COMBINATION SWITCH) in “ LIGHTING “ of this section.









Installation

Follow the removal procedure in the reverse order to install the
wiper and washer switch.







RTW780SH001601

This illustration is based on RHD model



Pay close attention to the important points mentioned in the
following paragraphs.


Connector

Be absolutely sure that the wiper and washer switch connector
is securely connected.
This will prevent a poor contact and an open circuit.




ELECTRICAL-BODY AND CHASSIS  8A-279

  INSPECTION AND REPAIR











Switch side

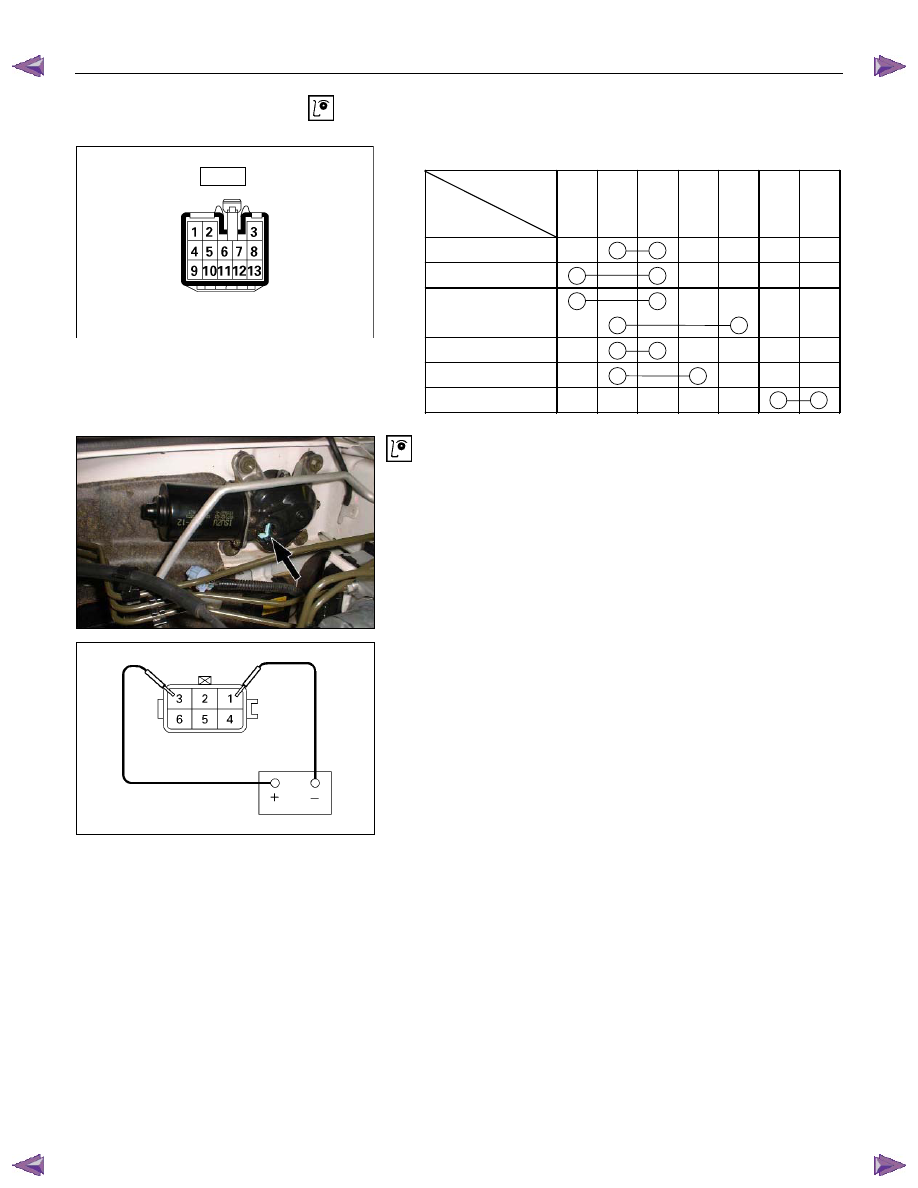

B59






Control Switch Connections



Terminal

No.

SW position

6 3 5 4 2 7 1

Mist















Off



INT

















Lo



Hi















Wash





















Wiper Motor Inspection

Connector








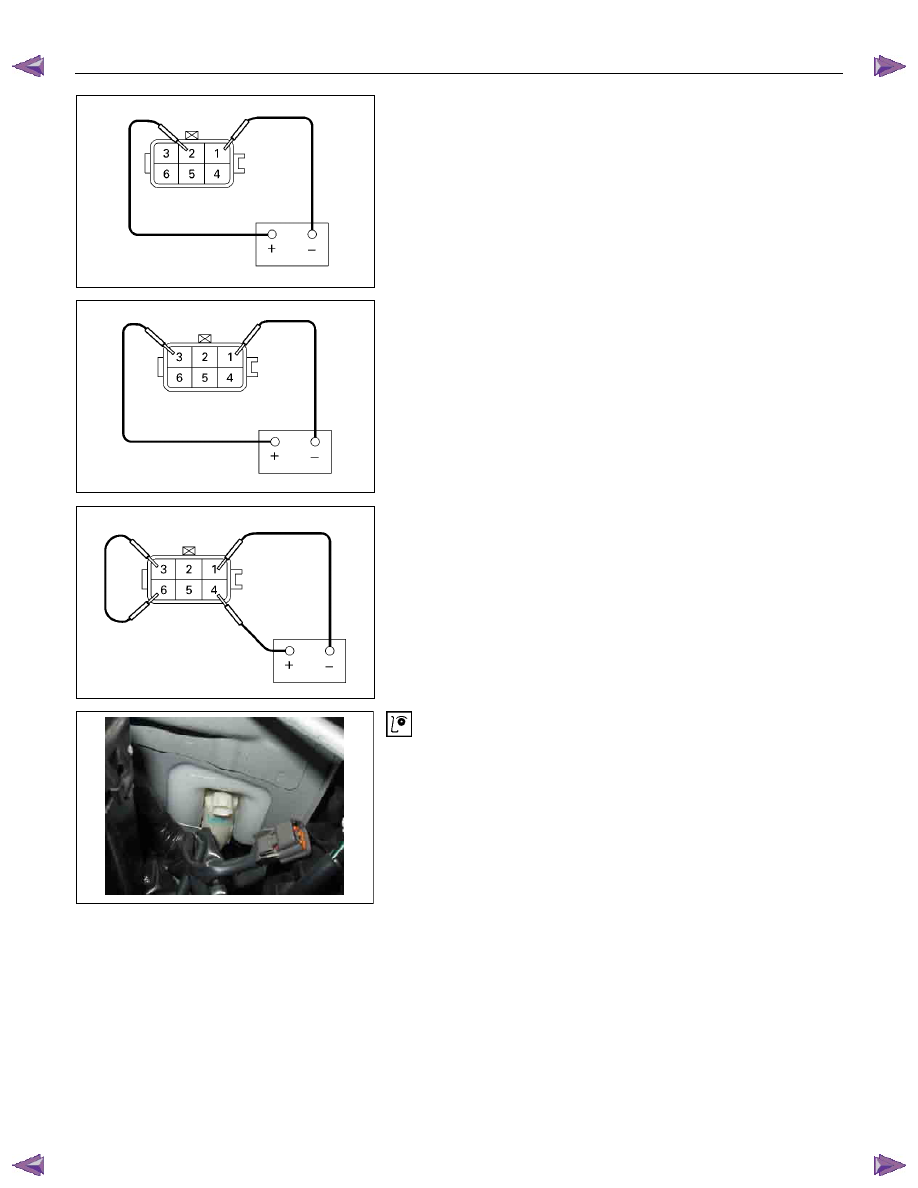

Low Speed Inspection

1.  Clamp the wiper motor in a vise.



The moving parts must be clear of the vise.

2.  Connect the connector terminals to the battery.



Refer to the illustration.

3.  Check the wiper motor low speed operation.


8A-280  ELECTRICAL-BODY AND CHASSIS





High Speed Inspection

1.  Clamp the wiper motor in a vise.



The moving parts must be clear of the vise.

2.  Connect the connector terminals to the battery.



Refer to the illustration.

3.  Check the wiper motor high speed operation.






Auto-Stop Inspection

1.  Clamp the wiper motor in a vise.



The moving parts must be clear of the vise.

2.  Connect the connector terminals to the battery.



Refer to the illustration.

3.  Check the wiper motor low speed operation.

4.  Disconnect the positive battery terminal.



This will stop the motor.








5.  Connect the connector terminals No. 3 and No. 6 with a

lead wire.



Refer to the illustration.

6. Reconnect the positive battery terminal to connector

terminal No. 4.



This will restart the motor.



Refer to the illustration.

7.  Check the auto-stop operation.












Washer Motor Inspection

1.  Fill the washer tank with washing solution.

2.  Disconnect the motor connector.

3.  Apply battery voltage to the washer motor connector.

4.  Check the washer motor operation.


ELECTRICAL-BODY AND CHASSIS  8A-281







WIPER MOTOR AND LINKAGE

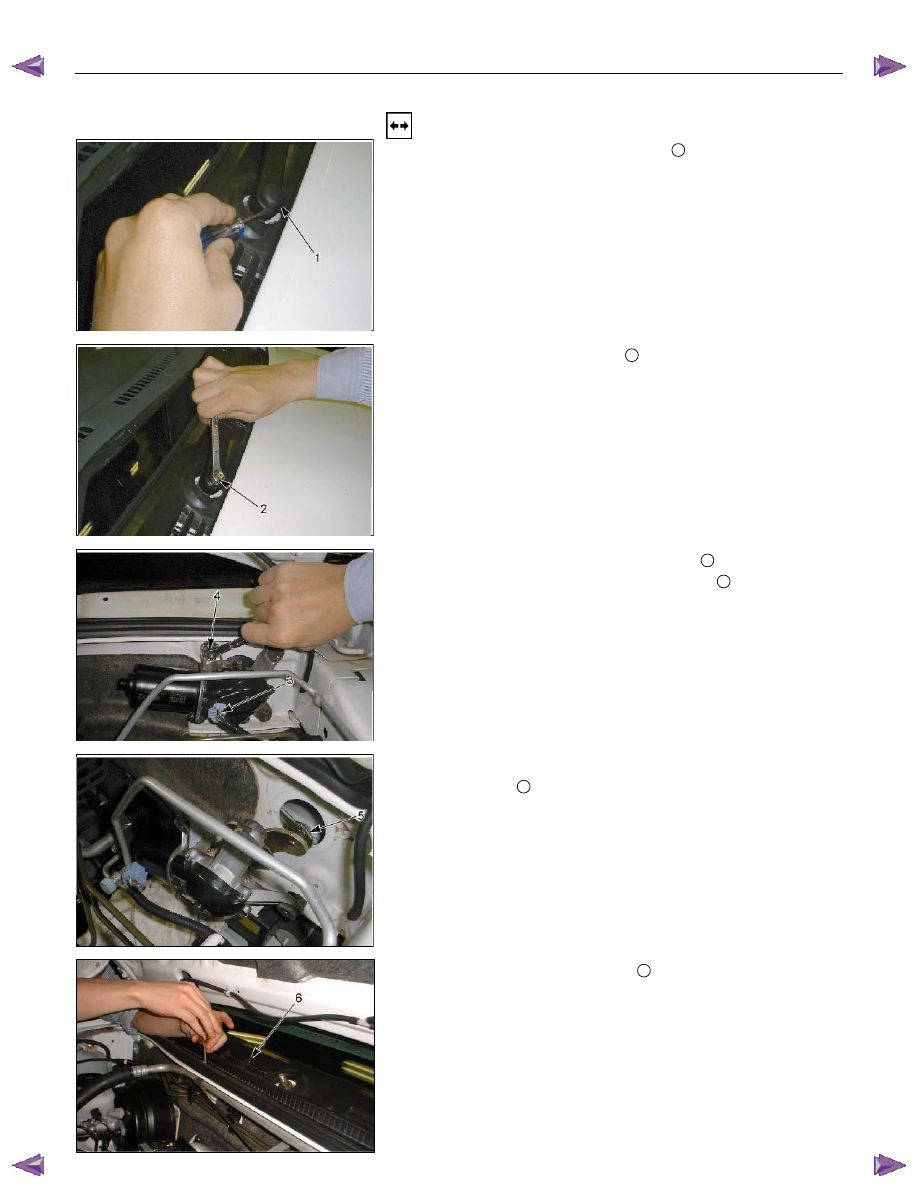

Removal










1.  Disconnect the wiper arm nut cap












2.  Remove the wiper arm nut

2

3.  Remove the wiper arm with blade.










4.  Disconnect the wiper motor connector

.

5.  Remove the wiper motor bracket screws










6.  Disconnect the wiper motor from the wiper linkage at the

crank arm

5






7.  Remove the vent cowl cover

6

•  Remove the 6 screw.
