8A-262  ELECTRICAL-BODY AND CHASSIS






Installation

Follow the removal procedure in the reverse order to install the
spot light.
Pay close attention to the important points mentioned in the
following paragraphs.






Connector

Be absolutely sure that the spot light connector is securely
connected.
This will prevent a poor contact and an open circuit.







Bulb

Be absolutely sure that the spot light bulb is correctly installed.
This will prevent a poor contact and an open circuit.








RUW580SH001501








RUW580SH001601




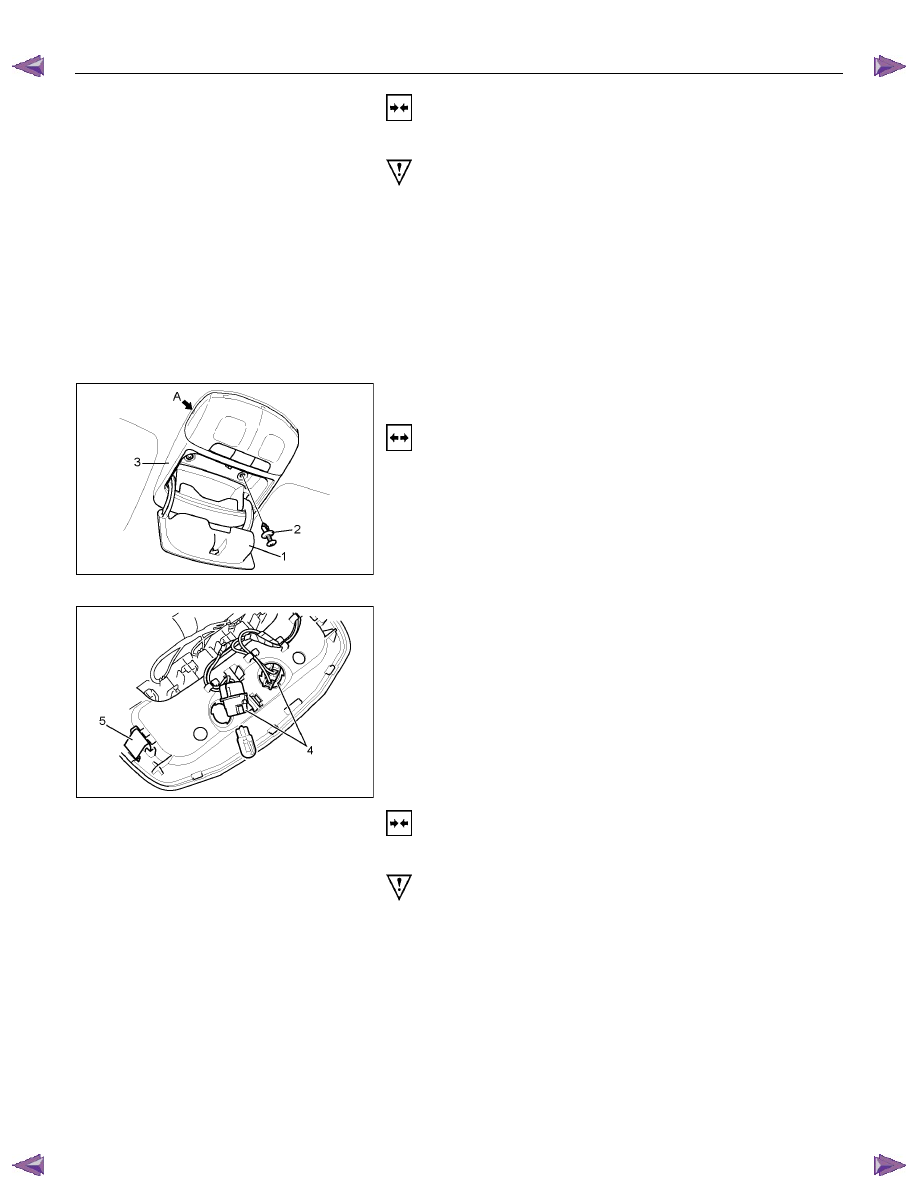

OVER HEAD CONSOLE (MAP Light)

Removal

1.  Open the lid (1) and remove the fastener (2).

2.  A steel scale equivalent article is inserted in a lens side

hook part and the crevice A section with roof lining, a metal

clip (5) is pushed in, and a over head consol (3) is removed

3.  Disconnect the connector.

4.  Push the bulb socket (4) in and turn it counterclockwise to

remove it.












Installation

Follow the removal procedure in the reverse order to install the
front map light.
Pay close attention to the important points mentioned in the
following paragraphs.







Bulb

Be absolutely sure that the front map light bulb is correctly
installed.
This will prevent a poor contact and an open circuit.




ELECTRICAL-BODY AND CHASSIS  8A-263

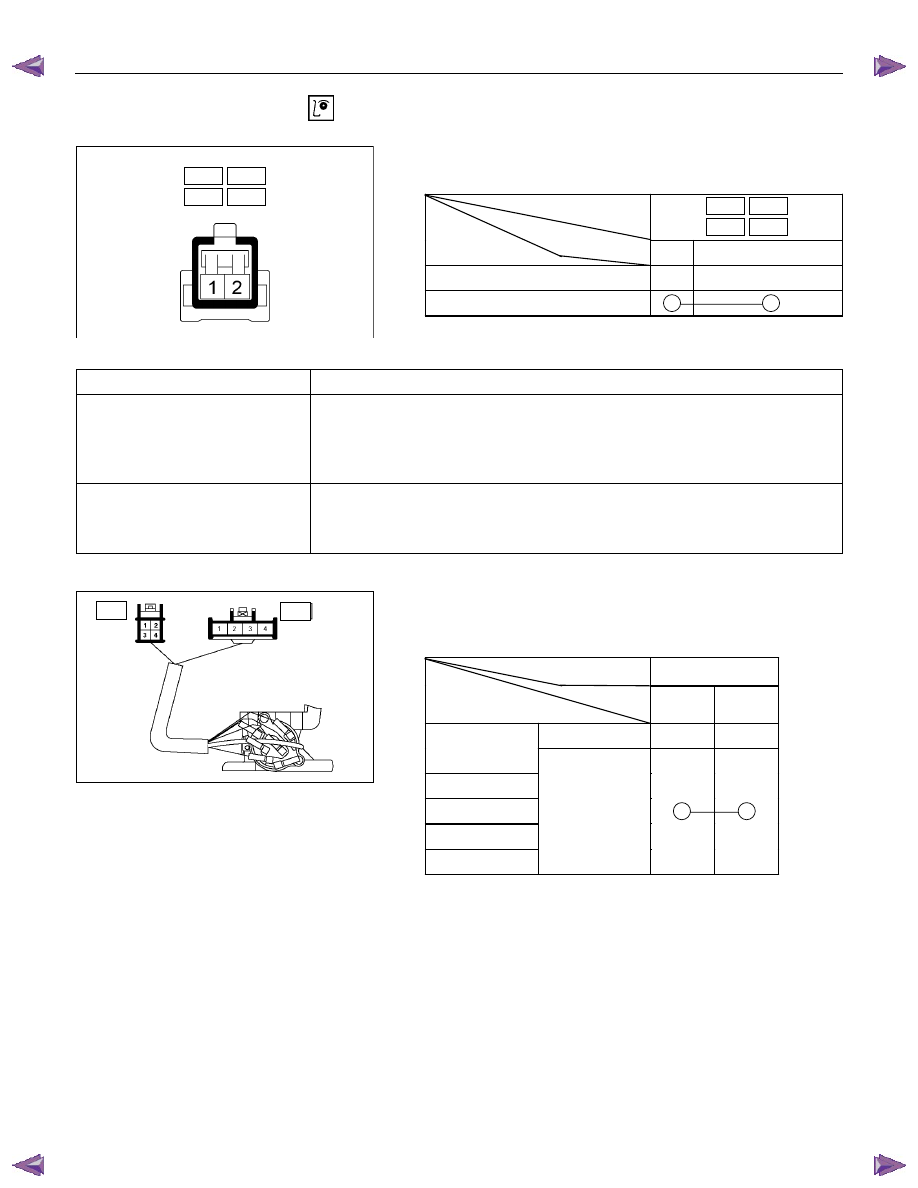

  INSPECTION AND REPAIR









R9



R10





R1



R6














DOOR SWITCH

Door Switch Connections



Connector

SW

No.



R9



R10





R1



R6



position Terminal

No.

1 Body

Ground

PUSHED



RELEASED







Warning function

Operational conditions

Key left in starter switch

The buzzer sounds when both the key remind switch and the front door

switch-driver side are turned on.

To stop the sound of the buzzer, turn OFF the starter switch and remove the

key from the starter switch.

Lighting switch left on

The buzzer sounds when the starter switch is turned from the “ON” to “OFF”

position while the lighting switch is ON position.

To stop the sound of the buzzer, turn OFF the lighting switch.




B62

B63






KEY REMIND SWITCH (STARTER

SWITCH)

Switch Connections



Connector No.

B63

Starter  Terminal

switch key position

No.

2 4

 Removed









OFF



ACC Inserted



ON



START





LOCK






8A-264  ELECTRICAL-BODY AND CHASSIS

WINDSHIELD WIPER AND WASHER

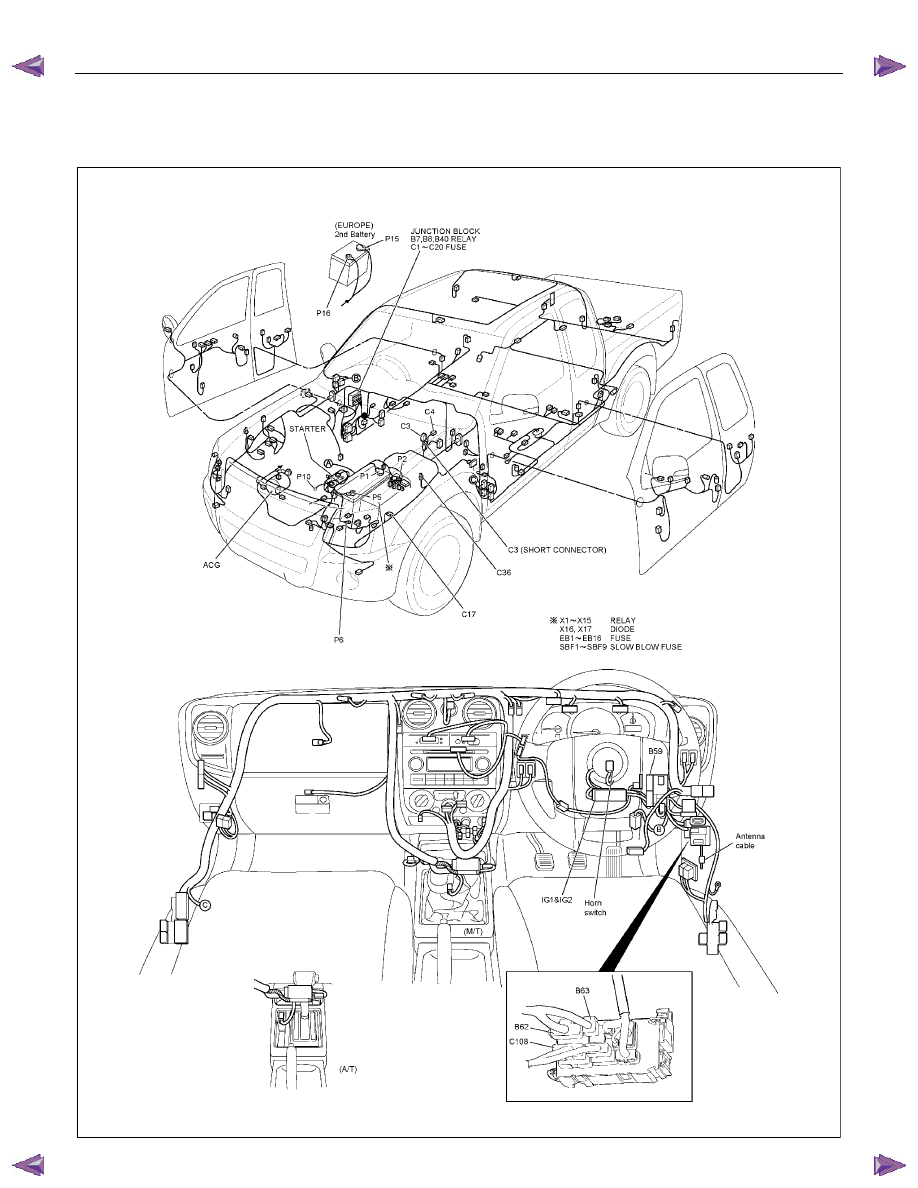

PARTS LOCATION (RHD)


















RTW78AXF038101 & RTW78AXF044301

ELECTRICAL-BODY AND CHASSIS  8A-265

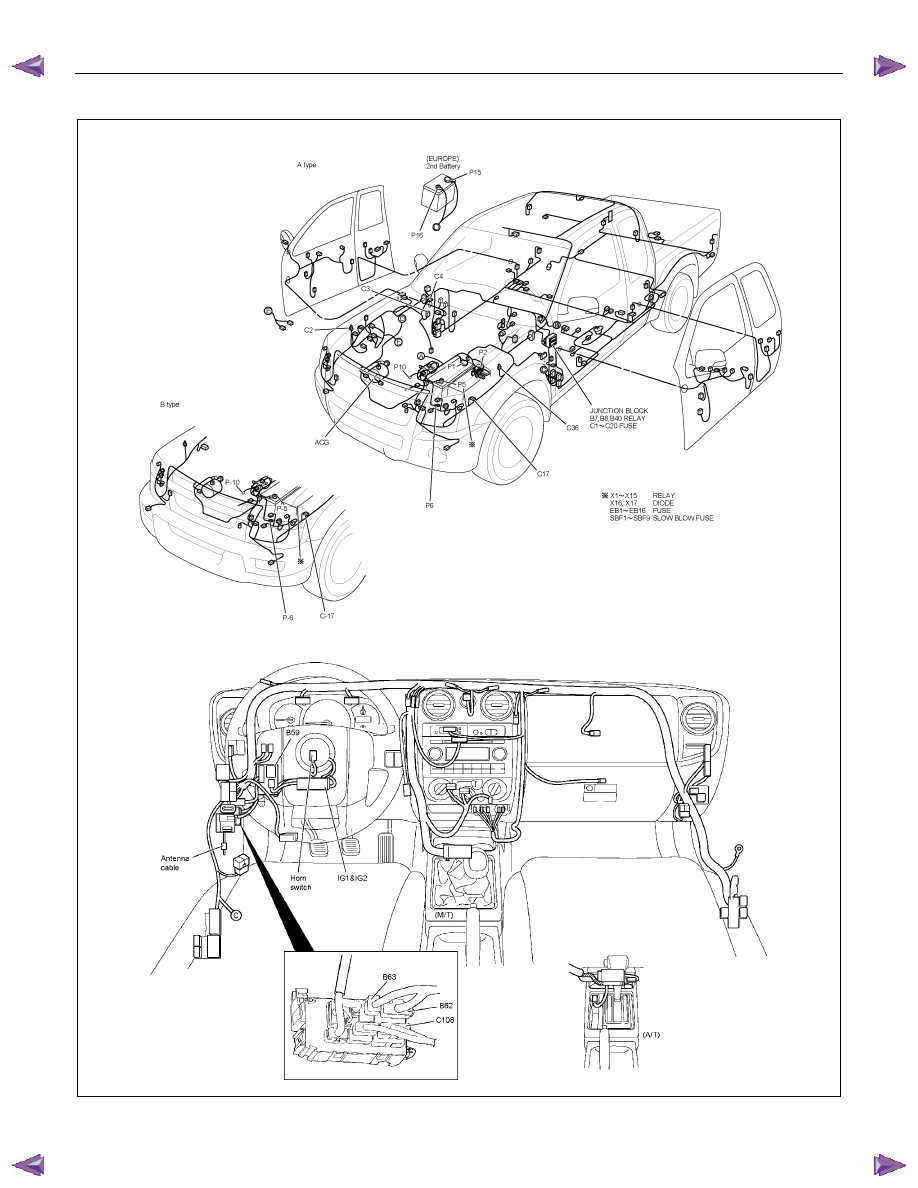

PARTS LOCATION (LHD)















RTW78AXF038201 & RTW78AXF044401
