FUEL GAUGE UNIT AND SENDER

ASSEMBLY

Removal

1.  Remove the fuel gauge unit and sender assembly.



Refer to the “ENGINE FUEL” Section 6C of this Manual.









Installation

To install the fuel gauge unit and sender assembly, follow the
removal procedure in reverse order.
Pay close attention to the important points mentioned in the
following paragraphs.







Rubber Seal

Be absolutely sure that the fuel sender rubber seals are
correctly seated.


Connector

Be absolutely sure that the fuel gauge unit connector is
securely connected.
This will prevent a poor contact and an open circuit.





ELECTRICAL-BODY AND CHASSIS  8A-143

EXHAUST GAS RECIRCULATION (EGR) & GLOW; 4JA1T (L) ONLY

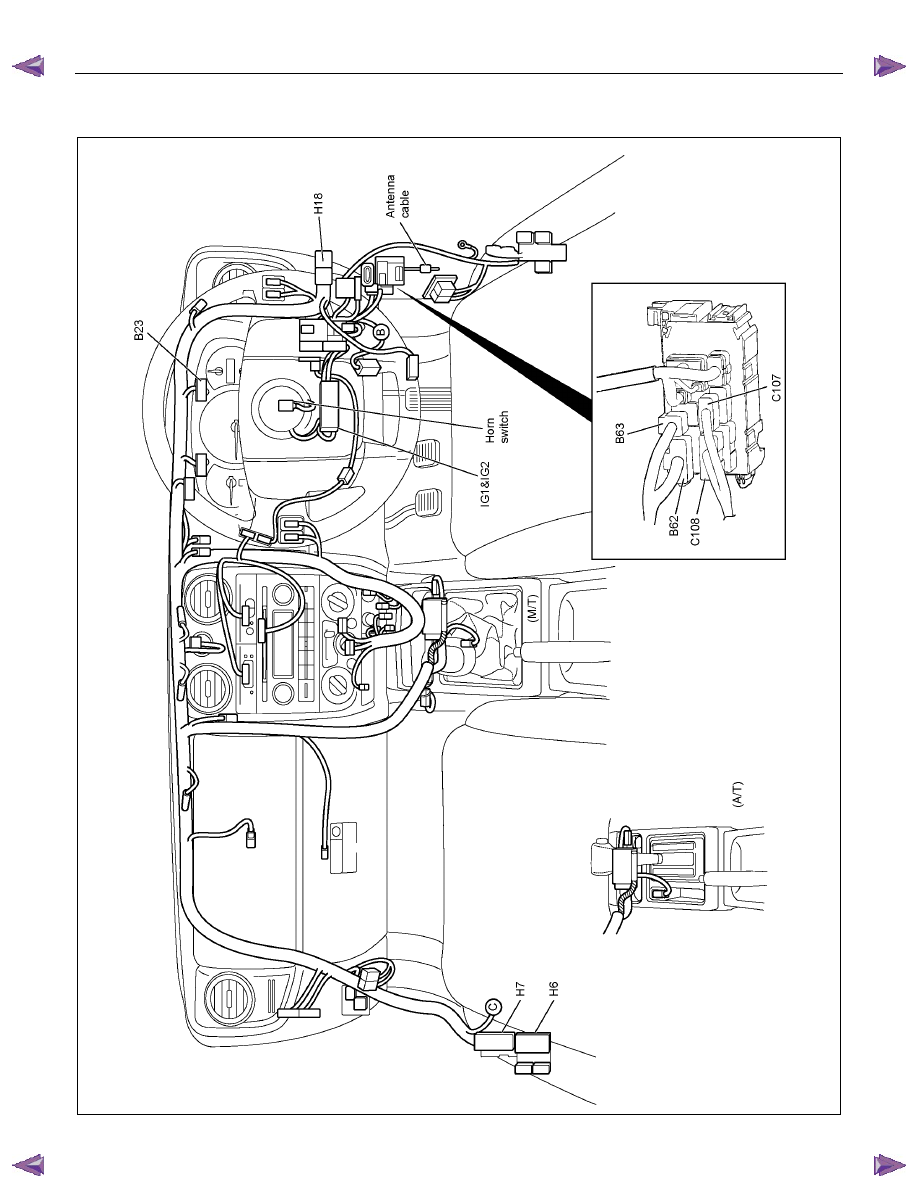

PARTS LOCATION (RHD)
















RTW78AXF036501 & RTW78AMF001101

8A-144  ELECTRICAL-BODY AND CHASSIS

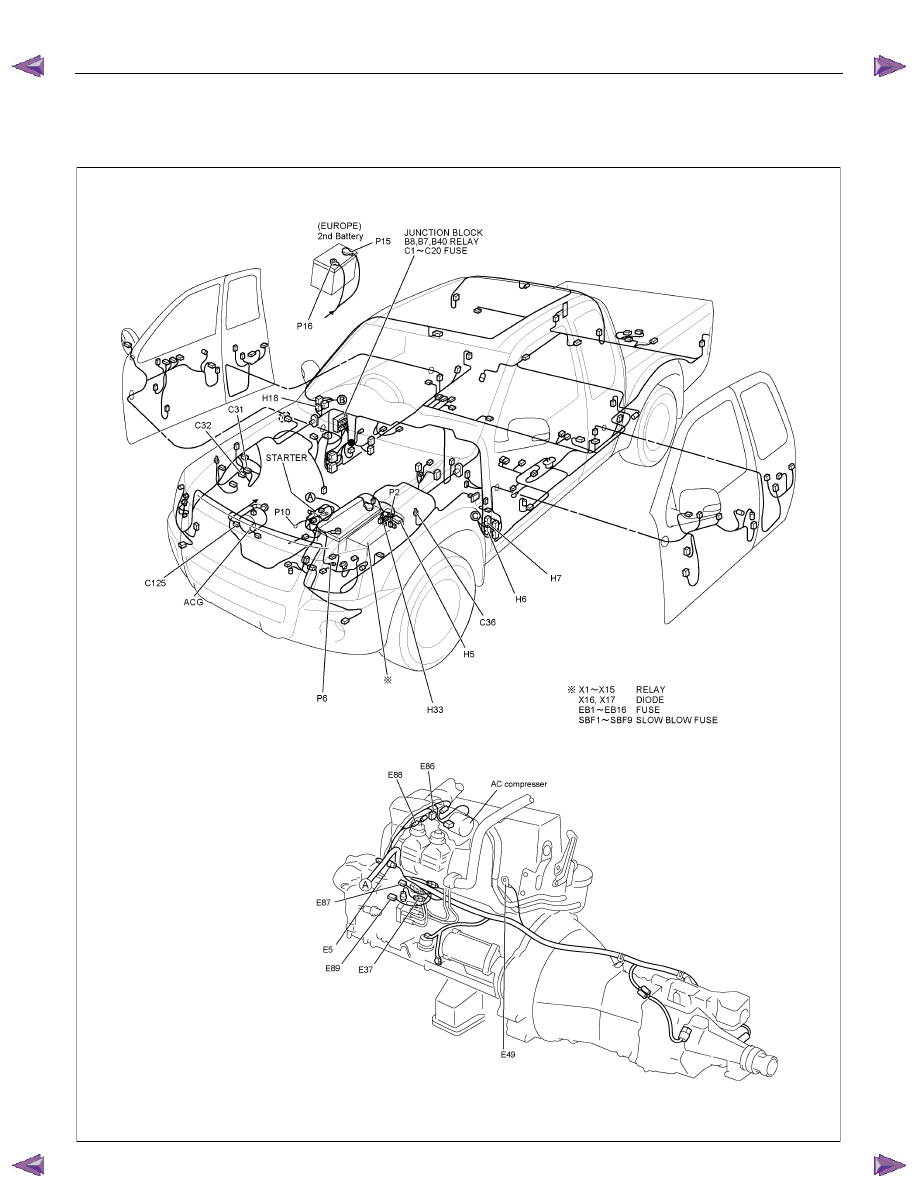

PARTS LOCATION (RHD)









RTW78AXF042701

ELECTRICAL-BODY AND CHASSIS  8A-145

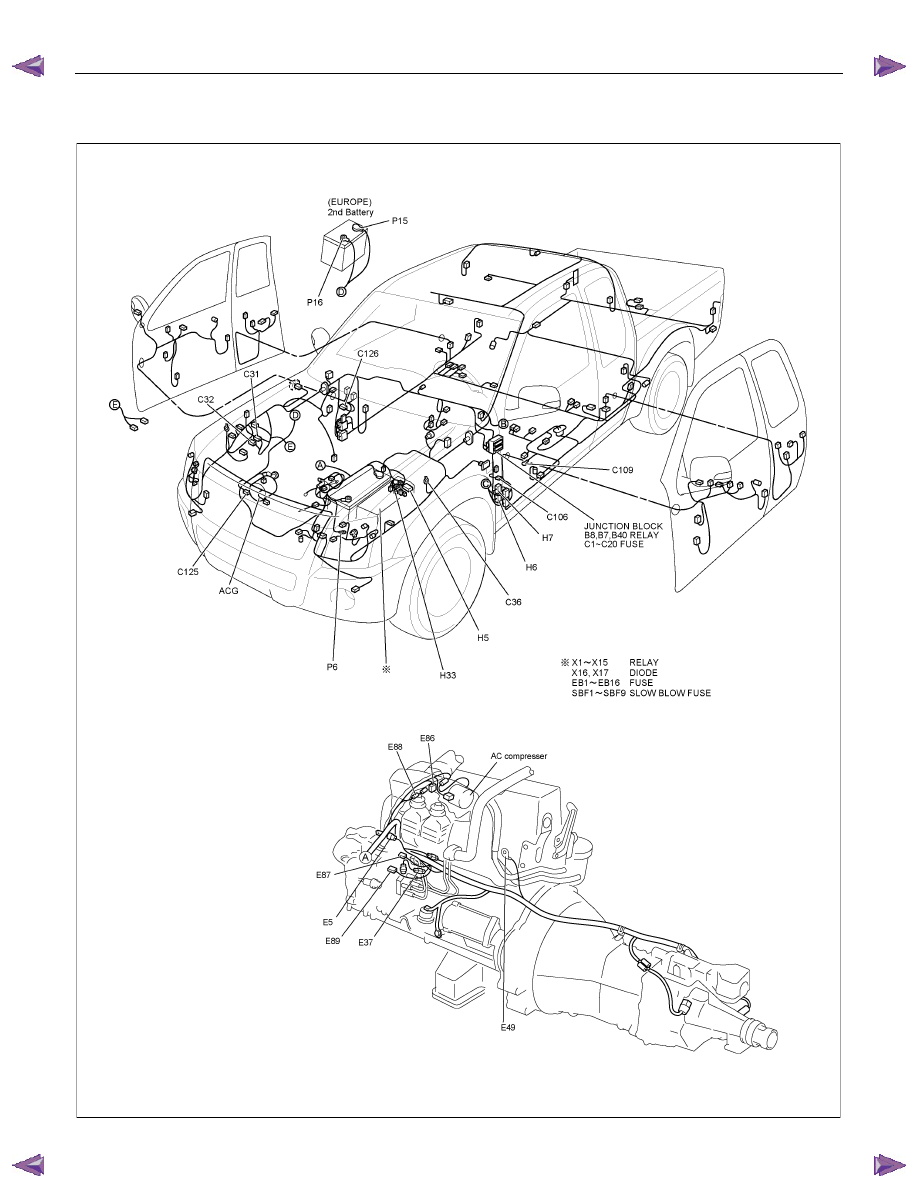

PARTS LOCATION (LHD)
















RTW78AXF036601 & RTW78AMF001101
