4C1-4  FRONT WHEEL DRIVE

SPECIAL PARTS FIXING NUTS AND BOLTS

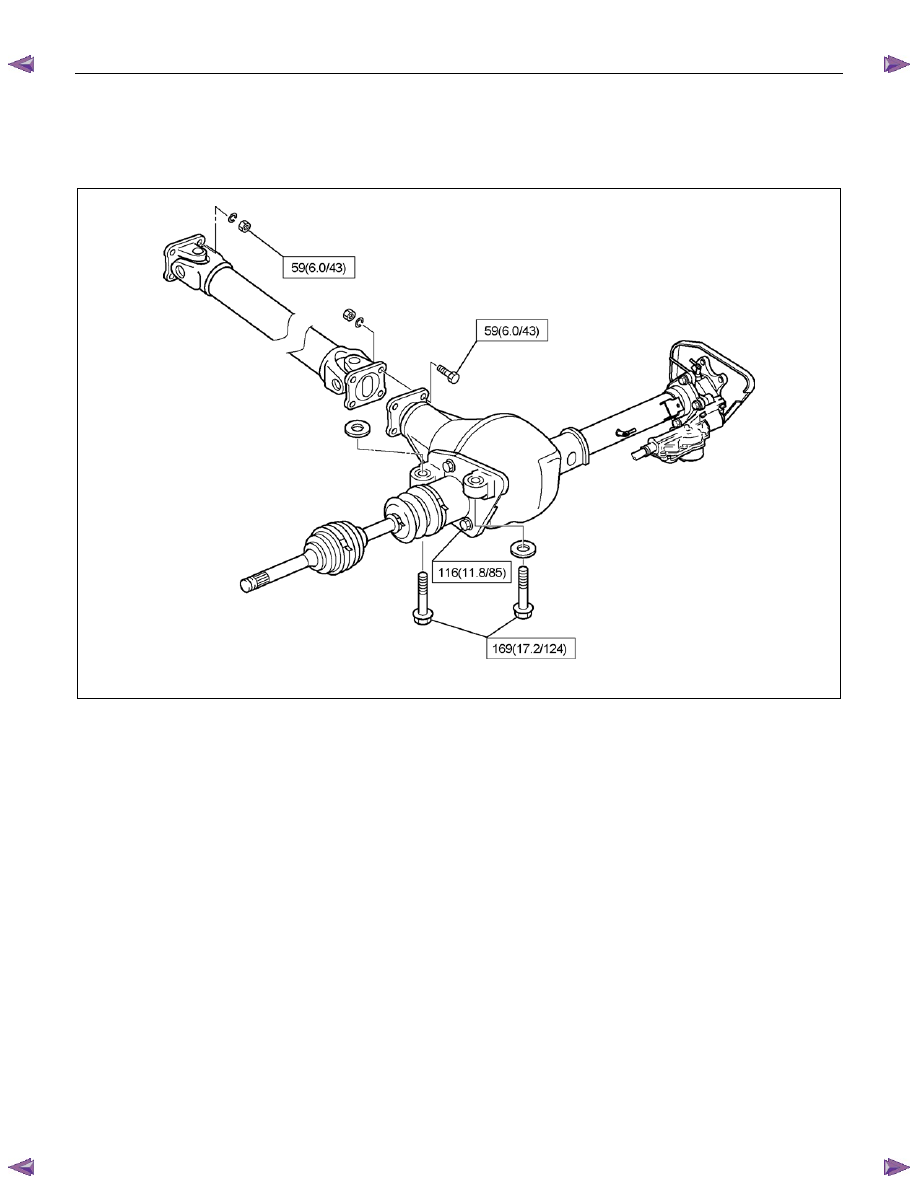

FRONT DRIVE AXLE AND PROPELLER SHAFT

N

⋅m (kgf⋅m/lb⋅ft)







RTW74CMF000101

FRONT WHEEL DRIVE  4C1-5

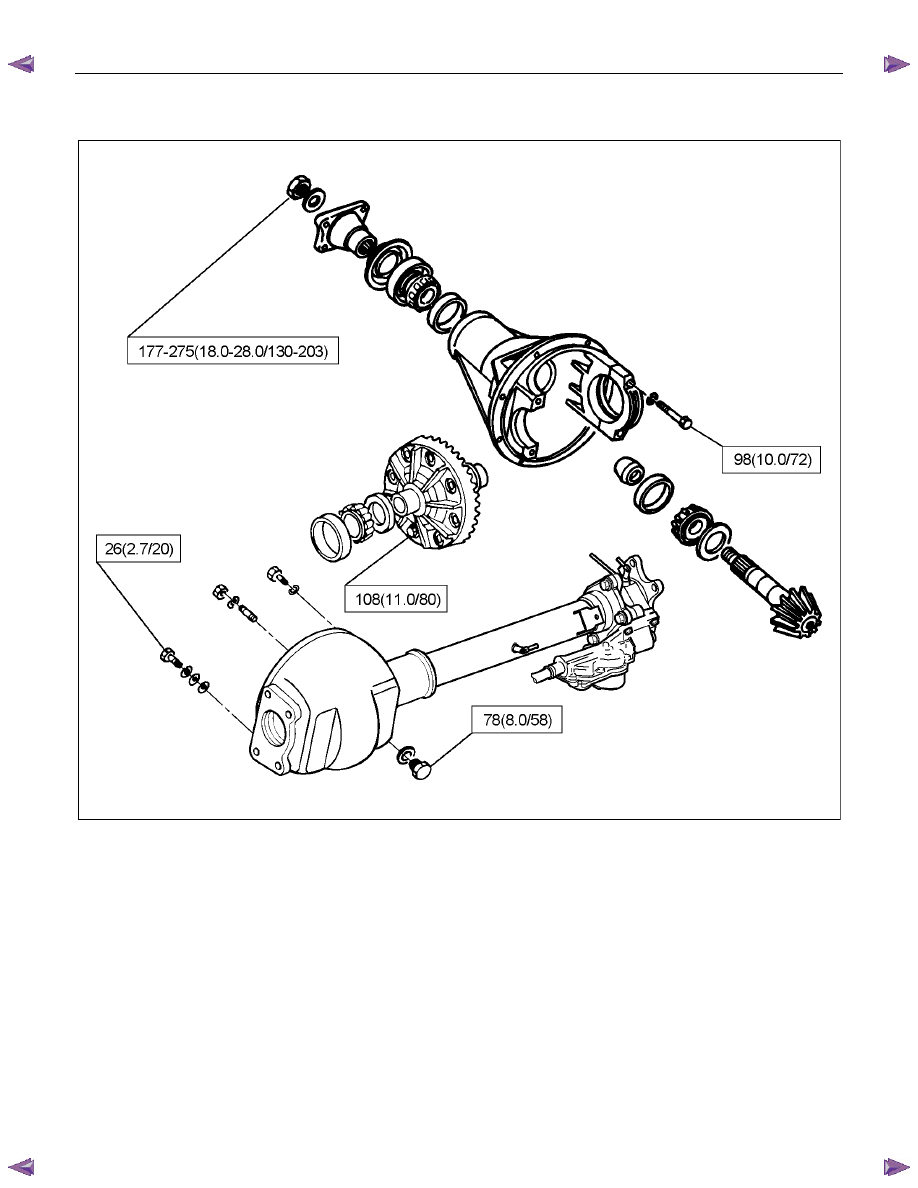

FRONT DIFFERENTIAL

N

⋅m (kgf⋅m/lb⋅ft)










RTW440LF000901



4C1-6  FRONT WHEEL DRIVE



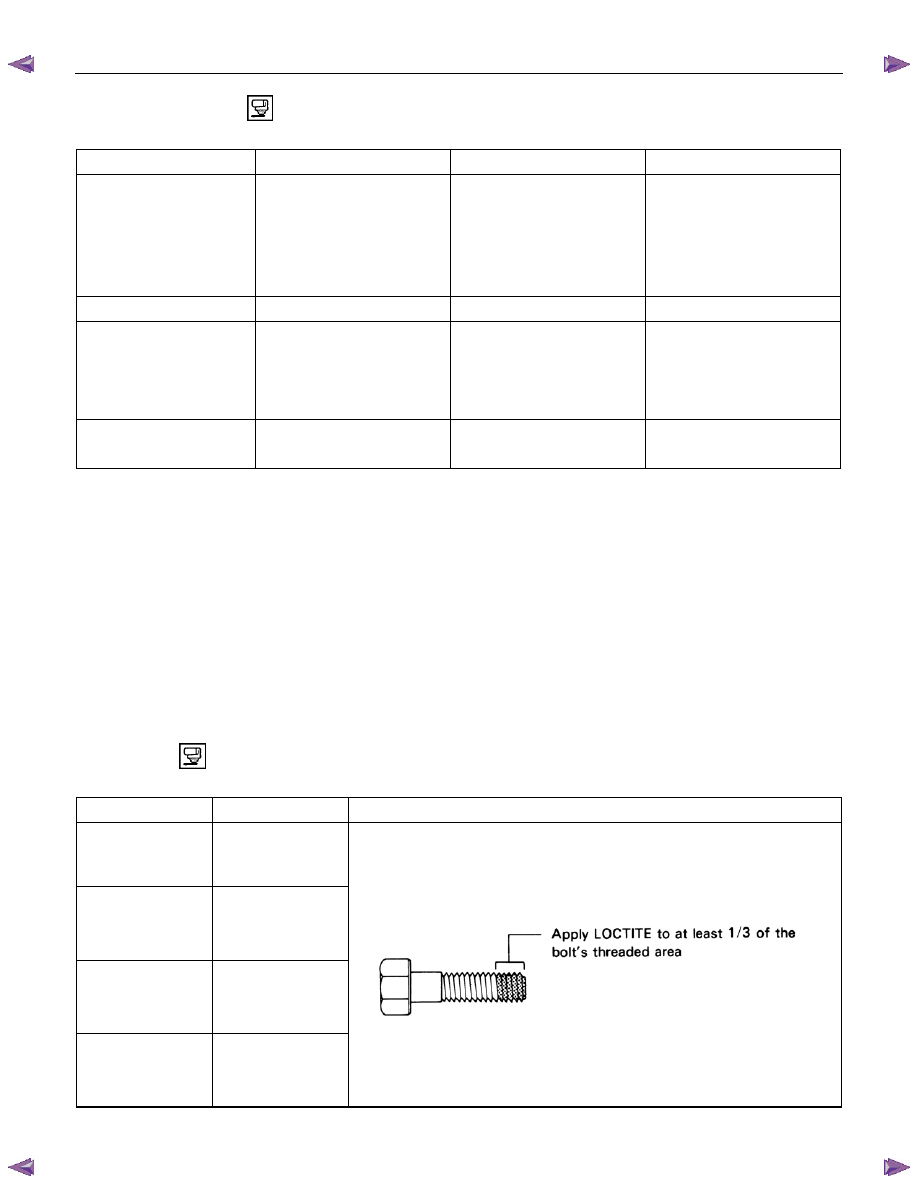

RECOMMENDED LIQUID GASKET





Type Brand

Name

Manufacture Remarks



RTV*

Silicon Base

ThreeBond 1207B

ThreeBond 1207C



ThreeBond 1215



Three Bond

Three Bond



Three Bond



For Engine Repairs





For Axle Case

Repairs, T/M

Water Base

ThreeBond 1141E

Three Bond

For Engine Repairs



Solvent

ThreeBond 1104

BelcoBond 4

BelcoBond 401

BelcoBond 402

Three bond

Isuzu

Isuzu

Isuzu



For Engine Repairs

Anaerobic

LOCTITE 515

LOCTITE 518

Loctite

Loctite

All

* RTV : Room Temperature Vulcanizer



Note :

1.  It is very important that the liquid gaskets listed above or their exact equivalent be used on the vehicle.

2.  Be careful to use the specified amount of liquid gasket.

Follow the manufacture's instructions at all times.

3.  Be absolutely sure to remove all lubricants and moisture from the connecting surfaces before applying

the liquid gasket.



The connecting surfaces must be perfectly dry.

4.  LOCTITE 515 and LOCTITE 518 harden upon contact with a metal surface.



Do not apply LOCTITE 515 or LOCTITE 518 between two metal surfaces having a clearance of greater

than 0.25 mm (0.01 in). Poor adhesion will result.





RECOMMENDED THREAD LOCKING AGENTS





LOCTITE Type

LOCTITE Color

Application Steps



LOCTITE 242



Blue

1.  Completely remove all lubricant and moisture from the bolts and

the female threaded surfaces of the parts to be joined.



The surfaces must be perfectly dry.



LOCTITE 262





Red

2.  Apply LOCTITE to the bolts.





LOCTITE 270





Green





LOCTITE 271





Red



3.  Tighten the bolts to the specified torque.

4.  Wait at least on hour before continuing the installation procedure.



FRONT WHEEL DRIVE  4C1-7

SERVICING









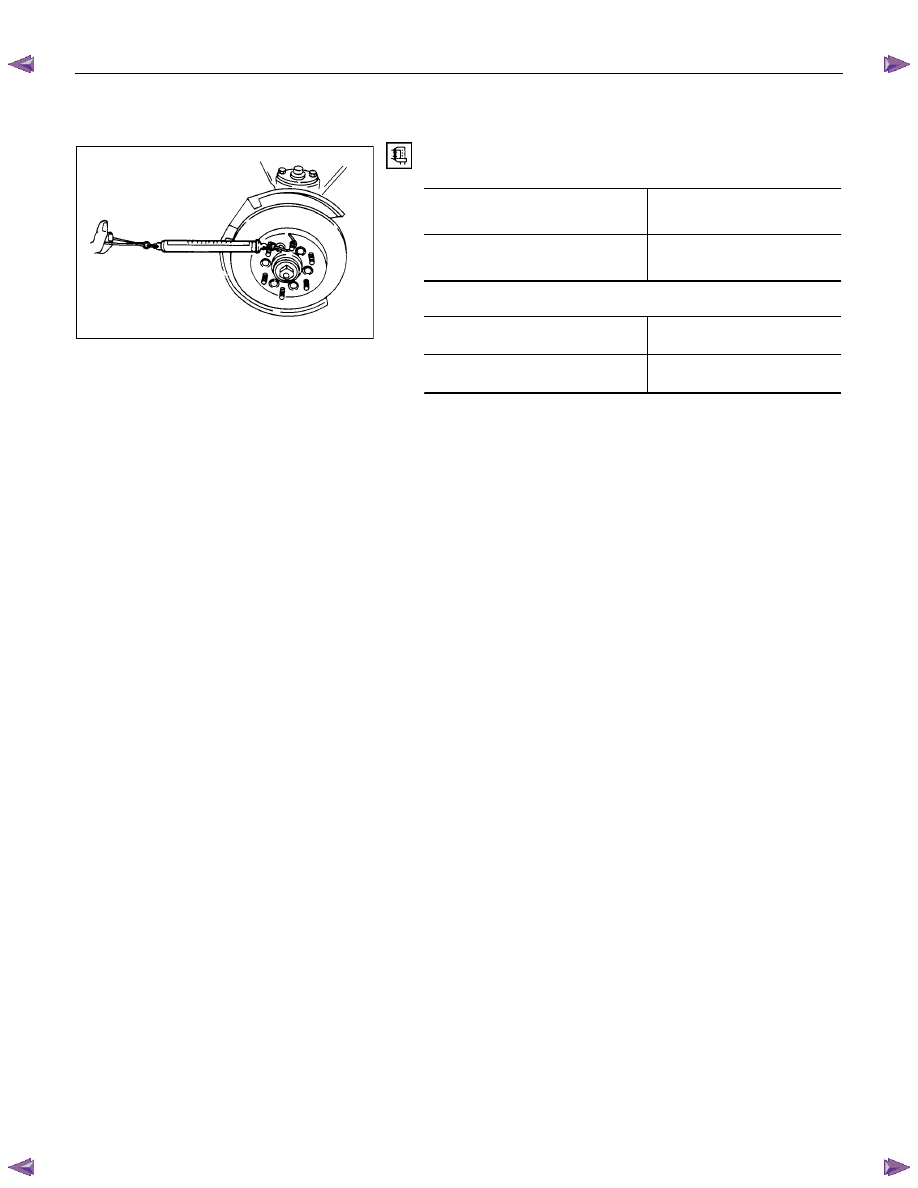

Hub Bearing Preload at the Wheel Pin

4×4, 4×2 (High Ride Suspension) Model

N (kgf/lb)



New bearing and New oil seal

22 - 27

(2.2 - 2.8 / 4.9 - 6.2)

Reuse bearing and New oil seal

14 - 20

(1.4 - 2.0 / 3.1 - 4.5)

4×2 (Except High Ride Suspension) Model

N (kgf/lb)



New bearing and New oil seal

9.3 - 13.3

(0.95 - 1.36 / 2.09 – 3.00)

Reuse bearing and New oil seal

9.3 - 13.3

(0.95 - 1.36 / 2.09 – 3.00)
