Isuzu KB P190. Manual - part 1252

8A-70  ELECTRICAL-BODY AND CHASSIS

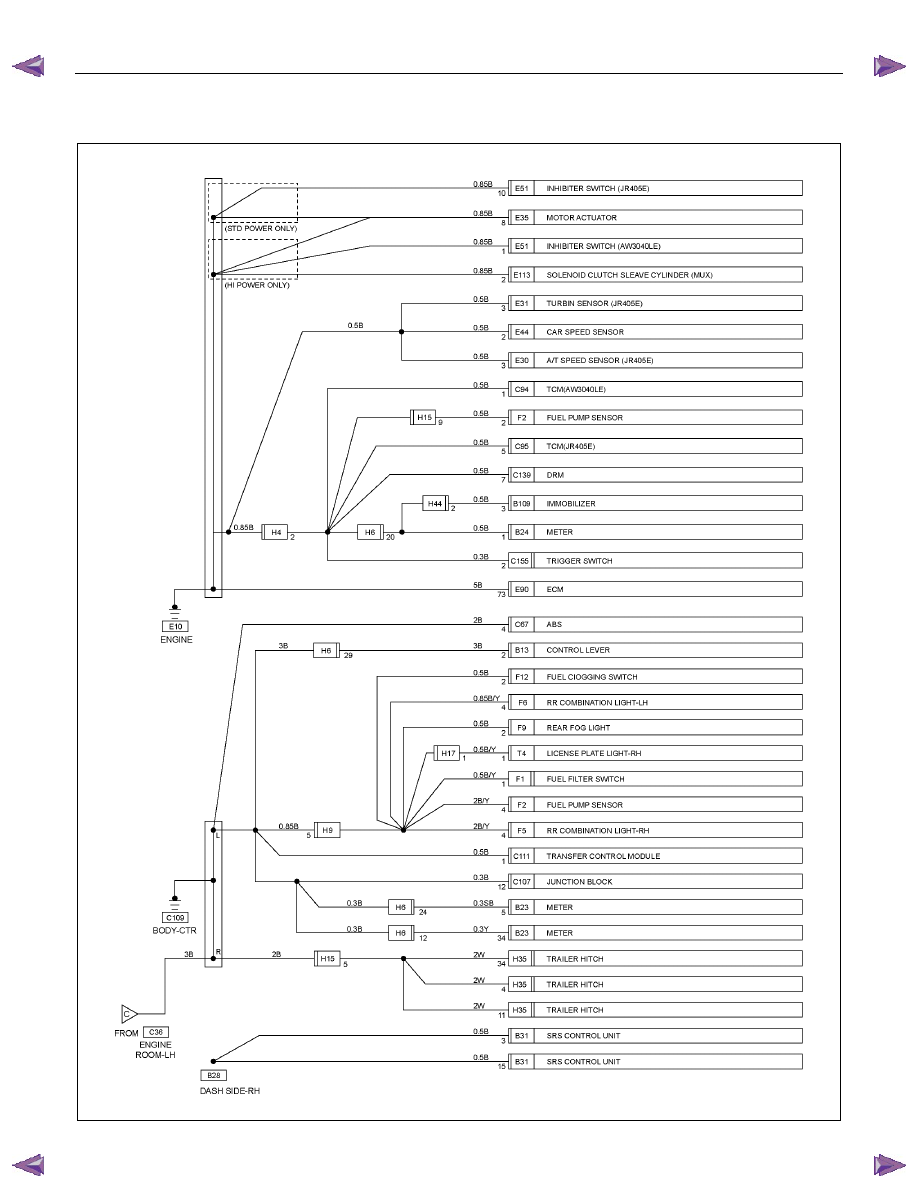

GROUND POINT 4JJ1-TC/4JK1-TC (LHD) G.EXP

 Sheet

2/4














RTW78AXF029401

ELECTRICAL-BODY AND CHASSIS  8A-71

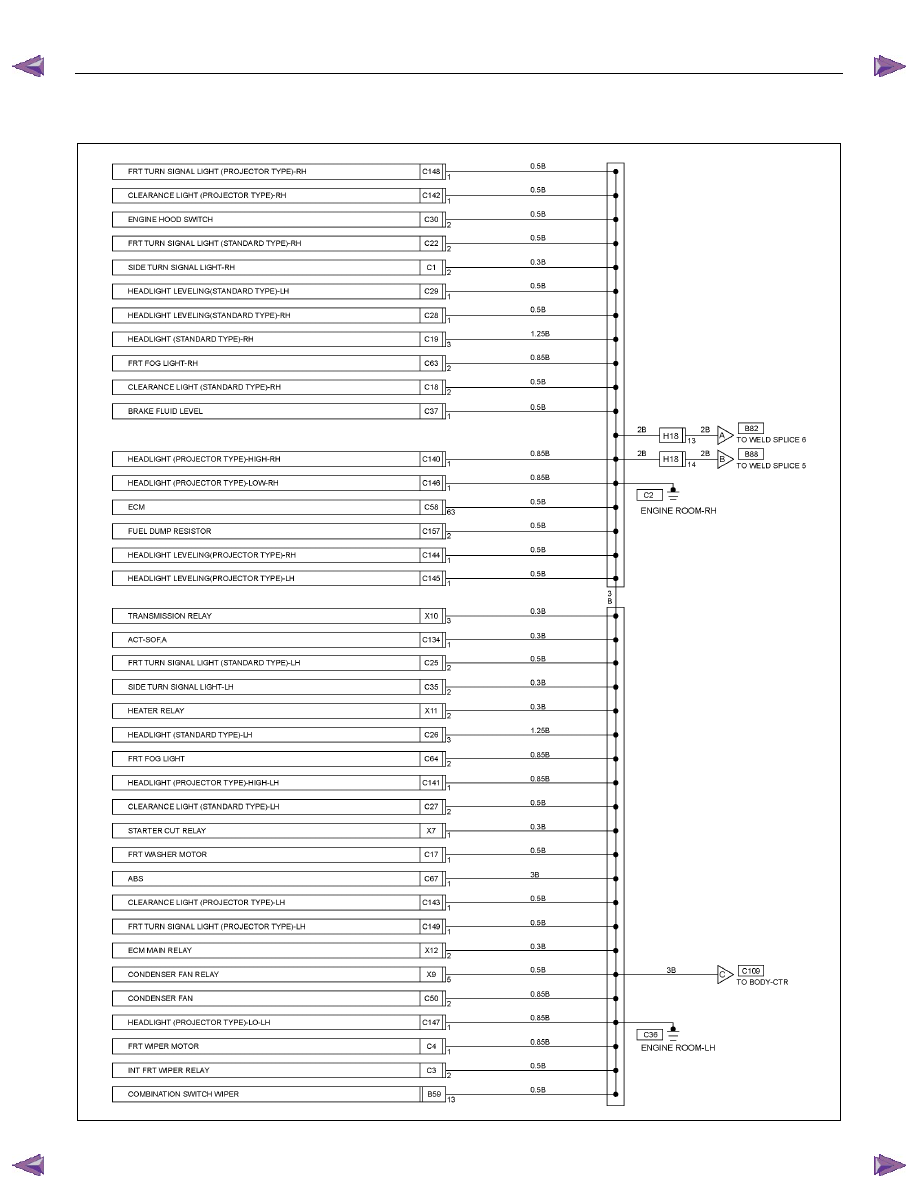

GROUND POINT 4JJ1-TC/4JK1-TC (LHD) G.EXP

 Sheet

3/4
















RTW78AXF029501

8A-72  ELECTRICAL-BODY AND CHASSIS

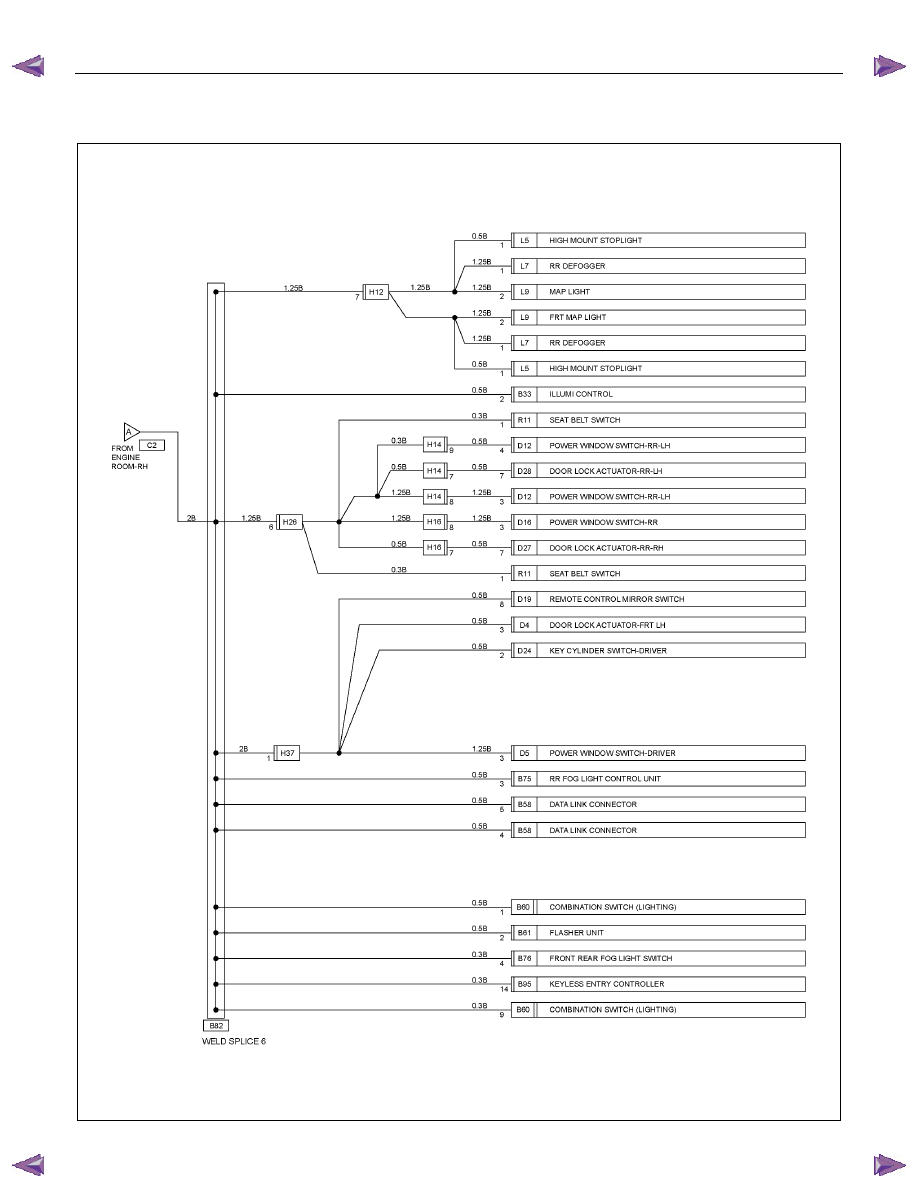

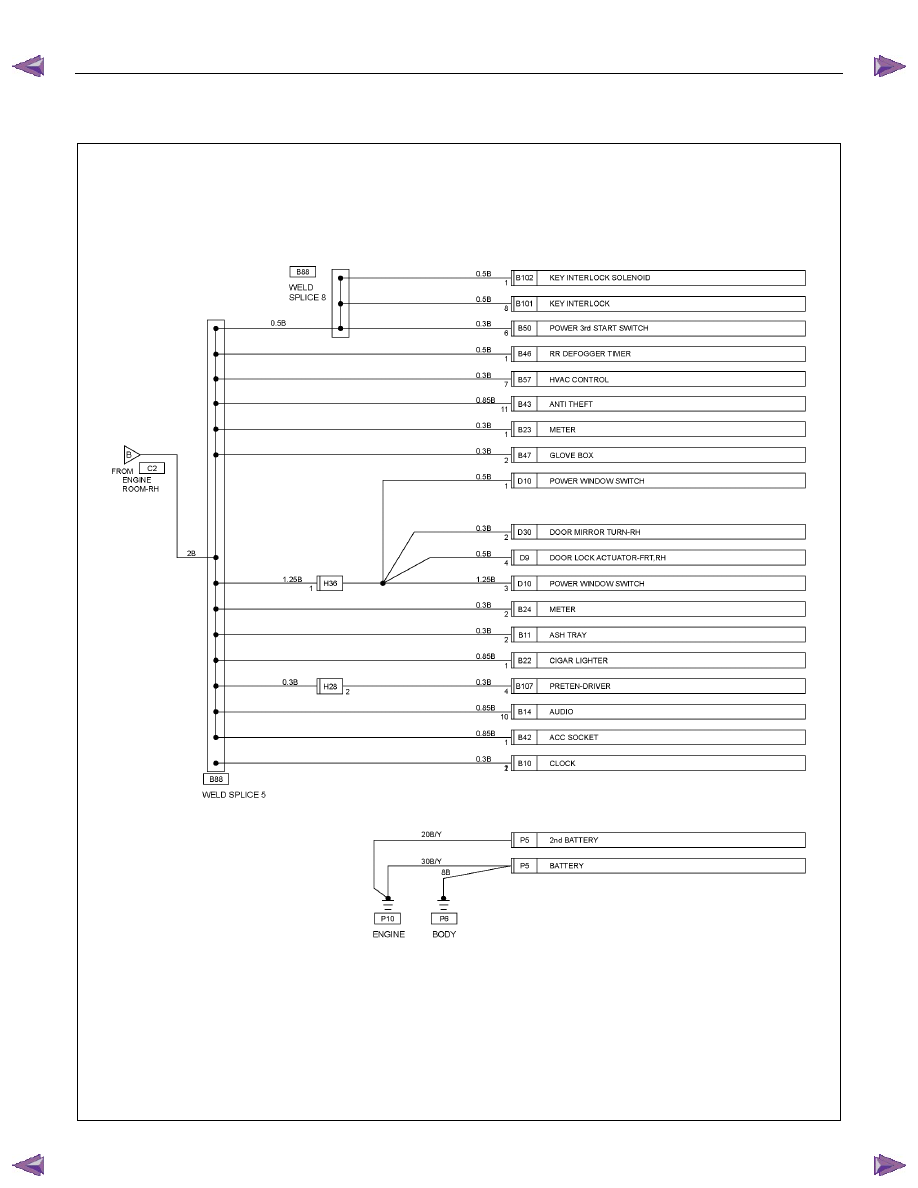

GROUND POINT 4JJ1-TC/4JK1-TC (LHD) G.EXP

 Sheet

4/4











RTW78AXF029601

ELECTRICAL-BODY AND CHASSIS  8A-73



GROUND POINT 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA

 Sheet

1/4










RTW78AXF035101
