Isuzu KB P190. Manual - part 1220





7D1-6  TRANSFER CONTROL SYSTEM

the 4

×2 - 4×4 shift rod. When moving in 4×2 direction, a spring

standby mechanism is provided between the rod and sleeve so
that the rod is positioned at the 4

×2 position, while the sleeve is

at the 4

×4 position.

This mechanism is provided to protect the shift mechanism
from the force and to prevent movement of the sleeve
(torsional torque etc. of the drive system). By releasing the
preventive force, the sleeve can move to the 4

×2 state by the

spring force.

Neutral switch
The neutral switch detects the movement of the shift rod
driving the high-low sleeve.
PUSH close is achieved with the PUSH close switch when the
shift rod is positioned between the High and the Low, at the
neutral state.

High-Low Sleeve & Arm
The spring standby mechanism is provided for the high-low
sleeve in both directions of the high-low shift rod. Therefore,
the rod position and the actual sleeve position may be offset in
some cases.
This system is provided to protect the shift mechanism from a
collision due to coincidence of the high and low phases of the
engaged splines. By giving rotational force to the preventing
phase coincidence, the splines are moved to the proper
engagement position by the spring force.

Shift actuator
The output shaft is rotated by the built-in motor and the transfer
position is switched.
Detection (limit) switches to detect the rotating angle of the
output shaft that is provided to the actuator at 4 positions.
These are connected to the transfer controller through the
vehicle harness to constantly transmit the actuator operating
angle and changes in its transfer status.


7B4-PDF2

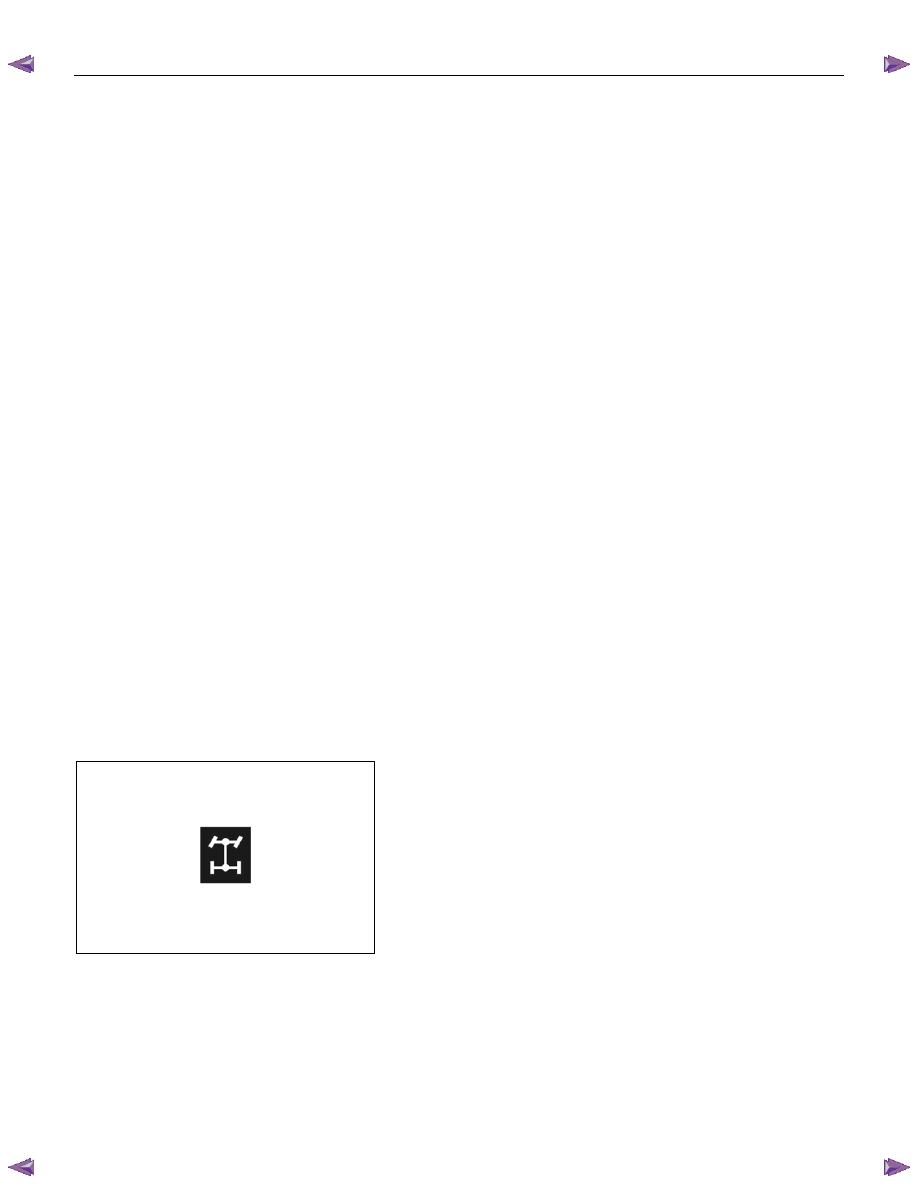

4WD indicator (in meter panel)
This lamp indicates the following items:
Valve check
Drive condition (2WD-4WD)
Operating condition (2Hz: Actuator in operation, mechanism
standby)
Restrictions on operation (4Hz, including indication of
interrupted operation due
to excessive load)

TRANSFER CONTROL SYSTEM  7D1-7

7B4-PDF3

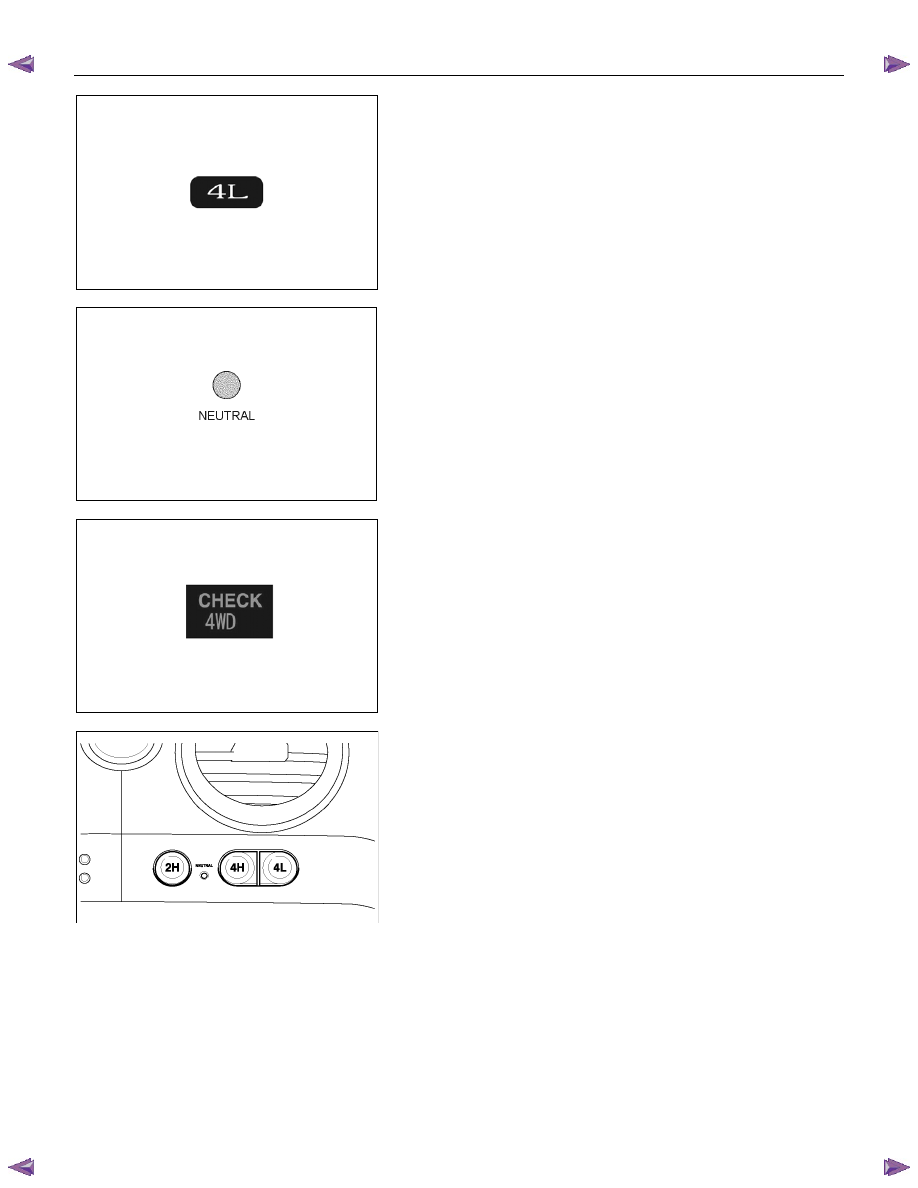

4L indicator (in meter panel)
This lamp indicates following items:
Valve check
Driving status (High-Low)
Operating status (2Hz: Actuator in operation, mechanism
standby)
Restrictions on operation (4Hz)















RTW77DSH000601



Neutral indicator (in operation switch panel)
This LED indicates following items:
LED check
Driving status (Neutral)
Operating status (2Hz: Actuator in operation, mechanism
standby)
Restrictions on operation (4Hz)

7B4-PDF5



Check 4WD warning light (in meter panel)
This light indicates following items:
Valve check
Faulty actuator limit SW, and circuit related faults with the limit
switch







RTW77DSH000501



4WD switch
Switch to transmit a switching command to the 2H, 4H,
Neutral, or 4L position.
It comprises 3 PUSH momentary switches. By pushing the 2H
and 4L switches for 10 seconds,
operation is changed to the neutral position.
To shift from the neutral to another position, push another
switch for 10 seconds.




7D1-8  TRANSFER CONTROL SYSTEM

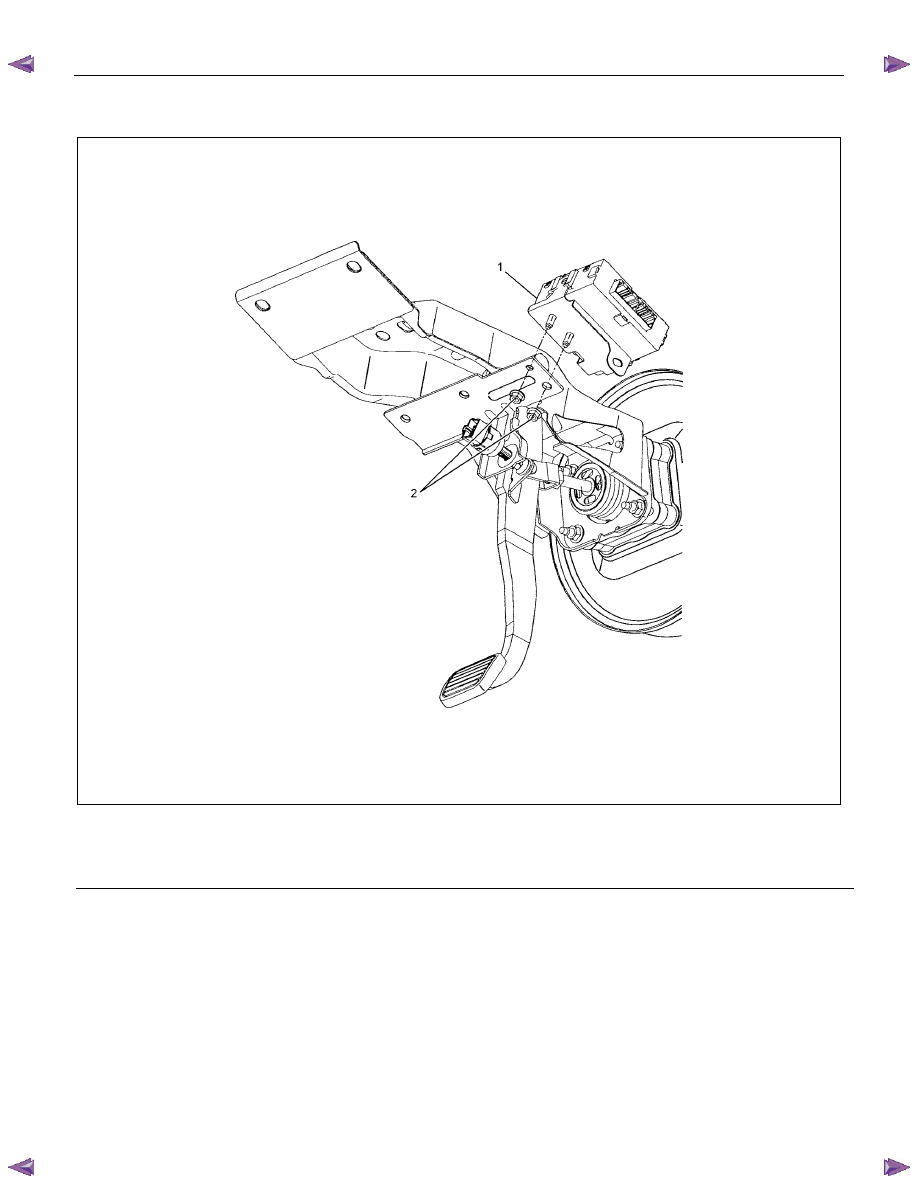

Transfer controller

RHD













RTW77DMF000101

Legend





(1) Transfer Controller





(2) Nut








TRANSFER CONTROL SYSTEM  7D1-9

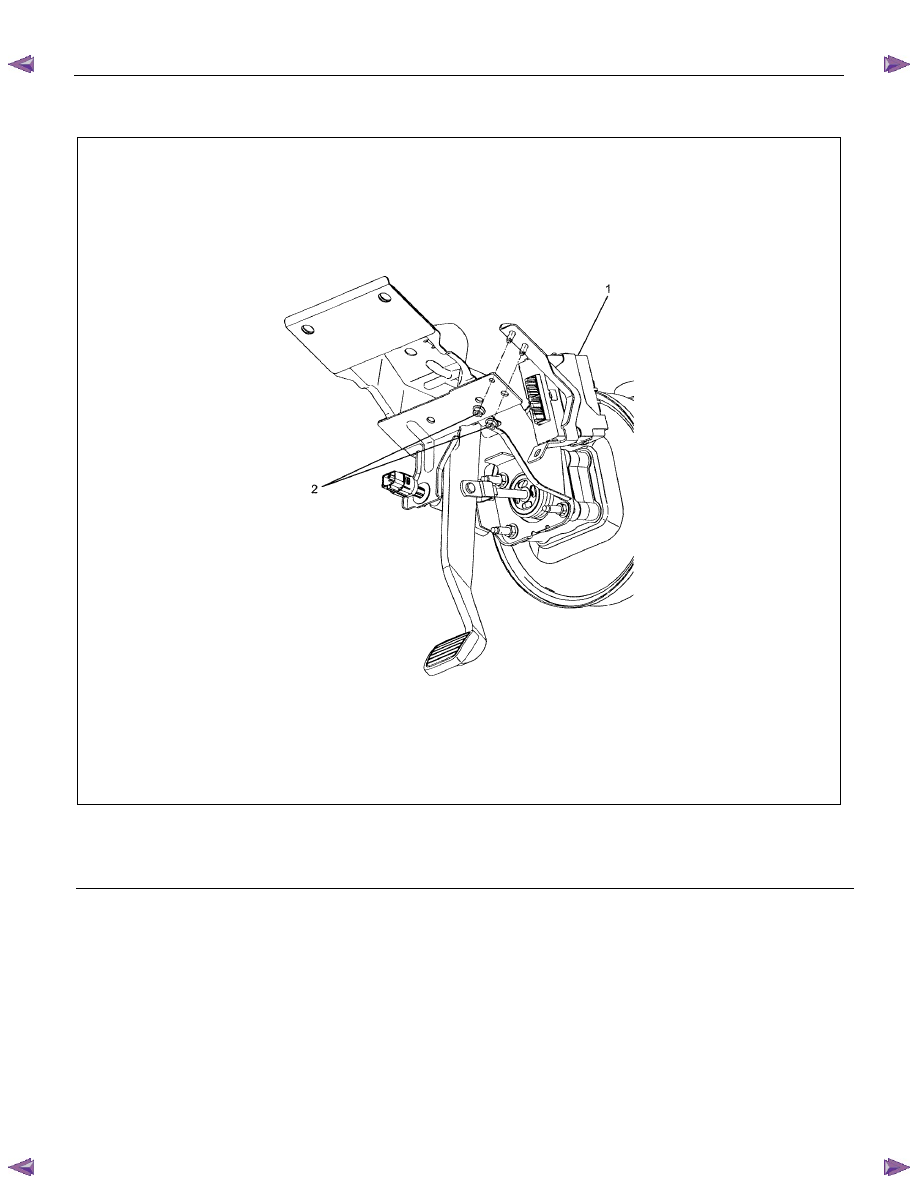

LHD















RUW77DMF000101

Legend





(1) Transfer Control Unit





(2) Nut
