Isuzu KB P190. Manual - part 1172





7B1-82     MANUAL TRANSMISSION

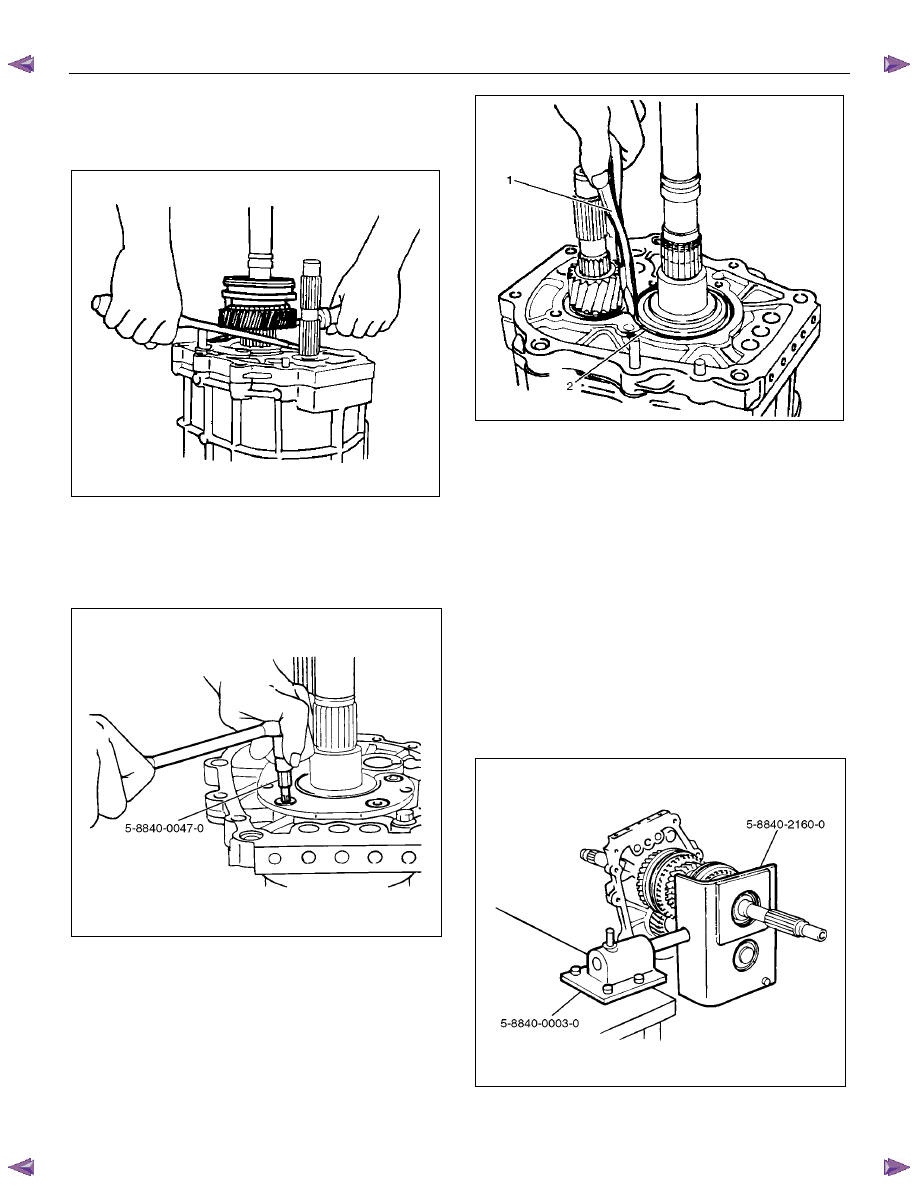

 13. Use screw drivers between the reverse gear and the

bearing plate to remove the Rev-5th synchronizer
assembly together with the reverse block ring and
reverse gear.



226RS010

14. Remove the needle bearing.



15. Use the torx bit wrench (T- 45) 5-8840-0047-0 to

remove the bearing plate and screw from the
intermediate plate.



220RW137

16. Use the snap ring pliers (1) to remove the mainshaft

bearing snap ring (2).







226RS011

 17. Hold the snap ring open with the pliers.

Push the intermediate plate toward the rear of the
transmission to remove it.

The bearing snap ring will come free.



Inspection and Repair

Refer to Top Gear Shaft, Main Gear Shaft, and Counter
Gear in this section for inspection and repair.



Reassembly

  1. Mesh the counter gear with the mainshaft assembly.

Set the holding fixture 5-8840-2160-0 to the
mainshaft and the counter gear and then install it on
the base 5-8840-0003-0.

Install the intermediate plate on the gear assembly.

226RW212





MANUAL TRANSMISSION     7B1-83

  2. Install the bearing snap ring.

 3. Apply recommended thread locking agents

(LOCTITE 242) or equivalent to each of the bearing
plate screw threads.

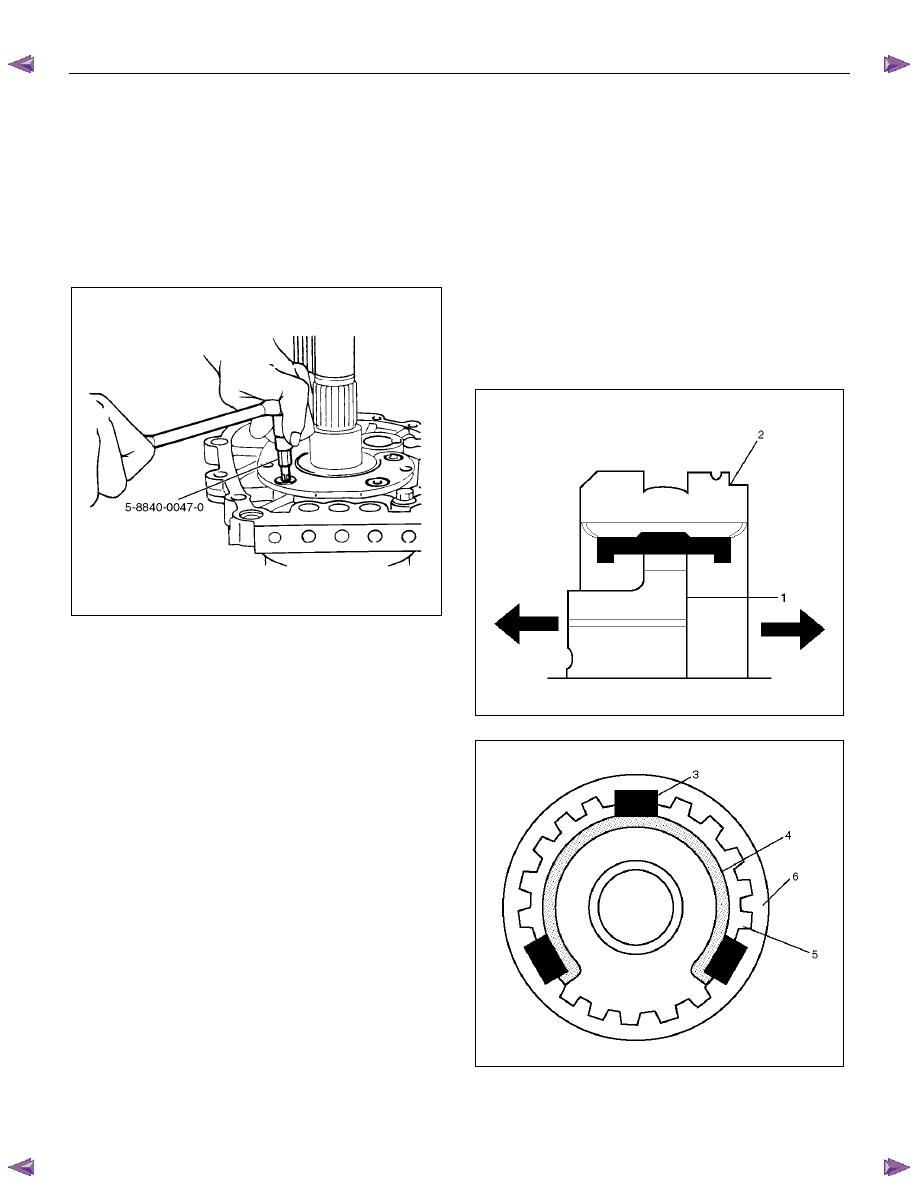

Install the bearing plate and screw.

Tighten the screws to the specified torque by using
torx bit wrench (T- 45) 5-8840-0047-0.

Torque: 15 N

⋅⋅⋅⋅m (1.5 kgf⋅⋅⋅⋅m/11 lb⋅⋅⋅⋅ft)



220RW137

  4. Install the needle bearing, reverse gear and reverse

block ring.



 5. Assemble the rev-5th synchronizer assembly by

performing the following steps.

1.  Turn the clutch hub face (1) toward the sleeve

groove (2) (rear side) on the outer
circumference.

2.  Check that the inserts (3) fit snugly into the

clutch hub (5) ring insert grooves.

3.  Check that the inserts springs (4) are fitted to

the inserts as shown in the illustration.

4.  Check that the clutch hub (5) and the sleeve (6)

slide smoothly.

5. Install the synchronizer assembly to the

mainshaft.

The clutch hub face with the heavy boss must be
facing the reverse gear side.



226RS013



226RS049



7B1-84     MANUAL TRANSMISSION

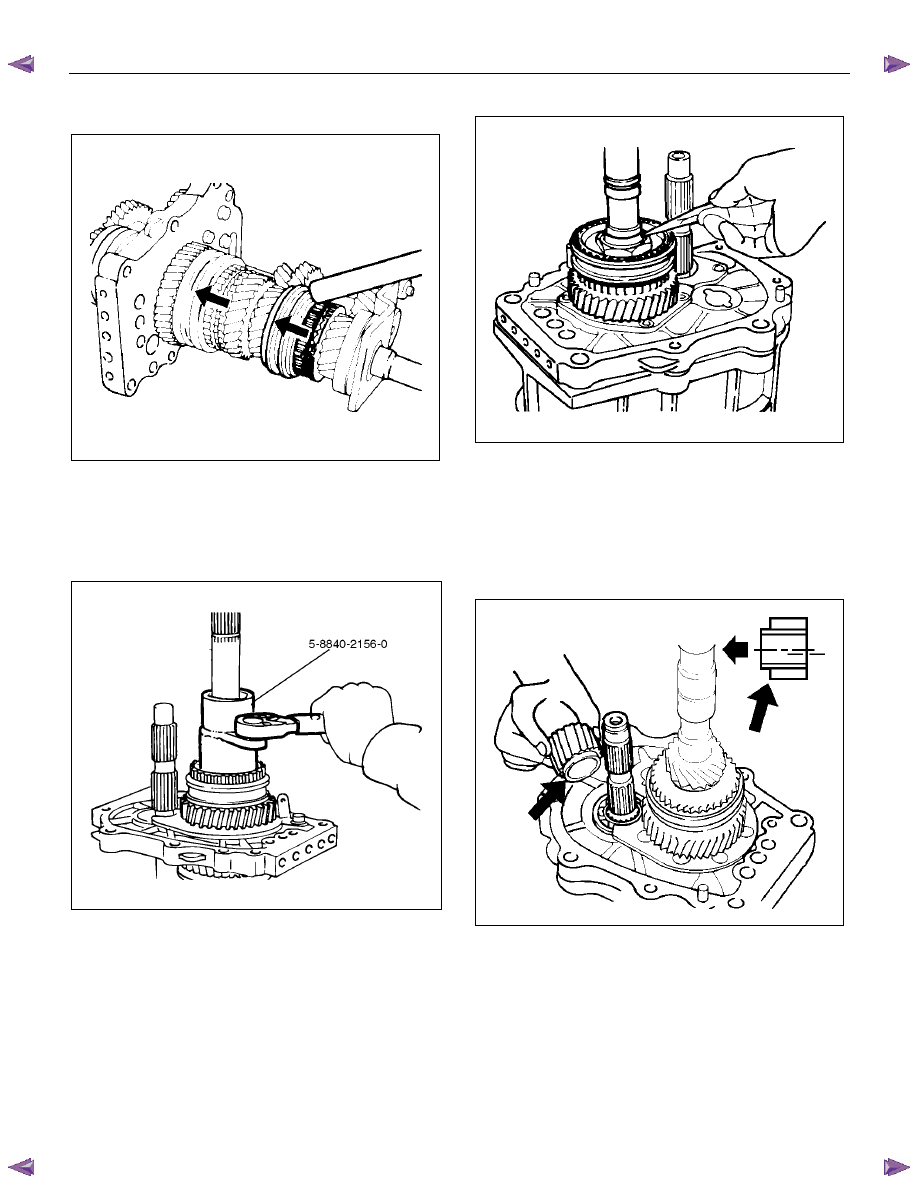

 6. Mesh the 1st-2nd and 3rd-4th synchronizers with

both the 1st and 3rd gears (double engagement).



226RS015

This will prevent the mainshaft from turning.

  7. Install the new mainshaft hub nut.

Use the mainshaft nut wrench 5-8840-2156-0 to
tighten the mainshaft nut to the specified torque.

Torque: 137 N

⋅⋅⋅⋅m (14.0 kgf⋅⋅⋅⋅m/101 lb⋅⋅⋅⋅ft)

226RW214









  8. Use a punch to stake the mainshaft nut.



226RW153

  9. Install the needle bearing, 5th block ring, and 5th

gear.

 10.  Apply engine oil to the counter reverse gear and the

reverse gear.

Install the counter reverse gear to the counter shaft.

The reverse gear projection must be facing the
intermediate plate.



226RW151







MANUAL TRANSMISSION     7B1-85

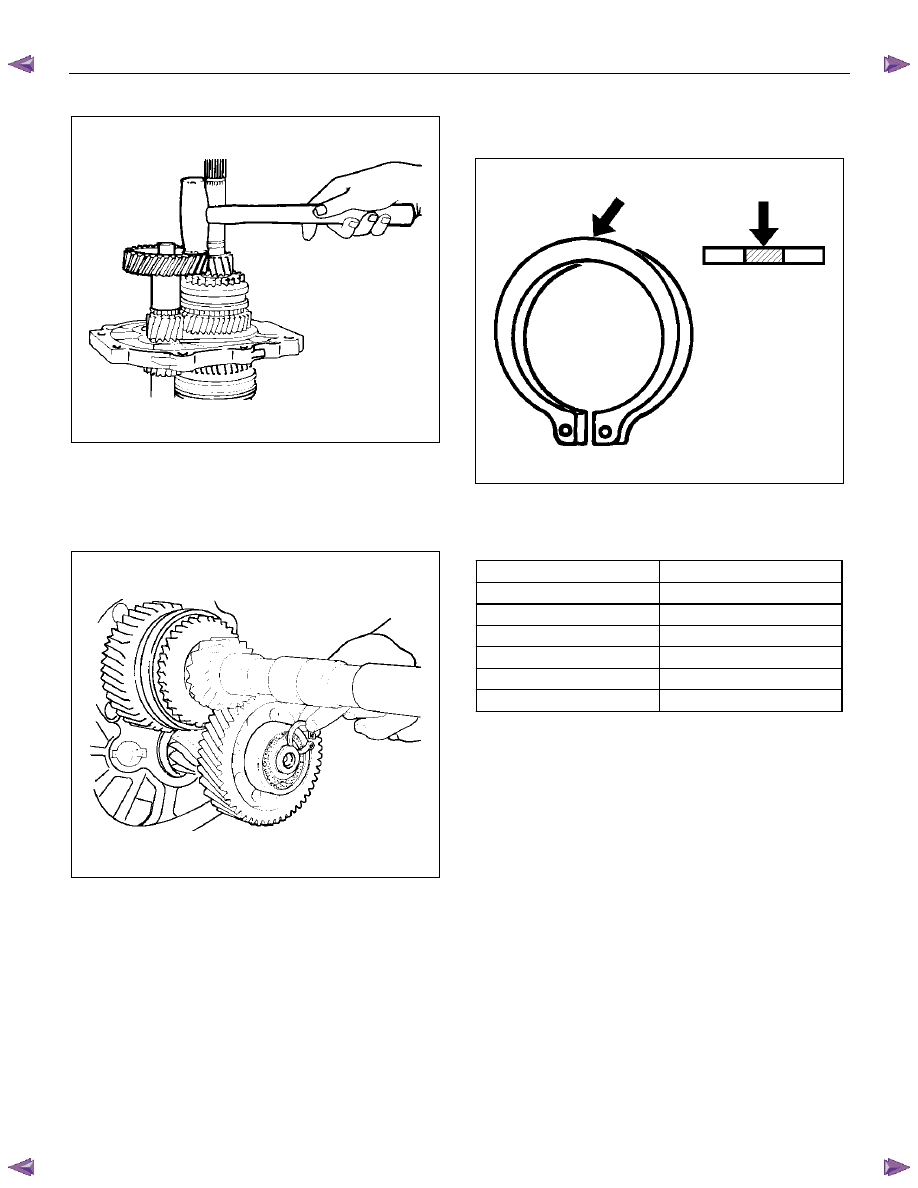

 11. Install the counter 5th gear to the counter shaft.



226RS019



12. Install the ball bearing and bearing snap ring  by

performing the following steps:
•  Select the snap ring which will provide the

minimum clearance between the ball bearing
and the snap ring.



226RS020





•  There are six snap ring sizes available.

The snap rings are color‐ coded to
indicate their thickness.



226RS021

Ball Bearing and Snap Ring Clearance

Standard: 0 - 0.15 mm (0 - 0.0059 in)



Snap Ring Availability

Thickness Color

Coding

1.1 mm (0.043 in)

White

1.2 mm (0.047 in)

Yellow

1.3 mm (0.051 in)

Blue

1.4 mm (0.055 in)

Pink

1.5 mm (0.059 in)

Green

1.6 mm (0.063 in)

Brown

•  Use a pair of snap ring pliers to install the snap

ring to the counter gear shaft.

The snap ring must be fully inserted into the
counter gear shaft snap ring groove.

 13. Assemble the reverse idler shaft, reverse idler gear,

thrust washer, and idle shaft pin into the reverse
idler gear assembly.

The thrust washer should be assembled with the oil
groove faces to gear side.
