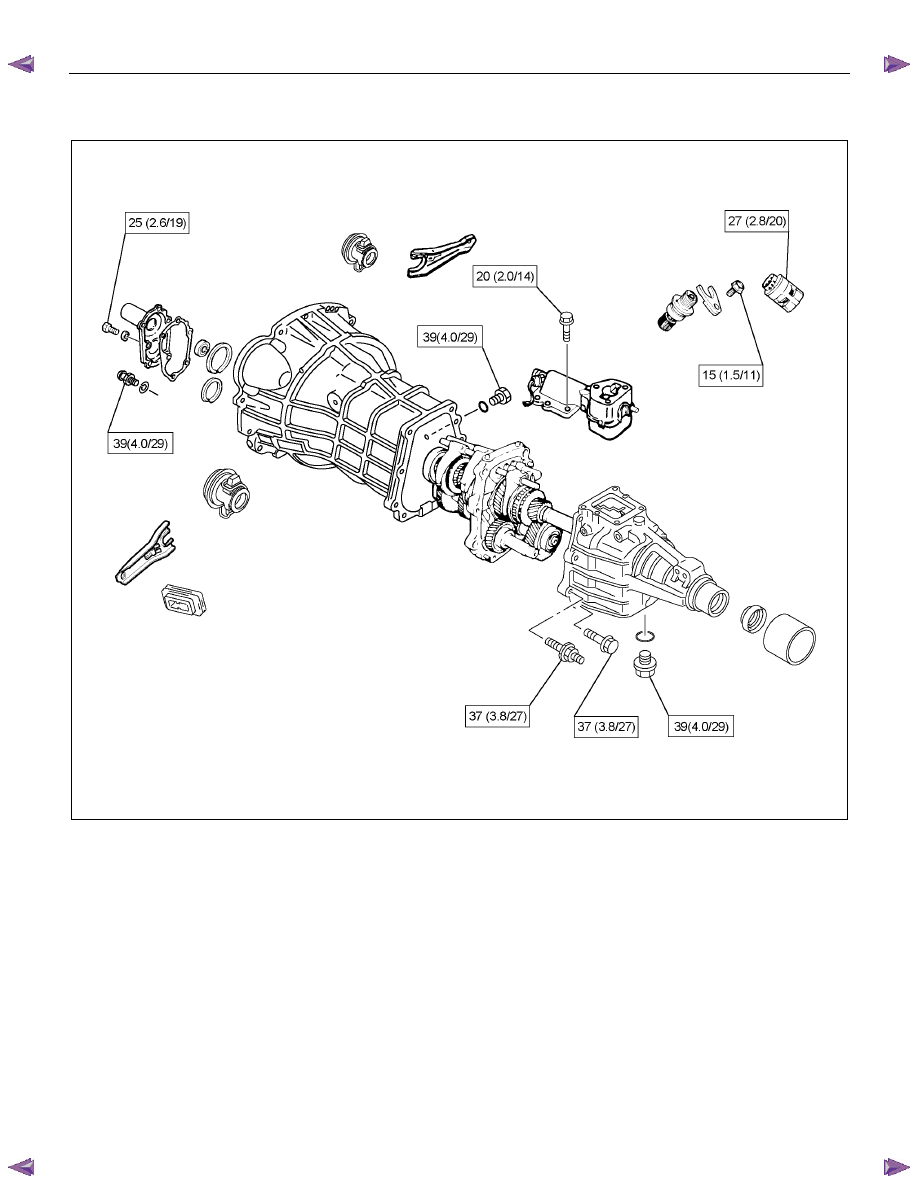

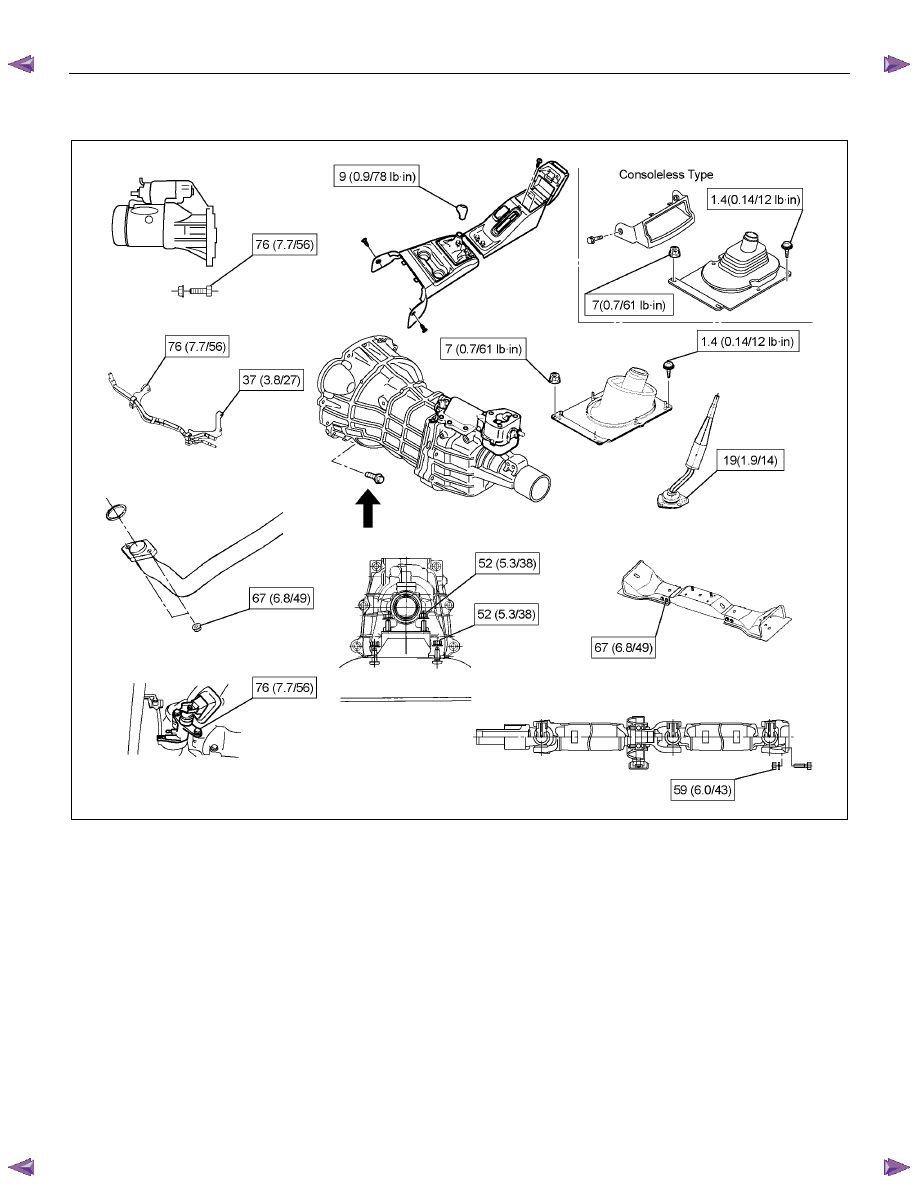

7B1-46 MANUAL TRANSMISSION
226RS021 Clutch Hub and Snap Ring Clearance Standard: 0 - 0.1 mm (0 - 0.004 in)

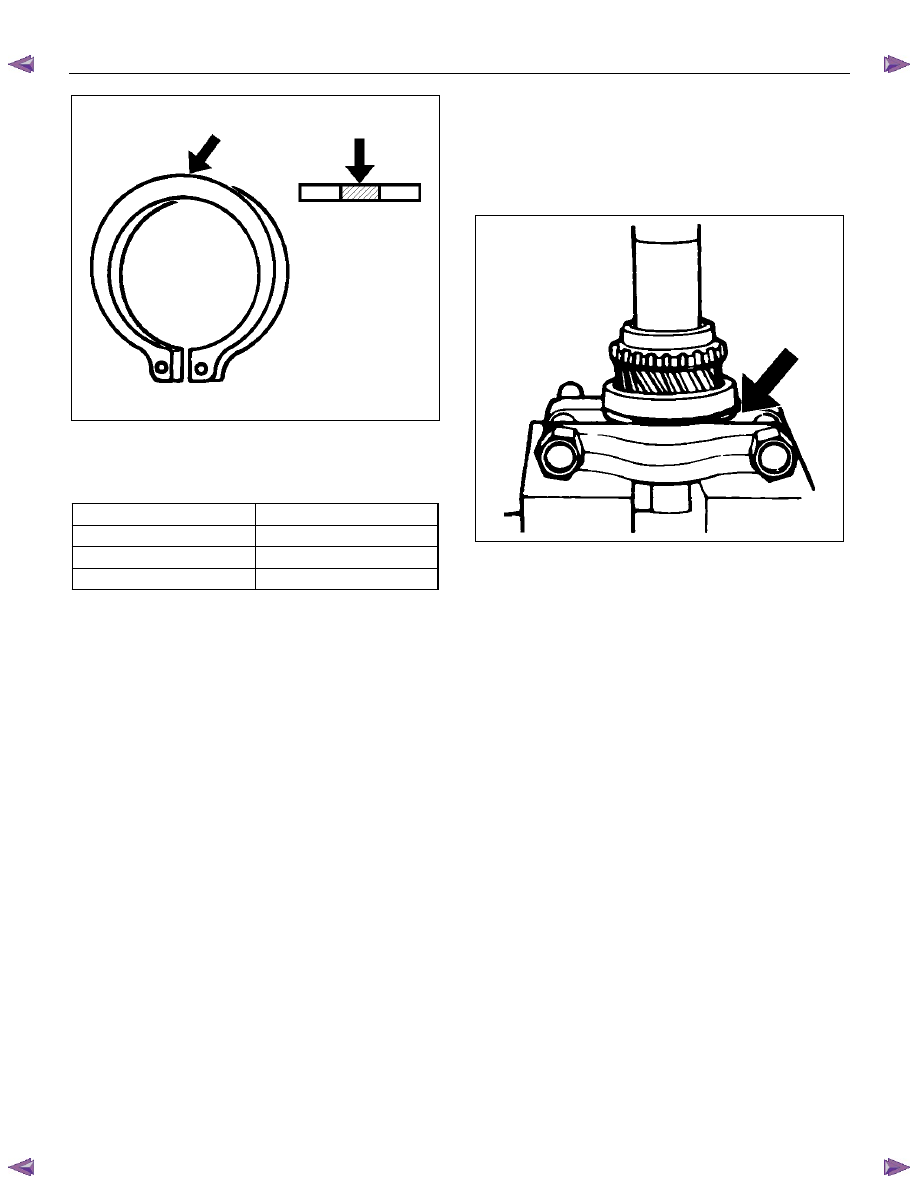

Snap Ring Availability Thickness Color Coding 1.80 mm (0.071 in) White 1.85 mm (0.073 in) Yellow 1.90 mm (0.075 in) Blue • Use a pair of snap ring pliers to install the snap ring to the mainshaft. The snap ring must be fully inserted into the
16. Install the top block ring. Apply grease to the needle bearing inner and outer 17. Use a bench press to install the top gear shaft ball bearing to the top gear shaft.
226RS059 The snap ring groove of the ball bearing must be 18. Use a pair of snap ring pliers to install the top gear shaft snap ring to the top gear shaft.
|
