UNIT REPAIR (JR405E)  7A4-71



03ASSY013




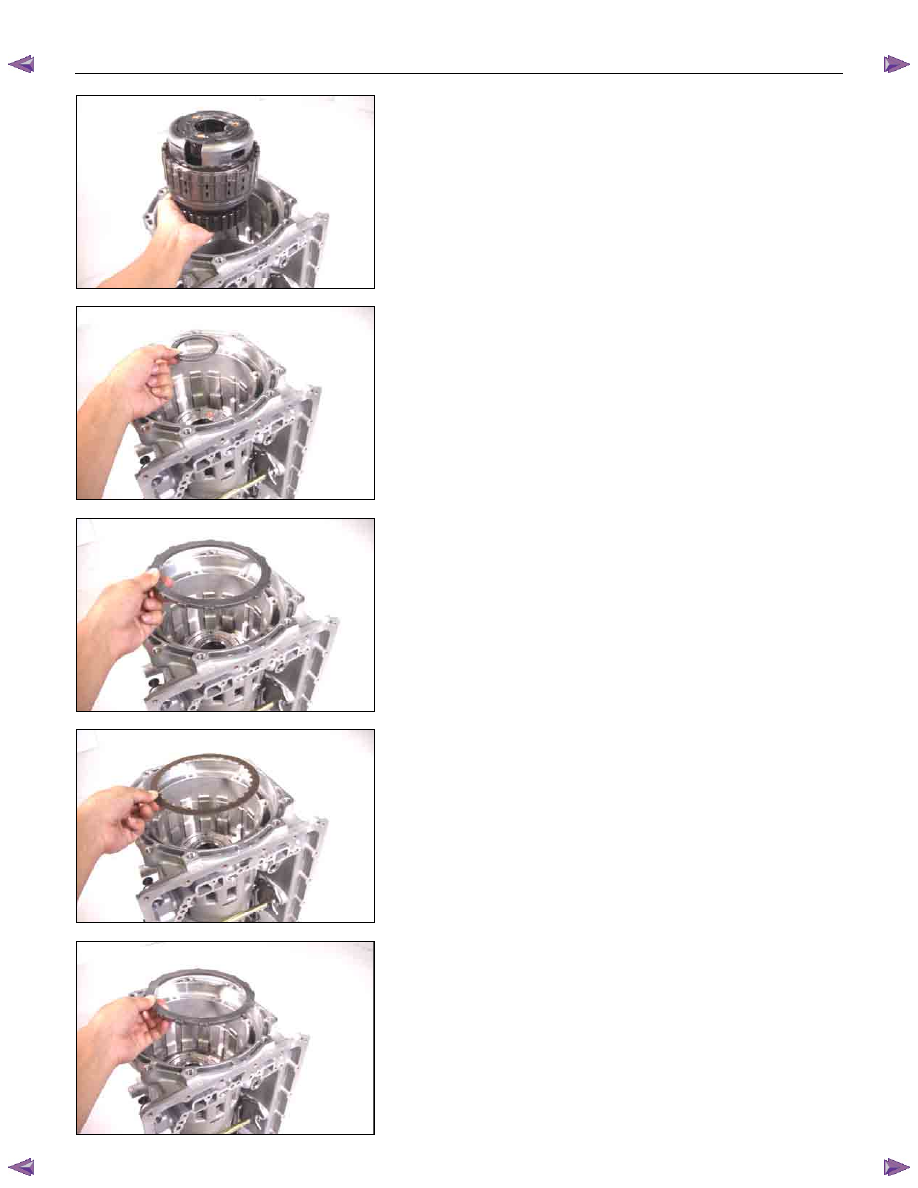

3.  Carrier and low clutch assembly

Install the carrier and low clutch assembly to the

transmission case.

NOTE:
Do not allow the low clutch drum end to protrude beyond
the 2-4 brake plate contact surface (transmission case).




04ASSY014




4. Bearing

Install the bearing to the carrier and low clutch assembly.





05ASSY015




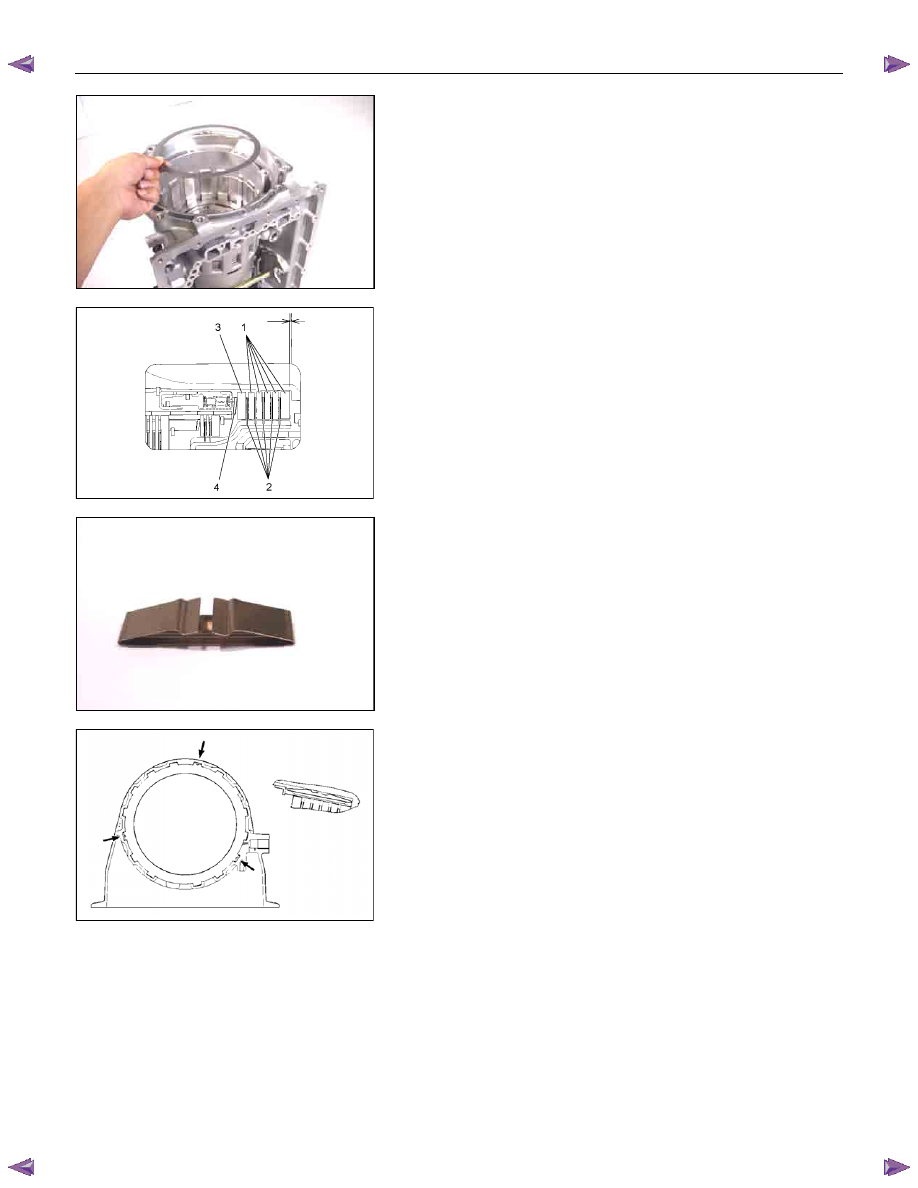

5. Driven plates, drive plates, retaining plate, and dish

plate (2 – 4 brake)

Install the 2-4 brake 5 driven plates (1), 5 drive plates (2),

retaining plate (3), and dish plate (4) in that order.

NOTE:

••••  The thickest driven plate (5.6 mm) must be installed

at the bottom (transmission case plate surface).

••••  The dish plate side with the identification mark must

face the retaining plate.





06ASSY016








07ASSY017






7A4-72  UNIT REPAIR (JR405E)



08ASSY018












RTW47ASH000401








09U-SPG2




6.  2 – 4 brake spring

Install the three 2-4 brake springs to the transmission case.










248L300009






UNIT REPAIR (JR405E)  7A4-73



10ASSY019




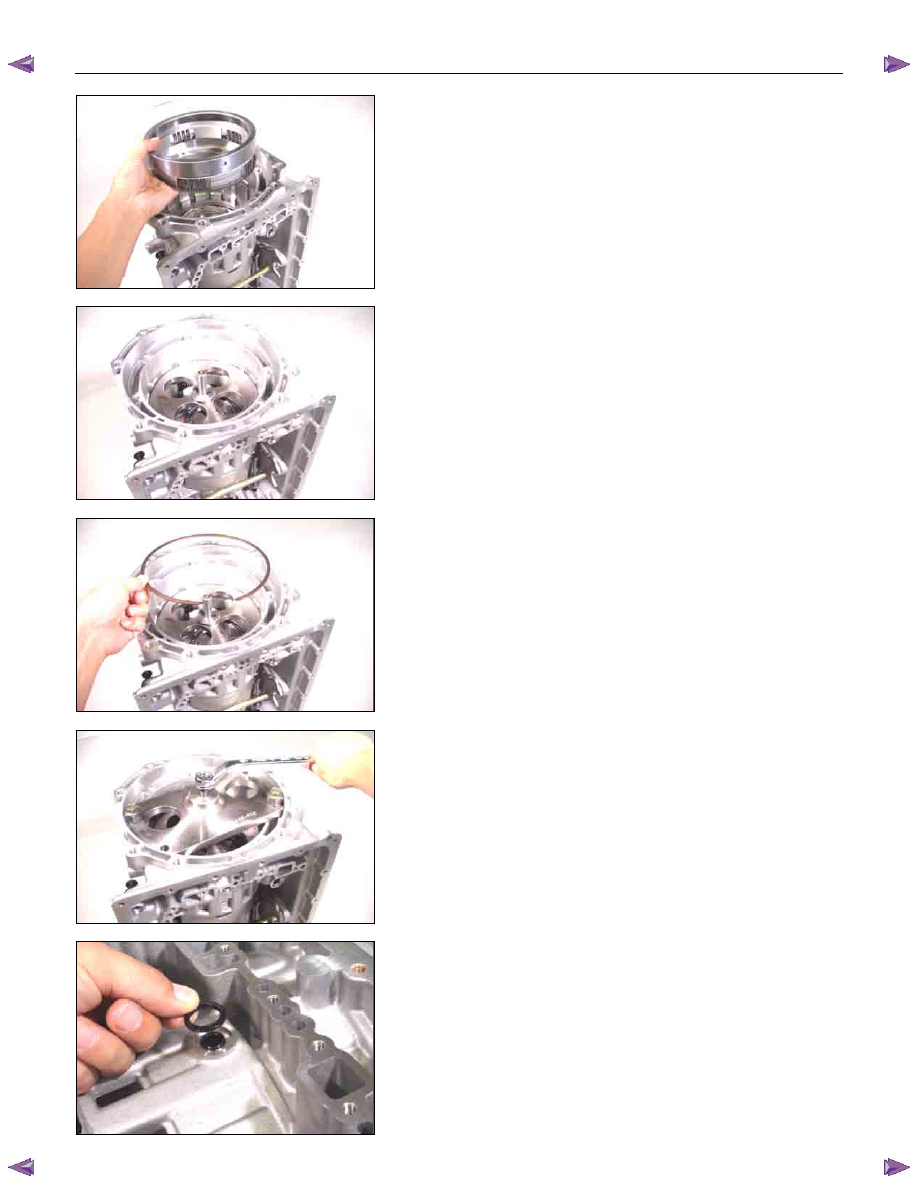

7.  Return spring and 2 – 4 brake retainer

•  Align the transmission case groove and the 2-4 brake

retainer projection.

•  Install the return spring and the 2-4 brake retainer.



11ASSY028







12ASSY029



•  Install the spring compressor to the transmission case.

Spring compressor: 5-8840-2764-0

NOTE:
Carefully center the spring compressor to prevent damage
to the return spring.

•  Push the 2-4 brake retainer into place.

NOTE:
Do not push the brake retainer too far.
Damage to the return spring will result.

•  Install the snap ring.





14ASSY031








17ASSY113




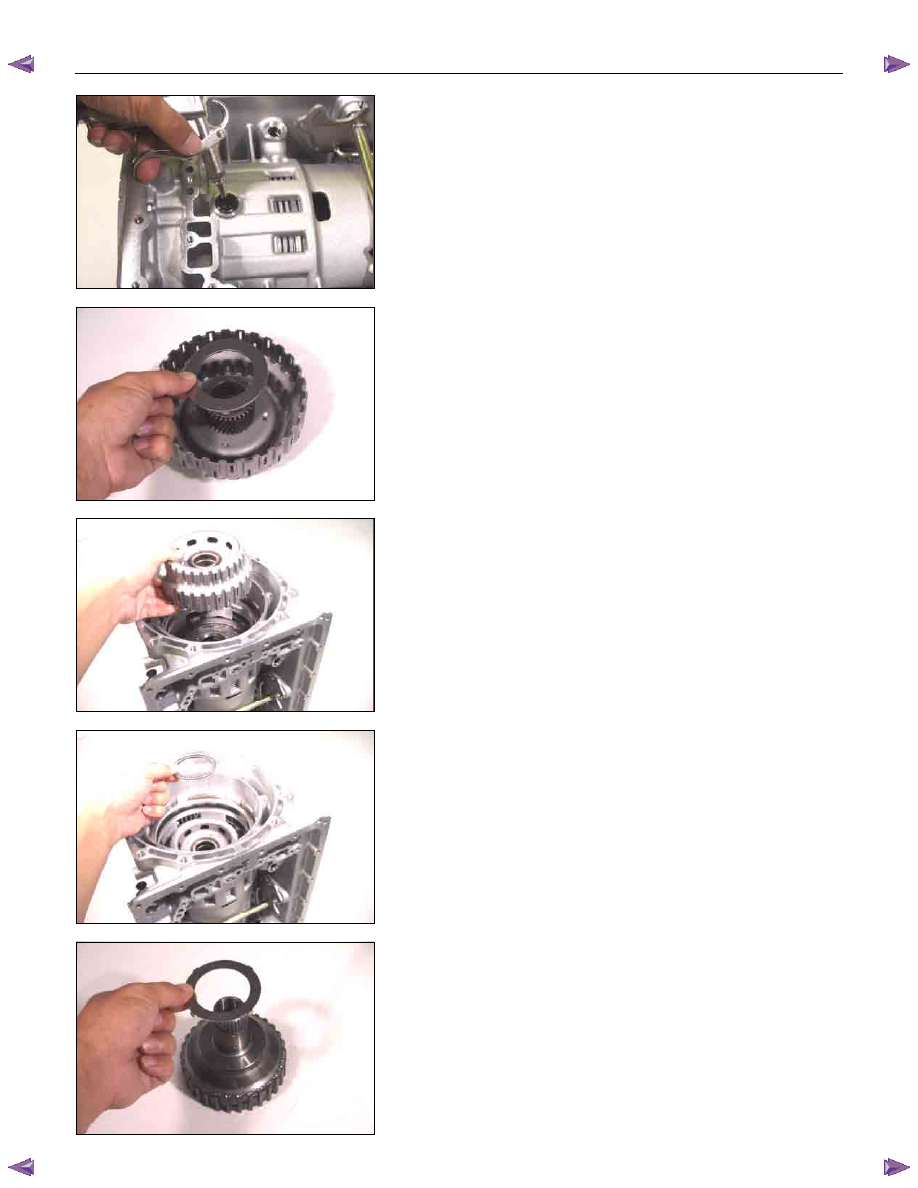

8.  Sleeve and seal ring

•  Install the new sleeve and seal ring to the transmission

case.

7A4-74  UNIT REPAIR (JR405E)



192-4B22




•  Force compressed air (390 kPa/4.0 kgf/cm

2

/57 psi)

through the transmission case oil passage to 2-4 brake

operation.

If the 2-4 brake does not operate, the seal ring may be

damaged or the parts may have been installed in the

wrong order.





20ASSY037




9.  Bearing race, front sun gear, and bearing

•  Install the bearing race to the front sun gear.

NOTE:
Apply Vaseline to the bearing race and bearing to prevent
them from falling during the installation procedure.




21ASSY040



•  Install the front sun gear to the transmission case.





22ASSY042



•  Install the bearing to the front sun gear.





23ASSY045




10.High clutch hub and bearing race

Install the bearing race to the high clutch hub.

NOTE:
Apply Vaseline to the bearing race.
