4A-28  PROPELLER SHAFT

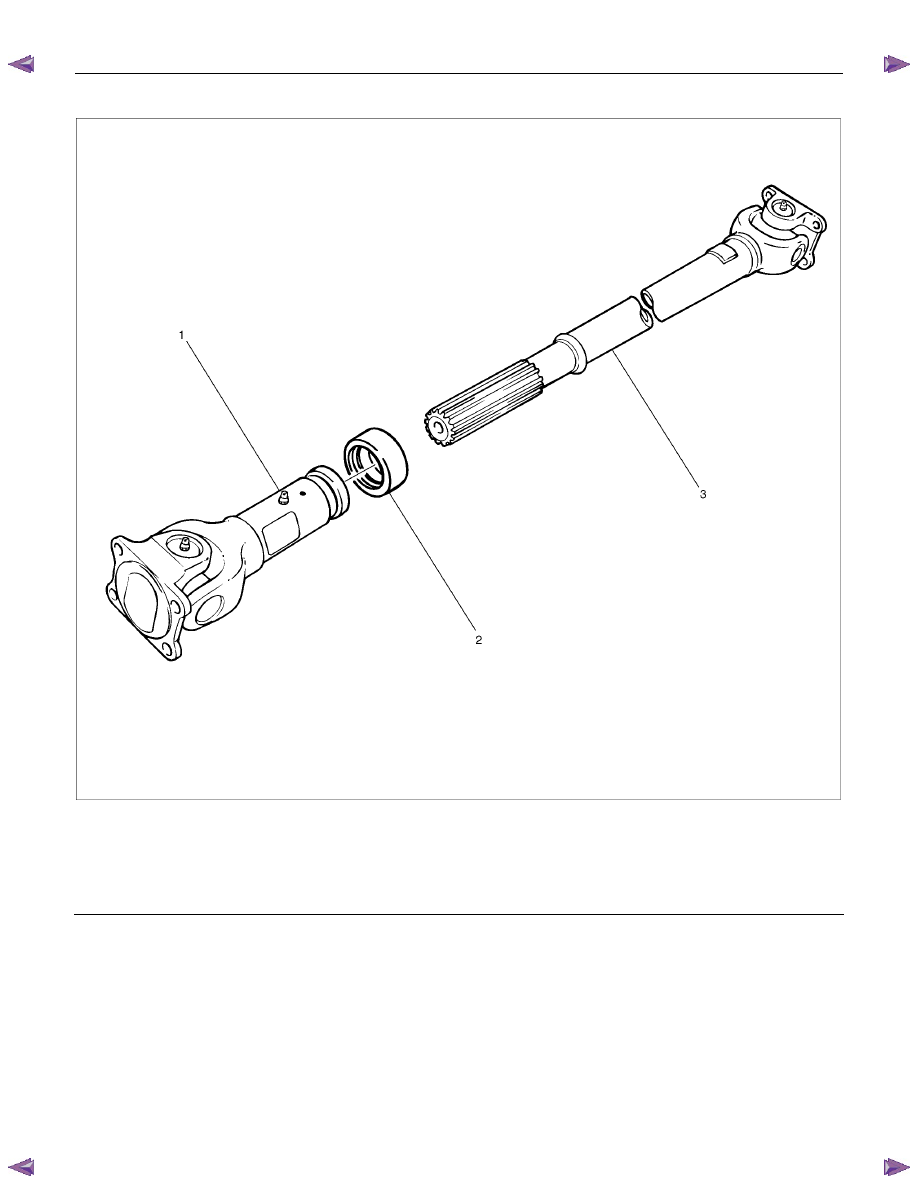

Reassembly



401RW057

Legend



1.

Sleeve

Yoke



2.

Seal



3.

Tube

Assembly














1.  Discard used seal and install new one.

2.  Align the alignment marks and install tube assembly to

sleeve yoke.



REAR AXLE  4B-1

SECTION 4B

REAR AXLE



TABLE OF CONTENTS



PAGE

Main Data and Specifications........................................................................................... 4B-  3

Torque Specifications ..............................................................................................................4B- 4

Recommended Liquid Gasket .......................................................................................... 4B-  6

Recommended Thread Locking Agents .......................................................................... 4B-  6

Rear Axle Assembly .......................................................................................................... 4B- 7

General Description...................................................................................................... 4B-  7

Servicing ............................................................................................................................ 4B- 8

Rear Axle ............................................................................................................................ 4B- 9

Disassembly.................................................................................................................. 4B- 10

Inspection and Repair .................................................................................................. 4B- 14

Reassembly................................................................................................................... 4B- 15

Differential Assembly.....................................................................................................................4B- 20

Disassembly.................................................................................................................. 4B- 21

Reassembly................................................................................................................... 4B- 24

Differential Cage Assembly..........................................................................................................4B- 34

Disassembly.................................................................................................................. 4B- 35

Inspection and Repair ..............................................................................................................4B- 35

Reassembly .................................................................................................................................4B- 37

Limited Slip Differential (LSD) .......................................................................................... 4B- 38

Disassembly................................................................................................................................4B- 39

Inspection and Repair .................................................................................................. 4B- 40

Reassembly................................................................................................................... 4B- 42

Troubleshooting............................................................................................................ 4B- 45

Special Service Tool .................................................................................................................4B- 56

4B-2  REAR AXLE

Service Precaution

WARNING:
THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE REFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE
TO FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS
SYSTEM REPAIRS.

CAUTION:
Always use the correct fastener in the proper
location. When you replace a fastener, use ONLY
the exact part number for that application.
ISUZU/GM will call out those fasteners that require
a replacement after removal. ISUZU/GM will also
call out the fasteners that require thread lockers or
thread sealant. UNLESS OTHERWISE SPECIFIED,
do not use supplemental coatings (Paints,
greases, or other corrosion inhibitors) on threaded
fasteners or fastener joint interfaces. Generally,
such coatings adversely affect the fastener torque
and the joint clamping force, and may damage the
fastener.  When you install fasteners, use the
correct tightening sequence and specification.
Following these instructions can help you avoid
damage to parts and systems.







REAR AXLE  4B-3

MAIN DATA AND SPECIFICATIONS

REAR AXLE

Ring gear size

mm (in)

φ194 (7.94)

φ220 (8.66)

Rear axle type

Banjo, semi-floating

Rear axle capacity

N (kg/lb)

18140 (1850/4079)

Rear axle case



Axle tube section



Outside diameter

mm (in)

80 (3.15)

Thickness

mm (in)

4.5 (0.118)

Final drive type

Single speed

Final gear type

Hypoid

Drive pinion bearing preload

N

⋅m (kgf⋅cm/lb⋅in)



Starting torque (At drive pinion flange nut)

0.6-1.1 (6.5-11.5/5.6-10.0)

0.7-1.3 (7.0-13.0/6.1-11.3)

Preload adjusting method

Collapsible

Final gear backlash

mm (in)

0.13-0.18 (0.005-0.007)

0.15-0.20 (0.006-0.008)

Differential carrier assembly





Weight (Dry)

 kg/lb

22.0/48.5

29.0/63.9

Lubrication





Specified gear oil (APL grade)

GL5

GL5 (STD), GL5LSD (LSD)

Oil capacity

liter (US/UK gal)

1.6 (0.42/0.35)

2.4 (0.63/0.53)
