Isuzu KB P190. Manual - part 1071





CONSTRUCTION AND FUNCTION  7A1-45

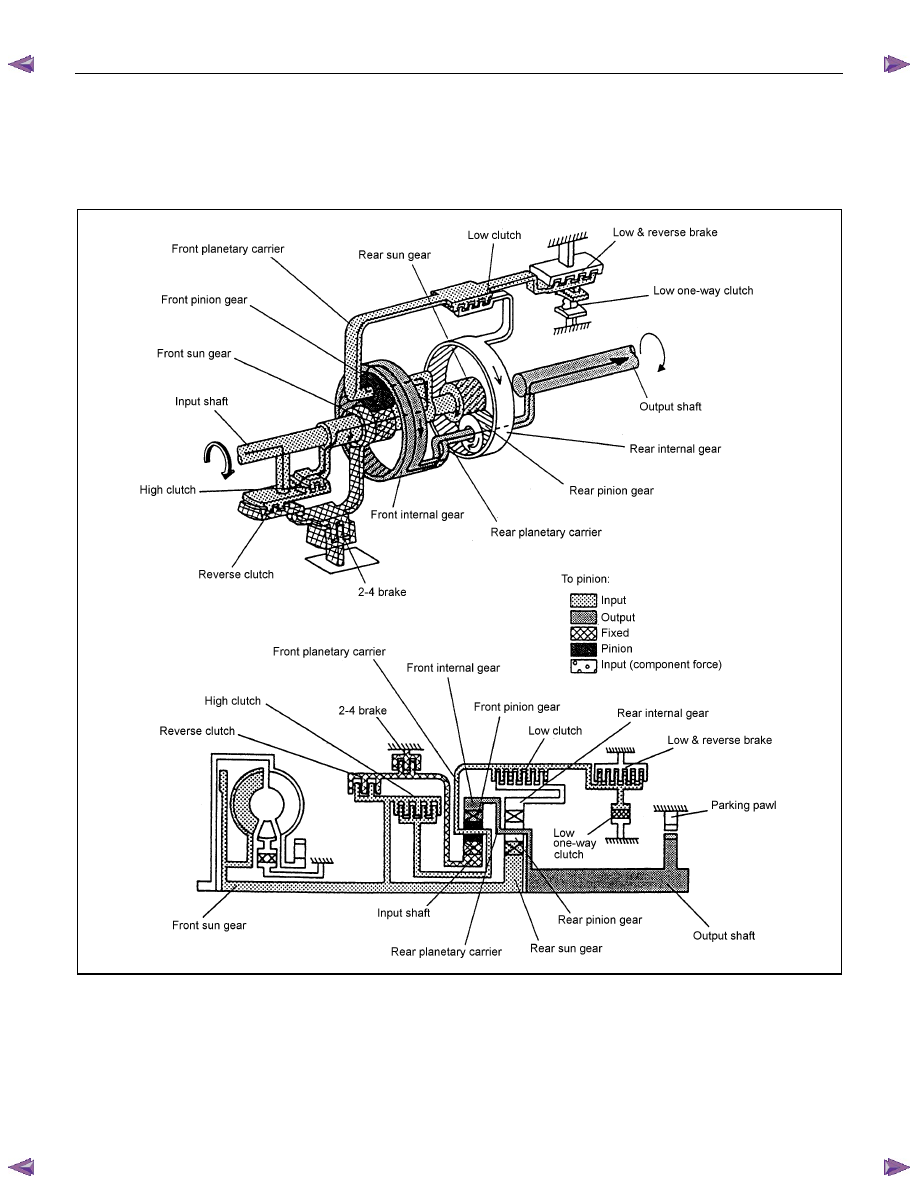

4th Gear (O/D) in D Position
The driving force from the input shaft is transmitted to the rear sun gear and reverse & high clutch drum.
Since the 2-4 brake is engaged, the front sun gear is fixed.  In addition to this the high clutch is engaged.  As
a result, the front pinion gear rotates itself together with other gears clockwise.  This rotation increases the
speed of rotation of the front internal gear and is transmitted to the output shaft.












TRANSMISSION CONTROL SYSTEM (JR405E)   7A2-1

TRANSMISSION

TRANSMISSION CONTROL SYSTEM (JR405E)

This manual conforms when Scan Tool of ISO CAN Base Software is used.

TABLE OF CONTENTS

Specifications ...................................................... 7A2-2

Transmission General Specifications............... 7A2-2
Transmission Fluid Temperature vs. Resistance..... 7A2-3
Clutch, Brake, Solenoid and Pressure Switch Logic ........ 7A2-4
Diagnostic Trouble Code (DTC) List ................ 7A2-5

Schematic and Routing Diagrams....................... 7A2-6

Transmission Controls Schematics.................. 7A2-6

Component Locator........................................... 7A2-13

Transmission Controls Component Views ..... 7A2-13
Transmission Control Module (TCM)

Connector End Views ................................... 7A2-17

Transmission Control Connector End Views.. 7A2-18

Diagnostic Information and Procedures ............ 7A2-21

Diagnostic Starting Point - Transmission Controls......... 7A2-21
Diagnostic System Check - Transmission Controls ....... 7A2-22
Scan Tool Data List........................................ 7A2-24
Scan Tool Data Definitions............................. 7A2-25
Scan Tool Output Controls............................. 7A2-27
Scan Tool Does Not Power Up ...................... 7A2-28
Scan Tool Does Not Communicate

with Keyword Device .................................... 7A2-29

Lost Communication

with The Transmission Control Module (TCM) .... 7A2-31

DTC P0560 (Flash Code 16).......................... 7A2-33
DTC P0602 .................................................... 7A2-35
DTC P0705 (Flash Code 17).......................... 7A2-36
DTC P0710 (Flash Code 15).......................... 7A2-40
DTC P0717 (Flash Code 14).......................... 7A2-44
DTC P0722 (Flash Code 11).......................... 7A2-47
DTC P0727 (Flash Code 13).......................... 7A2-50
DTC P0731, P0732, P0733 or P0734

(Flash Code 41, 42, 43 or 44)....................... 7A2-52

DTC P0748 (Flash Code 35).......................... 7A2-55
DTC P0753 (Flash Code 31).......................... 7A2-58
DTC P0758 (Flash Code 32).......................... 7A2-61
DTC P0763 (Flash Code 33).......................... 7A2-64
DTC P0768 (Flash Code 34).......................... 7A2-67
DTC P1120 (Flash Code 22).......................... 7A2-70
DTC P1750 (Flash Code 51).......................... 7A2-71
DTC P1755 (Flash Code 52).......................... 7A2-73
DTC P1853 (Flash Code 26).......................... 7A2-75
DTC P1858 (Flash Code 27).......................... 7A2-78
DTC P1860 (Flash Code 36).......................... 7A2-81
DTC P1863 (Flash Code 28).......................... 7A2-84
DTC P1875 (Flash Code 25).......................... 7A2-87
Check Trans Lamp Inoperative,

Always On or Always Blinking ...................... 7A2-89

Symptoms - Transmission Controls .................. 7A2-92

Symptoms - Transmission Controls ............... 7A2-92
Intermittent Conditions ................................... 7A2-93

Vehicle Does Not Run .................................... 7A2-95
Trouble at Starting.......................................... 7A2-95
Faulty Gearshift.............................................. 7A2-95
Faulty Shift Pattern......................................... 7A2-95
No or Error Gearshift ...................................... 7A2-95
Faulty Operation During Running................... 7A2-95
Faulty Operation in Stopping.......................... 7A2-95
Faulty Lock Up ............................................... 7A2-95
No Lock Up .................................................... 7A2-95
Transmission Fluid Leak ................................ 7A2-95
Others ............................................................ 7A2-95

Test Instructions .............................................. 7A2-121

Line Pressure Test ....................................... 7A2-121
Stall Test ...................................................... 7A2-123
Time Lag Test .............................................. 7A2-124
Road Test..................................................... 7A2-125
TCM Signal Test .......................................... 7A2-134

Repair Instructions .......................................... 7A2-139

Transmission Controls Module (TCM) Replacement.... 7A2-139
Service Programming System (SPS) Description........ 7A2-139
Service Programming System

(SPS) (Remote Procedure)......................... 7A2-140

Service Programming System

(SPS) (Pass-Thru Procedure)..................... 7A2-141

Description and Operation .............................. 7A2-143

Transmission Identification Information........ 7A2-143
Transmission General Description ............... 7A2-143
Transmission Component Description ......... 7A2-144
Transmission Control System Description ... 7A2-152
Transmission Power Flow Description ......... 7A2-161

Special Tools and Equipment ......................... 7A2-170

Special Tools and Equipment ...................... 7A2-170

7A2-2   TRANSMISSION CONTROL SYSTEM (JR405E)

Specifications

Transmission General Specifications

Transmission model

JR405E

Transmission type: J

Jatco

Transmission type: R

Rear wheel drive

Transmission type: 4

Four forward gears

Transmission type: 05

Product series

Transmission type: E

Electronic controls

Torque converter type

Three elements, one stage & two phases type with torque converter clutch

Torque converter stall torque ratio

1.8

Transmission fluid

Name

DEXRON III

Capacity (L)

9.2 - 9.6

Cooling system

Water cooled type

Gear ratio

1st

2.785

2nd

1.545

3rd

1.000

4th

0.694

Reverse

2.272

Clutch

High clutch (Number of disc)

5

Low clutch (Number of disc)

7

Reverse clutch (Number of disc)

2

One-way clutch

Low one-way clutch (Number of set)

1

Brake

Low & reverse brake (Number of disc)

6

2-4 brake (Number of disc)

5

Front planetary gear unit

Sun gear (Number of teeth)

33

Pinion gear (Number of teeth)

21

Ring gear (Number of teeth)

75

Rear planetary gear unit

Sun gear (Number of teeth)

42

Pinion gear (Number of teeth)

17

Ring gear (Number of teeth)

75

TRANSMISSION CONTROL SYSTEM (JR405E)   7A2-3

Transmission Fluid Temperature vs. Resistance

°C

°F

Ohms

Temperature vs. Resistance Value (Approximately)

150

302

60

140

284

80

130

266

90

120

248

120

110

230

150

100

212

190

90

194

250

80

176

320

70

158

430

60

140

590

50

122

820

40

104

1160

30

86

1680

20

68

2500

10

50

3820

0

32

6030

-10

14

9840

-20

-4

16710

-30

-22

29610
