4A-12  PROPELLER SHAFT

Removal and Installation


401RS023



Removal

1. Raise the vehicle on a hoist.

NOTE:

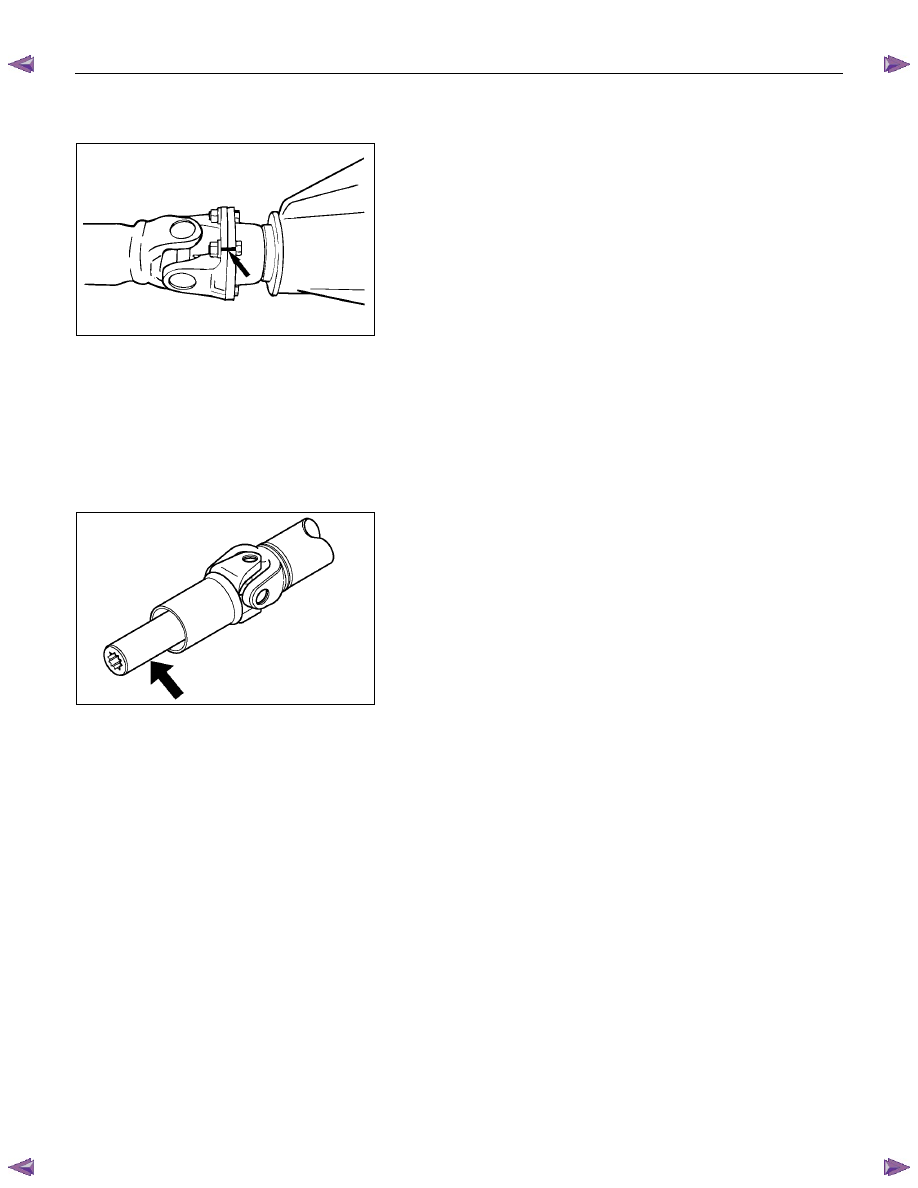

Apply alignment marks on the flange at the rear
propeller shaft both front and rear side.







2. Remove center bearing fixing bolt.

3. Remove rear axle side bolt, nut and washer.

4. Remove rear propeller shaft.



NOTE:

Plug the hole of the transmission rear end to prevent oil
leakage.



401L100007



Installation

NOTE:

Cover the slip yoke with cloth to avoid damage to the oil seal
contact surface, when removing propeller shaft from
transmission. Do not damage the oil seal contact surface of
slip yoke with other parts at removal and installation.

Completely remove the dust or foreign matter from the
connecting surface of flange coupling on each end of the
propeller shaft.



1.  Align the mark which is applied at removal and insert the

propeller shaft in the transmission.

2. Install rear propeller shaft and tighten the bolts to the

specified torque.



Torque: 59 N

⋅⋅⋅⋅m (6.0 kgf⋅⋅⋅⋅m/43 lb⋅⋅⋅⋅ft)

3.  Install center bearing and tighten the bolts to the specified

torque.



Torque: 69 N

⋅⋅⋅⋅m (7.0 kgf⋅⋅⋅⋅m/51 lb⋅⋅⋅⋅ft)





PROPELLER SHAFT  4A-13

Universal Joint Disassembly



401R300002

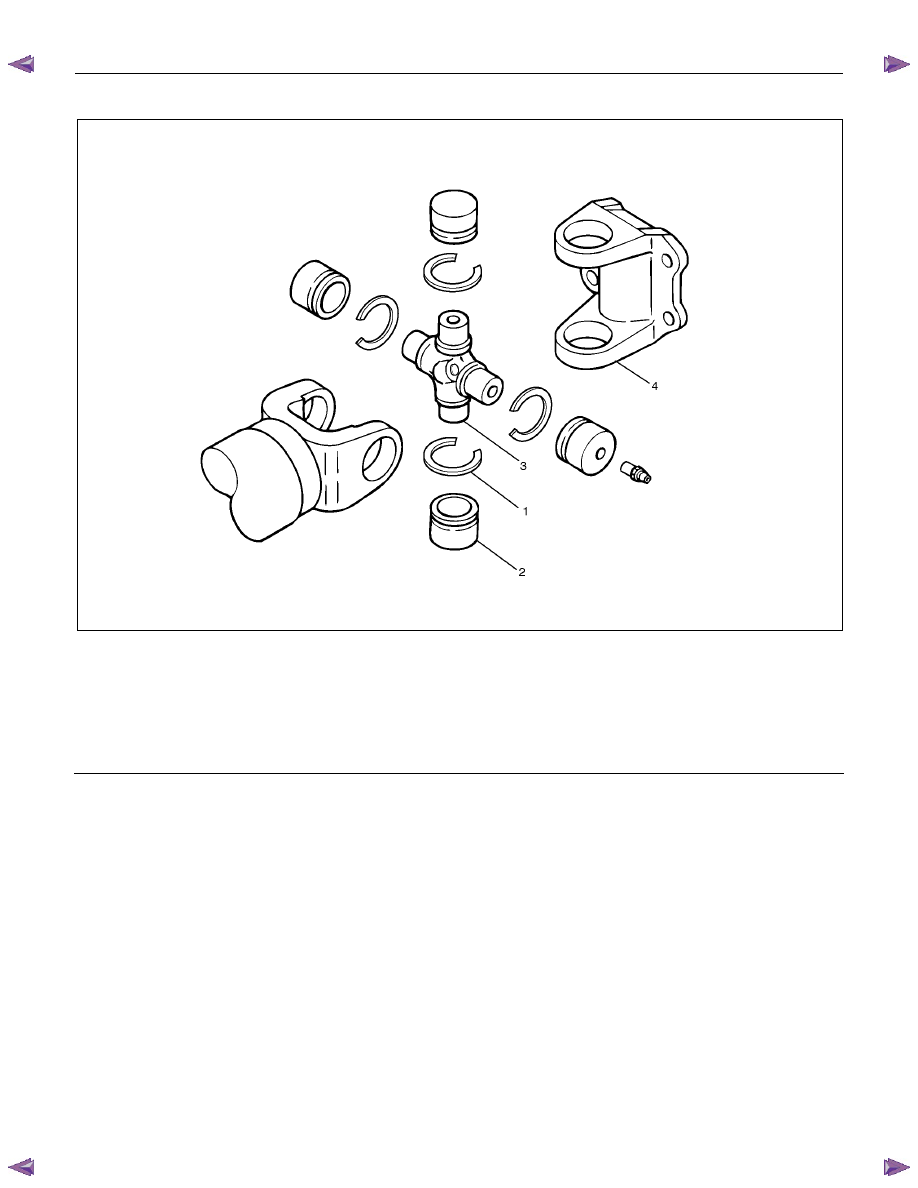

Legend



1.

Snap

Ring

    2. Needle Roller Bearing



3.

Spider



4.

Yoke












4A-14  PROPELLER SHAFT



401R300003

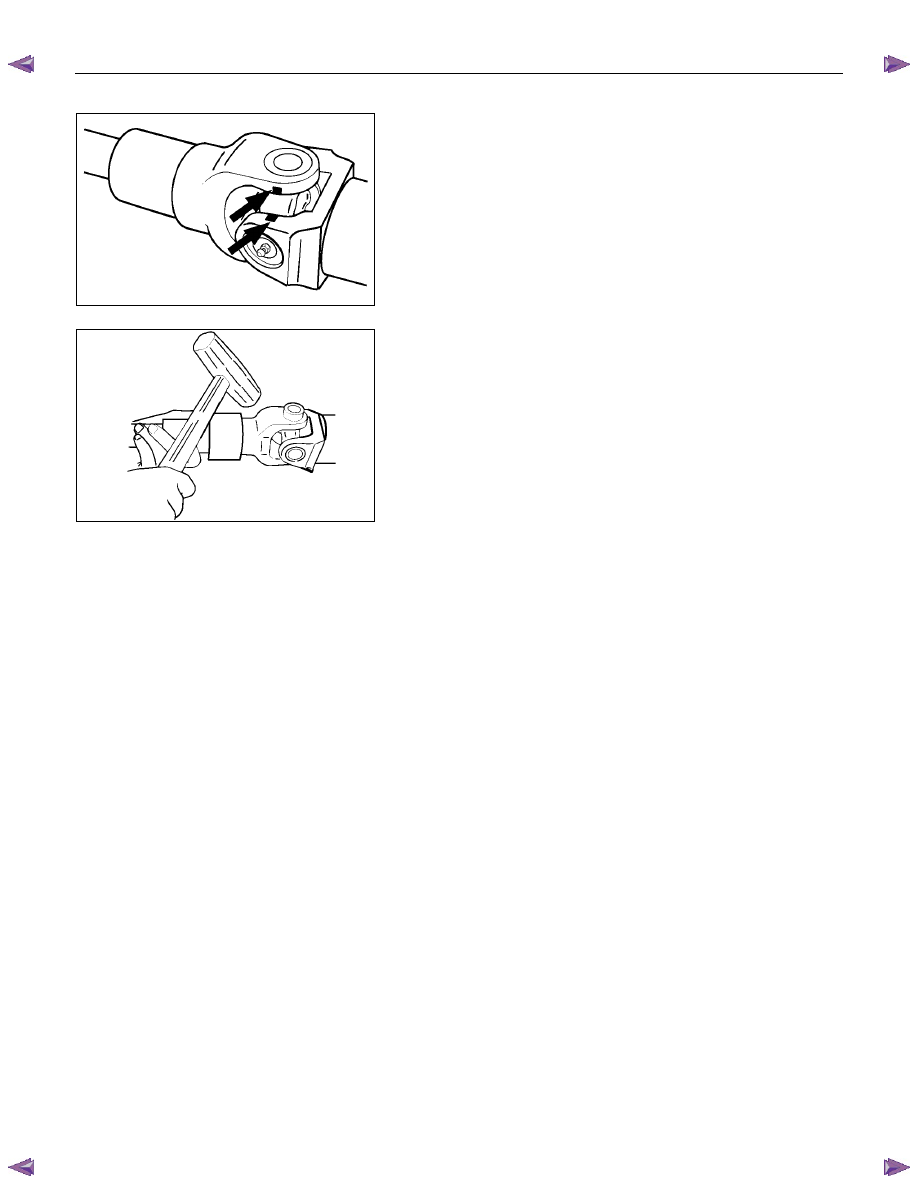

1.  Remove the snap rings.

•  Apply alignment marks on the yokes of the universal

joint.





401R300004






2.  Remove the needle roller bearings.

•  Tap out the bearing by gently striking the shoulder of the

yoke, using a mallet or a copper hammer.



3.  Remove the spider.

•  Make sure of proper position for reinstallation by

applying setting marks.

4.  Remove the yoke.


PROPELLER SHAFT  4A-15

Inspection and Repair

Make all necessary adjustment, repairs, and part replacements if wear, damage, or other problems are discovered
during inspection.












Visual Check

Inspect following parts for wear, damage, or other abnormal
conditions.

Spider

Needle roller bearing

Yoke

Flange

Center bearing

Cushioning rubber

Bracket



401RS007






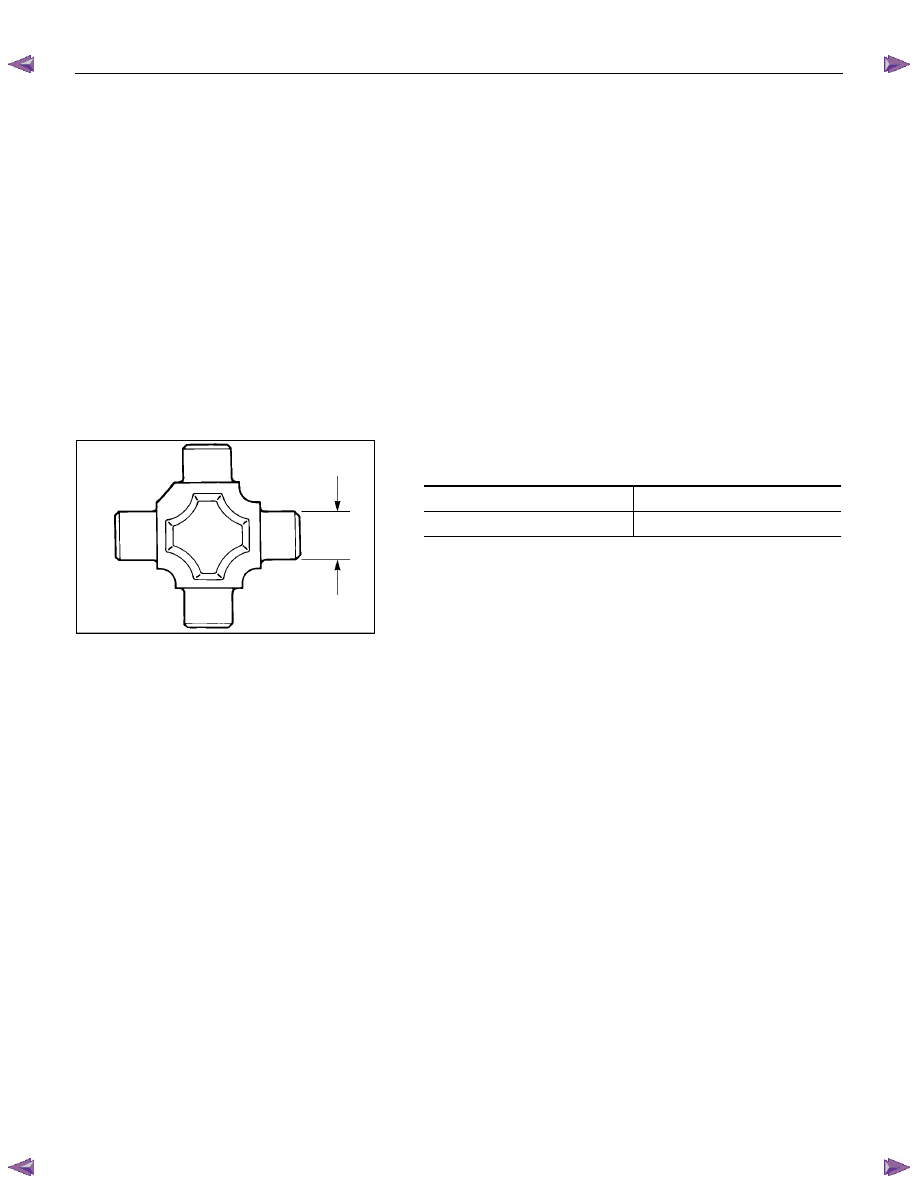

Outside Diameter of Spider Pins

mm(in)



Standard Limit

17 (0.67)

16.99 (0.669)
