3E-4 WHEELS AND TIRES

WHEELS AND TIRES

GENERAL DESCRIPTION

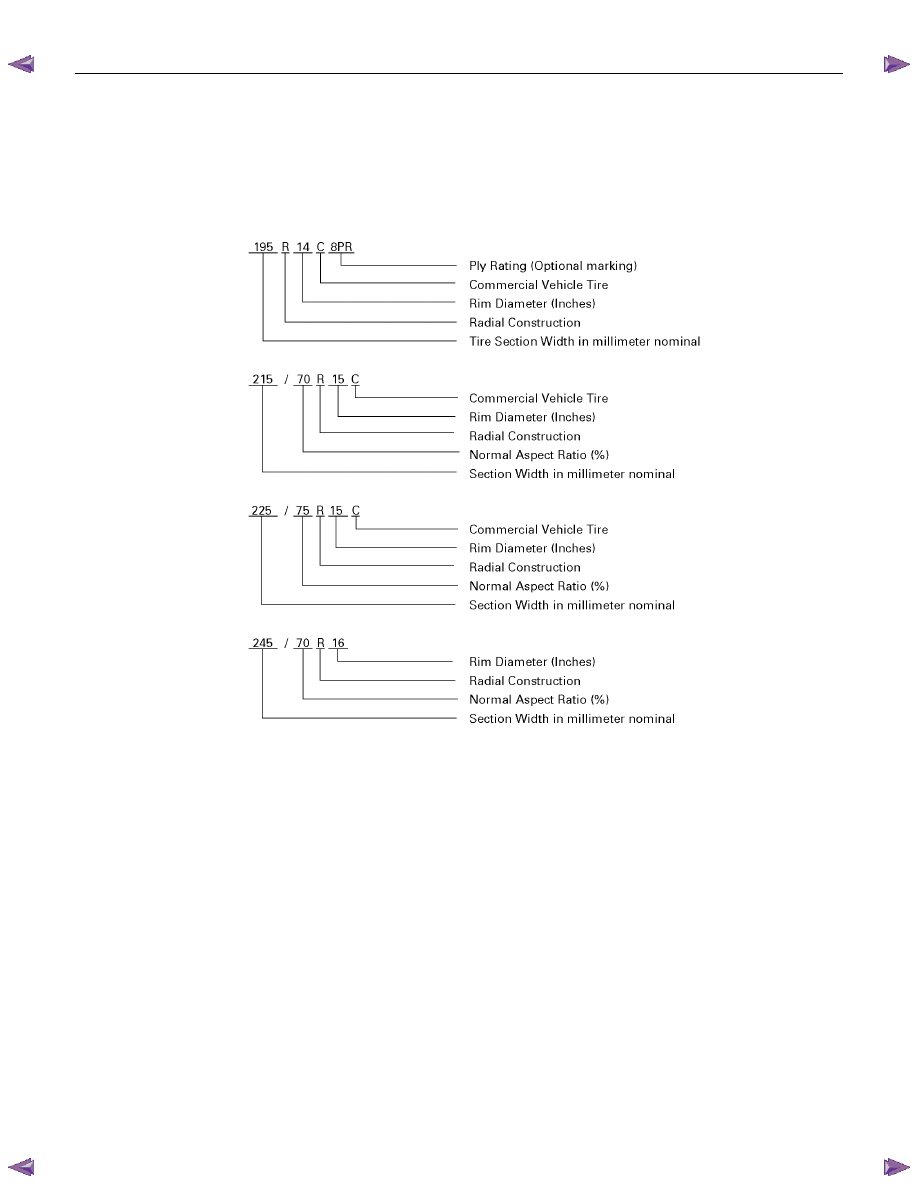

TIRE DESIGNATION







WHEELS AND TIRES  3E-5

TIRE PRESSURE LABEL (LOCATION: DRIVERS DOOR OR FRAME OF DRIVERS DOOR)



4

××××2 Except High Ride Suspension

SEE OWNERS AND

DRIVERS MANUAL FOR

ADDITIONAL INFORMATION



Tire Size

Wheel Size

Tire inflation pressure

KPa (kgf/cm

2

/psi)

Front & Rear

Front & Rear

Front

Rear

195R14C 8PR

14X5.5JJ

245 (2.5/36)

441 (4.5/64)

215/70R15C

15X6.5JJ 221

(2.25/32) 368

(3.75/53)



4

××××2 High Ride Suspension, 4××××4

SEE OWNERS AND

DRIVERS MANUAL FOR

ADDITIONAL INFORMATION



Tire Size

Wheel Size

Tire inflation pressure

KPa (kgf/cm

2

/psi)

Front & Rear

Front & Rear

Front

Rear

225/75R15C

15X6.5JJ 221

(2.25/32) 319

(3.25/46)

245/70R16

16X7JJ

200 (2.0/28)

270 (2.8/40)





Note:
••••  The air pressure of the tire should be maintained as indicated in the label instruction on the driver's

door or frame of driver's door.



Lower pressure can cause burst and adverse vehicle handling.



On the other hand, higher pressure can cause shock-burst and reduce gripping effect.





3E-6 WHEELS AND TIRES

SERVICING

Servicing refers to general maintenance procedures to be performed by qualified service personnel.









WHEEL NUT TORQUES

Wheel Nut Torque

N

⋅m (kgf⋅m/lb⋅ft)

117.7

± 9.8 (12 ± 1.0 / 86.8 ± 7.2)












TIRE ROTATION

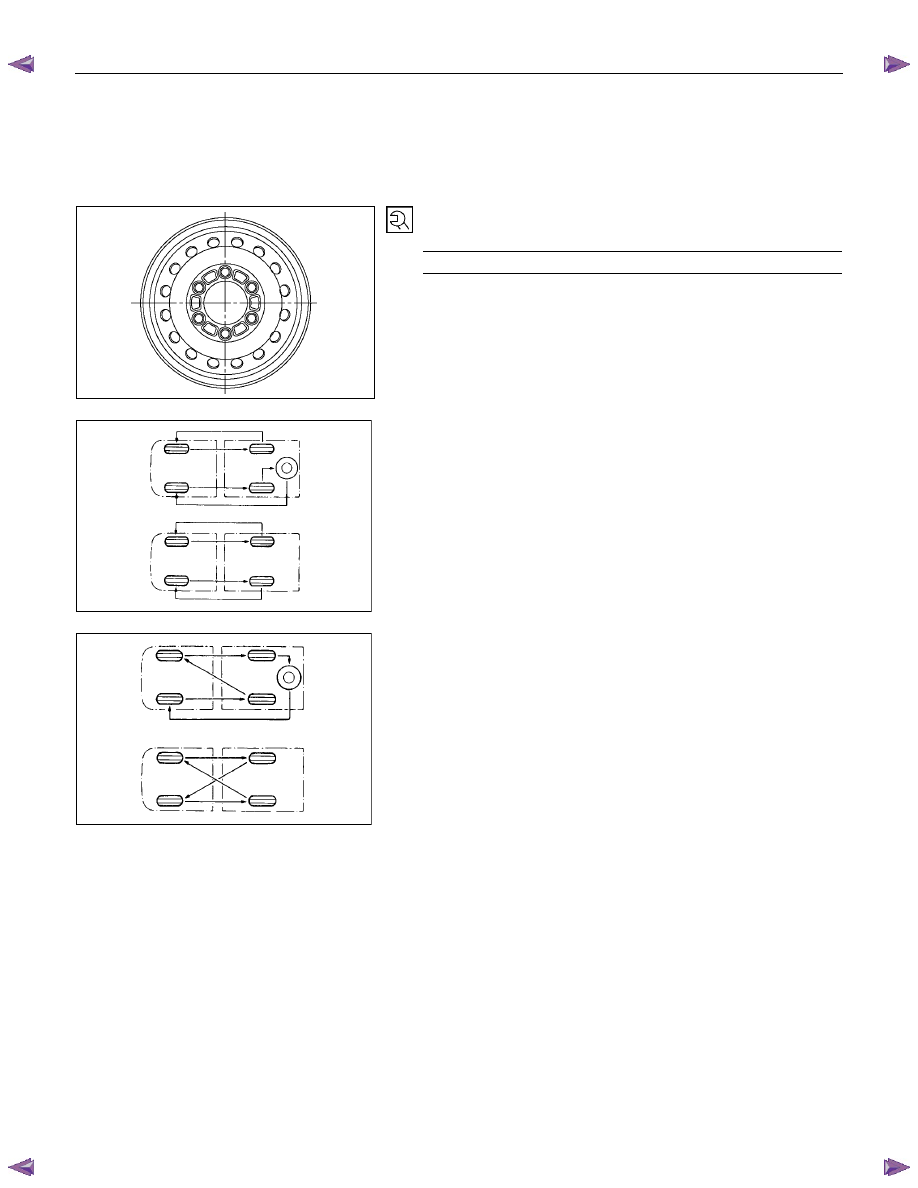

For of radial tires, interchange the front and the rear wheels on
the same side as shown in the figure.












If one-sided tire wear appears on radial tires, rotate the wheels
as shown in the figure.



Note:
After rotation, adjust the front and rear tire pressure and be sure to check wheel nut tightness.


WHEELS AND TIRES  3E-7



  DISASSEMBLY AND REASSEMBLY

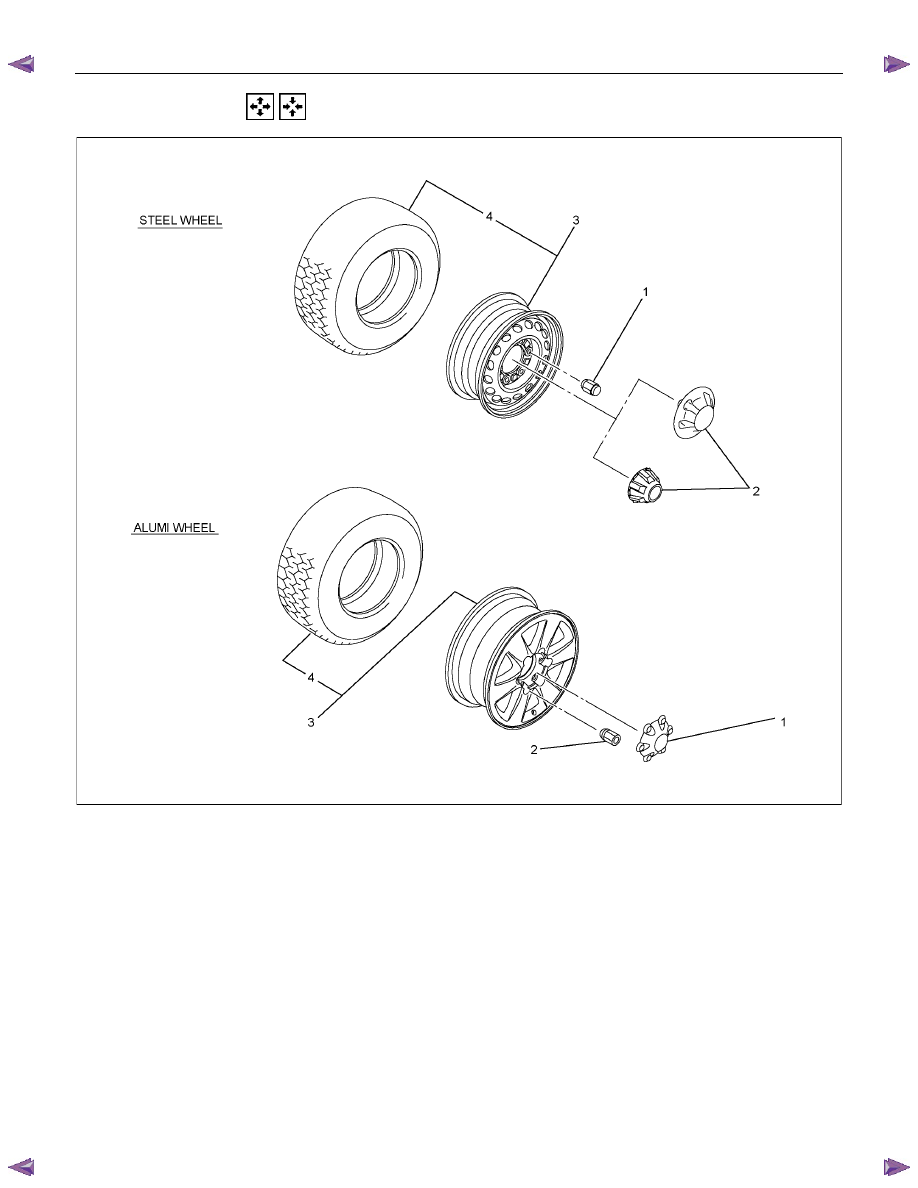

RTW73ELF000201



Disassembly Steps

(for Alumi models)

1. Wheel cap

2. Wheel nut

3. Wheel and tire assembly

4. Tire assembly

(for Steel models)

1. Wheel nut

2. Wheel cap

3. Wheel and tire assembly

4. Tire assembly



Reassembly Steps

(for Alumi models)

4. Tire assembly

3. Wheel and tire assembly

2. Wheel nut

1. Wheel cap

(for Steel models)

4 Tire assembly

3. Wheel and tire assembly

2. Wheel cap

1. Wheel nut
