7A2-110  TRANSMISSION CONTROL SYSTEM (AW30–40LE)



Conditions For Clearing The DTC

•  The DTC can be cleared from the TCM history by

using a scan tool.

•  The DTC will be cleared from history when the

vehicle has achieved 40 warm-up cycles without a
failure reported.

•  After more than 1 second has elapsed after the

ignition key has been turned “ON”, short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.



Diagnostic Aids

•  Inspect the wiring for poor electrical connection at the

TCM. Look for possible bent, backed out, deformed
or damaged terminals. Check for weak terminal
tension as well. Also check for a chafed wire that
could short to bare metal or other wiring. Inspect for a
broken wire inside the insulation.

•  When diagnosing for a possible intermittent short or

open condition, move the wiring harness while
observing test equipment for a change.



Circuit/System Testing DTC P2773 or P2774

Step Action  Value(s)

YES

NO

1



Was the On-Board Diagnostic (OBD)

System Check performed?

— Go

to

Step 2 Go

to

OBD

System Check

2

 1. Install a scan tool.

 2. Turn “ON” the ignition.

 3. Review and record scan tool data.

 4. Operate the vehicle within scan tool data.



Does a scan tool indicate DTC P2773 or P2774?

— Go

to

Step 3 Refer

to

Diagnostic Aids

3

Observe the 4L signal data of the TCM on the scan
tool.

 1. Turn “ON” the ignition with engine “ON”.

 2. Perform the road testing.

 3. Check the 4L signal data on a scan tool.



Was the problem found?

— Go

to

Step 4 Refer

to

Diagnostic Aids

4

Observe the 4L signal data of the TCM on a scan tool.

 1. Turn “ON” the ignition with engine “ON”.

 2. Perform the road testing.

 3. Check the 4L signal data on a scan tool.



Is the 4L signal fixed “ON”? (DTC P2773)

— Go

to

Step 6 Go

to

Step 5

5

Observe the 4L signal data of the TCM on a scan tool.

 1. Turn “ON” the ignition with engine “ON”.

 2. Perform the road testing.

 3. Check the 4L signal data on a scan tool.



Is the 4L signal fixed “OFF”? (DTC P2774)

— Go

to

Step 6 Go

to

Step 8

6

Replace or Repair the wire between the TCM terminal
C94-21 and the T/F control unit terminal C111-7.



Is the action complete?

— Go

to

Step 9 —

TRANSMISSION CONTROL SYSTEM (AW30–40LE)  7A2-111



Step Action  Value(s)

YES

NO

7

Replace the T/F Control Unit.

—

Go to Step 9 —

8

Replace the TCM.

Important:

The replacement TCM must be

programmed (Refer to SPS for procedure).



Is the action complete?

— Go

to

Step 9 —

9



1. Reconnect all previously disconnected harness

connector(s).

 2. Clear the DTCs with a scan tool.

 3. Turn “OFF” the ignition.

 4. Start the engine.



5. Operate the vehicle within the Conditions For

Running the DTC. You may also operate the
vehicle within the conditions that you observed
from the Freeze Frame/ Failure Records.



Did the DTC fail this ignition?

—

Go to Step 2 Go

to

Step 10

10

Observe the stored information, Capture info with a
scan tool.



Are there any DTCs that you have not diagnosed?

—

Go to

Diagnostic

Trouble Code

(DTC) List

Verify repair



7A2-112  TRANSMISSION CONTROL SYSTEM (AW30–40LE)



DTC U2104 (Flash Code 65)

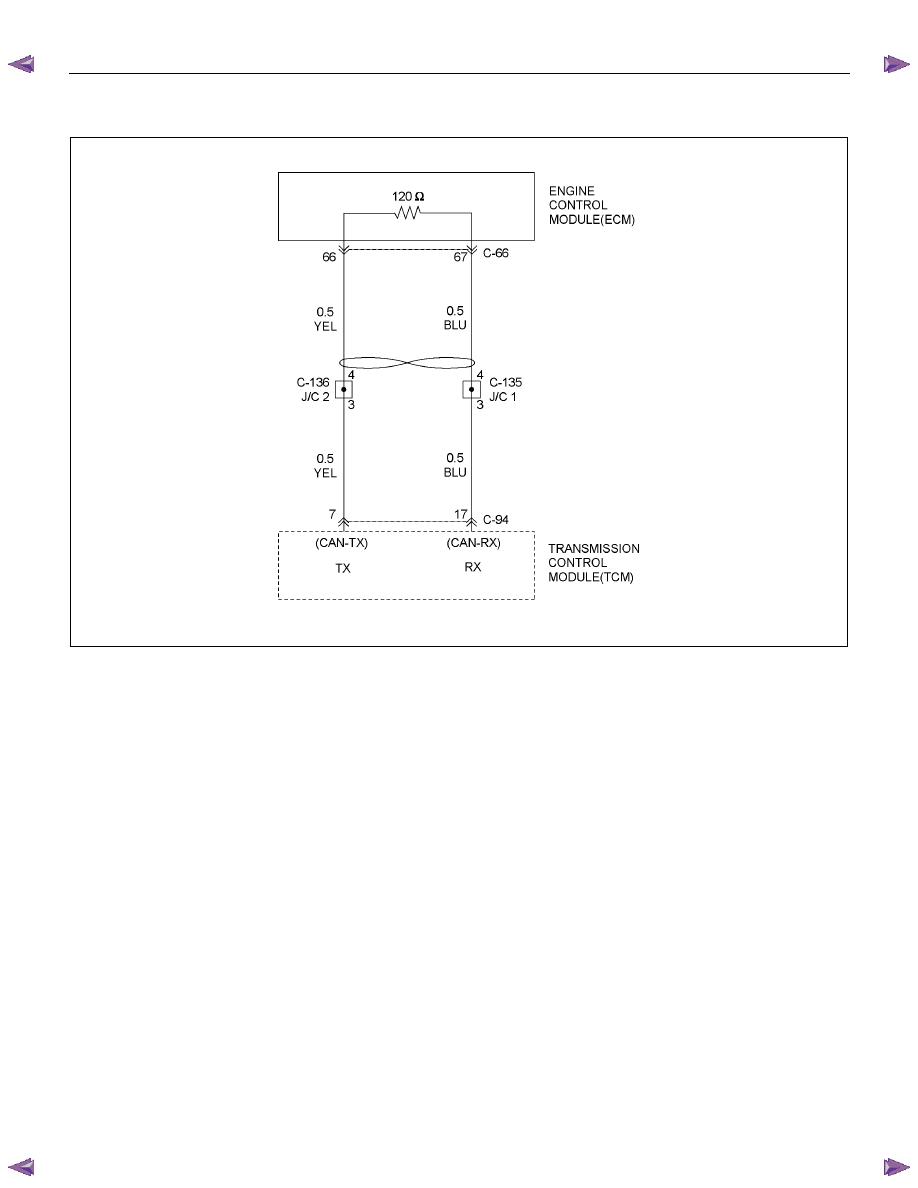

RTW77AMF000801



Circuit Description

The automatic transmission control system in AW30-
40LE uses high speed CAN bus system. The individual
CAN bus systems are connected via two interfaces and
can exchange information and data. This allows control
modules that are connected to different CAN bus
systems to communicate. Transmission control module
in the vehicle that requires continuous, rapid
communication is connected to the high speed CAN
bus. The automatic transmission is continuously notified
of the current engine load status. Since the automatic
transmission control module has to react immediately to
load status changes, rapid communication is required
between the engine control module and the automatic
transmission control module. The high speed CAN bus
in the AW30-40LE is designed as a two-wire CAN bus
(twisted pair). The wires are shielded and twisted. The
transmission rate is 500K band.





Condition For Running The DTC

All of the following conditions are met.

  (1) All of the following conditions are met.

•  The following condition is met for 2 seconds or

more continuously.

-  The supply voltage is more than 10.2 volts

and less than 15.5 volts.

•  One of the following conditions is met once after

ignition “ON”.

-  Output revolution sensor is not detecting

failure or not deciding failure.
Output revolution is more than 550rpm

- Input revolution sensor is not detecting

failure or not deciding failure.
Input revolution is more than 550rpm

-  DTC U2104 is not detecting failure or not

deciding failure.



DTC U2105 is not detecting failure or not
deciding failure.



Engine revolution signal is not detecting
failure or not deciding failure.
The engine revolution is more than 550rpm.

TRANSMISSION CONTROL SYSTEM (AW30–40LE)  7A2-113



  (2) All of the following conditions are met.

•  Device Control is not operating.

•  Disable Normal Communication is receiving

enable.

•  DTC Clear is not operating.



The following condition at ignition “OFF” form “ON” is
detected seven times in total in 1 cycle.

•  Receiving BUS “OFF” information from CAN

controller.

Action Taken When The DTC Set

•  Throttle judgment on torque reduction control, line

pressure control at stationary status, line pressure
reduction control at gear change and line pressure
reduction control at garage. (Throttle opening 100%)

•  Line pressure FULL output.

•  Throttle judgment on gear change control. (Throttle

opening 0%)

•  No line pressure reduction control at gear change.

•  No torque reduction control.

•  No squat control.

•  No slope control.

•  No L-up control.

•  Control Engine rpm at 7000rpm. (No inertia

calculation)

•  Control actual torque at MAX.

•  Control driver torque at MAX.

•  Control engine coolant temperature at 80

°C (176°F).

•  No coast control.

•  No 3rd Start mode control.

•  No line pressure reduction control at garage.

•  No output revolution sensor failure detection.

•  No input revolution sensor failure detection.

•  No selector position switch failure detection.

•  No oil temperature sensor failure detection.

•  No T/F Hi-Low SW failure detection.

•  No speed mater signal failure detection.

•  No throttle signal failure detection.

•  No Engine torque signal failure detection.

•  No engine coolant temperature signal failure

detection.

•  No Engine revolution signal failure detection.

•  No shift solenoid functional failure detection.

•  No L-up solenoid functional failure detection.

•  No DTC U2105 failure detection.



•  Cancel engine rpm condition of prerequisite of supply

voltage failure detection.

•  Control vehicle speed of speed meter at 0km/h.

•  No torque reduction at stall.

•  No cruise control.

•  No warm up control.

•  DTC stored.

•  Check Trans “ON”.

•  MIL request “ON”. (EURO 4 only)

Conditions For Clearing The DTC

•  The DTC can be cleared from the TCM history by

using a scan tool.

•  The DTC will be cleared from history when the

vehicle has achieved 40 warm-up cycles without a
failure reported.

•  After more than 1 second has elapsed after the

ignition key has been turned “ON”, short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.

Diagnostic Aids

•  Inspect the wiring for poor electrical connection at the

TCM. Look for possible bent, backed out, deformed
or damaged terminals. Check for weak terminal
tension as well. Also check for a chafed wire that
could short to bare metal or other wiring. Inspect for a
broken wire inside the insulation.

•  When diagnosing for a possible intermittent short or

open condition, move the wiring harness while
observing test equipment for a change.

•  Inspect the wiring for EMI (Electro-Magnetic

Interference). Check that all wires are properly routed
away from coil, and generator. Also check for
improperly installed electrical options. When this test
is performed, turn “OFF” on electronic auto parts
switches to improperly for a noise preventing.
