7A2-42  TRANSMISSION CONTROL SYSTEM (AW30–40LE)



Step Action  Value(s)

YES

NO

4

 1. Turn “OFF” the ignition.

 2. Disconnect the TCM connector at the TCM.



3.

Using the 5-8840-0285-0 DMM, measure the
battery voltage between the TCM connector
terminal C94 (Pin No.24)



Is it approximately equal to battery voltage?

—

Check for

excessive

current with

ignition “OFF”

engine “OFF”.

Go to Step 5

5

 1. Check for faulty connections at the TCM harness

terminals.

 2. Repair as necessary.



Was a repair necessary?

—

Go to Step 8 Go

to

Step 6

6

 1. Check for an open battery feed circuit to the TCM.

 2. Repair as necessary.



Was a repair necessary?

—

Go to Step 8 Go

to

Step 7

7

Replace the TCM.

Important: The replacement TCM must be
programmed. (Refer to SPS for procedure.)



Was the action complete?

—

Go to Step 8 —



8



1. Reconnect all previously disconnected harness

connector(s).

 2. Clear the DTCs with a scan tool.

 3. Turn “OFF” the ignition.

 4. Start the engine.



5. Operate the vehicle within the Conditions For

Running the DTC. You may also operate the
vehicle within the conditions that you observed
from the Freeze Frame/ Failure Records.



Did the DTC fail this ignition?

— Go

to

Step 2 Go

to

Step 9

9

Observe the stored information, Capture Info with a
scan tool.



Are there any DTCs that you have not diagnosed?

— Go

to

Diagnostic

Trouble Code

(DTC) List

Verify repair

TRANSMISSION CONTROL SYSTEM (AW30–40LE)  7A2-43



DTC P0602 (Flash Code 63)

Circuit Description

The Service Programming System (SPS) updates the
flash calibration files that are stored in a Transmission
Control Module (TCM). The calibration file
custom-tailors a module to a certain vehicle. The
calibration file contains data for things such as spark
curves and fuel control. When troubleshooting a
driveability problem, diagnosis may call for
reprogramming the controller with newer calibration
information to correct a customer concern and Vehicle
Identification Number (VIN).

Condition for setting the DTC

When a VIN No. is not written into the TCM.

Action Taken When The DTC Sets

•  DTC stored.

Conditions For Clearing The DTC

•  The DTC can be cleared from the TCM history by

using a scan tool.

•  The DTC will be cleared from history when the

vehicle has achieved 40 warm-up cycles without a
failure reported.

•  After more than 1 second has elapsed after the

ignition key has been turned “ON”, short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.

Diagnostic Aids

DTC P0602 is indicated when a VIN No. is not written
into the TCM.  A security lock is performed by SPS. And
not replace the TCM when DTC P0602 can repair by
SPS.









7A2-44  TRANSMISSION CONTROL SYSTEM (AW30–40LE)



Circuit/System Testing DTC P0602



Step Action  Value(s)

YES

NO

1



Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2 Go

to

OBD

System Check

2

 1. Install a scan tool.

 2. Turn “ON” the ignition.

 3. Check the Vehicle Identification Number (VIN) by

the scan tool.



Is VIN on the scan tool same as VIN of vehicles?

— Go

to

Step 4

Go to Step 3

3

Write a VIN by a scan tool. (Refer to SPS for
procedure.)



Is the action complete?

— Go

to

Step 4 —

4

Clear the DTC P0602 with a scan tool.



Is the action complete?

—

Go to Step 5 —

5

Perform the SPS and perform security lock. (Refer to
SPS for procedure)



Is the action complete?

—

Go to Step 6 —

6

Recheck the DTC with a scan tool.

 1. Turn “OFF” the ignition.

 2. Wait a few seconds.

 3. Turn “ON” the ignition.



Does a scan tool indicate DTC P0602?

—

Go to Step 7 Go

to

Step 8

7

Replace the TCM.

Important:

The replacement TCM must be

programmed. (Refer to SPS for procedure.)



Was the action complete?

—

Go to Step 8 —



8



1. Reconnect all previously disconnected harness

connector(s).

 2. Clear the DTCs with a scan tool.

 3. Turn “OFF” the ignition.

 4. Start the engine.



5. Operate the vehicle within the Conditions For

Running the DTC. You may also operate the
vehicle within the conditions that you observed
from the Freeze Frame/ Failure Records.



Did the DTC fail this ignition?

— Go

to

Step 2 Go

to

Step 9

9

Observe the stored information, Capture Info with a
scan tool.



Are there any DTCs that you have not diagnosed?

— Go

to

Diagnostic

Trouble Code

(DTC) List

Verify repair



TRANSMISSION CONTROL SYSTEM (AW30–40LE)  7A2-45

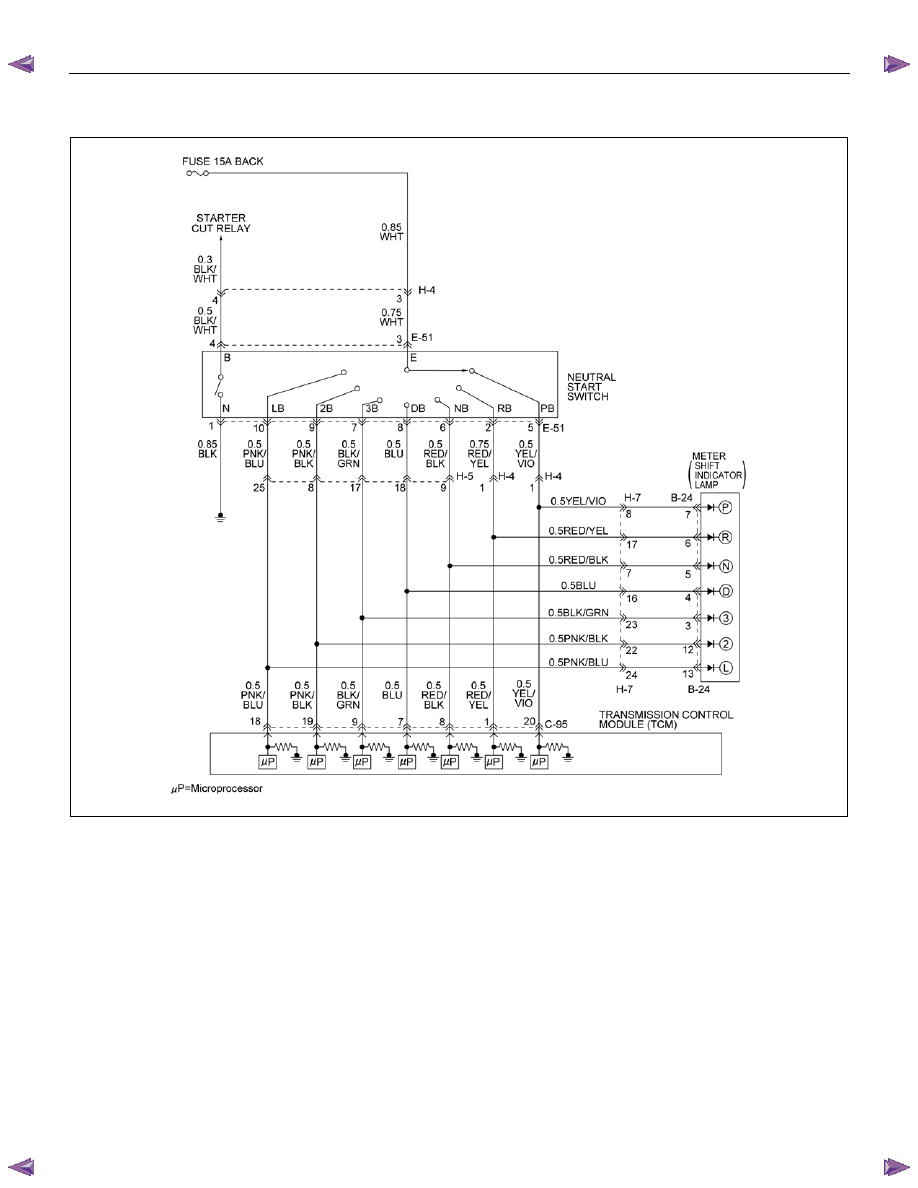

DTC P0707 or P0708 (Flash Code 17)









RTW77ALF001401



Circuit Description

The neutral start switch gives the signals related to the
selector lever position (PRND32L) to the Transmission
Control Module (TCM). The neutral start switch turns on
when the select lever is shifted to the P, R, N, D, 3, 2 or
L position. The neutral start switch, which is connected
to the starter switch circuit, is available only when the
select lever is in the P or N position (Engine run).

The neutral start switch is connected to the
transmission manual shaft and mounted on the
transmission case.





Condition For Running The DTC

All of the following conditions are met.

 (1) All of the following conditions are met for 2

seconds or more continuously.

•  The supply voltage is more than 10.2 volts and

less than 15.5 volts.

•  DTC U2104 is not detecting failure or not

deciding failure.

•  DTC U2105 is not detecting failure or not

deciding failure.

•  Engine revolution signal is not detecting failure

or not deciding failure.

•  The engine revolution is more than 550rpm.
