FRONT SUSPENSION  3C-63

8.  EXCESSIVELY OR PARTIALLY WORN TIRE



Checkpoint   Problem

Countermeasure



Brake adjustment

Wheel alignment

Adjust

Adjust

Incorrect

Incorrect

Front wheel bearing

Replace

Adjust

Faulty

Improper

OK

NG

NG

NG

NG

OK

OK

Tire pressure

Tire rotation

Rotate tires at recomended

intervals

Not rotated

OK

NG



REAR SUSPENSION  3D-1

SECTION 3D

REAR SUSPENSION

TABLE OF CONTENTS

 PAGE

Main Data and Specifications........................................................................................... 3D-  2

Torque Specifications .................................................................................................. 3D-  3

Rear Suspension ............................................................................................................... 3D- 5

General Description...................................................................................................... 3D-  5

Leaf Spring and Shock Absorber..................................................................................... 3D-  6

Leaf Spring and Associated Parts............................................................................... 3D-  6

Removal ......................................................................................................................... 3D-  7

Inspection and Repair .................................................................................................. 3D-  8

Installation..................................................................................................................... 3D- 9

Leaf Spring Assembly ....................................................................................................... 3D- 11

Disassembly.................................................................................................................. 3D- 11

Inspection and Repair .................................................................................................. 3D- 11

Reassembly................................................................................................................... 3D- 12

Rear Stabilizer Bar ............................................................................................................ 3D- 13

Stabilizer Bar and Associated Parts ........................................................................... 3D- 13

Removal ......................................................................................................................... 3D- 14

Installation..................................................................................................................... 3D- 14

Troubleshooting ................................................................................................................ 3D- 15



3D-2  REAR SUSPENSION

MAIN DATA AND SPECIFICATIONS

General Specifications

Models

Standard Suspension, Soft ride Suspension

Heavy-duty

Suspension

Items

4

× 2

(Except High Ride Suspension)

4

× 2

(High Ride Suspension)

4

× 4

4

× 2

Type

Leaf rigid











Leaf spring









No. of leaves

 5

7

Spring eye type



Berlin eye type



Up turned eye type

Bushing outside dia

mm(in)

Front; 40 (1.57), Rear; 30 (1.18)

Length mm(in)

1,200 (47.24)

Width mm(in)

60 (2.36)











Rear shock absorbers









Type

Gas-sealed, Twin tube

Mean stroke

mm(in)

198 (7.80)

199 (7.83)

198 (7.80)

Compressed length

mm(in)

323 (12.7)

349 (13.7)

323 (12.7)

Extended length

mm(in)

521 (20.5)

549 (21.6)

521 (20.5)



REAR SUSPENSION  3D-3

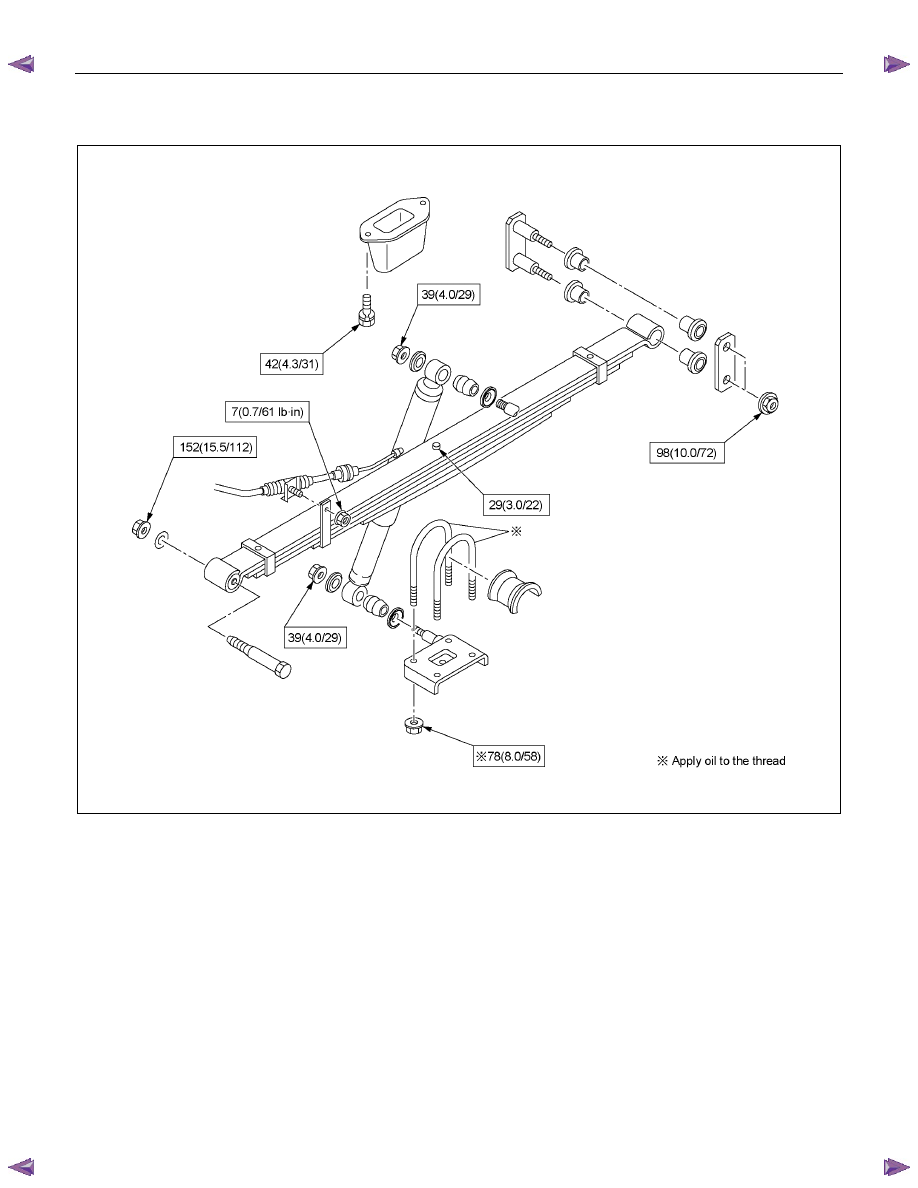

Torque Specifications

N

⋅m(kgf⋅m/lb⋅ft)













RTW73DLF000401
