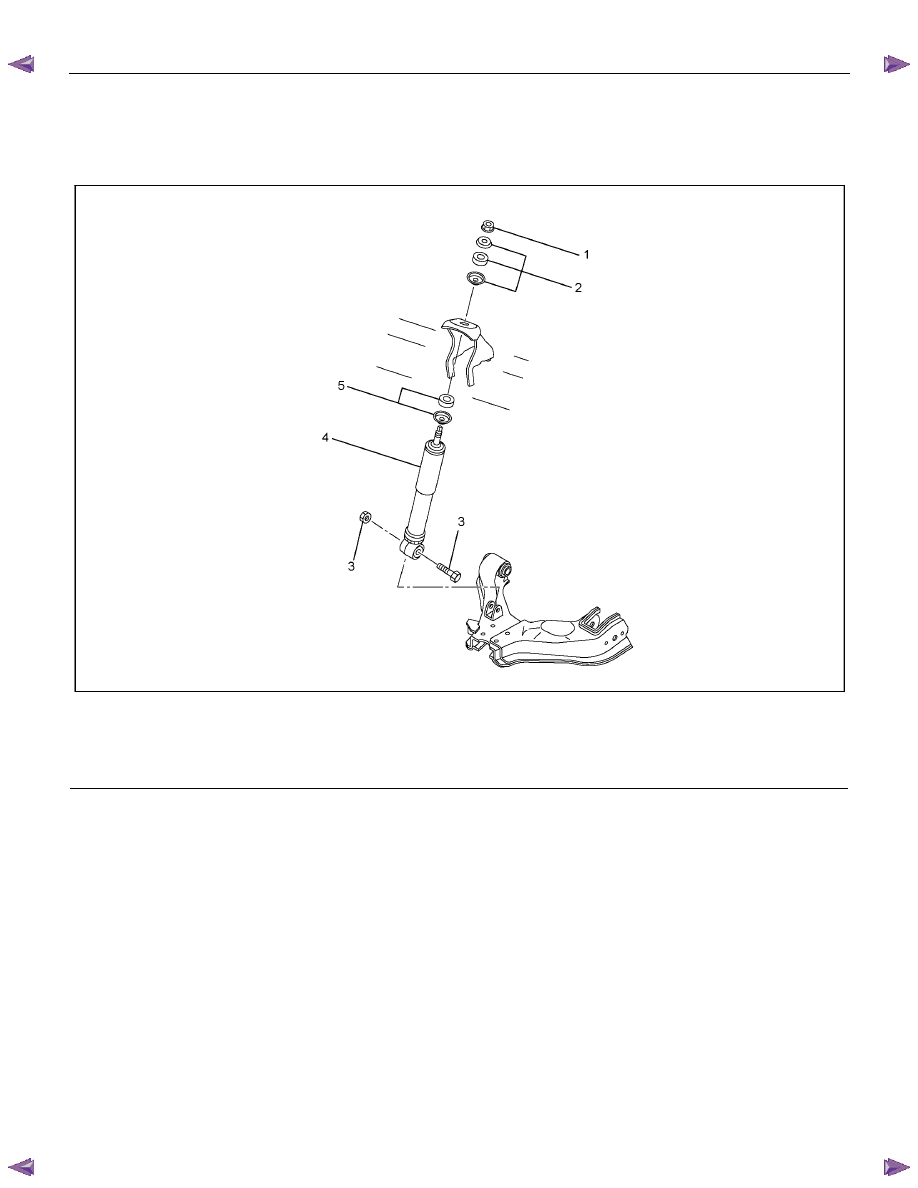

FRONT SUSPENSION 3C-31 Shock Absorber Shock Absorber and Associated Parts
RTW340MF000901 Legend (1) Shock Absorber Nut (2) Rubber Bushing and Washer
(3) Shock Absorber Bolt and Nut (4) Shock Absorber (5) Rubber Bushing and Washer
Removal 1. Raise the vehicle and support it with suitable safety stands. 2. Remove wheel and tire assembly. Refer to Wheel Replacement in this section. 3. Remove bolt and nut. 4. Remove nut. 5. Remove rubber bushing and washer. 6. Remove shock absorber. 7. Remove rubber bushing and washer. Inspection and Repair Make necessary correction or replace parts if wear,
Check the following parts: • Shock absorber • Rubber bushing Installation 1. Install rubber bushing and washer. 2. Install shock absorber. 3. Install rubber bushing and washer. 4. Install shock absorber nut, then tighten it to the specified torque. Torque: 20 N ⋅⋅⋅⋅m (2.0 kgf⋅⋅⋅⋅m/14 lb⋅⋅⋅⋅ft) 5. Install shock absorber bolt and nut, and then tighten to the specified torque. Torque: 93 N ⋅⋅⋅⋅m (9.5 kgf⋅⋅⋅⋅m/69 lb⋅⋅⋅⋅ft) |
