Isuzu KB P190. Manual - part 53

SHEET METAL 2B-15

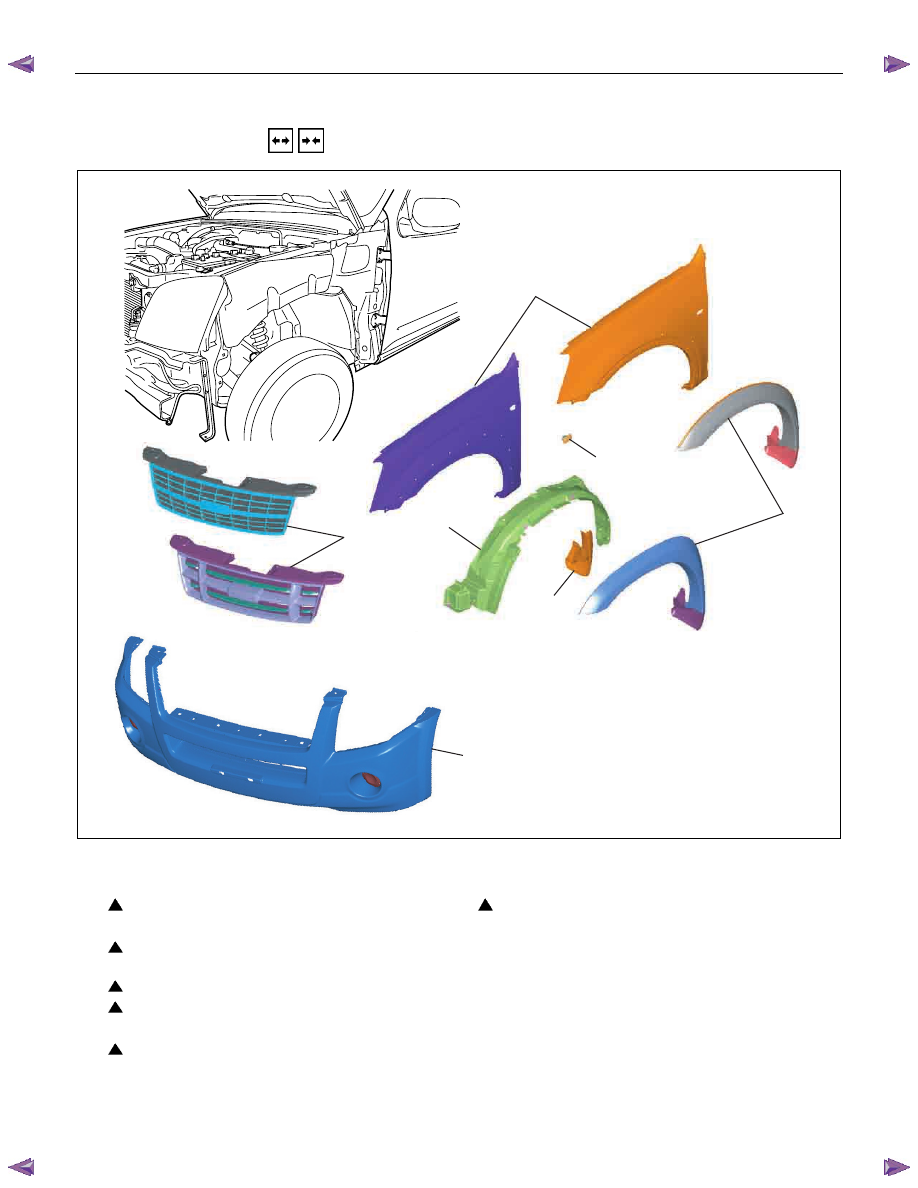

FRONT FENDER PANEL (A TYPE)

REMOVAL AND INSTALLATION

RTW72BLF000201

Removal Steps

Installation Steps

1. Radiator grille

2. Mud guard (W/O front wheel extension)

3. Front wheel extension (W/ front wheel

extension)

4. Inner liner

5. Front bumper fascia

6. Side turn signal light

7. Front fender panel

6. Side turn signal light

5. Front bumper fascia

4. Inner liner

3. Front wheel extension (W/ front wheel

extension)

2. Mud guard (W/O front wheel extension)

1. Radiator grille

2B-16 SHEET METAL

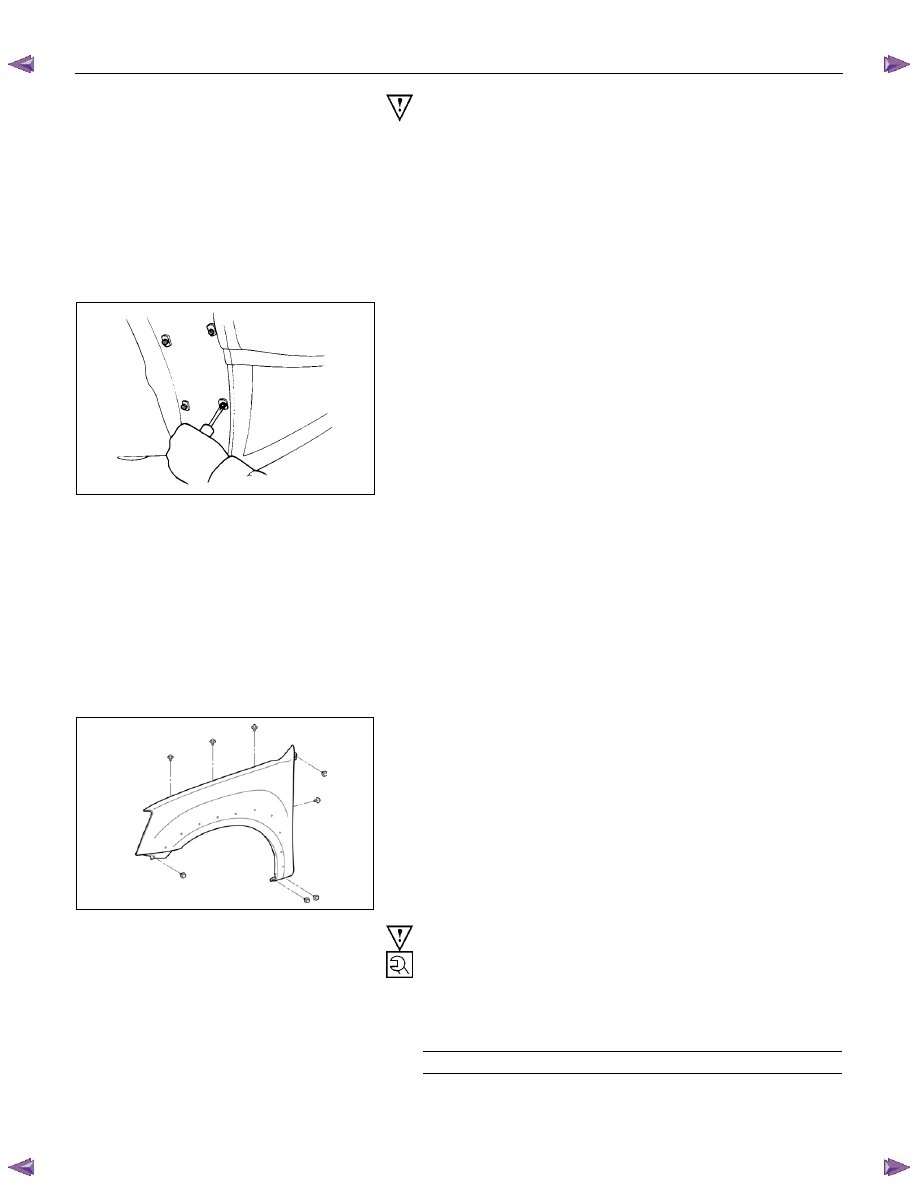

Important Operations - Removal

1. Radiator Grille
Refer to the Radiator Grille in this section.

3. Front wheel extension (W/front wheel extension)
Refer to the SECTION 10 “Front Wheel Extension”.

4. Inner Liner
Remove the inner liner fixing screws.

5. Front Bumper Fascia
Refer to the Front Bumper in this section.

RTW72BSH000201

7. Front Fender Panel
Remove the 8 fixing bolts.

Important Operation - Installation

7. Front Fender Panel

1) Tighten the front fender panel fixing bolts to the

specified torque.

Torque N

⋅m(kgf⋅m/lb⋅in)

10 (1.0 / 87)

SHEET METAL 2B-17

RTW72BSH000601

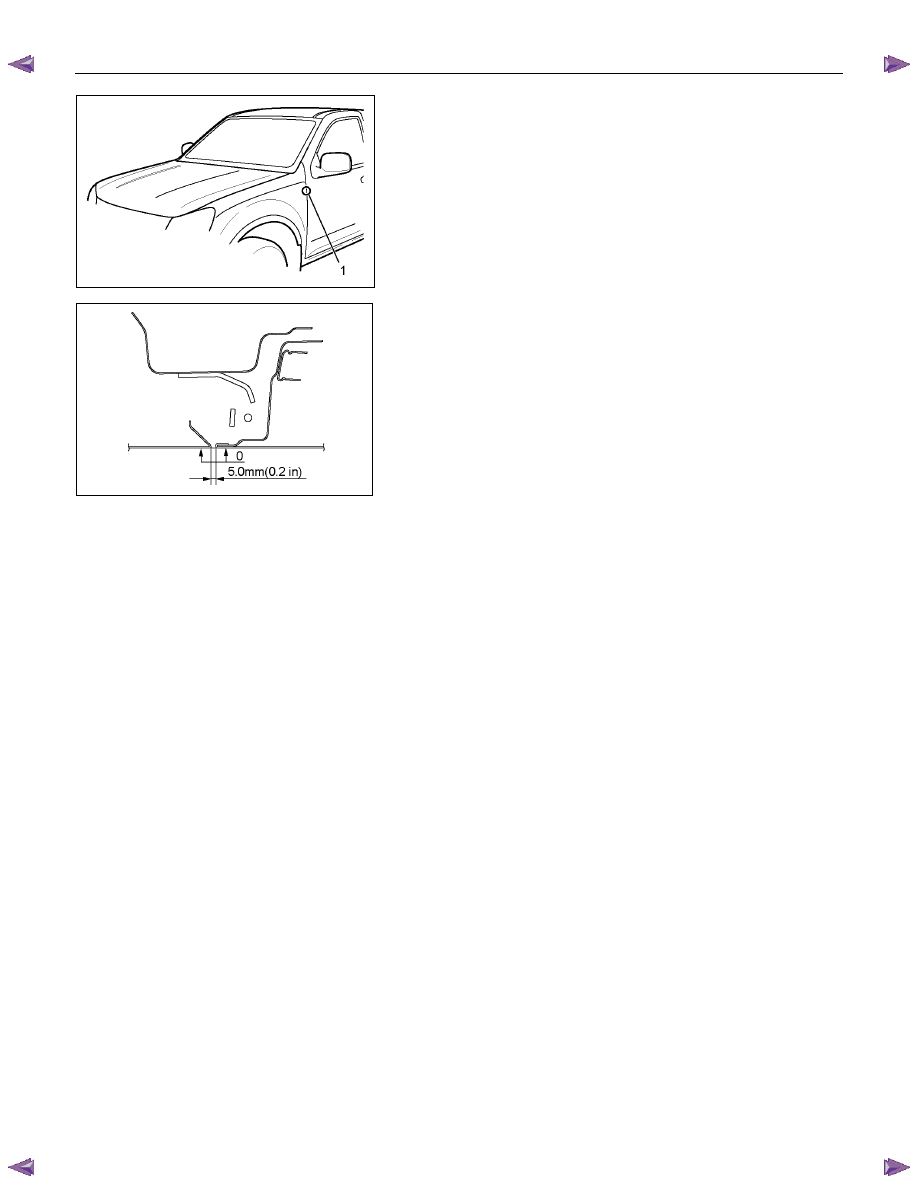

2) Check the fender and front door (1).

•  Clearance : 5.0 mm (0.2 in)
•  Height (step) : Flushness

RTW32BSH000301

2B-18 SHEET METAL

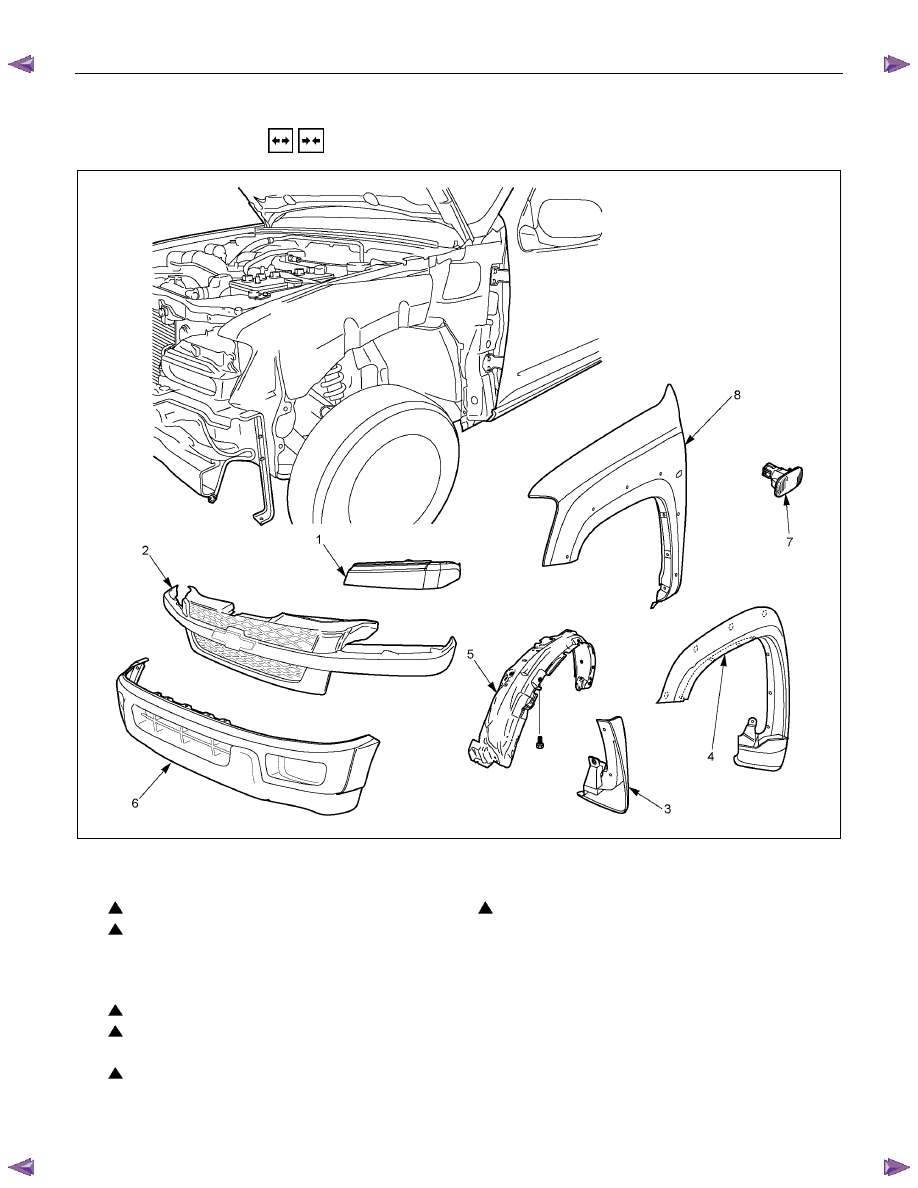

FRONT FENDER PANEL (B TYPE)

REMOVAL AND INSTALLATION

RTW52BLF000101

Removal Steps

Installation Steps

1. Front combi lamp assembly

2. Radiator grille

3. Mud guard (W/O front wheel extension)

4. Front wheel extension (W/ front wheel

extension)

5. Inner liner

6. Front bumper fascia

7. Side turn signal light

8. Front fender panel

7. Side turn signal light

6. Front bumper fascia

5. Inner liner

4. Front wheel extension (W/ front wheel

extension)

3. Mud guard (W/O front wheel extension)

2. Radiator grille

1. Front combi lamp assembly
