SHEET METAL  2B-1

SECTION 2B

SHEET METAL



This section includes items of front end sheet metal that are attached by bolts, screws or clips and related
accessory components.

Anticorrosion materials have been applied to the interior surfaces of some metal panels to provide rust resistance.
When servicing these panels, areas on which this material has been disturbed, should be properly recoated with
service-type anticorrosion material.

TABLE OF CONTENTS



PAGE

Engine Hood Assembly (A type) ...................................................................................... 2B-  2

Engine Hood Assembly (B type)  ..................................................................................... 2B-  8

Engine Hood Lock (A type)  .............................................................................................. 2B- 11

Engine Hood Lock (B type) .............................................................................................. 2B- 13

Front Fender Panel (A type) ............................................................................................. 2B- 15

Front Fender Panel (B type) ............................................................................................. 2B- 18

Radiator Grille (A type) ..................................................................................................... 2B- 21

Radiator Grille (B type)  .................................................................................................... 2B- 22

Rear Body........................................................................................................................... 2B- 23

Body Mounting .................................................................................................................. 2B- 26

Body Dimensions .............................................................................................................. 2B- 32



2B-2  SHEET METAL

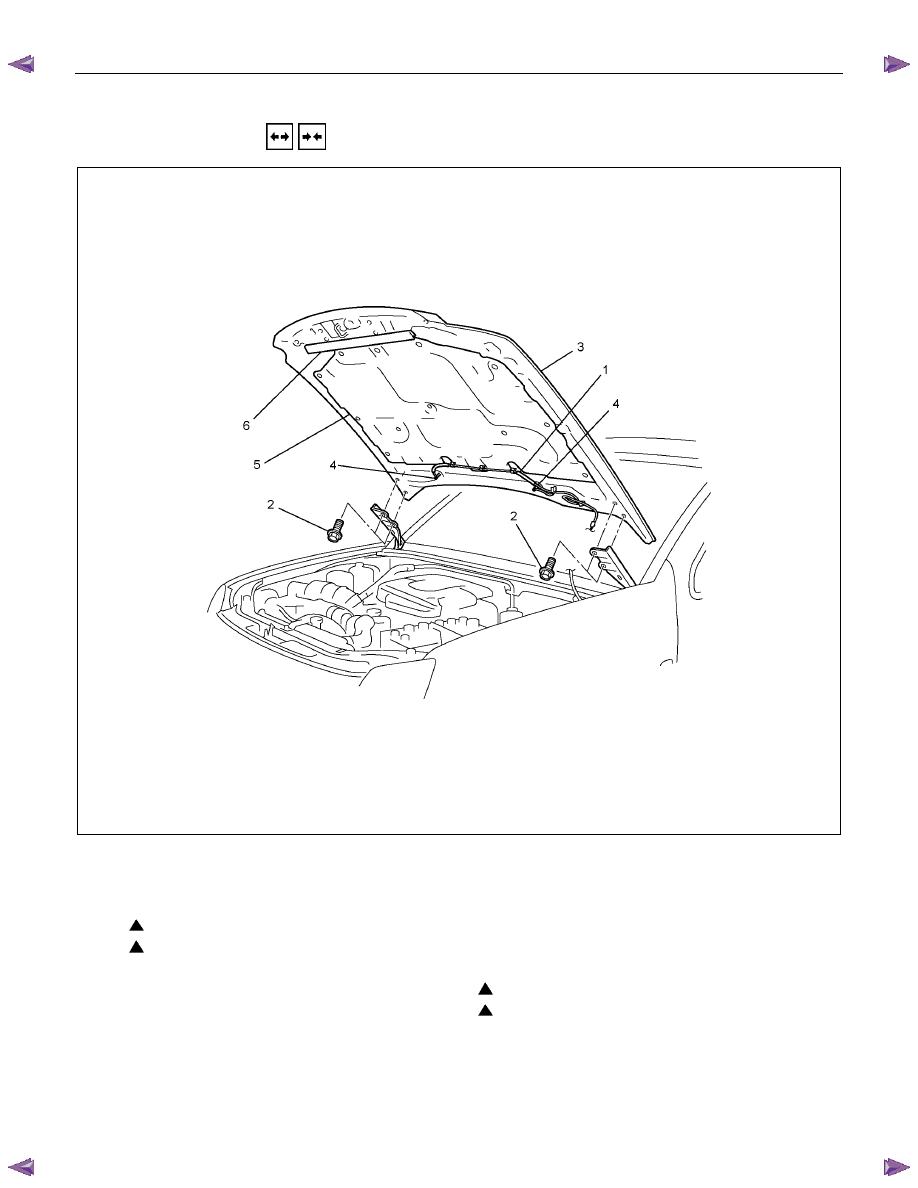

ENGINE HOOD ASSEMBLY (A TYPE)



  REMOVAL AND INSTALLATION
















RTW72BLF000601



Except 4JK1 (High Output) / 4JJ1 (High Output) Model
Removal Steps



Installation Steps

  1. Washer nozzle tube





6. Hood seal

  2. Hood hinge bolt





5. Hood insulator



3. Engine hood





4. Washer nozzle



4. Washer nozzle



  3. Engine hood



5. Hood insulator



  2. Hood hinge bolt



6. Hood seal





1. Washer nozzle tube
