1-38  HEATER AND AIR CONDITIONING

8)  Charge the system to the specified amount and then close

the low-pressure hand valve.

 Refrigerant

Amount

g(lbs)

4JA1-T, 4JH1-TC, C24SE

720 (1.59)

4JJ1-TC (Standard Output)

4JJ1-TC (High Output)

4JK1-TC (High Output)



650 (1.43)



9) Check for refrigerant leaks by using a HFC-134a leak

detector.
•  A fully charged system is indicated by the sight glass on

the receiver/drier being free of any bubbles (Refer to

"Reading Sight Glass").

•  Check the high and low pressure value of the manifold

gauge. (Refer to “CHECKING REFRIGERANT SYSTEM

WITH MAINFOLD GAUGE” in SERVICE

INFORMATION.)

Immediately after charging refrigerant, both high and low
pressures are slightly high and to the left of the gauge, but they
settle down to the guide pressure valves as shown below:

•  Ambient temperature; 30∼35°C (86∼95°F)
• Guide

pressure

 High-pressure

side;

 Approx.

1373

∼1670 kPa (14∼17 kg/cm

2

/ 199

∼242 psi)

 Low-pressure

side;

 Approx.

127

∼245 kPa (1.3∼2.5 kg/cm

2

/ 18

∼36 psi)

10) Close the low pressure hand valve and charge valve of the

refrigerant container.

11) Stop the air conditioning and the engine.

12) Disconnect the high and low pressure hoses from the

manifold gauge fittings.








HEATER AND AIR CONDITIONING  1-39

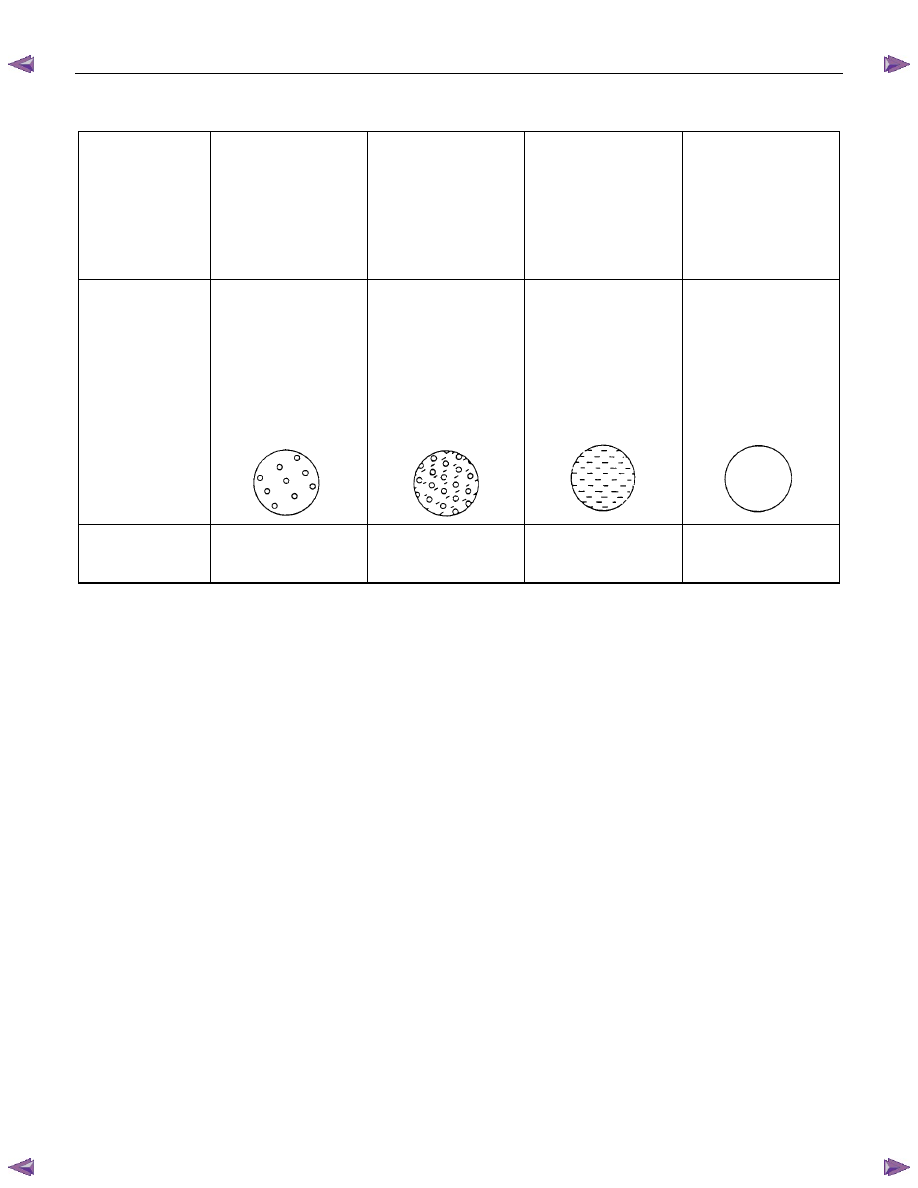

Reading Sight Glass



High and low
pressure pipe
temperature

The high pressure
pipe is hot and the
low pressure pipe
is cold.  There is a
distinct difference
in temperature
between them.

The high pressure
pipe is warm and
the low pressure
pipe is cool.  There
is no great
difference in
temperature
between them.

There is little
difference in
temperature
between the high
pressure pipe and
the low pressure
pipe.

The high pressure
pipe is hot and the
low pressure pipe
is slightly warm.
There is a
difference in
temperature
between them.

Sight glass
condition

Almost transparent.
A flow of bubbles
can be seen, but
they disappear
when the throttle is
opened.





A flow of bubbles
always can be
seen.  It appears
sometimes
transparent, and
sometimes frothy.



Something like fog
faintly can be seen.



Even at idle with
the fan at "HI" (with
the window fully
open), the bubbles
cannot be seen.













Air conditioning
cycle condition



OK

NG

(Not enough

refrigerant)

NG

(Almost no

refrigerant)

NG

(Too much

refrigerant)



The sight glass provides accurate diagnosis only under the following conditions.

If the vehicle can be tested under these conditions, check the sight glass appearance and compare to the chart.

*  Engine speed Idling

*  A/C switch "ON"

*  Blower fan operating at highest speed

*  Air source selector lever at "RECIRC"

*  Temperature control knob at coldest position

*  Ambient temperature below 35

°C (95°F) and humidity below 70% (See NOTE 1)

*  High side pressure less than 1470 kPa (15 kg/cm

2

/ 213 psi) (See NOTE 2)


NOTE 1
If the vehicle cannot be moved to a testing location that meets these specifications, then the sight glass cannot be

used for diagnosis.  You must discharge and recover the refrigerant, then recharge the system with the specified

amount of refrigerant.  Then continue checking the system performance.


NOTE 2
If the high side pressure is greater than stated, the sight glass cannot be used for diagnosis.  You must discharge

and recover the refrigerant, then recharge the system with the specified amount of refrigerant.  Then continue

checking system performance.



1-40  HEATER AND AIR CONDITIONING

CONDENSER



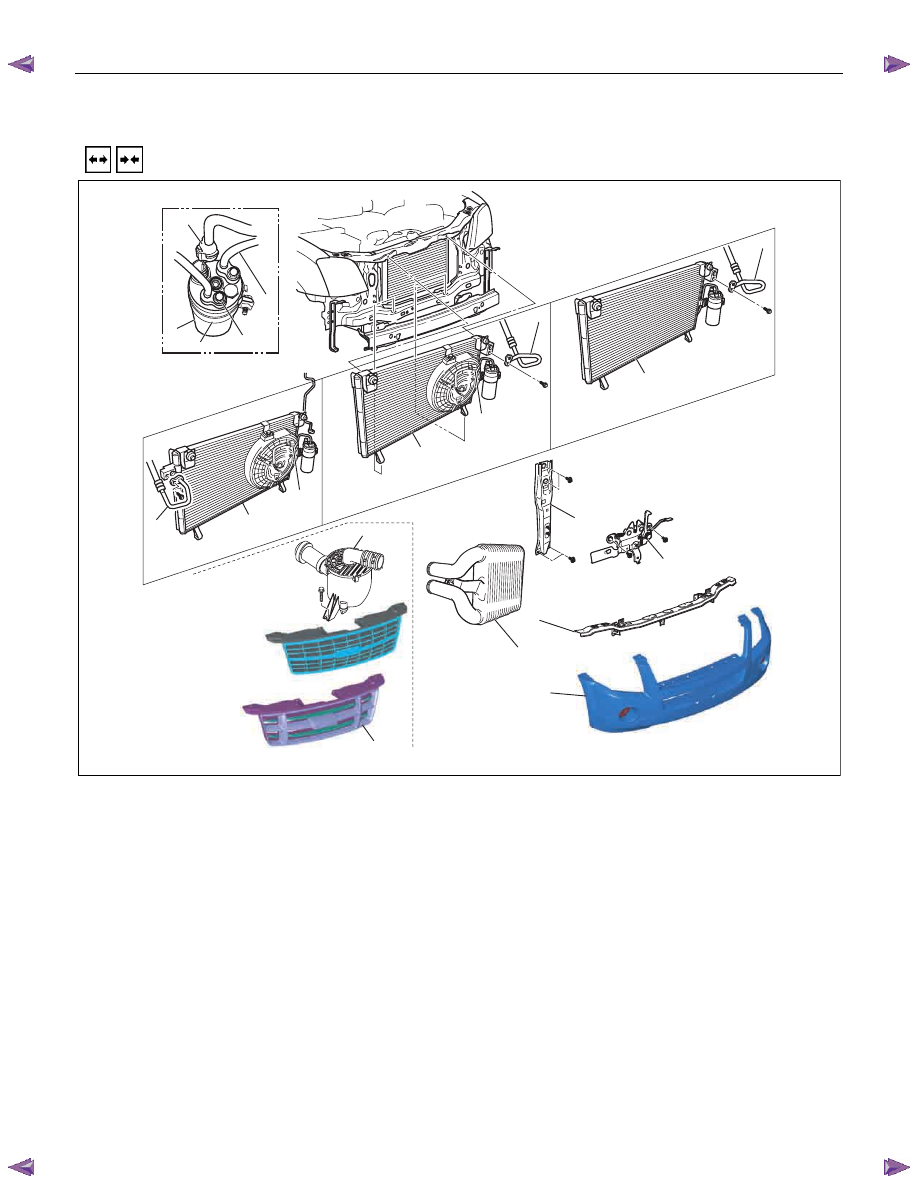

 REMOVAL AND INSTALLATION (4JH1-TC, 4JJ1-TC Standard Output)



13

12

8

10

11

14

10

9

6

7

5

2

3

1

4

14

10

4JH1-TC

4JJ1-TC

Standard Output

(RHD)

14

10

4JJ1-TC

Standard Output

(LHD)

9





This illustration is based on RHD model



RTW710LF001401

Removal Steps



1. Radiator grille



2. Front bumper fascia

•  Refer to SECTION 2A “FRONT

BUMPER”



3. Front bumper impact support assembly

• Refer to SECTION 2A “FRONT

BUMPER”



4. Air cleaner assembly



5. Inter cooler

•  Refer to SECTION 6A “INTER COOLER”



6. Engine hood lock



7. Engine hood front end stay



8. Pressure switch connector



9. Condenser fan connector

  10. Refrigerant line
  11. Refrigerant line
  12. Receiver/drier bracket
 13.

Receiver/drier

  14. Condenser assembly



Installation Steps

  14. Condenser assembly
 13.

Receiver/drier

  12. Receiver/drier bracket
  11. Refrigerant line
  10. Refrigerant line


9. Condenser fan connector



8. Pressure switch connector



7. Engine hood front end stay



6. Engine hood lock



5. Inter cooler

•  Refer to SECTION 6A “INTER COOLER”



4. Air cleaner assembly



3. Front bumper impact support assembly

•  Refer to SECTION 2A “FRONT

BUMPER”



2. Front bumper fascia

•  Refer to SECTION 2A “FRONT

BUMPER”



1. Radiator grille



HEATER AND AIR CONDITIONING  1-41

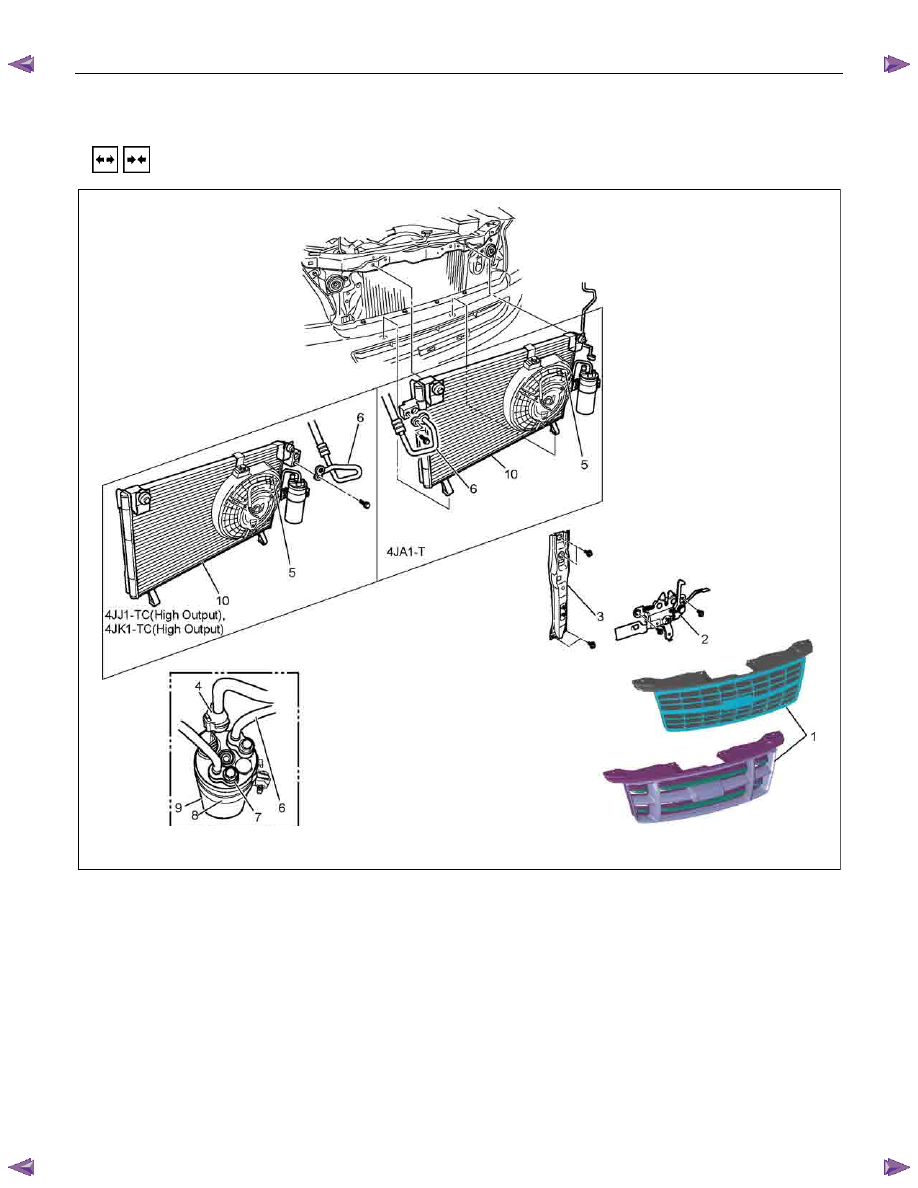

 REMOVAL AND INSTALLATION (4JJ1-TC High Output, 4JK1-TC High Output, 4JA1-T)











This illustration is based on RHD model



RTW710LF001501



Removal Steps



1. Radiator grille



2. Engine hood lock



3. Engine hood front end stay



4. Pressure switch connector



5. Condenser fan connector



6. Refrigerant line



7. Refrigerant line



8. Receiver/drier bracket

 9.

Receiver/drier

  10. Condenser assembly





Installation Steps

  10. Condenser assembly

 9.

Receiver/drier



8. Receiver/drier bracket



7. Refrigerant line



6. Refrigerant line



5. Condenser fan connector



4. Pressure switch connector



3. Engine hood front end stay



2. Engine hood lock



1. Radiator grille
