0B-14  MAINTENANCE AND LUBRICATION

OIL VISCOSITY CHART

Lubricants should be carefully selected according to the lubrication chart.  It is also important to select the viscosity
of lubricants according to the ambient temperature by referring to the following table.

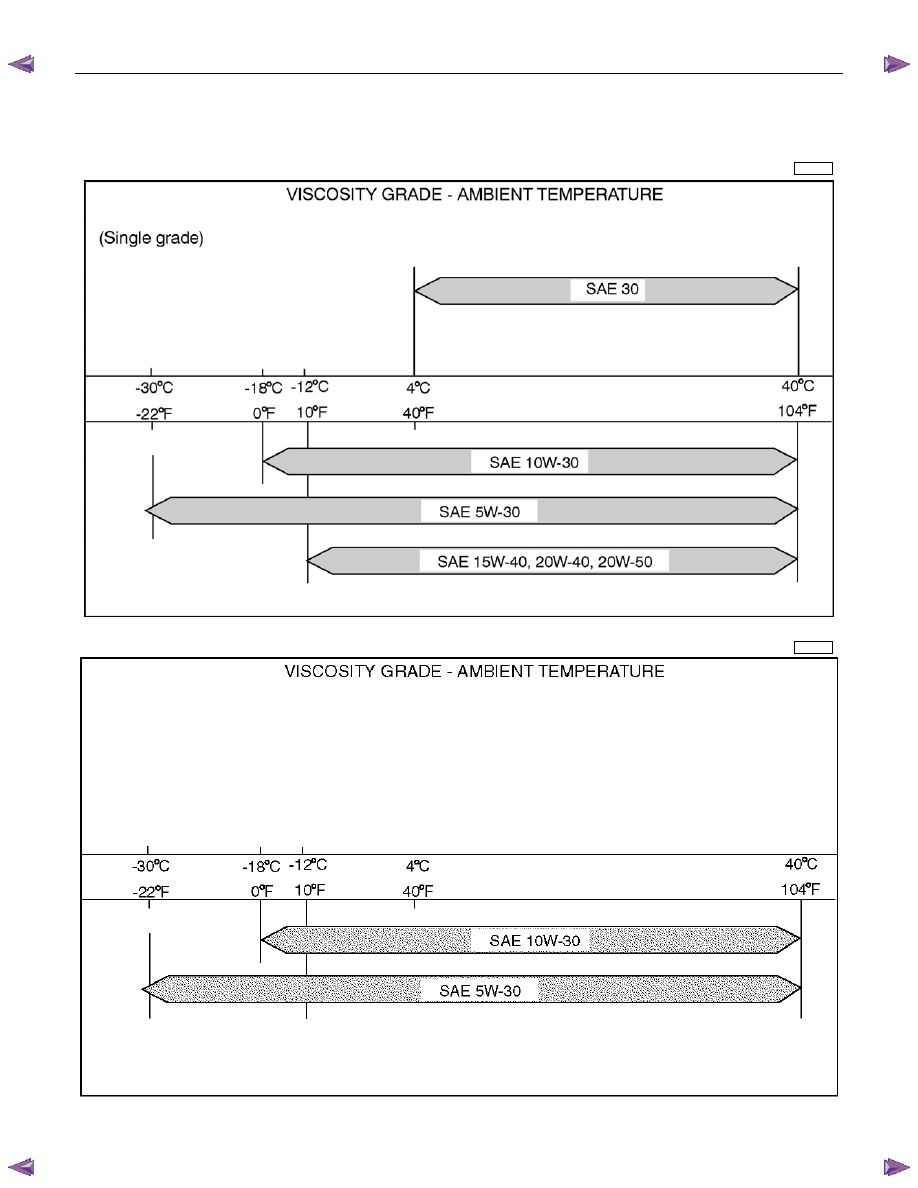

OIL VISCOSITY CHART FOR DIESEL ENGINE

APPLY DIESEL ENGINE OIL



RTA7Z0SF000101




MAINTENANCE AND LUBRICATION  0B-15

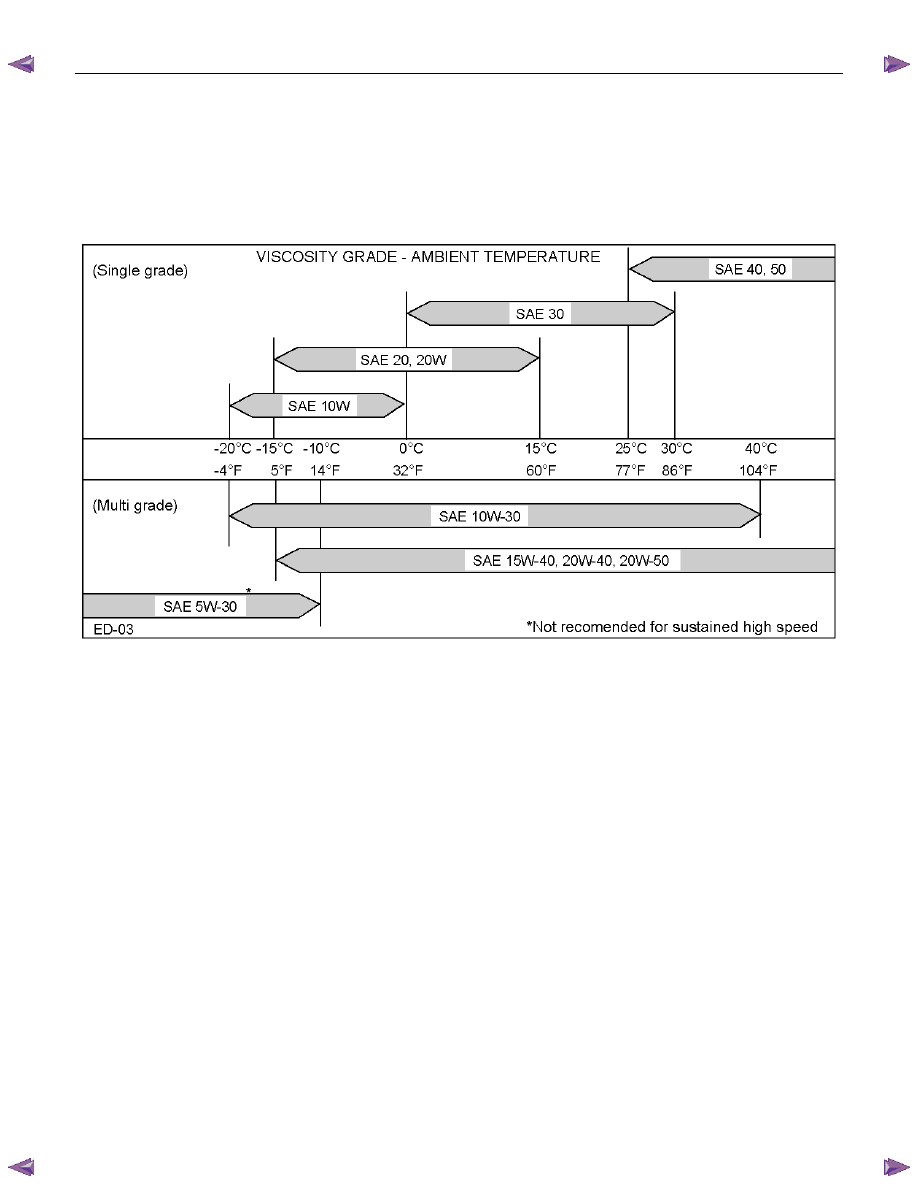

OIL VISCOSITY CHART FOR GASOLINE ENGINE

APPLY GASOLINE ENGINE OIL

C24SE



(Multi grade)







HFV6








0B-16  MAINTENANCE AND LUBRICATION

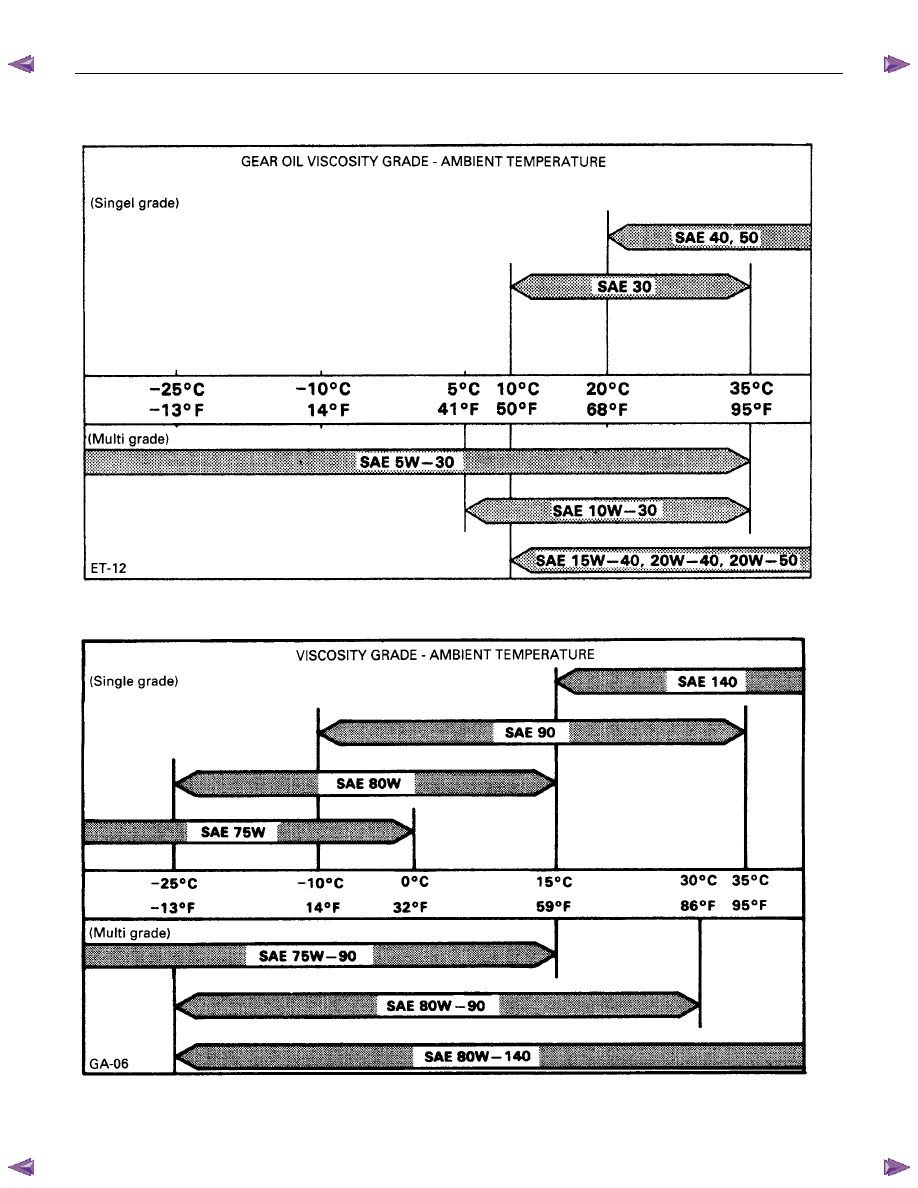

OIL VISCOSITY CHART FOR TRANSMISSION CASE





OIL VISCOSITY CHART FOR FRONT AXLE AND REAR AXLE






HEATER AND AIR CONDITIONING  1-1

SECTION 1

HEATER AND AIR CONDITIONING

TABLE OF CONTENTS

PAGE

General Description ........................................................................................................   1-  3

Main Data and Specifications.........................................................................................   1- 21

Special Parts Fixing Nuts and Bolts ..............................................................................   1- 23

On-Vehicle Service ..........................................................................................................   1- 30

Precautions For Replacement or repair of air conditioning parts..........................   1- 30

Condenser........................................................................................................................  1- 40

Removal and Installation (4JH1-TC, 4JJ1-TC Standard Output).............................   1- 40

Removal and Installation

(4JJ1-TC High Output, 4JK1-TC High Output, 4JA1-T) ........................................   1- 41

Removal and Installation (C24SE) .............................................................................   1- 42

Condenser Fan Motor .....................................................................................................   1- 43

Removal and Installation............................................................................................   1- 43

Receiver/drier ..................................................................................................................  1- 44

Removal and Installation............................................................................................   1- 44

Compressor ..................................................................................................................... 1- 45

Removal and Installation (4JA1-T, 4JH1-TC) ............................................................   1- 45

Removal and Installation

(4JJ1-TC Standard Output, 4JJ1-TC High Output, 4JK1-TC High Output) .........   1- 47

Removal and Installation (C24SE) .............................................................................   1- 49

Disassembly................................................................................................................  1- 55

Reassembly.................................................................................................................  1- 57

Heater Unit .......................................................................................................................  1- 59

Removal and Installation............................................................................................   1- 59

Disassembly and Reassembly...................................................................................   1- 61

Vent Unit (Without Heater)  .............................................................................................   1- 62

Removal and Installation............................................................................................   1- 62

Disassembly and Reassembly...................................................................................   1- 64
