Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 980

4C1-90  FRONT WHEEL DRIVE

SPECIAL SERVICE TOOL

ITEM NO.

ILLUSTRATION

PART NO.

PART NAME

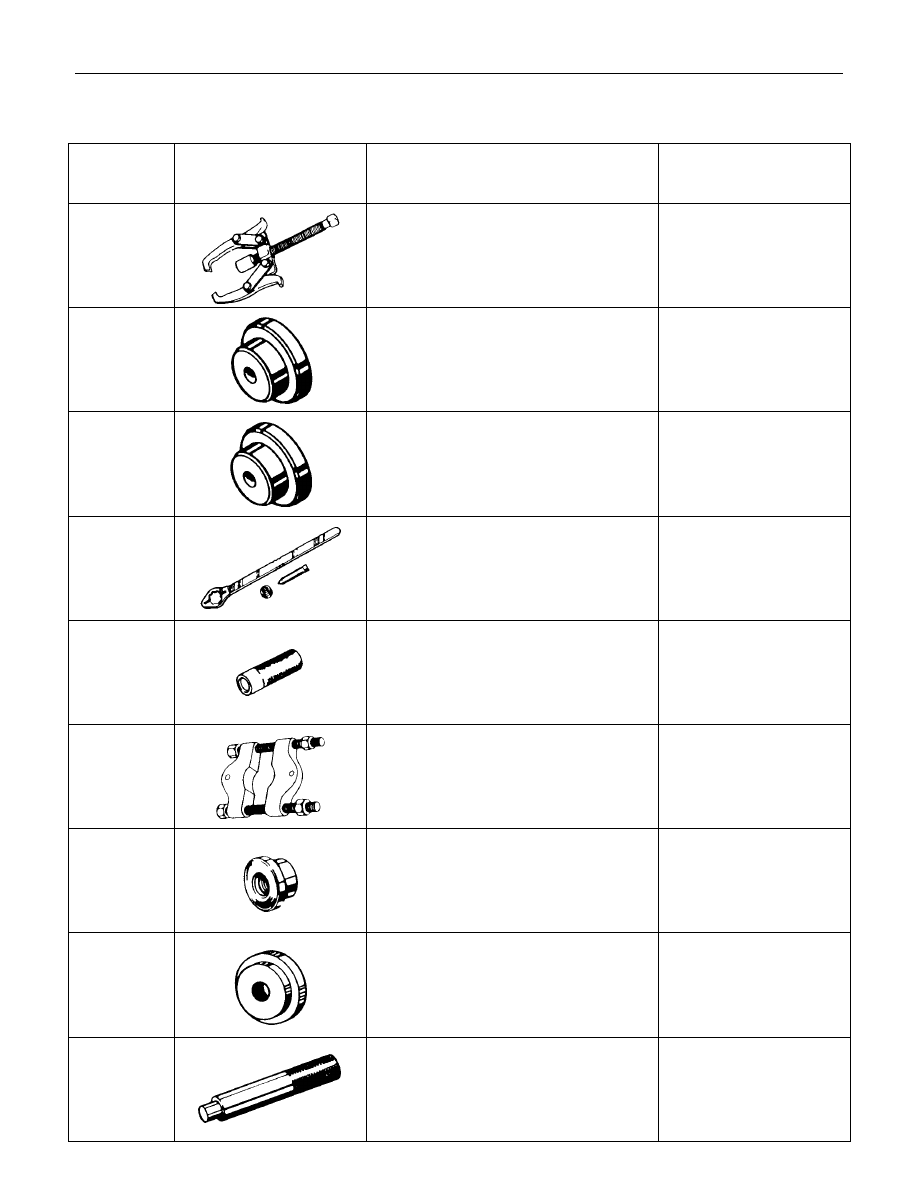

FAL-1

5-8840-0013-0

(J-22888)

Side bearing puller

FAL-13

5-8521-0019-0

Side bearing plug adapter

(for 167mm)

FAL-14

9-8521-1743-0

(J-8107-2)

Side bearing plug adapter

(for 194mm)

FAL-3

5-8840-0133-0

(J-8614-01)

Pinion flange holder

(167mm and 194m)

FAL-8

9-8521-5032-0

Final pinion spindle

FAL-10

5-8840-0015-0

(J-22912-01)

Separator

FAL-11

5-8522-0048-0

(J-29038)

Outer bearing outer race

installer (for 167mm)

FAL12

9-8522-1141-0

(J-24256)

Outer bearing outer race

installer (for 194mm)

OTL-1

5-8840-0007-0

(J-8092)

Driver handle

FRONT WHEEL DRIVE  4C1-91

ITEM NO.

ILLUSTRATION

PART NO.

PART NAME

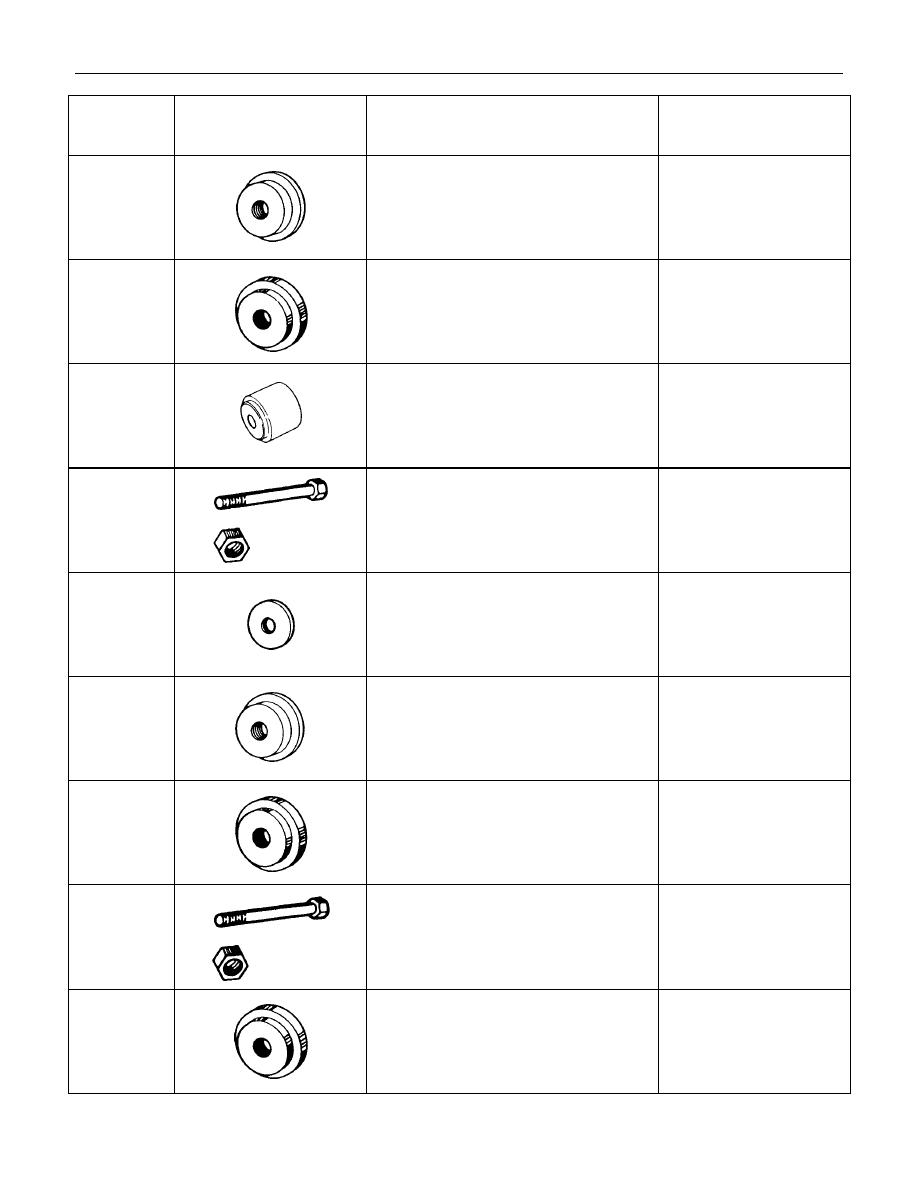

FAL-15

5-8522-0049-0

(J-29039)

Inner bearing outer race

installer (for 167mm)

FAL-16

9-8522-1274-0

(J-24252)

Inner bearing outer race

installer (for 194mm)

FAL-32

5-8840-2092-0

(J-23597-28)

Front pilot (for 167mm)

FAL40

5-8840-0127-0

(J-21777-43)

Stud & nut (for 167mm)

FAL-33

5-8840-2091-0

(J-23597-27)

Rear pilot (for 167mm)

FAL-35

5-8840-2090-0

(J-23597-26)

Gauge plate (for 167mm)

FAL-34

5-8840-2085-0

(J-21777-42)

Pilot (for 194mm)

FAL-41

5-8840-2089-0

(J-23597-9)

Nut & bolt (for 194mm)

FAL-36

5-8840-2087-0

(J-23597-7)

Gauge plate (for 194mm)

4C1-92  FRONT WHEEL DRIVE

ITEM NO.

ILLUSTRATION

PART NO.

PART NAME

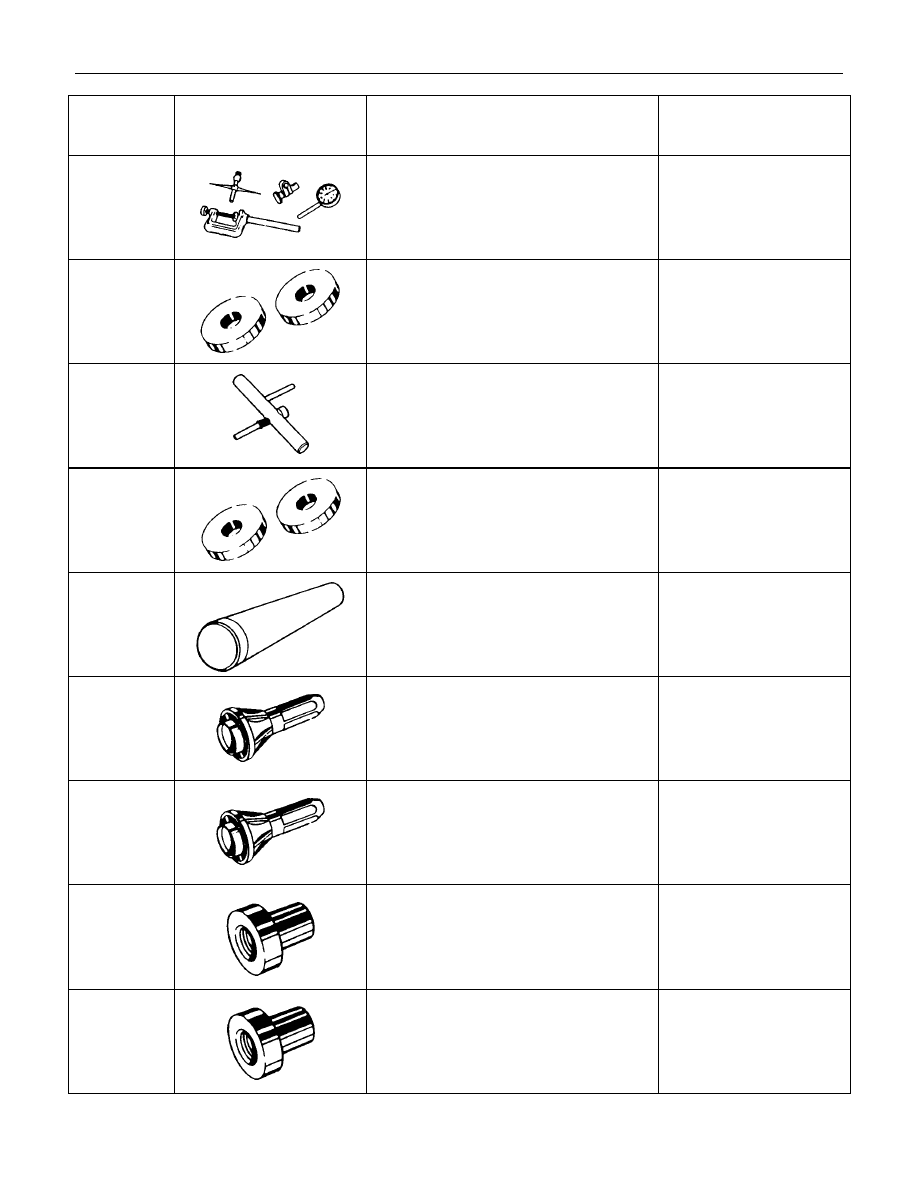

FAL-42

5-8840-0126-0

(J-8001)

Dial indicator

(for 167mm,194mm)

FAL-37

5-8840-2086-0

(J-23597-4)

Disc (2 pcs. required)

(for 167mm)

FAL-43

5-8840-0128-0

(J-23597-1)

Arbor

(for 167mm, 197mm)

FAL-38

5-8840-2088-0

(J-23597-8)

Disc (2 pcs. required)

(for 194mm)

FAL-59

9-8522-1165-0

(J-6133-01)

Pinion bearing installer

(for 4WD)

FAL-52

9-8522-1275-0

(J-24250)

Pinion oil seal installer

(for 194mm)

FAL-53

5-8522-0046-0

(J-26234)

Pinion oil seal installer

(for 167mm)

FAL-55

5-8840-0138-0

(J-29036)

Side bearing installer

(for 167mm)

FAL-56

9-8521-1164-0

(J-24244)

Side bearing installer

(for 194mm)

FRONT WHEEL DRIVE  4C1-93

ITEM NO.

ILLUSTRATION

PART NO.

PART NAME

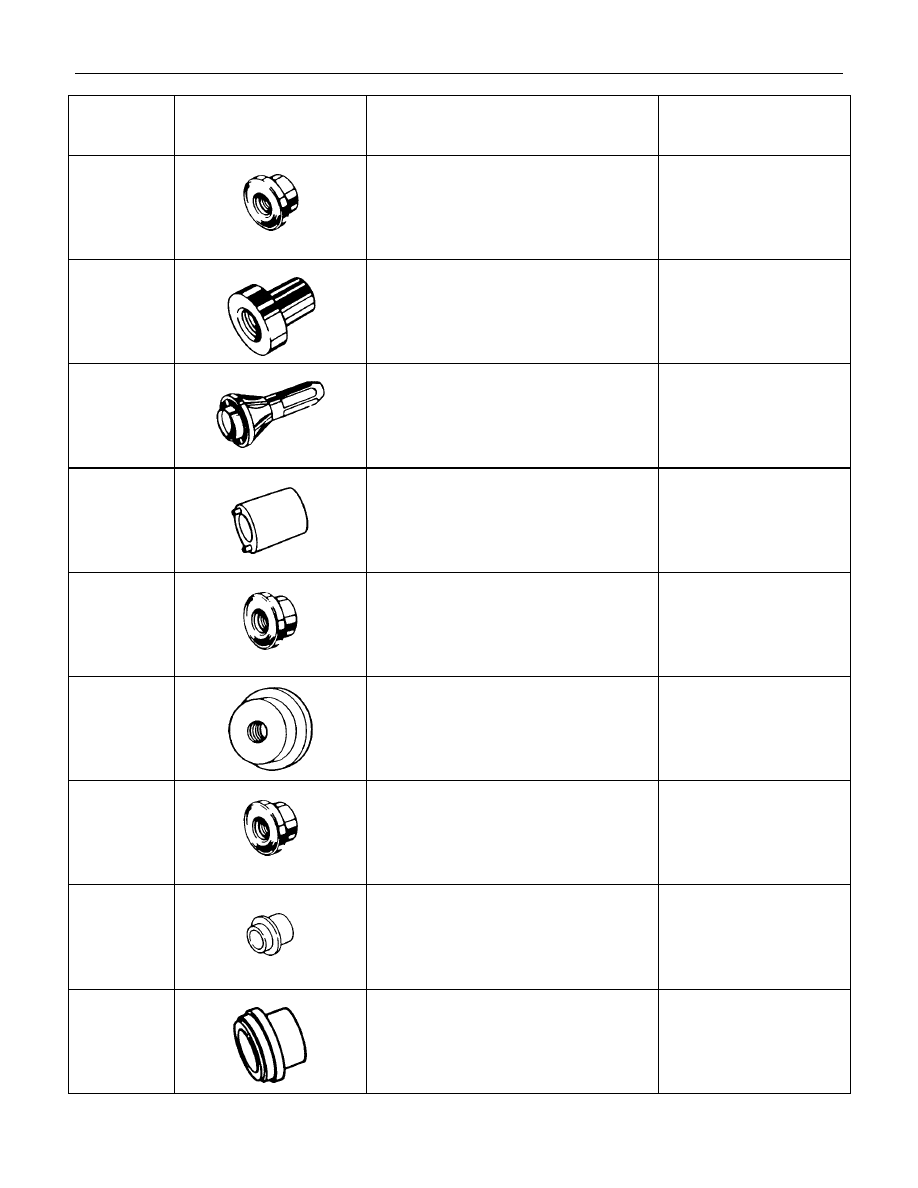

FAL-57

5-8522-0053-0

(J-29016)

Outer bearing installer

(for 2WD)

FAL-58

5-8522-0054-0

(J-29015)

Inner bearing installer

(for 2WD)

FAL-54

5-8522-0051-0

(J-33161)

Hub oil seal installer

(for 2WD)

FAL-62

5-8840-2117-0

(J-36827)

Hub nut wrench

FAL-17

5-8840-2119-0

(J-36829)

Outer bearing inner race

installer (for 4WD)

FAL-19

5-8840-2120-0

(J-36830)

Oil seal installer (for 4WD)

FAL-18

5-8840-0054-0

(J-29015)

Outer bearing outer race

installer (for 4WD)

FAL-61

5-8840-2137-0

(J-38194)

Inner cam installer

FAL-39

5-8840-2126-0

Auto locking shim gauge

(for 4WD)
