ENGINE DRIVEABILITY AND EMISSIONS

6E–81

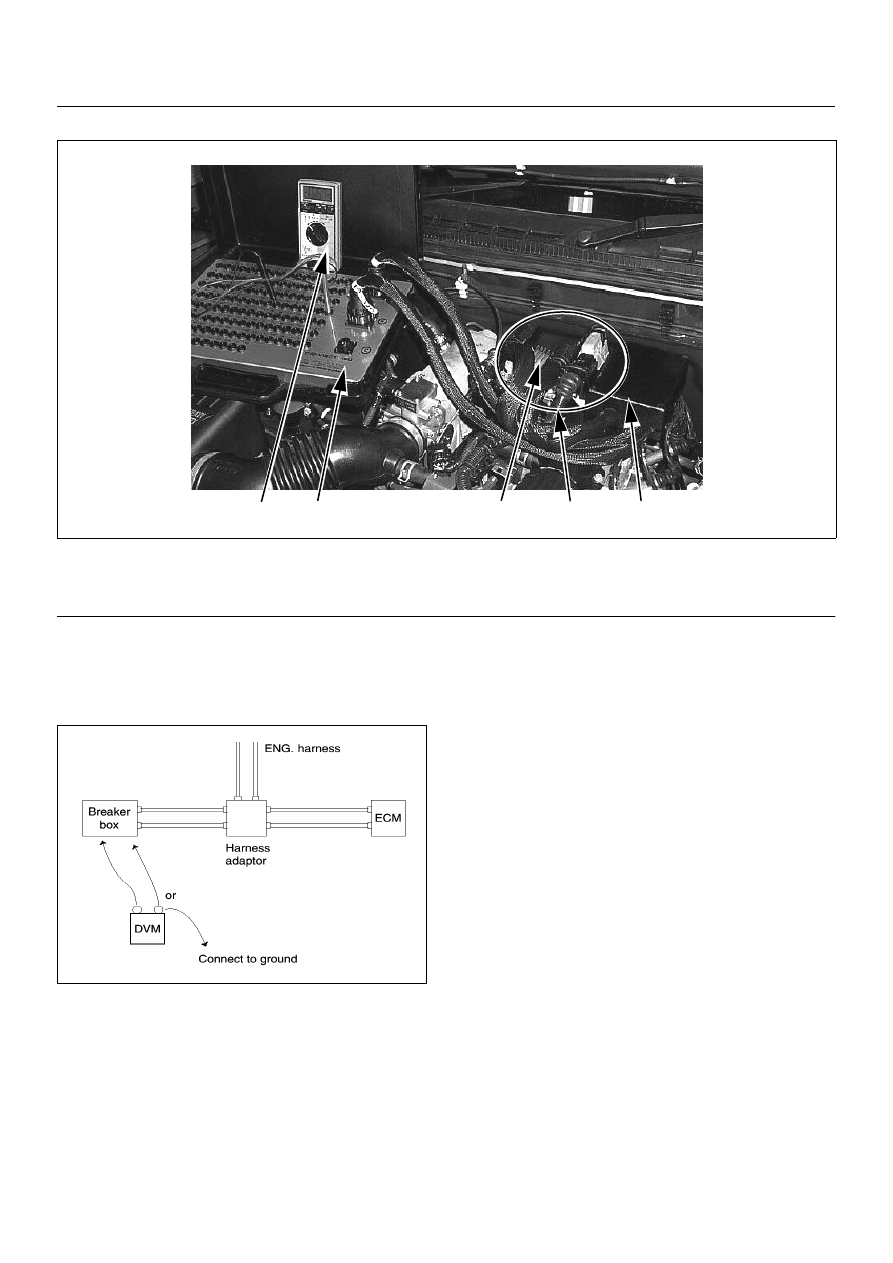

Breaker Box Connection Type B

Breaker box connection type B, check for “short to
power supply circuit” and “power, signal voltage check”
between the engine control module (ECM) and
electrical components.

4

3

1

5

2

(1) Engine Control Module (ECM)
(2) Harness Adapter
(3) Breaker Box

(4) Digital Voltage Meter
(5) ECM - Harness Adapter Connection

6E–82

ENGINE DRIVEABILITY AND EMISSIONS

ON-BOARD DIAGNOSTIC (OBD) SYSTEM CHECK

Circuit Description

The on-board diagnostic system check is the starting
point for any driveability complaint diagnosis. Before
using this procedure, perform a careful visual/physical
check of the ECM and engine grounds for cleanliness
and tightness.
The on-board diagnostic system check is an organized
approach to identifying a problem created by an
electronic engine control system   malfunction.

Diagnostic Aids

An intermittent may be caused by a poor connection,
rubbed-through wire insulation or a wire broken inside
the insulation.   Check for poor connections or a
damaged harness. Inspect the ECM harness and
connector for improper mating, broken locks, improperly
formed   or damaged terminals, poor terminal-to-wire
connection, and damaged harness.

Test Description

Number(s) below refer the step number(s) on the
Diagnostic Chart:
1. The Check Engine Lamp (MIL) should be ON steady
with the ignition “On”, engine “Off”. If not, “No Check
Engine Lamp (MIL)” chart should be used to isolate the
malfunction.
2. Checks the Class 2 data circuit and ensures that the
ECM is able to transmit serial data.
3. This test ensures that the ECM is capable of
controlling the Check Engine Lamp (MIL) and the Check
Engine Lamp (MIL) driver circuit is not shorted to
ground circuit.
4. If the engine will not start, “Engine Cranks But Will
Not Run” chart should be used to diagnose the fault.
6. The Tech2 parameters which is not within the typical
range may help to isolate the area which is causing the
problem.
12. This vehicle is equipped with ECM which utilizes an
electrically erasable programmable read only memory
(EEPROM).

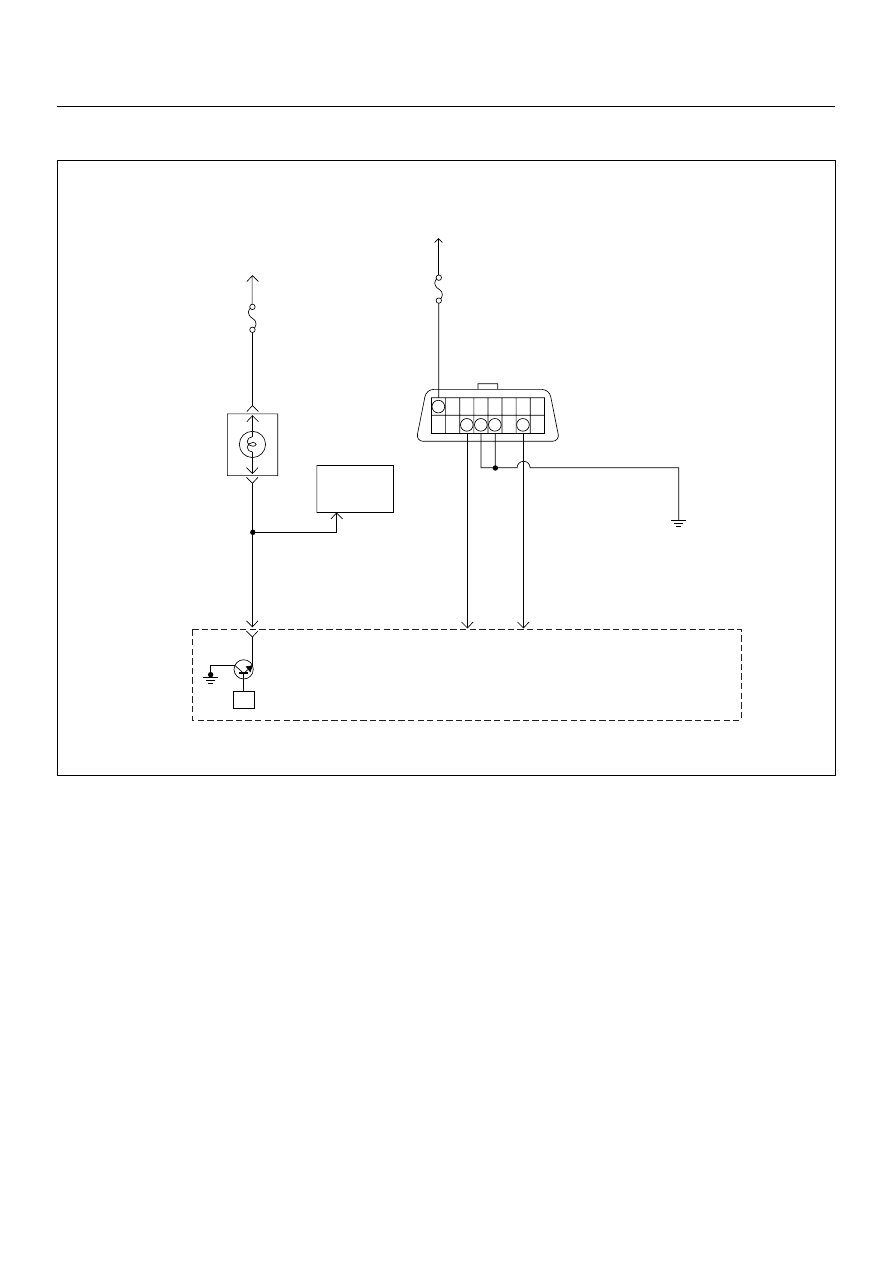

Buttery
Voltage

0.5
RED/
YEL

Engine
Room-RH

µP

J2-32

7

0.5
BRN/
YEL

Engine
Control
Module
(ECM)

Check
Engine
Lamp

Imnobiliser

Control

Unit

METER
15A

Ignition
SW

0.5
BLU

J2-4

0.5
GRN

J2-30

Diag
SW

Class 2
Serial
Data

0.85 BLK

Diagnostic
Comectar

16 15 14 13 12 11 10 9

8 7 6 5 4 3 2 1

METER
10A

ENGINE DRIVEABILITY AND EMISSIONS

6E–83

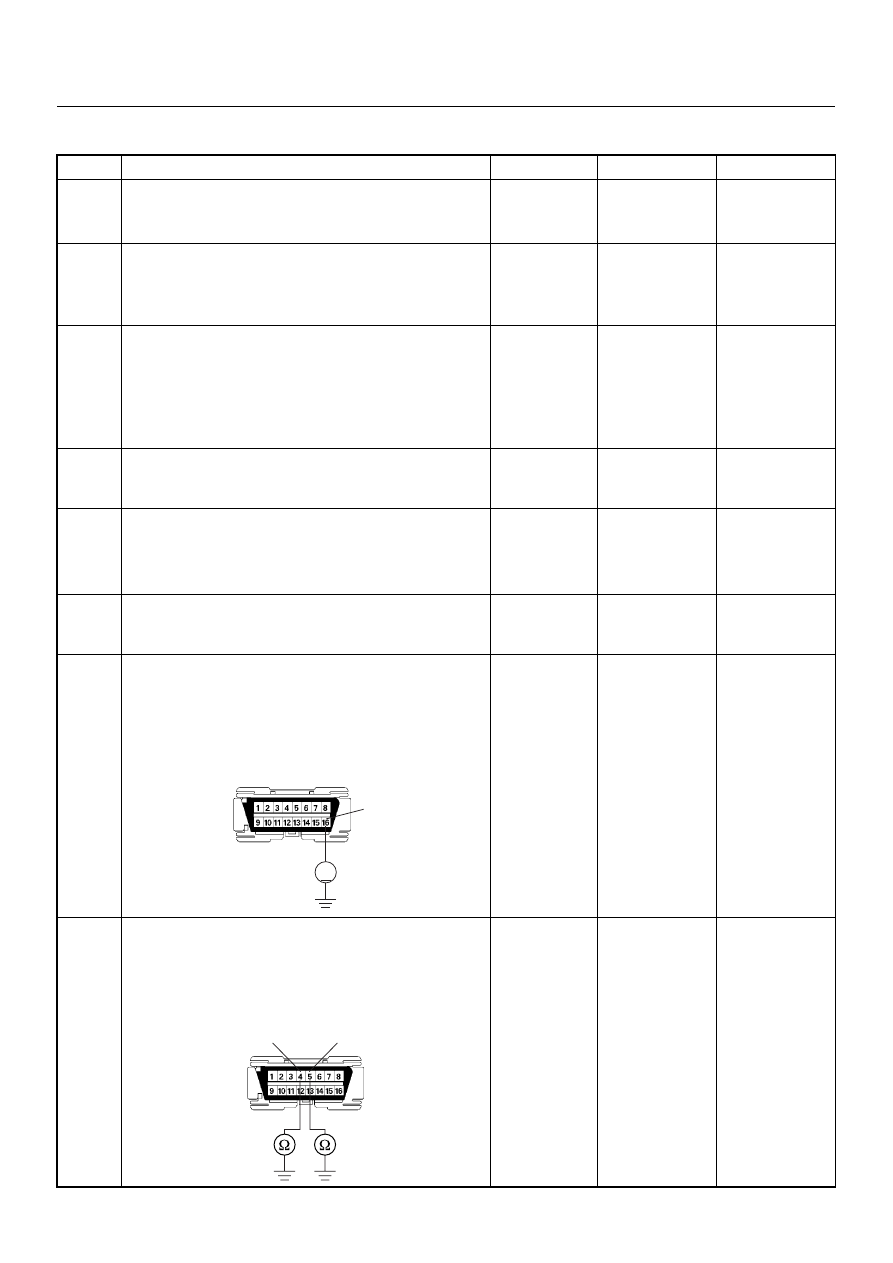

ON-BOARD DIAGNOSTIC (OBD) SYSTEM CHECK

Step

Action

Value(s)

Yes

No

1

1. Ignition “On”, engine “Off”.

2. Check the “CHECK ENGINE” lamp (MIL).

Does the “CHECK ENGINE” lamp turn “On”?

—

Go to Step 2

Go to No

CHECK

ENGINE Lamp

2

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Attempt to display “Engine Data” with the Tech 2.

Does the Tech 2 display “Engine Data” and “O

2

Sensor Data”?

—

Go to Step 3

Go to Step 7

3

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Select the “Miscellaneous Test” and perform the

“Malfunction Indicator Lamp” in “Lamps”.

3. Operate the Tech 2 in accordance with the Tech 2

instructions.

Does the “CHECK ENGINE” lamp turn “Off”?

—

Go to Step 4

Go to CHECK

ENGINE LAMP

On Steady

4

Attempt to start the engine.
Does the engine start and continue to “Run”?

—

Go to Step 5

Go to Engine

Cranks But Will

Not Run

5

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Select the “Read DTC Infor By Priority” in

“Diagnostic Trouble Code”.

3. Are any DTCs stored?

—

Go to DTC

Chart

Go to Step 6

6

Compare typical scan data values displayed on the
Tech 2 “Engine Data” and “O

2

 Sensor Data”.

Are the displayed values within the range?

—

Refer to

SYMPTOM

DIAGNOSIS

Refer to

TYPICAL

SCAN DATA

7

Using the DVM and check the data link connector
power supply circuit.

1. Ignition “Off”, engine “Off”.

2. Check the circuit for open circuit.

Was the problem found?

—

Repair faulty
harness and

verify repair

Go to Step 8

8

Using the DVM and check the data link connector
ground circuit.

1. Ignition “Off”, engine “Off”.

2. Check the circuit for open circuit.

Was the problem found?

—

Repair faulty
harness and

verify repair

Go to Step 9

V

16

B58

5

4

B58

6E–84

ENGINE DRIVEABILITY AND EMISSIONS

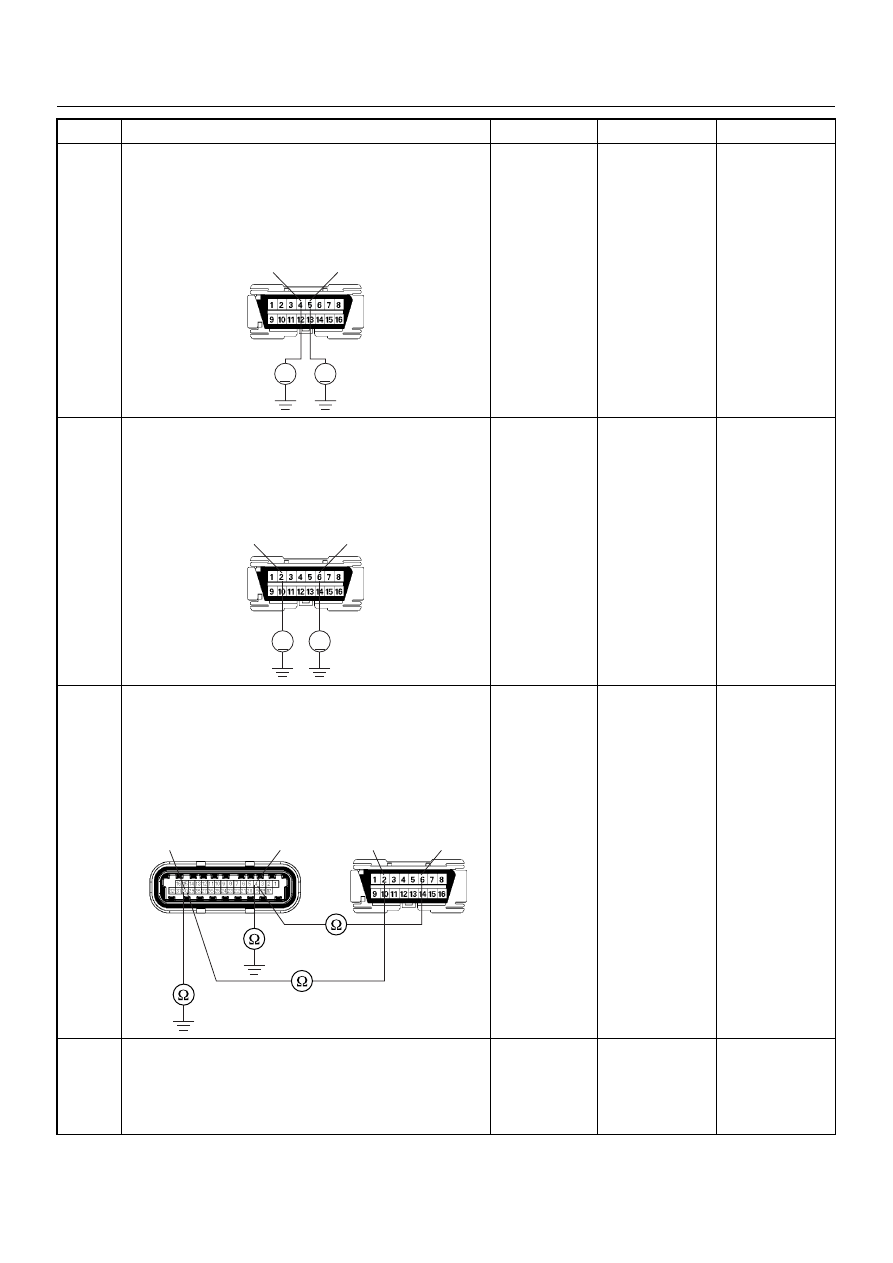

9

Using the DVM and check the data link connector
ground circuit.

1. Ignition “On”, engine “Off”.

2. Check the circuit for short to power supply circuit.

Was the DVM indicated specified value?

Less than 1V

Go to Step 10

Repair faulty
harness and

verify repair

10

Using the DVM and check the data link connector
communication circuit.

1. Ignition “On”, engine “Off”.

2. Check the circuit for short to power supply circuit.

Was the DVM indicated battery voltage?

—

Repair faulty
harness and

verify repair

Go to Step 11

11

Using the DVM and check the data link connector
communication circuit.

1. Ignition “Off”, engine “Off”.

2. Disconnect the ECM connector.

3. Check the circuit for open or short to ground

circuit.

Was the problem found?

—

Repair faulty
harness and

verify repair

Go to Step 12

12

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

—

Verify repair

Go to Step 13

Step

Action

Value(s)

Yes

No

V

V

5

4

B58

V

V

B58

6

2

B58

C56(J2)

4

30

6

2
