STEERING  3B-51

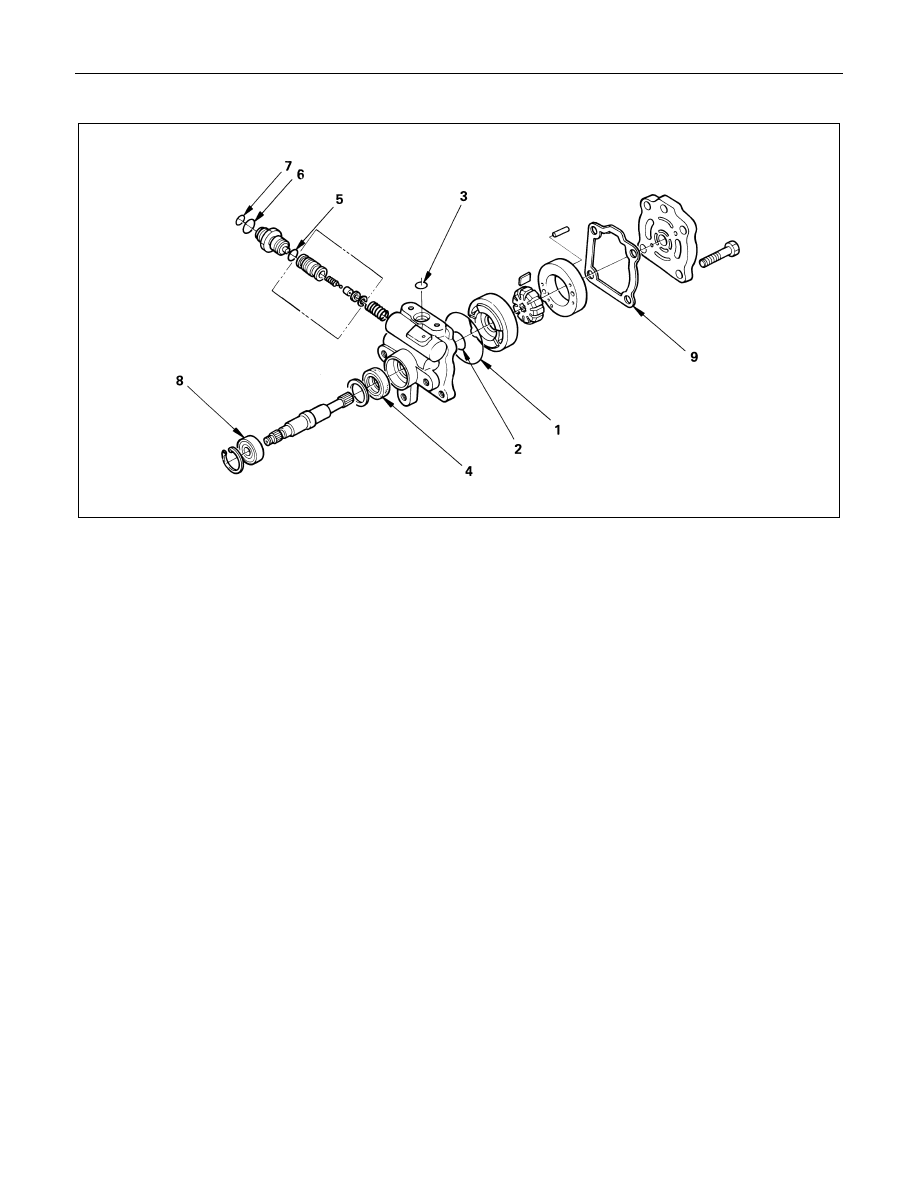

REPAIR KIT (4J Series Engine Model)

1. O-ring
2. O-ring
3. O-ring
4. Oil seal
5. O-ring

6. O-ring
7. O-ring
8. Bearing
9. Gasket

3B-52  STEERING



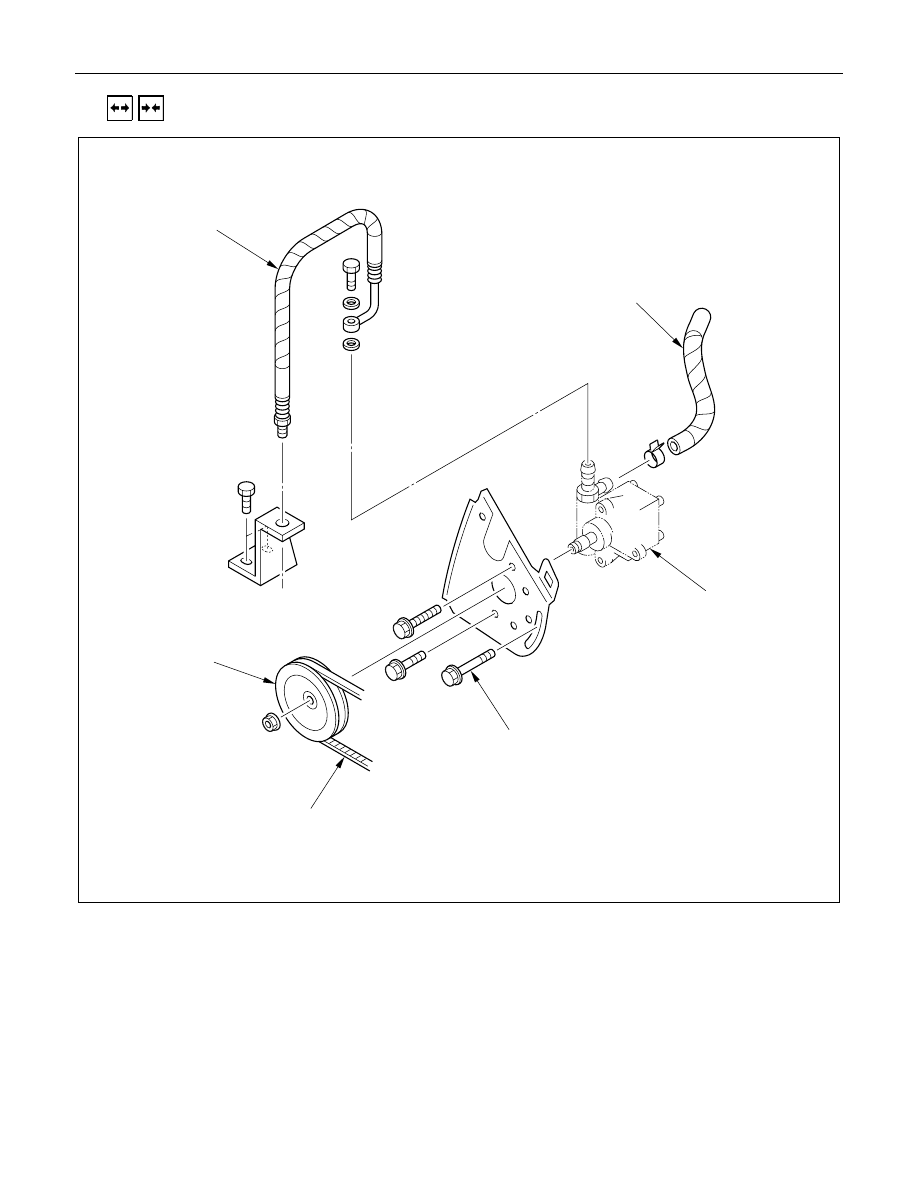

  REMOVAL AND INSTALLATION (C22, C20 Series Engine Model)

3

6

1

4

5

2

Removal Steps

1. Belt : oil pump
2. Hose :  rubber, suction
3. Hose : flexible
4. Bolts
5. Pump assembly : oil
6. Pulley : oil pump

Installation Steps

To install follow the removal procedure in
reverse order

STEERING  3B-53

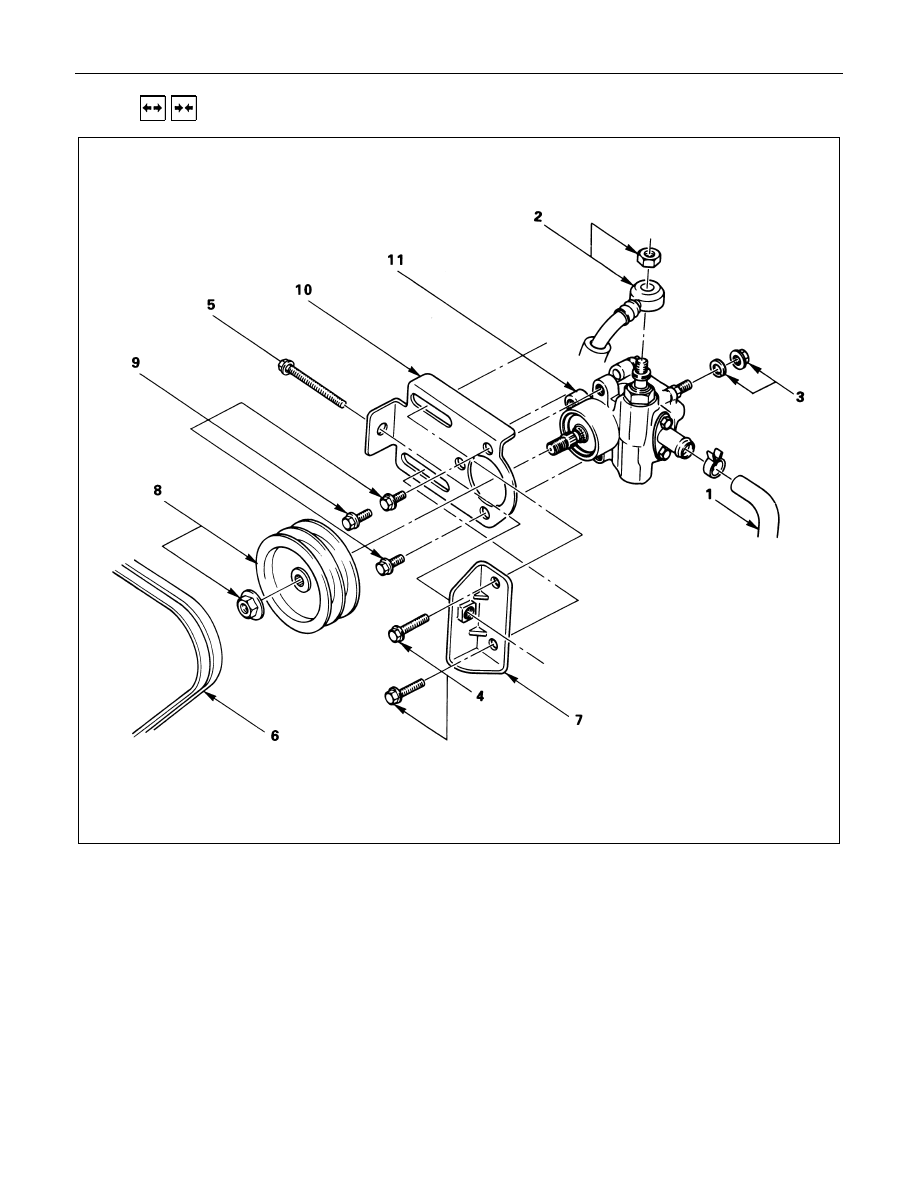

  REMOVAL AND INSTALLATION (4J Series Engine Model)

Removal Steps

1. Hose, suction
2. Hose, flexible
3. Adjust nut
4. Bolt
5. Adjust bolt
6. Belt
7. Bracket
8. Pulley
9. Bolt

10. Bracket
11. Pump assembly

Installation Steps

11. Pump assembly
10. Bracket

9. Bolt
8. Pulley
7. Bracket
6. Belt
5. Adjust bolt
4. Bolt
3. Adjust nut
2. Hose, flexible
1. Hose, suction

3B-54  STEERING

REMOVAL

Preparation:

• Place a drain pan below the pump.

1. Hose, Suction

2. Hose, Flexible

3. Adjust Nut

4. Bolt

5. Adjust Bolt

6. Belt

7. Bracket

8. Pulley

9. Bolt

10. Bracket

11. Pump Assembly

INSTALLATION

11. Pump Assembly

10. Bracket

9. Bolt

Bolt Torque

N

⋅m (kgf⋅m / lb⋅ft)

37 (3.8 / 27)

8. Pulley

Pulley Nut Torque

N

⋅m (kgf⋅m / lb⋅ft)

78 (8.0 / 58)

7. Bracket

6. Belt

5. Adjust Bolt

4. Bolt

After adjusting drive belt tension, tighten bolt to specified
torque.
Bracket Bolt Torque

N

⋅m (kgf⋅m / lb⋅ft)

37 (3.8 / 27)

3. Adjust Nut

After adjusting drive belt tension, tighten bolt to specified
torque.
Adjust Nut Torque

N

⋅m (kgf⋅m / lb⋅ft)

37 (3.8 / 27)

2. Hose Flexible

Hose, Nut Torque

N

⋅m (kgf⋅m / lb⋅ft)

20 (2.0/14)

1. Hose, Suction

Fill and bleed the system. Refer to "Bleeding the Power
Steering System" in this section.
