UNIT REPAIR (JR405E) 7A4-19

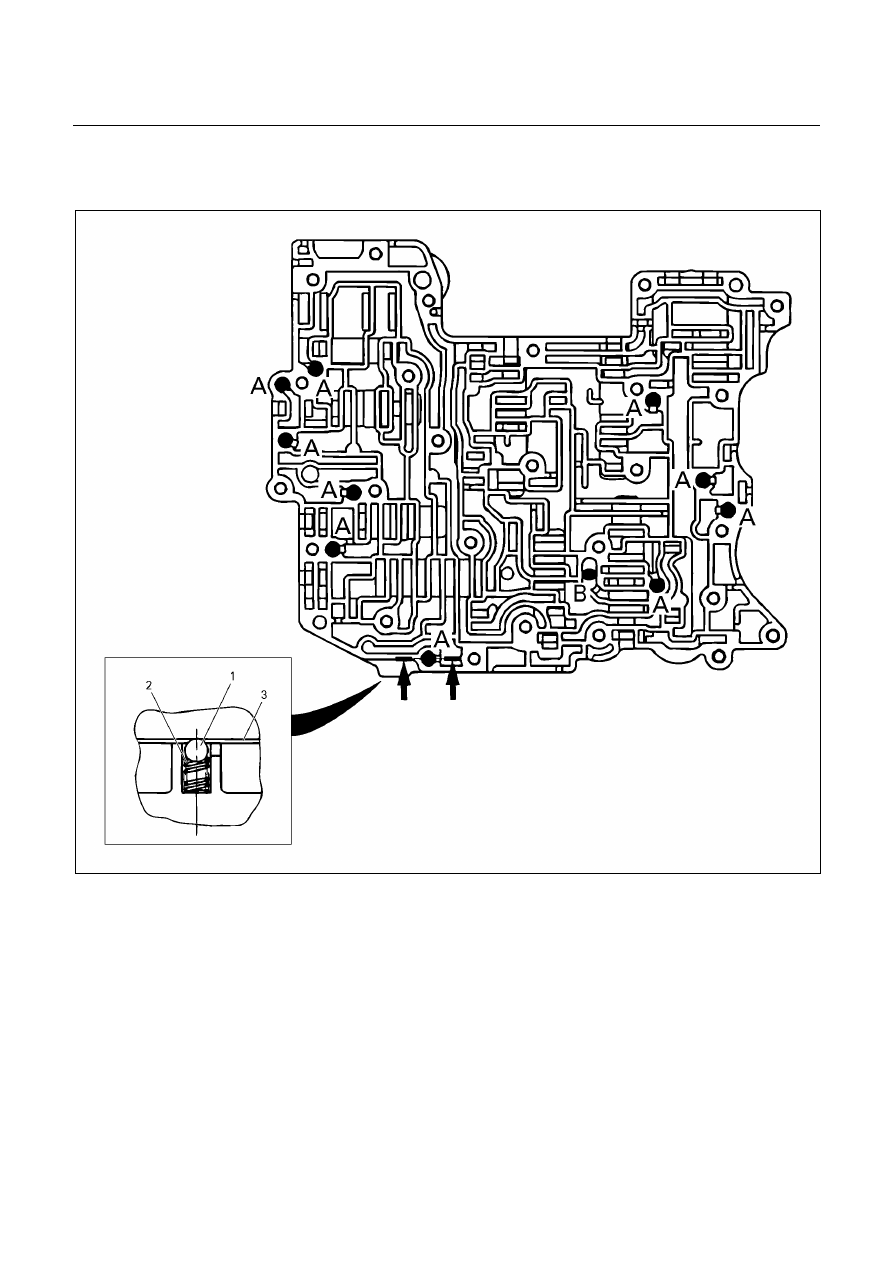

Disassembly steps • Remove the 11 steel balls and spring from the control valve upper body.
244L300005 Legend
1. Steel ball: A – 10 (Silver) B – 1 (Black)
2. Spring 3. Separation plate

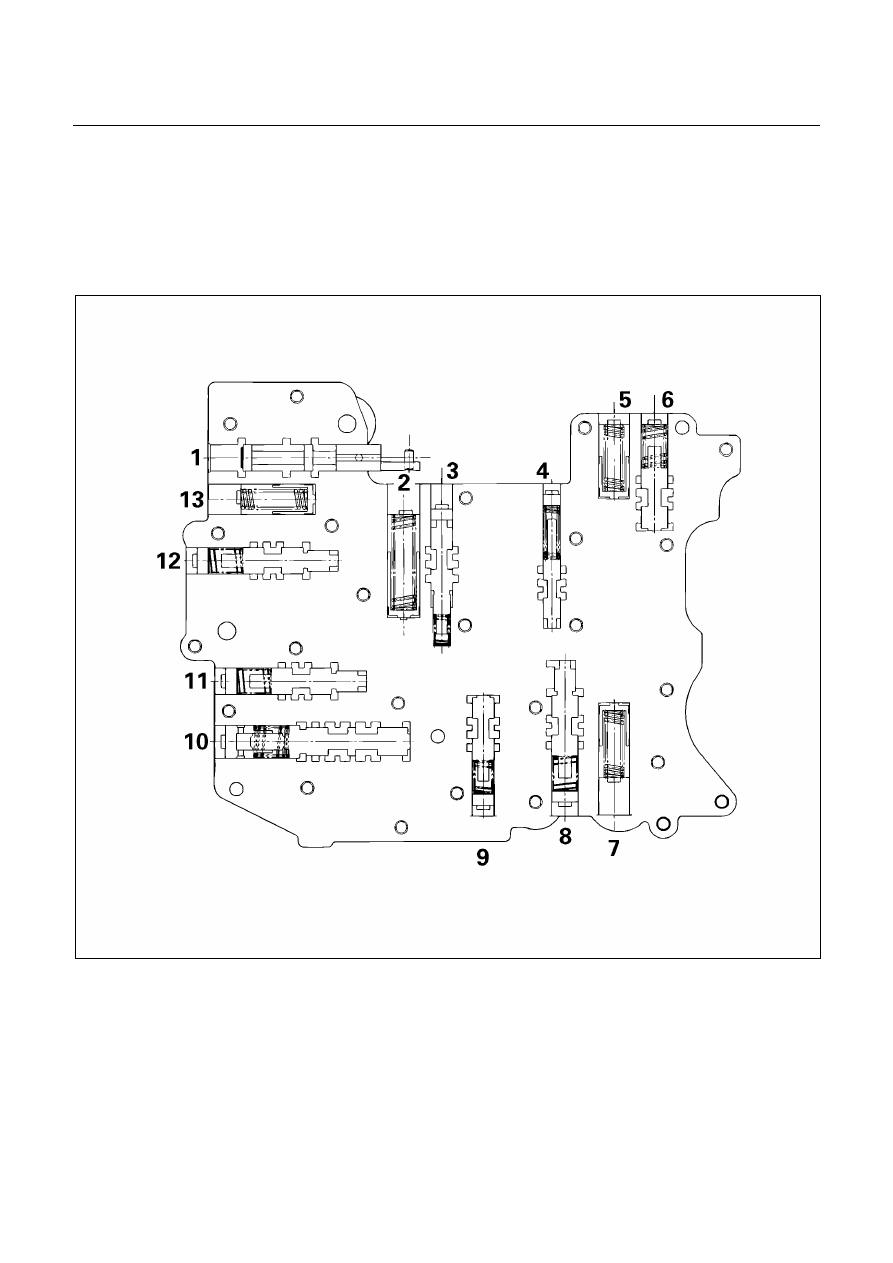

• Remove the control valves from the control valve upper body. NOTE: |
