1-46  HEATING AND AIR CONDITIONING

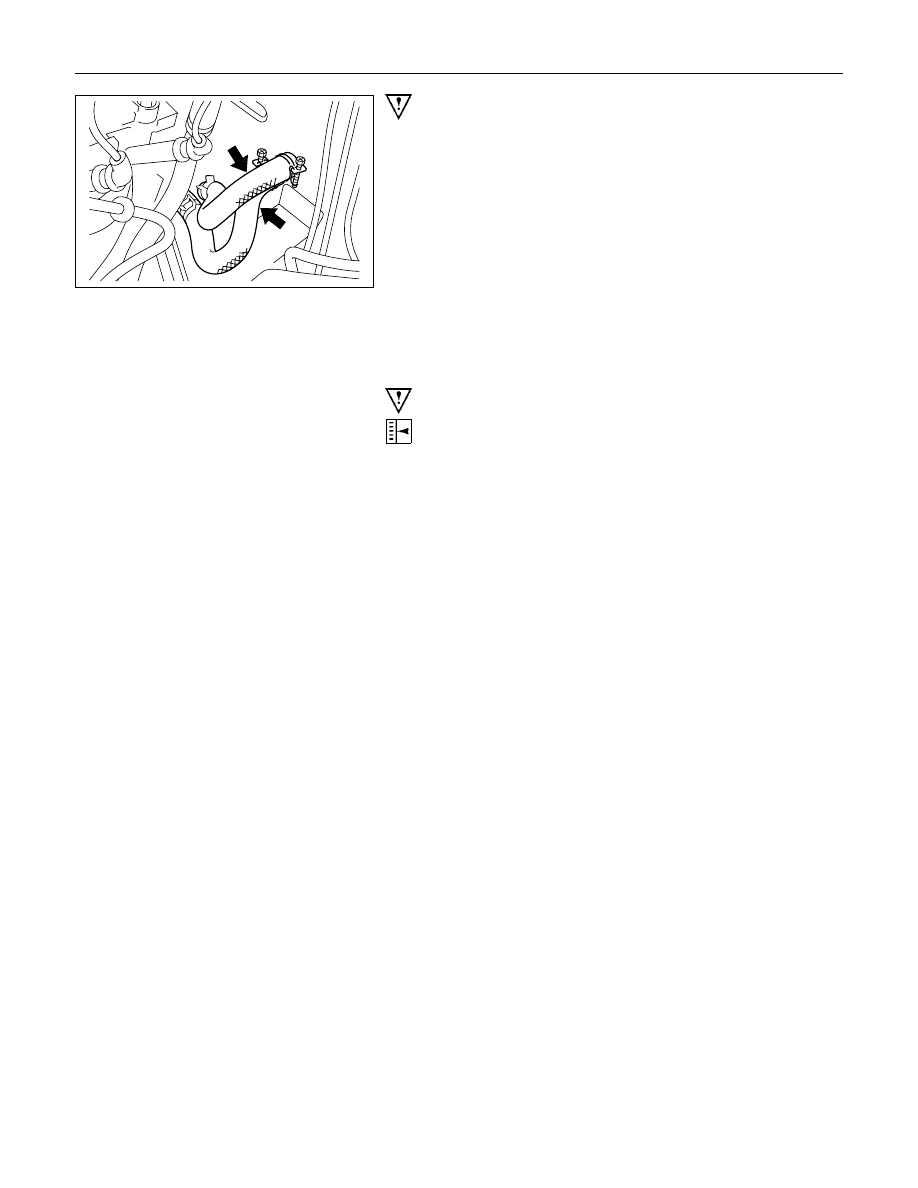

Important Operations - Removal

1. Heater Hose

Disconnect the heater hoses at heater unit.

Place the drain pan under the vehicle.

2. Instrument Panel Assembly

Refer to section 2D "BODY" for instrument panel removal

procedure.

Important Operation - Installation

2. Instrument Panel Assembly

Adjust the heater control cables.

Refer to "CONTROL LEVER ASSEMBLY" in this section.

HEATING AND AIR CONDITIONING  1-47

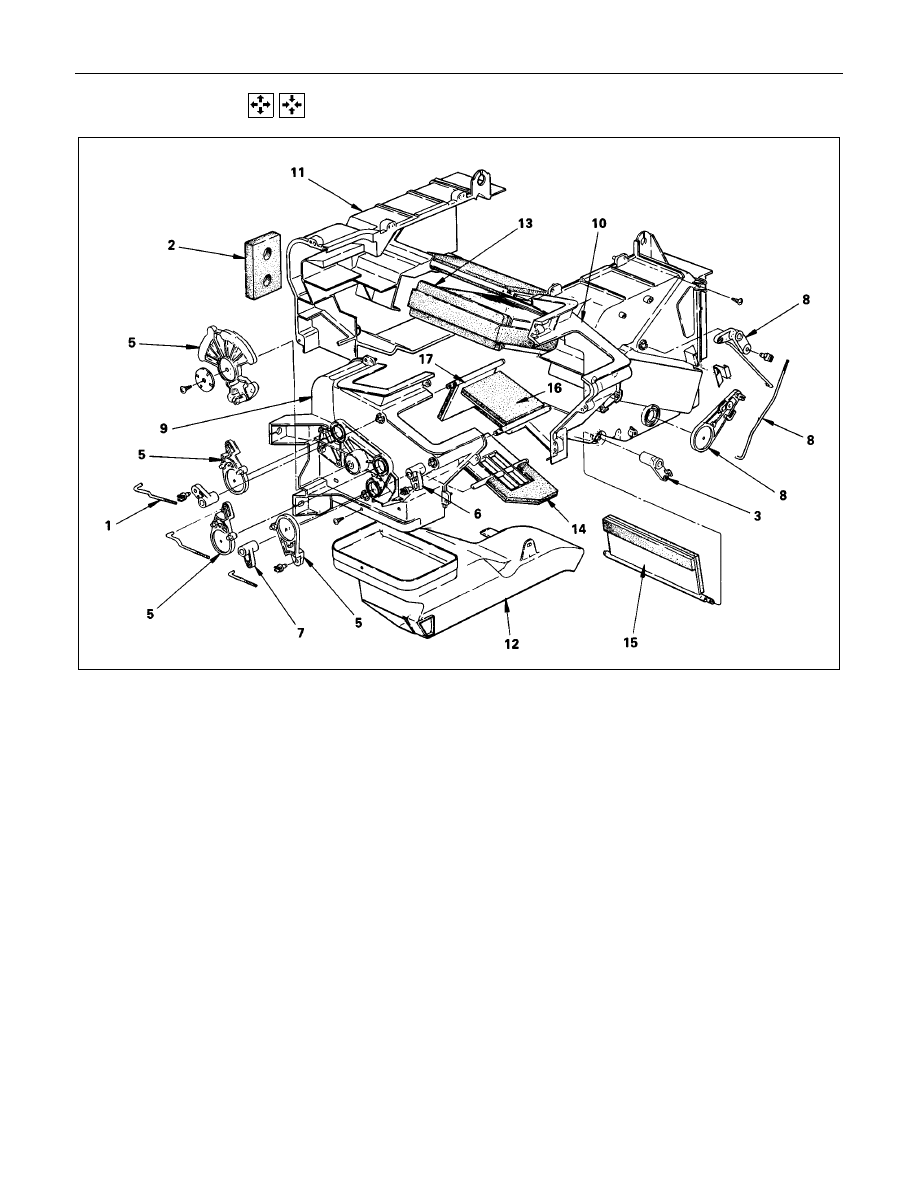

  DISASSEMBLY AND REASSEMBLY

This illustration is based on the LHD model.

Disassembly Steps

1. Rod and lever; defroster door
2. Plate and seal
3. Lever; mix door
4. Link; main model control
5. Relay link
6. Lever; vent door
7. Lever; heater door
8. Relay link mix door
9. Case; LH

10. Case; RH
11. Case; back
12. Duct
13. Core assembly
14. Door; heat foot
15. Door; heat mix
16. Door; side vent
17. Door; defroster

Reassembly Steps

To reassemble, follow the disassembly
procedure in reverse order.

1-48  HEATING AND AIR CONDITIONING

EVAPORATOR

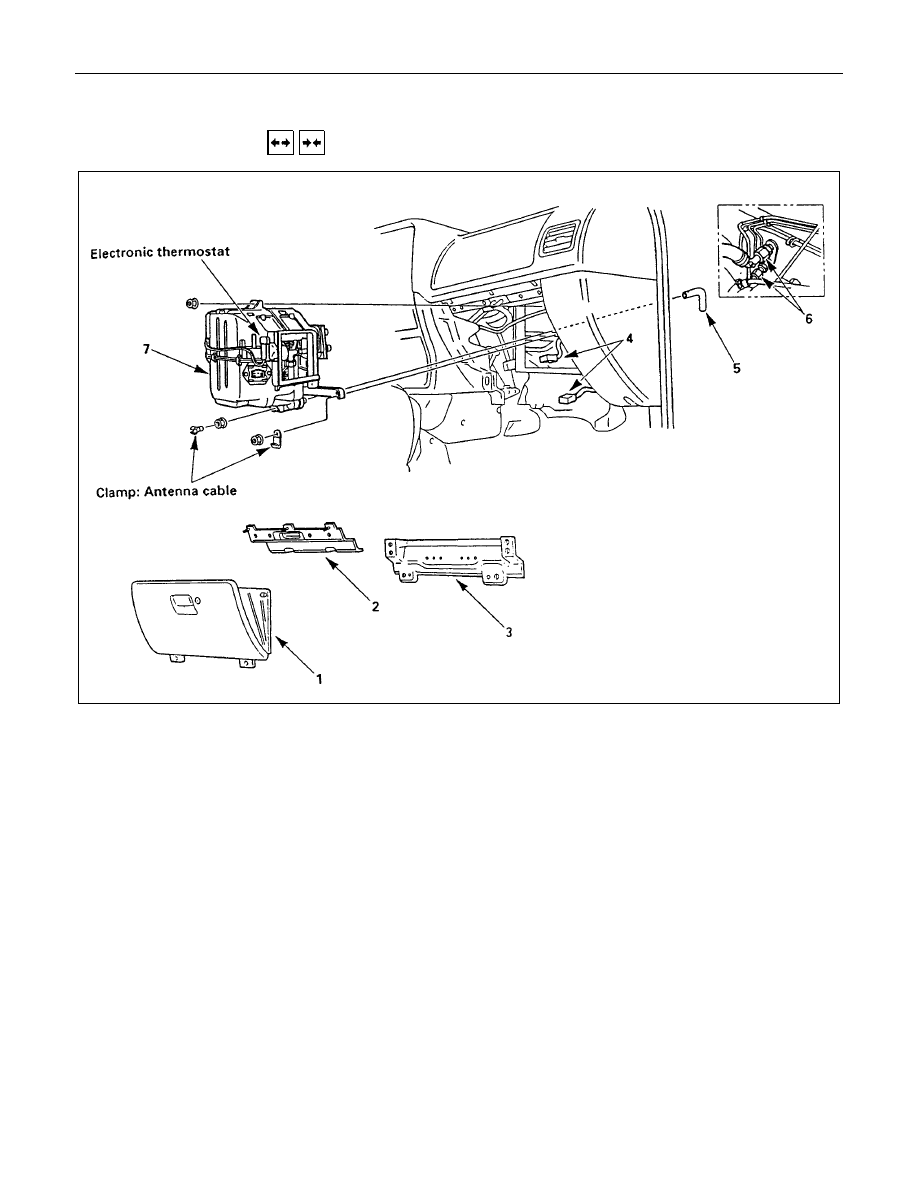

  REMOVAL AND INSTALLATION

This illustration is based on LHD model.

Removal Steps

1. Glove box

2. Glove box cover

3. Passenger knee bolster reintorcement

4. Resister and electronic thermostat

connector

5. Drain hose

6. Refrigerant line

7. Evaporator assembly

Installation Steps

To install, follow the removal procedure in
reverse order.

HEATING AND AIR CONDITIONING  1-49

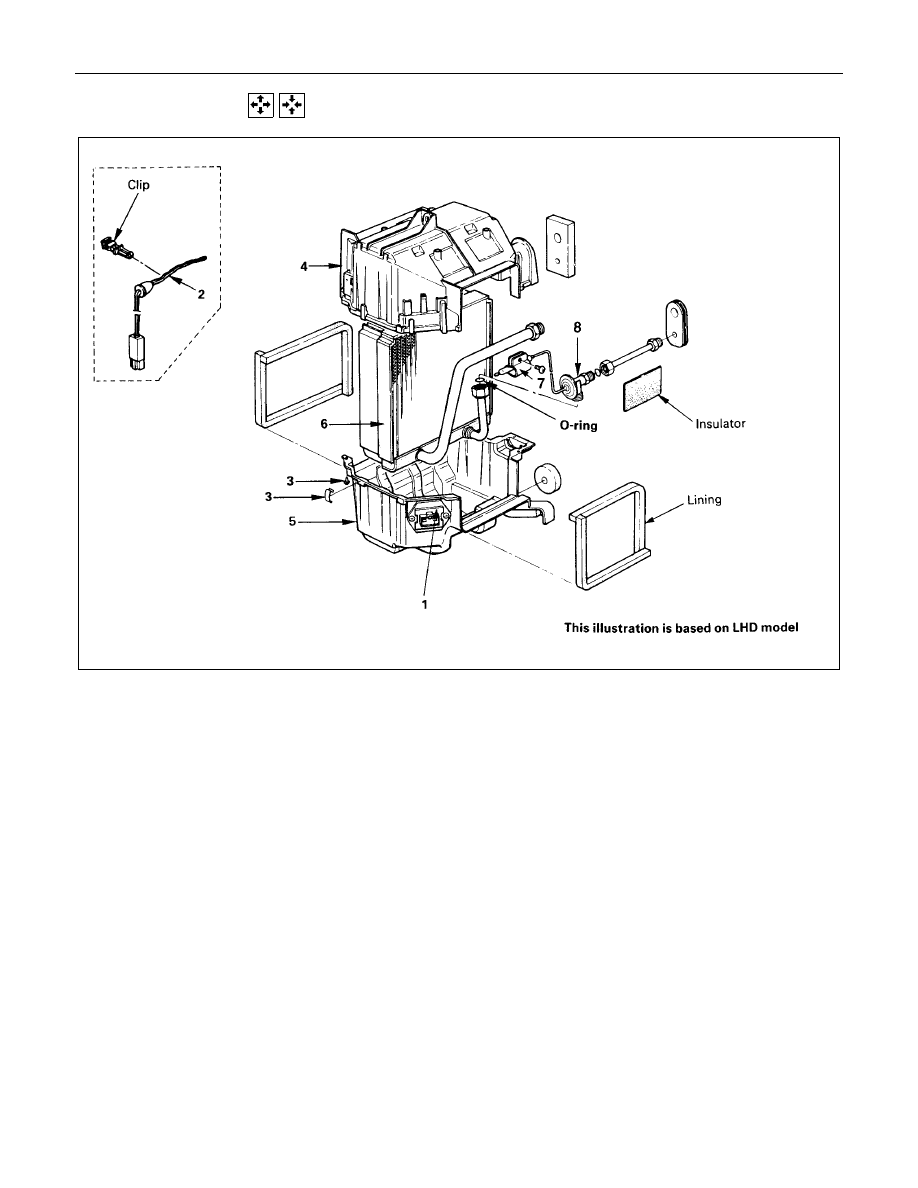

  DISASSEMBLY AND REASSEMBLY

Disassembly Steps

1. Resistor
2. Electronic thermostat (Clip type)
3. Attaching parts
4. Case; upper
5. Case; lower
6. Core assembly
7. Clip; sensing tube
8. Expansion valve assembly

Reassembly Steps

8. Expansion valve assembly
7. Clip; sensing tube
6. Core assembly
5. Case; lower
4. Case; upper
3. Attaching parts

▲

2. Electronic thermostat (Clip type)

1. Resistor
