8-32  ELECTRICAL-BODY AND CHASSIS

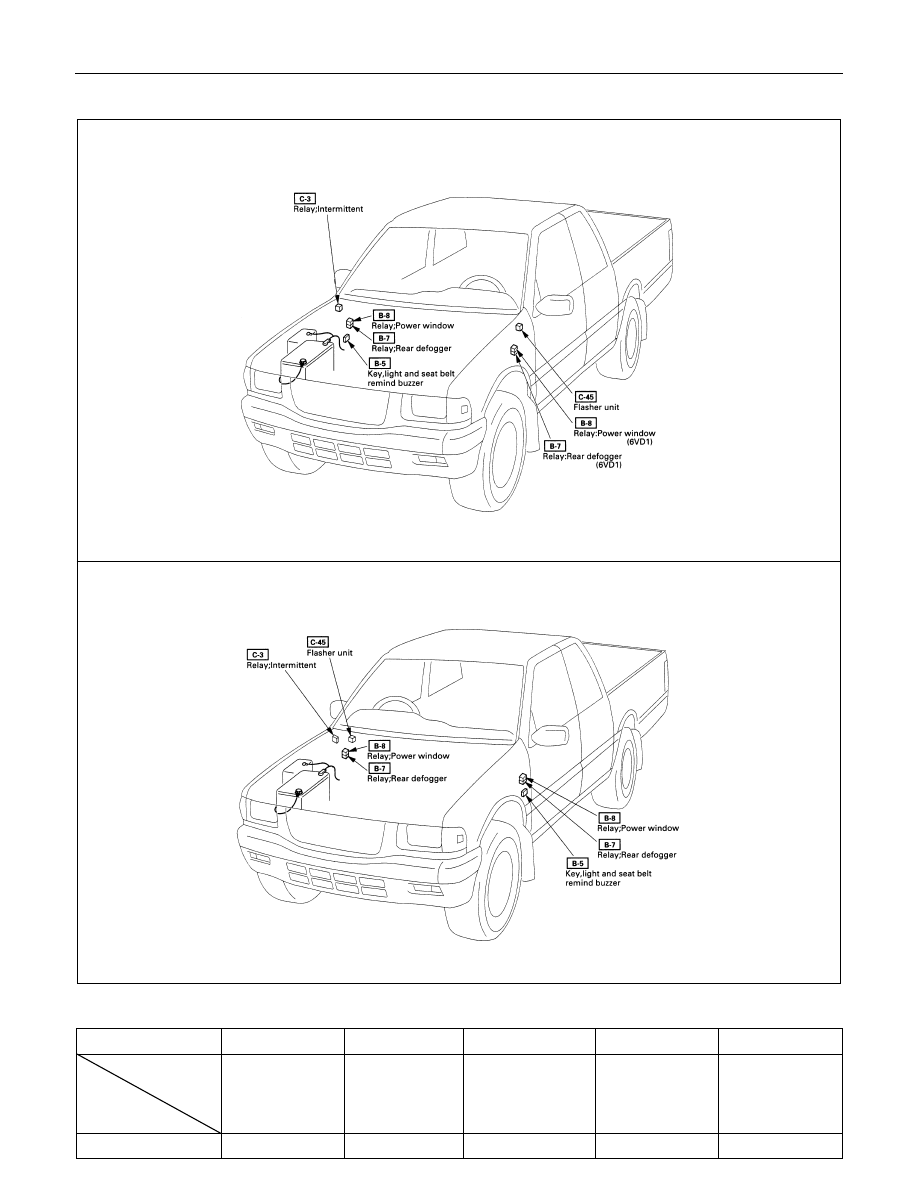

RELAY LOCATION-4 (6VD1 ENGINE MODEL)

(LHD)

(RHD)

RELAY

Connector No.

C-3

C-45

B-5

B-7

B-8

Relay

Engine model

WINDSHIELD

INTERMITTENT

FLASHER UNIT KEY, LIGHT AND

SEAT BELT

REMIND BUZZER

REAR

DEFOGGER

POWER

WINDOW

6VD1

!

!

!

ELECTRICAL-BODY AND CHASSIS  8-33

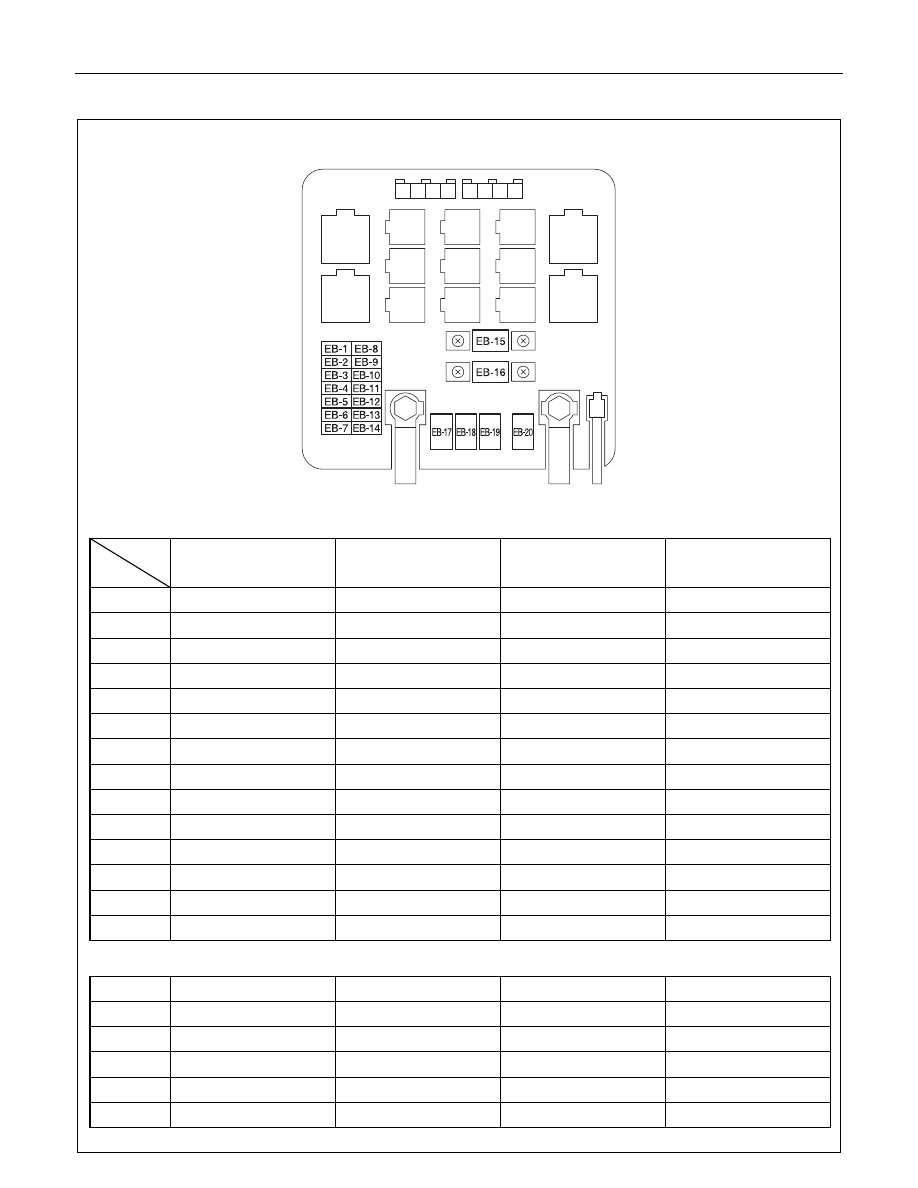

FUSE AND FUSIBLE LINK LOCATION (RELAY AND FUSE BOX)

RELAY & FUSE BOX

FUSE

Engine

model

NO.

HEC Engine Series

4J Engine Series

4J Engine Series

(UK)

6VD1

EB-1

15A

HAZARD

15A

HAZARD

15A

HAZARD

15A

HAZARD

EB-2

10A

HORN

10A

HORN

10A

HORN

10A

HORN

EB-3

20A

BLOWER

10A

STOP LIGHT

-

20A

BLOWER

EB-4

10A

A/C

20A

BLOWER

20A

BLOWER

10A

A/C

EB-5

20A

INJECTOR

10A

A/C

10A

A/C

-

EB-6

15A

FUEL

10A

RR FOG LIGHT

-

15A

FUEL PUMP

EB-7

10A

O

2

 SENSOR

10A

CHARGE

10A

CHARGE

10A

O

2

 SENSOR

EB-8

10A

HEADLIGHT LH

10A

H/LIGHT-RH (HI)

10A

H/LIGHT-LH

10A

HEADLIGHT LH

EB-9

10A

HEADLIGHT RH

10A

H/LIGHT-LH (HI)

10A

H/LIGHT-RH

10A

HEADLIGHT RH

EB-10

10A

STOP LIGHT

10A

H/LIGHT-RH (LO)

-

10A

STOP LIGHT

EB-11

10A

TAIL LIGHT

10A

H/LIGHT-LH (LO) 10A

STOP LIGHT

10A

TAIL LIGHT

EB-12

-

-

10A

TAIL LIGHT

10A

TCM

EB-13

10A

ALTERNATOR

10A

TAIL LIGHT-RH

10A

RR FOG LIGHT

10A

ECM

EB-14

15A

ECM

10A

TAIL LIGHT-LH

-

20A

ECM

(   ) ......IF EQUIPPED

EB-15

40A

IGN-B1

-

-

-

EB-16

100A MAIN

80A

MAIN

100A MAIN

100A MAIN

EB-17

40A

IGN-B2

40A

IGN-B2

40A

IGN-B2

40A

IGN-B2

EB-18

-

30A

HEAD LIGHT WASHER

-

30A

RR DEF

EB-19

30A

CONDENSER FAN

50A

GLOW

50A

GLOW

30A

CONDENSER FAN

EB-20

-

40A

IGN-B1

40A

IGN-B1

40A

IGN-B1

8-34  ELECTRICAL-BODY AND CHASSIS

FUSE AND CIRCUIT BREAKER LOCATION (FUSE BOX)

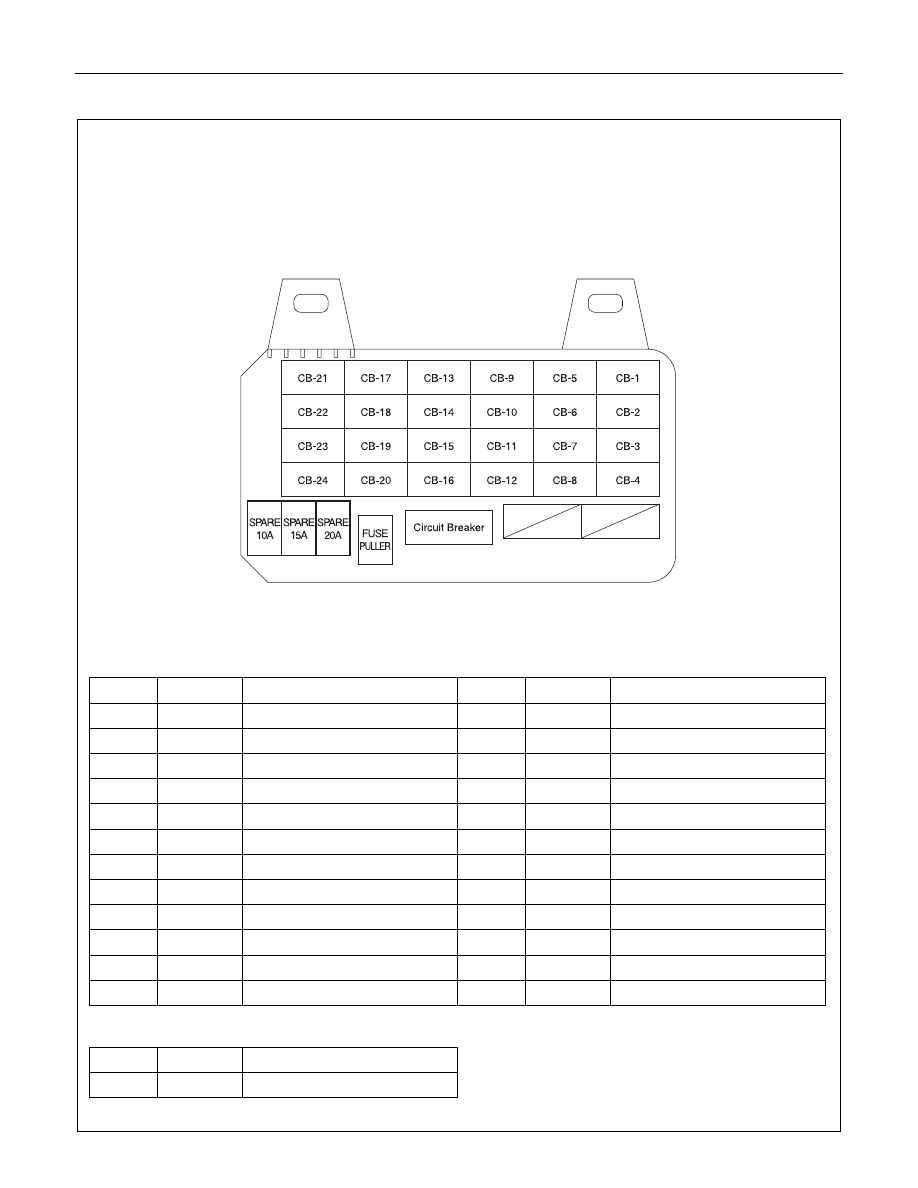

LHD

FUSE

No.

Capacity

Indication on label

No.

Capacity

Indication on label

CB-1

10A

STARTER

CB-13

15A

(PR DEFOG.)

CB-2

-

-

CB-14

10A

DOME LIGHT

CB-3

15A

ENGINE-1

CB-15

20A

(DOOR LOCK)

CB-4

10A

ENGINE-2

CB-16

-

-

CB-5

-

-

CB-17

-

-

CB-6

-

-

CB-18

-

-

CB-7

15A

METER

CB-19

15A

AUDIO

CB-8

20A

FRONT WIPER

CB-20

15A

CIGAR

CB-9

-

-

CB-21

10A

SRS-2

CB-10

-

-

CB-22

10A

SRS-1

CB-11

15A

BACK UP, TURN

CB-23

20A

POWER WINDOW

CB-12

10A

(SEAT HEATER)

CB-24

20A

POWER WINDOW

CIRCUIT BREAKER

No.

Capacity

Indication on label

B-31

30A

(POWER WINDOW)

FUSE BOX

(      ) ........... IF EQUIPPED

ELECTRICAL-BODY AND CHASSIS  8-35

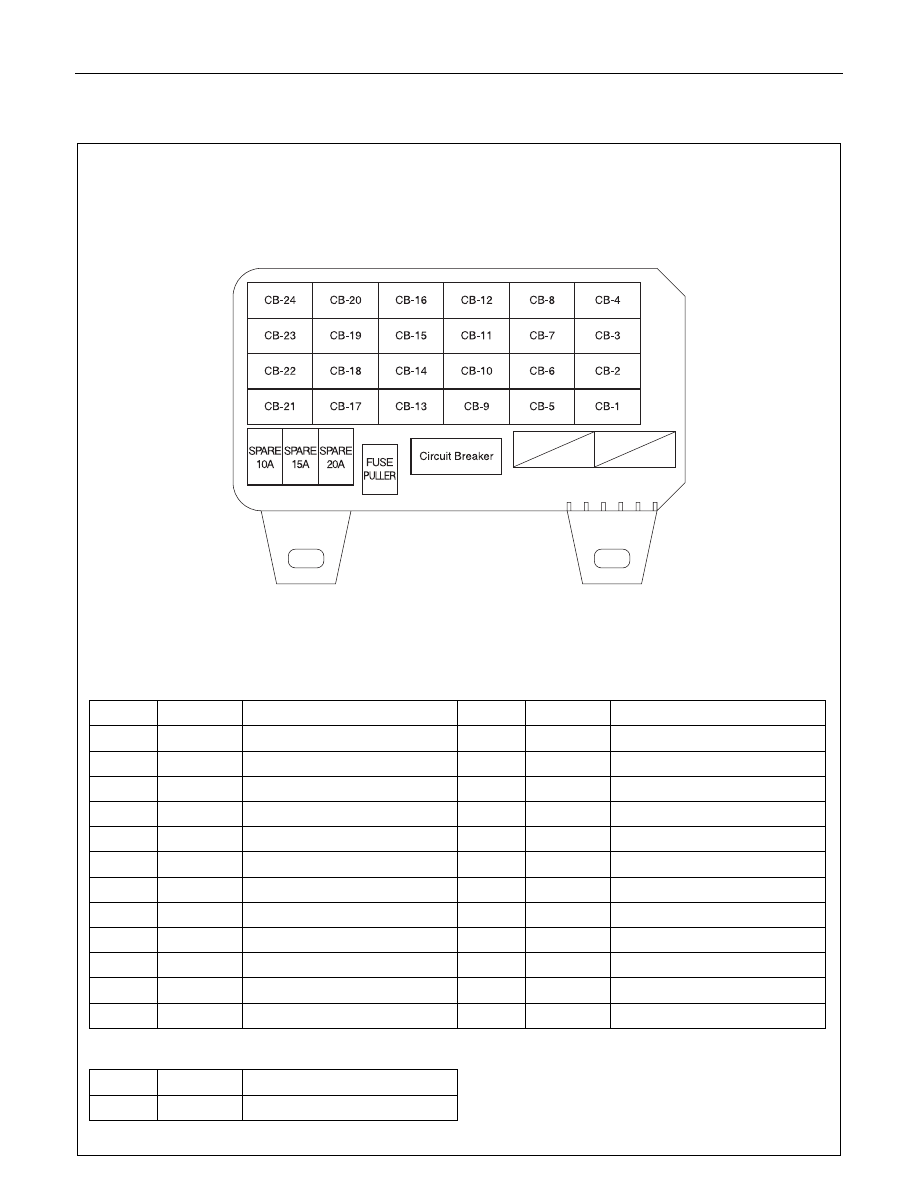

RHD

FUSE

No.

Capacity

Indication on label

No.

Capacity

Indication on label

CB-1

10A

STARTER

CB-13

15A

(PR DEFOG.)

CB-2

-

-

CB-14

10A

DOME LIGHT

CB-3

15A

ENGINE-2

CB-15

20A

(DOOR LOCK)

CB-4

10A

ENGINE-1

CB-16

-

-

CB-5

15A

METER

CB-17

-

-

CB-6

20A

FRONT WIPER

CB-18

-

-

CB-7

-

-

CB-19

15A

AUDIO

CB-8

-

-

CB-20

15A

CIGAR

CB-9

-

-

CB-21

20A

POWER WINDOW

CB-10

-

-

CB-22

20A

POWER WINDOW

CB-11

15A

BACK UP, TURN

CB-23

10A

SRS

CB-12

-

-

CB-24

-

-

CIRCUIT BREAKER

No.

Capacity

Indication on label

B-31

30A

(POWER WINDOW)

FUSE BOX

(      ) ........... IF EQUIPPED
