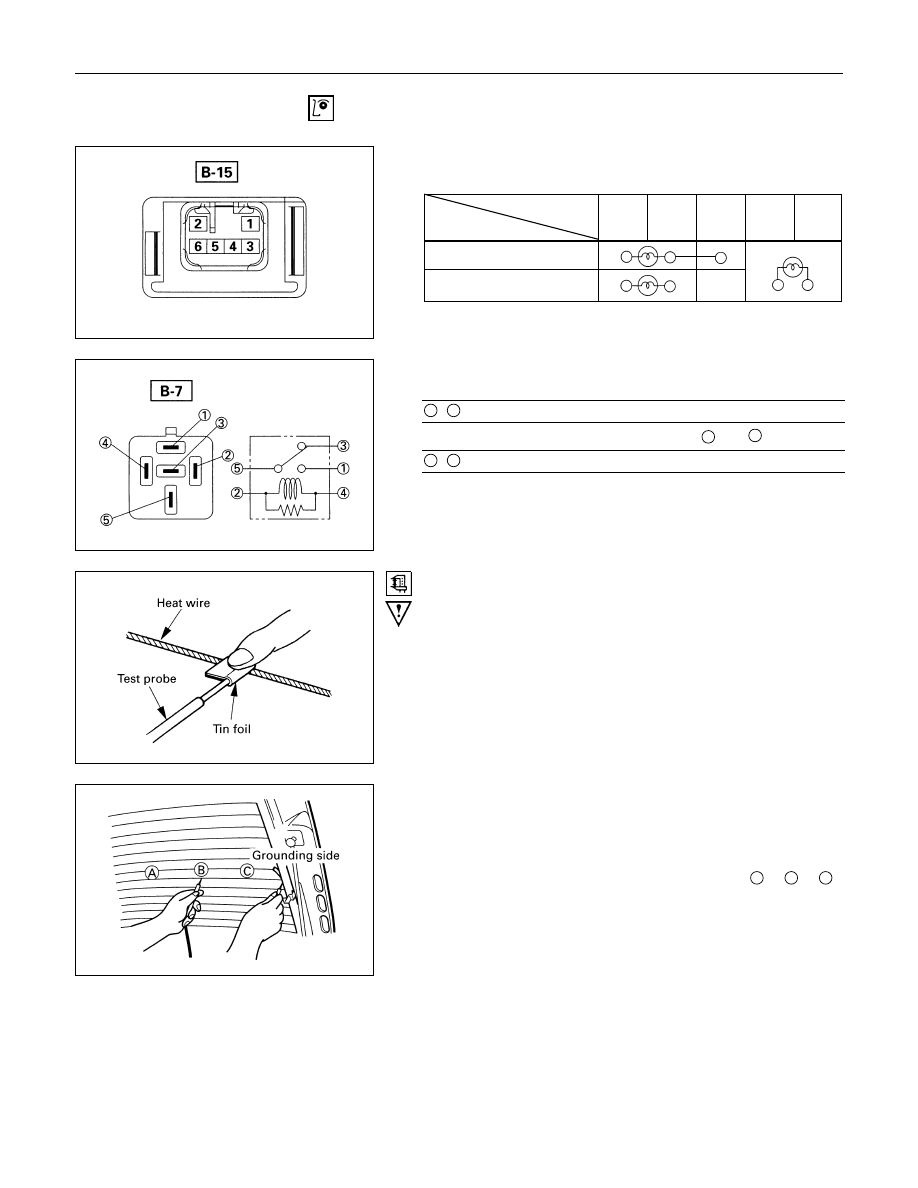

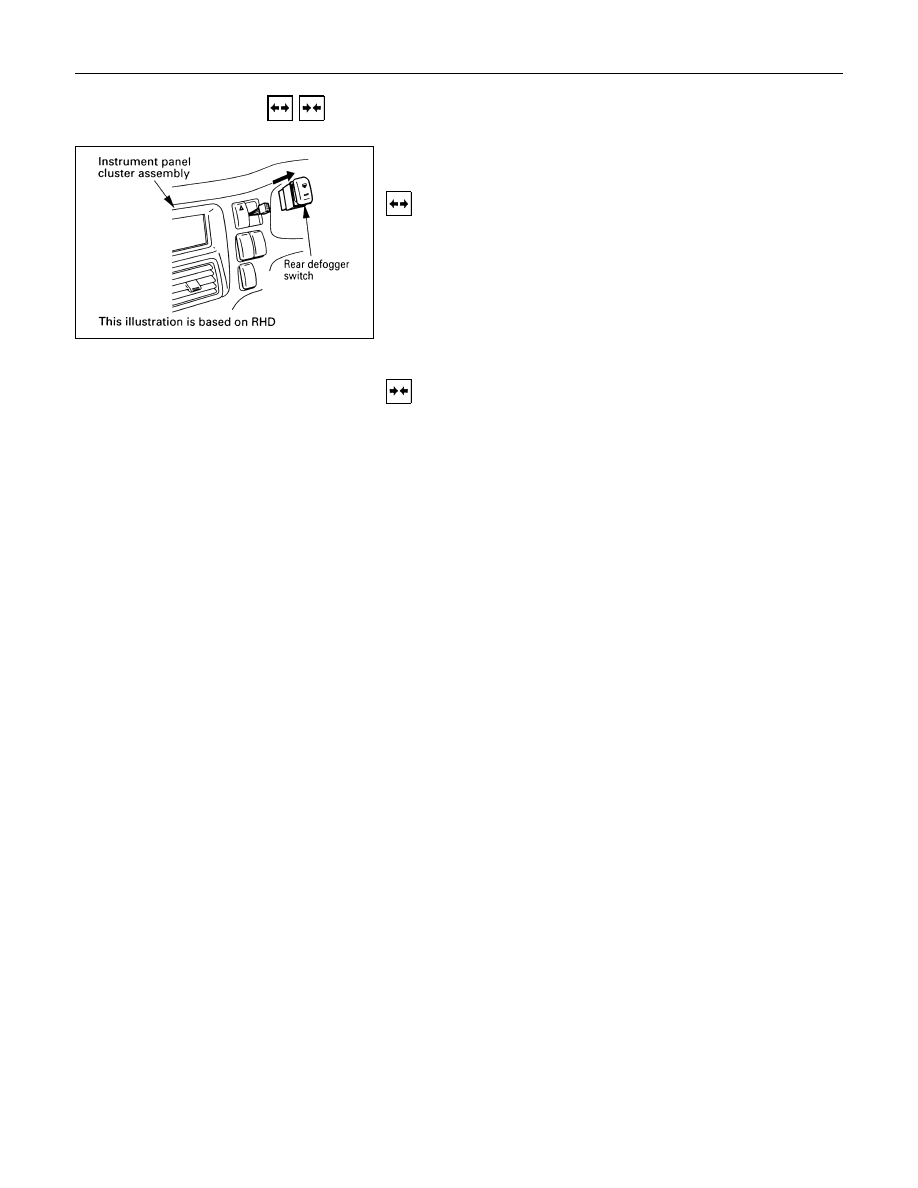

ELECTRICAL-BODY AND CHASSIS 8-221 TROUBLE SHOOTING Rear defogger inoperative Checkpoint Trouble Cause Countermeasure Reinstall or replace the fuse No. CB-7 (15A) (RHD: fuse No. CB-5 (15A)) Poor fuse contact or blown NG Reinstall or replace the fuse No. CB-13 (15A) Fuse No. CB-13 (15A, Fuse box) Poor fuse contact or blown Replace the rear defogger switch Rear defogger switch function Switch malfunction NG NG OK OK OK LHD: Replace the rear defogger relay Relay malfunction NG Continued on the next page Rear defogger relay function Repair grounding point ( B-28 ) contact Grounding point ( B-28 ) Poor grounding point contact NG OK Repair open circuit or poor B-7 , fuse No. CB-13 (15A) and 5 B-7 , 1 B-7 and 1 L-4 , 4 B-7 and 4 B-15 or 5 B-15 and B-28 Voltage between 1 L-4 - ground when the starter switch Open circuit or poor connector contact NG OK |
