ELECTRICAL-BODY AND CHASSIS  8-93

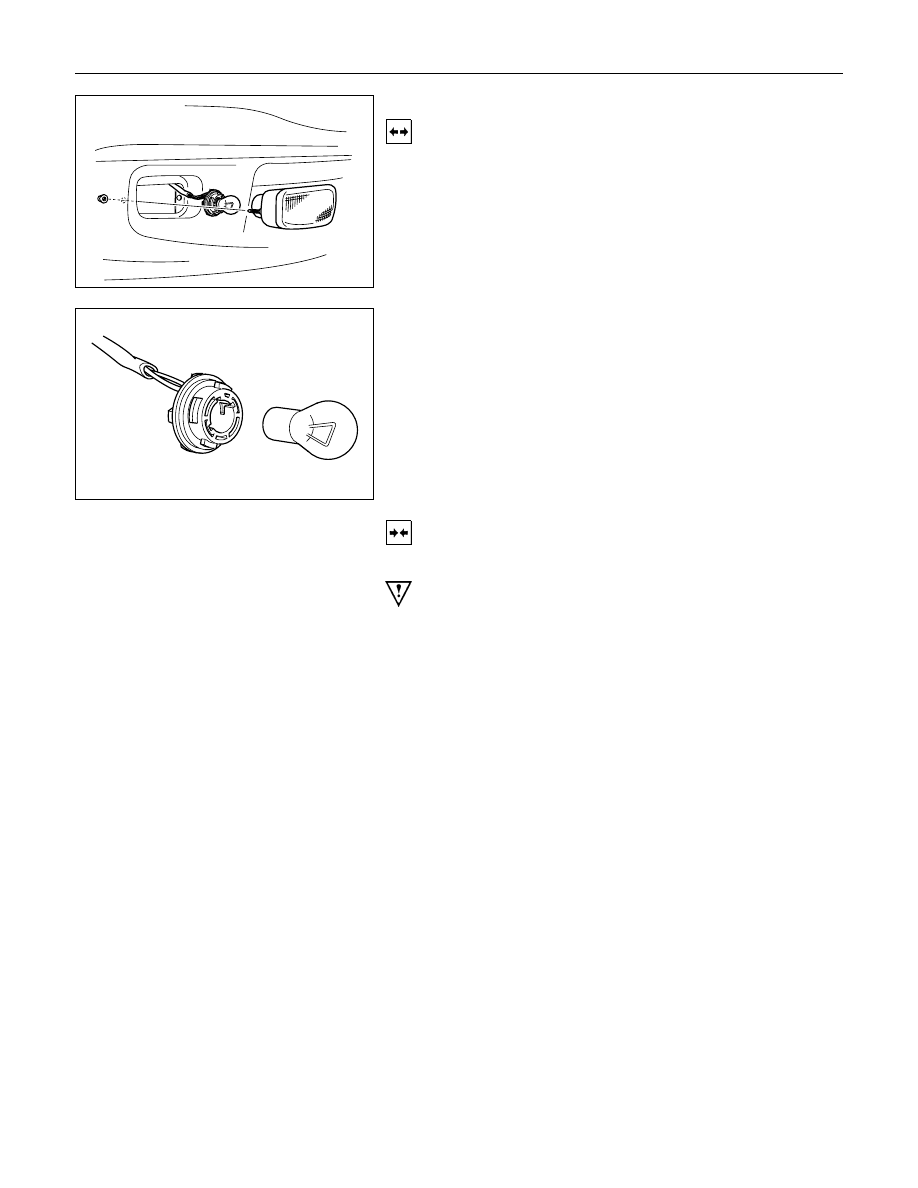

FRONT TURN LIGHT

Removal

1. Remove the screws of the front turn light.

2. Pull out the light housing for front turn light from bumper.

3. Push  the  bulb  in  and  turn  it  counterclockwise  to  remove  it

from the light housing.

Installation

Follow the removal procedure in the reverse order to install the
front turn light.
Pay close attention to the important points mentioned in the
following paragraphs.

Bulb

Be absolutely sure that the front turn light bulb is correctly
installed.
This will prevent a poor contact and an open circuit.

8-94  ELECTRICAL-BODY AND CHASSIS

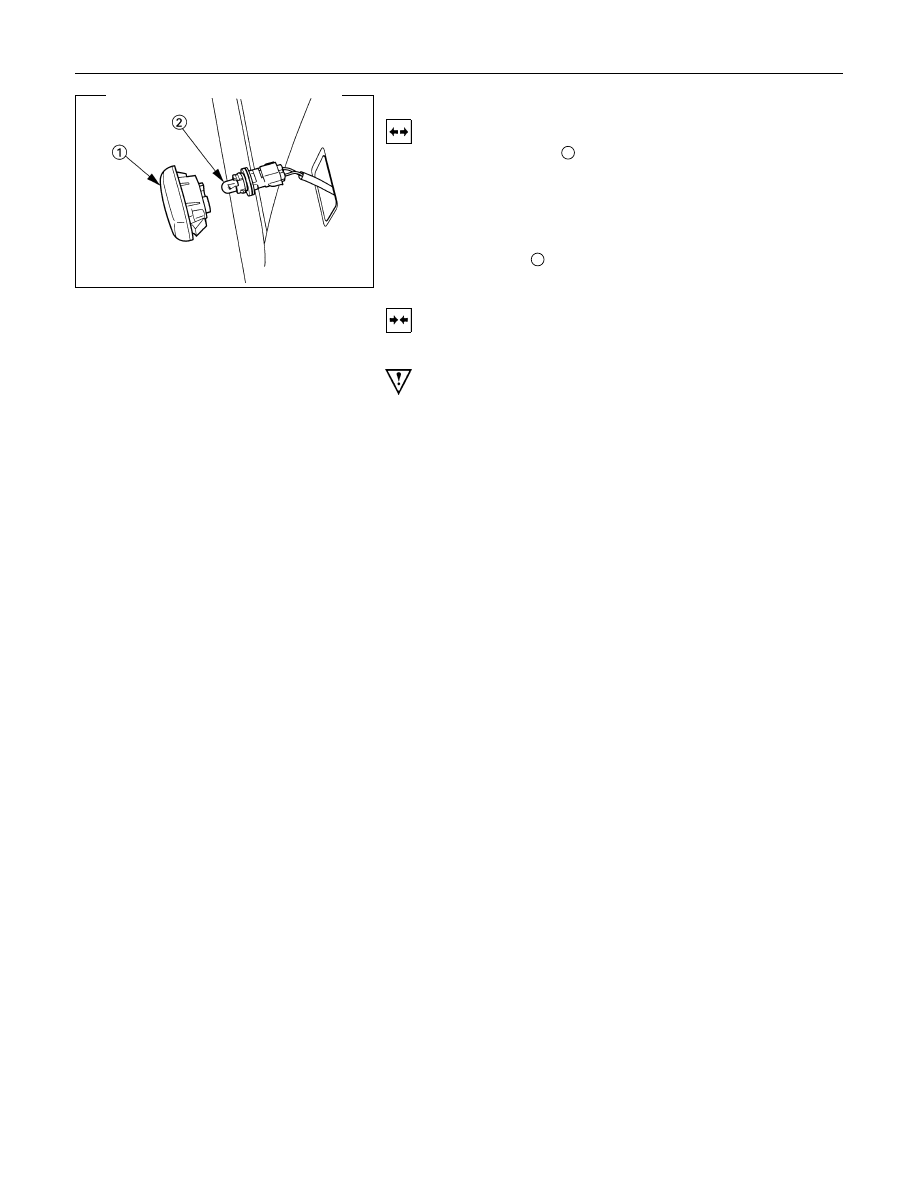

SIDE TURN LIGHT

Removal

1. Remove the lens

1

.

• Pull  the  light/bulb  toward  you  while  pushing  the  light

housing in the rear direction of the vehicle to release its

lock.

• Remove the socket by turning it counterclockwise.

2. Pull the bulb

2

 to remove it.

Installation

Follow the removal procedure in the reverse order to install the
side turn light.
Pay close attention to the important points mentioned in the
following paragraphs.

Bulb

Be absolutely sure that the side turn light bulb is correctly
installed.
This will prevent a poor contact and an open circuit.

ELECTRICAL-BODY AND CHASSIS  8-95

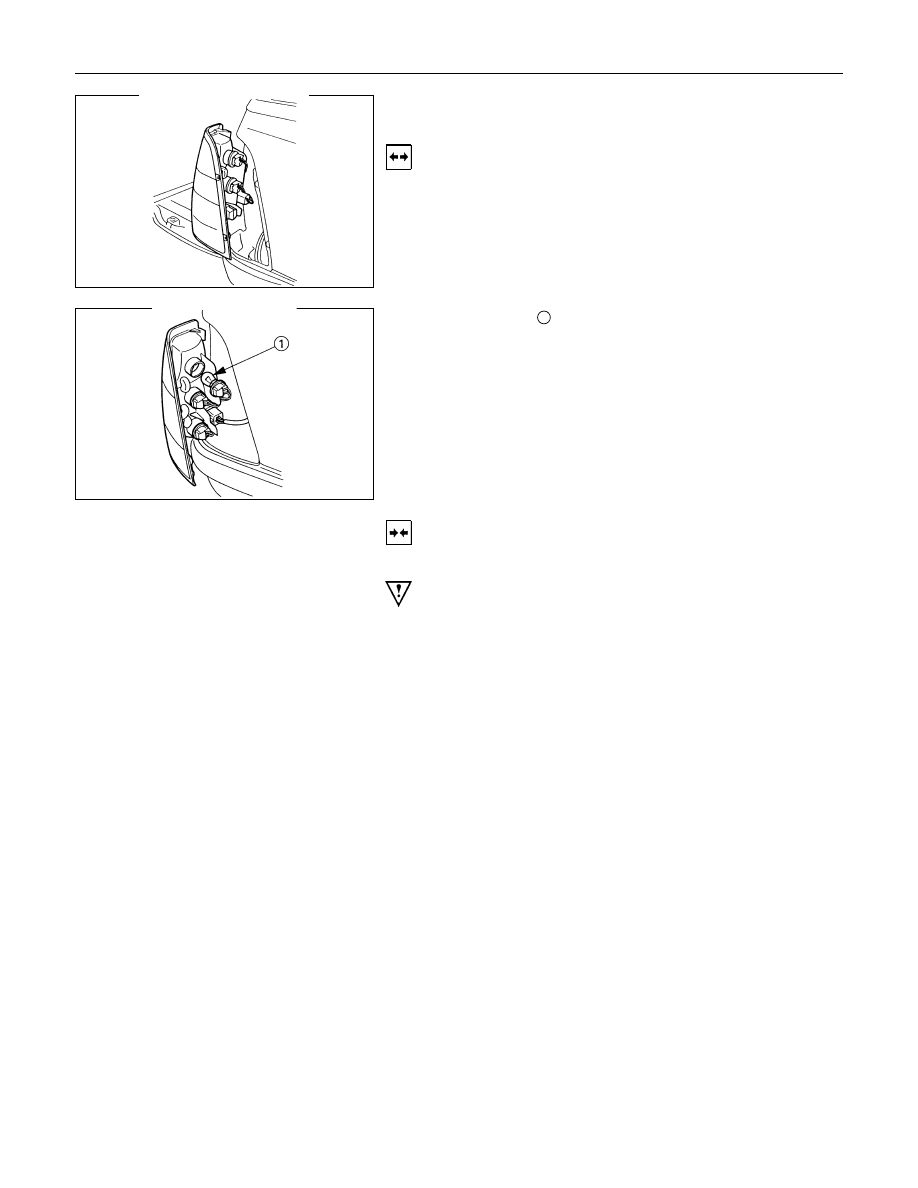

REAR COMBINATION LIGHT

Turn Signal Light
Removal

1. Open the rear gate.

2. Remove the screws.

3. Remove the rear combination light assembly.

4. Turn the bulb

1

 counterclockwise to remove it.

Installation

Follow the removal procedure in the reverse order to install the
rear combination light.
Pay close attention to the important points mentioned in the
following paragraphs.

Bulb

Be absolutely sure that the rear combination light bulb is
correctly installed.
This will prevent a poor contact and an open circuit.

8-96  ELECTRICAL-BODY AND CHASSIS

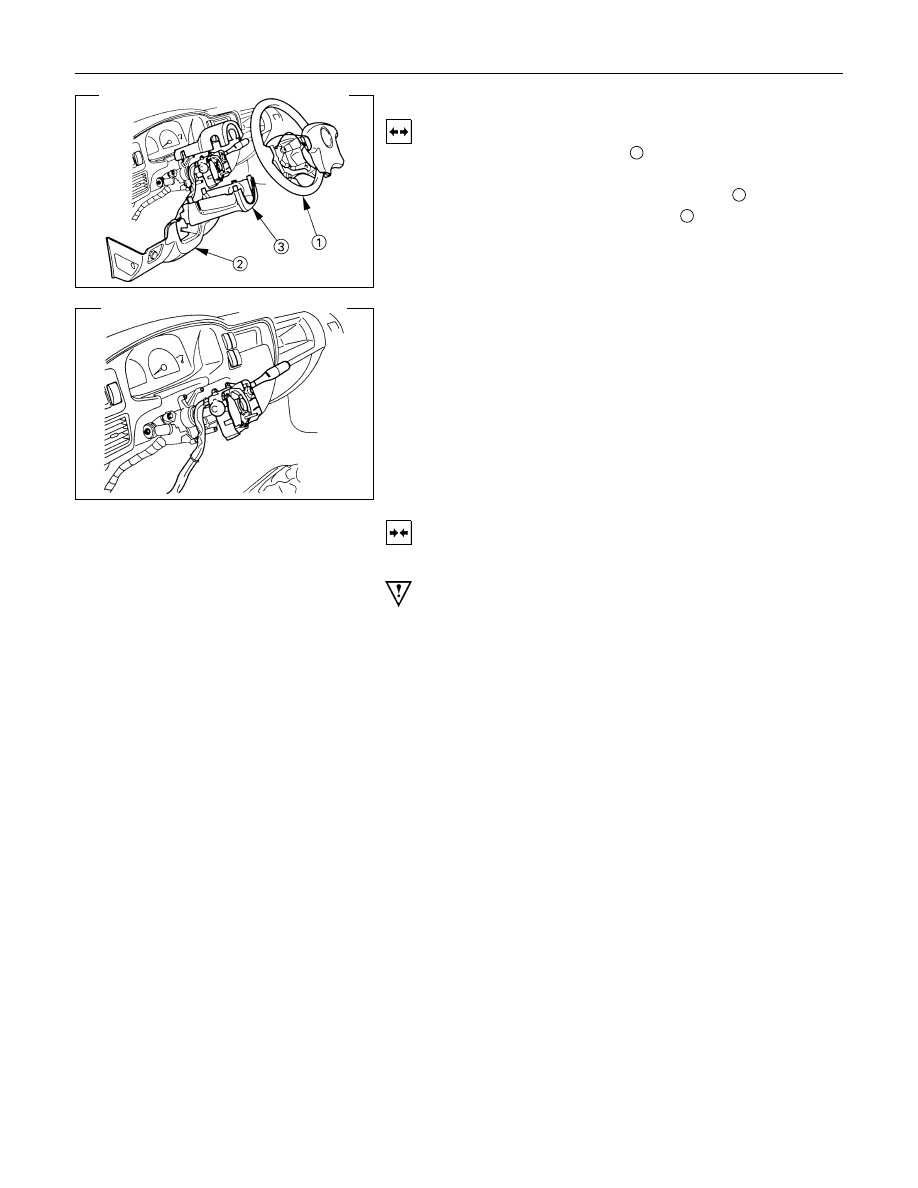

TURN SIGNAL SWITCH

Removal

1. Remove the steering wheel

1

.

Refer to the “STEERING” Section of this Manual.

2. Remove the instruments panel lower cover

2

.

3. Remove the steering column cover

3

.

4. Disconnect the connector.

5. Remove the turn signal switch from the steering shaft.

Installation

Follow the removal procedure in the reverse order to install the
turn signal switch (lever).
Pay close attention to the important points mentioned in the
following paragraphs.

Connector

Be absolutely sure that the turn signal switch connector is
securely connected.
This will prevent a poor contact and at an open circuit.
