Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1195





8-120  ELECTRICAL-BODY AND CHASSIS



Installation

Follow the removal procedure in the reverse order to install the
headlight.
Pay close attention to the important points mentioned in the
following paragraphs.






Connector

Be absolutely sure that the headlight connector is securely
connected.
This will prevent a contact and an open circuit.








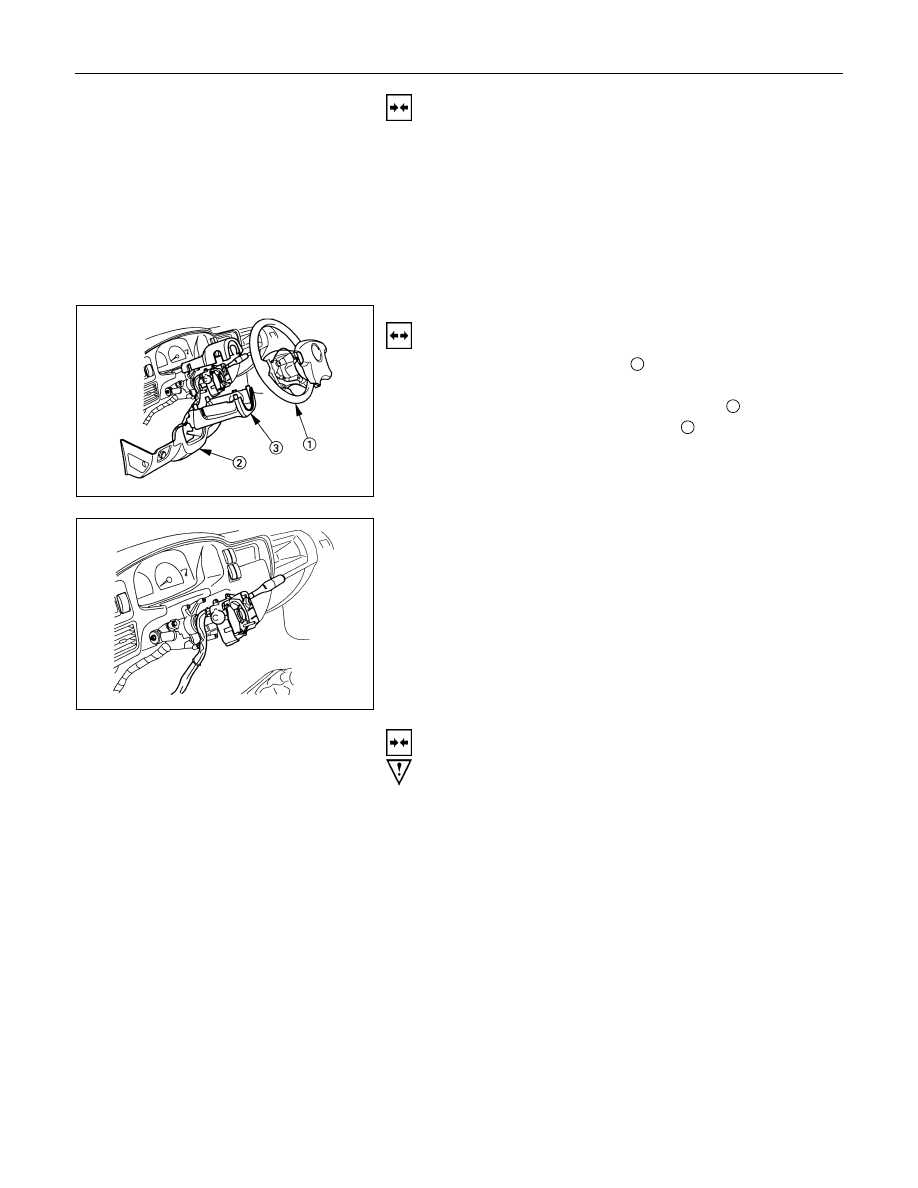

LIGHTING SWITCH

Removal

1.  Remove the steering wheel

1



Refer to the “STEERING” Section of this manual.

2.  Remove the Instrument panel lower cover

2

3.  Remove the steering column cover

3








4.  Disconnect the connector.
5.  Remove the lighting switch from the steering shaft.







Installation

Follow the removal procedure in the reverse order to install the
lighting switch.
Pay close attention to the important points mentioned in the
following paragraphs.


ELECTRICAL-BODY AND CHASSIS  8-121





Connector

Be absolutely sure that the lighting switch connector is securely
connected.
This will prevent a poor contact and an open circuit.






Wire Harness

Do not pinch the wire harnesses between the cluster and the
meter hood during the cluster installation procedure.
Wire damage will result.








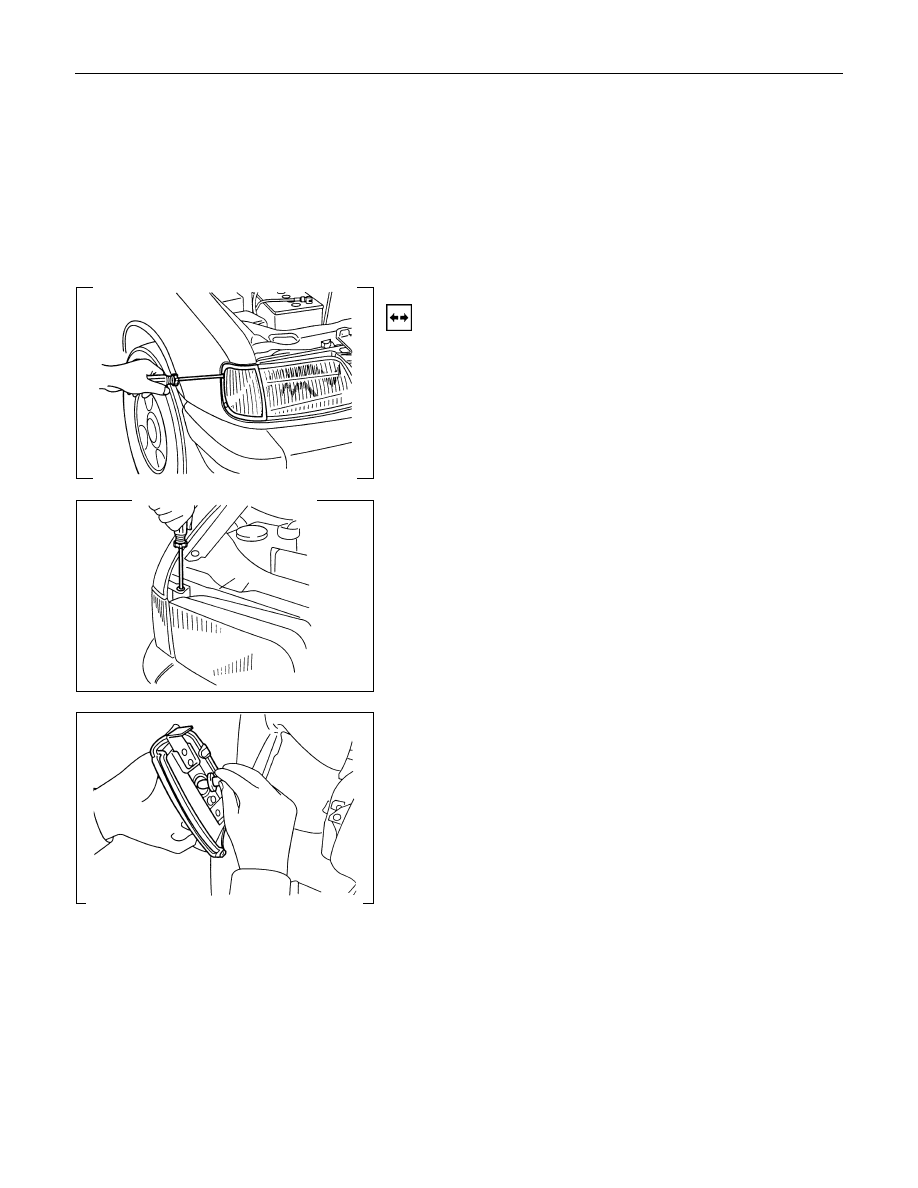

CLEARANCE LIGHT

Removal

1.  Remove the radiator grille.


(Refer to headlight removal procedure.)

2.  Remove the side screws.







3.  Remove the top screw.







4.  Turn the socket counterclockwise to disconnect it from the

clearance light housing.

5.  Pull the bulb from the socket.


8-122  ELECTRICAL-BODY AND CHASSIS



Installation

Follow the removal procedure in the reverse order to install the
clearance light.
Pay close attention to the important points mentioned in the
following paragraphs.






Connector

Be absolutely sure that the clearance light connector is
securely connected.
This will prevent a poor contact and an open circuit.

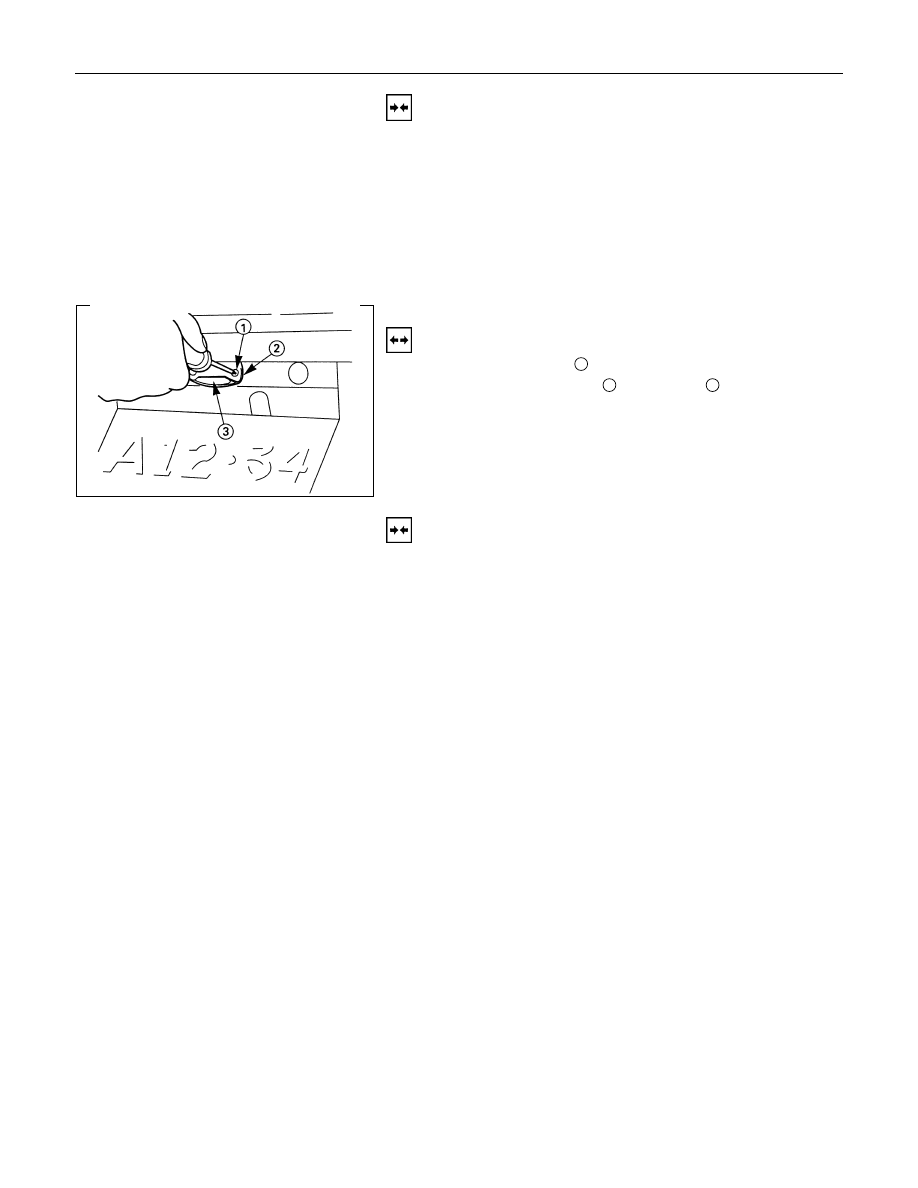

LICENSE PLATE LIGHT

Removal

1.  Loosen the screws

1

2.  Remove the lens cover

2

 and the lens

3

3.  Pull the bulb to remove it.





Installation

Follow the removal procedure in the reverse order to install the
license plate light.
Pay close attention to the important points mentioned in the
following paragraphs.







Bulb

Be absolutely sure that the license plate light bulb is correctly
installed.
This will prevent a poor contact and open circuit.


ELECTRICAL-BODY AND CHASSIS  8-123

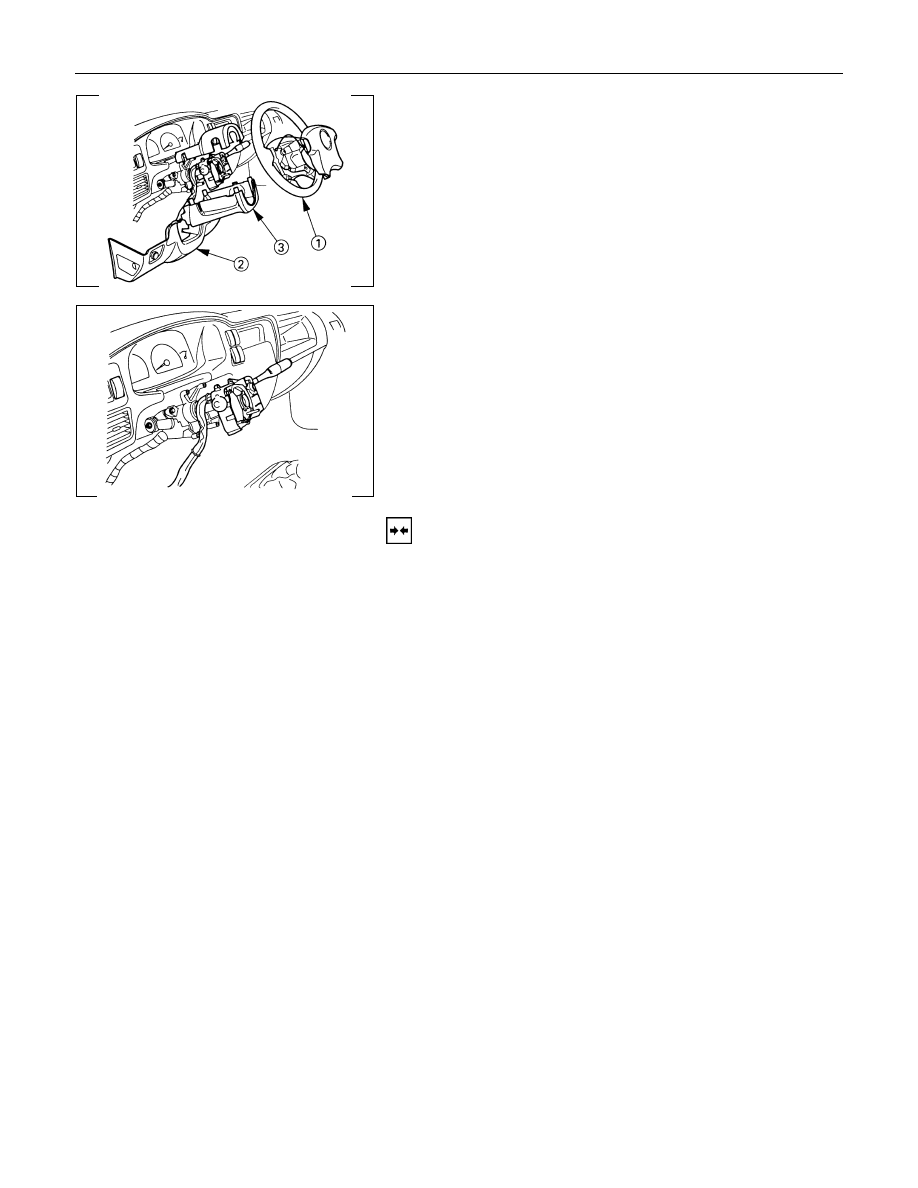

HEADLIGHT BEAM SWITCH

(COMBINATION SWITCH)

Removal

1.  Remove the screws on the lower part of the steering wheel.
2.  Remove the horn pad.
3.  Remove the wiring connector.
4.  Remove the steering wheel fixing nuts.
5.  Remove the steering wheel.


Refer to the "STEERING" Section of this manual.

6.  Remove the Instrument panel lower cover.
7.  Remove the steering column cover.
8.  Disconnect the connector.
9.  Remove the headlight beam switch (lever) from the steering

shaft (combination switch).




Installation

Follow the removal procedure in the reverse order to install the
headlight beam switch(lever).
Pay close attention to the important points mentioned in the
following paragraphs.







Connector

Be absolutely sure that the headlight beam switch connector is
securely connected.
This will prevent a poor contact and an open circuit.







Wire Harness

Do not pinch the wire harnesses between the cluster and the
meter hood during the cluster installation procedure.
Wire damage will result.
