Infiniti QX80 (2021 year). Manual in english

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAA0132X

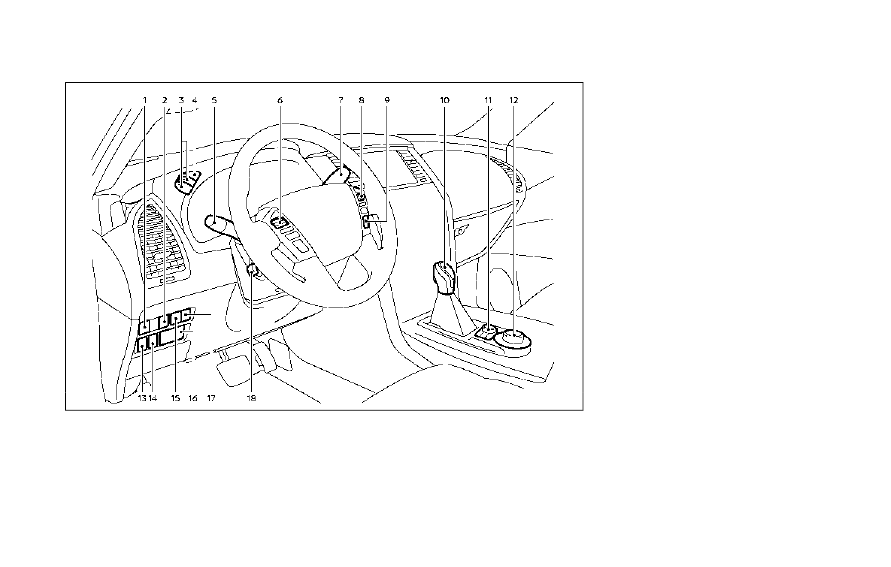

Power liftgate switch (if so equipped)

Heated steering wheel switch

Instrument brightness control switch

TRIP/RESET switch for twin trip od-
ometer

Headlight, fog light and turn signal
switch
— Headlight
— Turn signal
— Fog light

Steering-wheel-mounted controls (left
side)
— Audio control steering switch
— Hands-Free Phone System switch
— Trip computer switch

Wiper and washer switch

Steering-wheel-mounted controls
(right side)
— C r u i s e c o n t r o l s y s t e m ( i f s o
equipped)
— Intelligent Cruise Control (ICC) sys-
tem (if so equipped)

Dynamic driver assistance switch (if so
equipped)
— Lane Departure Prevention (LDP)
system (if so equipped)
— Distance Control Assist (DCA) sys-
tem (if so equipped)
— Blind Spot Intervention

(BSI) sys-

tem (if so equipped)

10. Shift lever
11. INFINITI controller
12. Four-Wheel Drive (4WD) shift switch

(if so equipped)/SNOW mode switch/
TOW mode switch/Vehicle Dynamic
Control (VDC) OFF switch

13. Headlight aiming control (if so

equipped)

14. Power liftgate main switch

Instruments and controls

2-3

COCKPIT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAA0133X

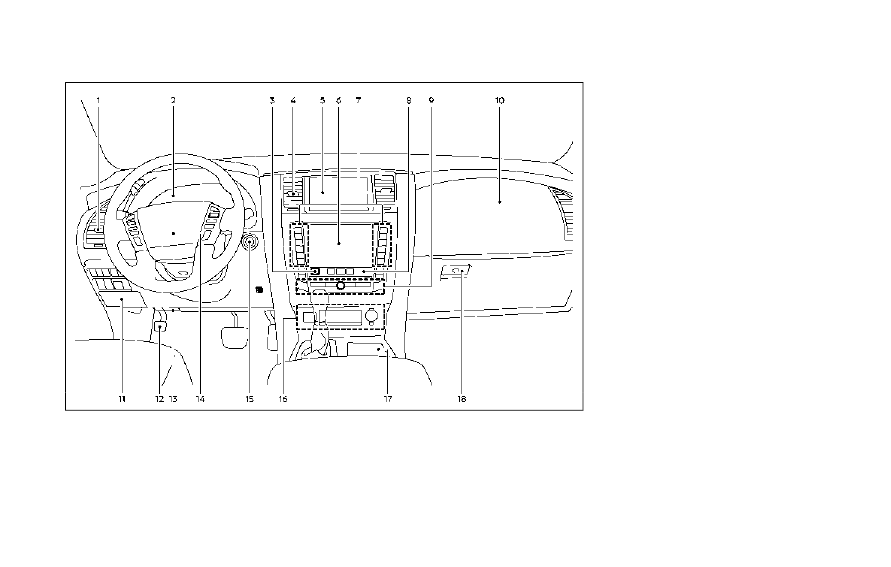

Side ventilator

Meters and gauges

Hazard warning flasher switch

Center ventilator

Upper touch screen display (upper dis-
play)
— Around View

Monitor

— Navigation system

Lower touch screen display (lower dis-
play)

Heater and air conditioner control
— Heated seats switch
— Climate controlled seats switch (if so
equipped)
— Defroster switch

Front passenger air bag status light

Audio system

10. Front passenger supplemental air bag
11. Fuse box
12. Parking brake
13. Hood release handle
14. Steering wheel

— Horn
— Driver supplemental air bag
— Power steering system

15. Push-button ignition switch
16. Front console

— Power outlet
— USB connection port

17. Cup holder/Tray
18. Glove box

Instruments and controls

2-5

INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-6

Instruments and controls

JVC1182X

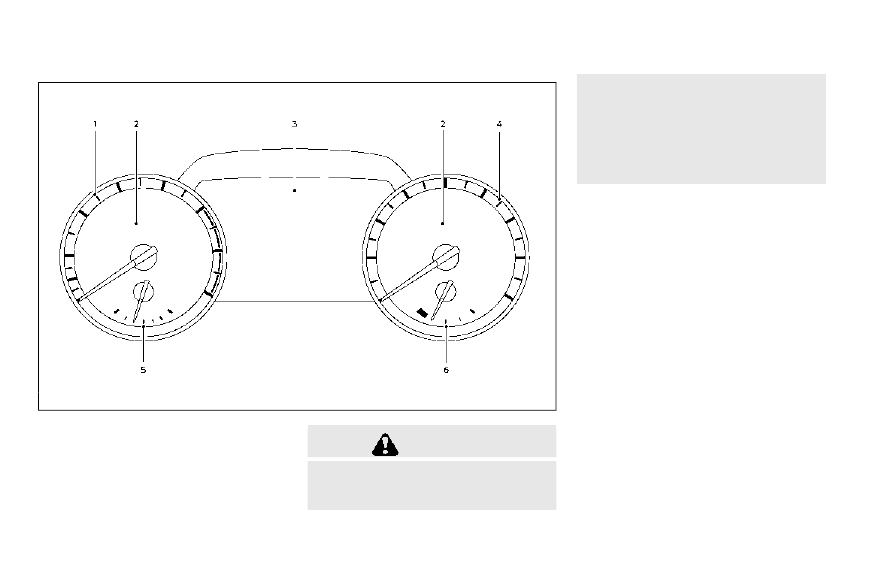

Tachometer

Warning and indicator lights

Vehicle information display

Speedometer

Engine coolant temperature gauge

Fuel gauge

CAUTION

For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or any

kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or cause discoloration to the
lens.

Do not spray any liquid such as water
on the meter lens. Spraying liquid
may cause the system to malfunction.

METERS AND GAUGES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVI1770X

Speedometer

SPEEDOMETER AND OD-
OMETER

Speedometer

The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per
hour (km/h).

WAC0217X

Odometer/twin trip odometer

Odometer/twin trip odometer

The odometer/twin trip odometer

displayed on the vehicle information display
when the ignition switch is in the ON
position.
The odometer displays the total distance the
vehicle has been driven.
The twin trip odometer displays the distance
of individual trips.

Changing the display:

Pushing the TRIP RESET switch

at the left

of the combination meter panel changes the
display as follows:
TRIP A

TRIP B

Odometer

TRIP A

Resetting the trip odometer:

Pushing the TRIP RESET switch

for more

than 1 second to reset the trip odometer to
zero.
Average fuel economy and distance to
empty information is also available. (See
“Vehicle information display” (P.2-20).)

Instruments and controls

2-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-8

Instruments and controls

JVI1772X

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (RPM).

Do not rev

the engine into the red zone

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.

JVI1773X

ENGINE COOLANT TEMPERA-
TURE GAUGE

The gauge indicates the engine coolant
temperature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone

shown in the illustration.

The engine coolant temperature varies with
the outside air temperature and driving
conditions.

CAUTION

If the gauge indicates engine coolant
temperature near the hot (H) end of the
normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible. If the engine is
overheated, continued operation of the
vehicle may seriously damage the engine.
See “If your vehicle overheats” (P.6-14)
for immediate action required.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAC0218X

FUEL GAUGE

The gauge indicates the

approximate

fuel

level in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down
hills.
The gauge needle returns to 0 (Empty) after
the ignition switch is pushed to the OFF
position.

Refill the fuel tank before the gauge
registers “0” (Empty).

The Low Fuel warning

appears on the

vehicle information display when the fuel
tank is getting low. Refuel as soon as it is
convenient, preferably before the gauge

reaches “0”. There will be a small reserve of
fuel in the tank when the fuel gauge needle
reaches “0”.
The

indicates that the fuel-filler door is

located on the driver’s side of the vehicle.

CAUTION

If the vehicle runs out of fuel, the
malfunction indicator light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the
light should turn off. If the light
remains on after a few driving trips,
have the vehicle inspected. It is
recommended you visit an INFINITI
retailer for this service.

For additional information, see “Mal-
function Indicator Light (MIL)” (P.2-
17).

WAC0219X

ENGINE OIL PRESSURE GAUGE

The gauge indicates the engine lubrication
system oil pressure while the engine is
running. When the engine speed is high, the
engine oil pressure is also high. When it is
low, the gauge indicates the low (L) oil
pressure.
The engine oil pressure is normal when the
gauge points within the zone

shown in the

illustration.

CAUTION

This gauge is not designed to indicate
low engine oil level. Use the dipstick

Instruments and controls

2-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-10

Instruments and controls

to check the oil level. (See “Engine oil”
(P.8-6).)

If the gauge does not move with the
proper amount of engine oil, have the
vehicle checked. It is recommended
you visit an INFINITI retailer for this
service. Continued vehicle operation
in such a condition could cause ser-
ious damage to the engine.

WAC0220X

VOLTMETER

When the ignition switch is pushed to the
ON position, the volt meter indicates the
battery voltage. When the engine is running,
it indicates the generator voltage.
While cranking the engine, the volt drop
below the normal range

. If the gauge is

not in the normal range (10.5 to 15.5 volt)
while the engine is running, it may indicate
that the charging system is not functioning
properly. Have the system checked. It is
recommended you visit an INFINITI retailer
for this service.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning indicator light (red)

Warning indicator light (yellow)

Vehicle Dynamic Control (VDC) off in-
dicator light

Automatic Transmission (AT) oil tem-
perature warning light

Adaptive Front lighting System (AFS)
indicator light (if so equipped)

Vehicle Dynamic Control (VDC) warning
light

Automatic Transmission (AT) park
warning light

Anti-lock Braking System (ABS) warning
light

Warning indicator light (other)

Exterior light indicator

Brake warning light

Automatic transmission check warning
light

Front fog light indicator light

Charge warning light

Check suspension indicator light

Front passenger air bag status light

Engine oil pressure warning light

Four-Wheel Drive (4WD) warning light
(4WD models)

High beam assist indicator light

Master warning light

Forward Emergency Braking (FEB) sys-
tem warning light

High beam indicator light

Seat belt warning light and chime

Low tire pressure warning light

TOW mode indicator light

Security indicator light

Malfunction Indicator Light (MIL)

Turn signal/hazard indicator lights

Supplemental air bag warning light

Master warning light

Instruments and controls

2-11

WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-12

Instruments and controls

CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if
so equipped) will come on:

The following lights (if so equipped) will
come on briefly and then go off:

If any light does not come on or operates in a
way other than described, it may indicate a
burned-out bulb and/or a system malfunc-
tion. Have the system checked. It is recom-
mended you visit an INFINITI retailer for this
service.
Some indicators and warnings are also
displayed on the vehicle information display
between the speedometer and tachometer.
(See “Vehicle information display” (P.2-20).)

WARNING/INDICATOR LIGHTS
(red)

See “Vehicle information display” (P.2-20).

Automatic Transmission (AT)

oil temperature warning light

This light illuminates when the Automatic
Transmission (AT) oil temperature is too
high. If the light illuminates while driving,
reduce the vehicle speed as soon as safely
possible until the light turns off.

CAUTION

Continued vehicle operation when the
AT oil temperature warning light is on
may damage the AT.

Automatic Transmission (AT)

park warning light (4WD models)

This light indicates that the Automatic
Transmission (AT) parking function is not
engaged. If the transfer control is not
secured in any driving position while the AT
shift lever is in the P (Park) position, the
transmission will disengage and the wheels
will not lock.

If the AT park warning light illuminates with
the shift lever in the P (Park) position, shift
the Four-Wheel Drive (4WD) shift switch
to the AUTO, 4H or 4L position again with
the shift lever in the N (Neutral) position.

(See “INFINITI all-mode 4WD

” (P.5-113).)

Brake warning light

This light functions for both the parking
brake and the foot brake systems.

Parking brake indicator:

When the ignition switch is in the ON
position, the light comes on when the
parking brake is applied.

Low brake fluid warning light:

When the ignition switch is in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine is
running with the parking brake not applied,
stop the vehicle and perform the following:
1. Check the brake fluid level. If brake fluid

is low, add fluid and have the system
checked. It is recommended you have this
service performed by an INFINITI retai-
ler. (See “Brake fluid” (P.8-9).)

2. If the brake fluid level is correct, have the

warning system checked. It is recom-
mended you have this service performed
by an INFINITI retailer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Low hydraulic pressure warning indicator:

If the brake warning light illuminates when
the engine is running, or while driving with
the parking brake is released, check the
brake fluid level. If the brake fluid level is
sufficient, it may indicate low hydraulic
pressure in the brake booster. Have the
brake system checked. It is recommended
you have this service performed by an
INFINITI retailer.

Anti-lock Braking System (ABS) warning
indicator:

When the parking brake is released and the
brake fluid level is sufficient, if both the
brake warning light and the Anti-lock Brak-
ing System (ABS) warning light illuminate, it
may indicate the ABS is not functioning
properly. Have the brake system checked,
and if necessary repaired. It is recommended
you visit an INFINITI retailer for this service.
(See “Anti-lock Braking System (ABS) warn-
ing light” (P.2-15).)

WARNING

Your brake system may not be work-
ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-

pairs. Otherwise, have your vehicle
towed because driving it could be
dangerous.

Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stopping
distance and braking will require
greater pedal effort as well as pedal
travel.

If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended you visit an INFINITI
retailer for this service.

Charge warning light

If the light comes on while the engine is
running, it may indicate the charging system
is not functioning properly. Turn the engine
off and check the alternator belt. If the belt is
loose, broken, missing or if the light remains
on, have your vehicle serviced immediately. It
is recommended you visit an INFINITI re-
tailer for this service.

CAUTION

Do not continue driving if the alternator
belt is loose, broken or missing.

Engine oil pressure warning

light

This light warns of low engine oil pressure. If
the light flickers or comes on during normal
driving, pull off the road in a safe area, stop
the engine

immediately

and call an INFINITI

retailer or other authorized repair shop.

The engine oil pressure warning light is not
designed to indicate a low oil level. Use the
dipstick to check the oil level.

(See “Engine

oil” (P.8-6).)

CAUTION

Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.

Instruments and controls

2-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-14

Instruments and controls

Master warning light

When the ignition switch is in the ON
position, the master warning light illumi-
nates when a warning message appears in
the vehicle information display.
See “Vehicle information display” (P.2-20).

Seat belt warning light and

chime

For driver and front passenger:

The light and chime remind you to fasten the
driver and front passenger seat belts.
The light illuminates whenever the ignition
switch is pushed to the ON position, and will
remain illuminated until the front seat belts
are fastened.
When the vehicle speed exceeds approxi-
mately 10 MPH (15 km/h), the light will blink
unless the front seat belts are securely
fastened.
When the ignition switch is pushed to the
ON position, the chime will sound for
approximately 6 seconds unless the driver’s
seat belt is securely fastened.
When the vehicle speed exceeds approxi-
mately 10 MPH (15 km/h), the chime will
sound unless the front seat belts are securely
fastened. The chime will continue to sound

for approximately 95 seconds until the front
seat belts are fastened.

For rear passengers:

The seat belt warning light for the rear
passengers will illuminate whenever the
ignition switch is pushed to the ON position,
and will remain illuminated until the rear
passenger’s seat belts are fastened.
For approximately 65 seconds after the
ignition switch is in the ON position, the
system does not activate the warning light
for the rear passengers.
If a rear passenger seat belt is fastened then
unfastened at a vehicle speed less than
approximately 10 MPH (15 km/h), the
warning light will illuminate. When the
vehicle speed exceeds approximately 10
MPH (15 km/h), the warning light will blink
and the chime will sound.
The warning will turn off when a rear
passenger seat belt is fastened or automa-
tically turn off approximately 65 seconds
after the seat belt is unfastened.
See “Seat belts” (P.1-18) for precautions on
seat belt usage.

Security indicator light

The light blinks when the ignition switch is in
the ACC, OFF and LOCK position. This
function indicates the security system

equipped on the vehicle is operational.
If the security system is malfunctioning, this
light will remain on while the ignition switch
is in the ON position. For additional informa-
tion, see “Security systems” (P.2-34).

Supplemental air bag warning

light

After pushing the ignition switch to the ON
position, the supplemental air bag warning
light will illuminate. The supplemental air bag
warning light will turn off after about 7
seconds if the air bag and/or pretensioner
systems are operational.
If any of the following conditions occur, the
air bag and/or pretensioner systems needs
servicing.

The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

The supplemental air bag warning light

flashes intermittently.

The supplemental air bag warning light

does not come on at all.

It is recommended you visit an INFINITI
retailer for these services.
Unless checked and repaired, the supple-
mental restraint system (air bag system)
and/or the pretensioners may not function
properly.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For additional information, see “Supplemen-
tal restraint system” (P.1-52).

WARNING

If the supplemental air bag warning light
is on, it could mean that the front air
bag, side air bag, curtain air bag systems
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a retailer as soon as
possible.

WARNING/INDICATOR LIGHTS
(yellow)

See “Vehicle information display” (P.2-20).

Adaptive Front lighting Sys-

tem (AFS) indicator light (if so
equipped)

When the ignition switch is pushed to the
ON position, the Adaptive Front lighting
System (AFS) indicator light will illuminate.
The light will turn off in about 1 second if the
AFS is operational.
If the AFS indicator light blinks, it may
indicate the AFS is not functioning properly.

Have the system checked. It is recommended
you visit an INFINITI retailer for this service.
See “Adaptive Front lighting System (AFS)”
(P.2-45).

Anti-lock Braking

System (ABS) warning light

When the ignition switch is in the ON
position, the Anti-lock Braking System
(ABS) warning light illuminates and then
turns off. This indicates the ABS is opera-
tional.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked. It is recommended
you visit an INFINITI retailer for this service.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock
assistance. (See “Brake system” (P.5-123).)

Automatic transmission check

warning light

When the ignition switch is pushed to the
ON position, the light comes on for 2
seconds. If the light comes on at any other
time, it may indicate the transmission is not
functioning properly. It is recommend you

visit an INFINITI retailer to check and repair
the transmission.

Check suspension indicator

light

When the ignition switch is placed in the ON
position, the light comes on for 2 seconds.

Four-Wheel Drive (4WD)

warning light (4WD models)

The

warning light comes on when the

ignition switch is pushed to ON. It turns off
soon after the engine is started.
If the 4WD system malfunctions, or the
diameter of the front and the rear wheels are
different, the warning light will either remain
illuminated or blink. (See “INFINITI all-mode
4WD

” (P.5-113).)

CAUTION

If the warning light comes on while
driving there may be a malfunction in
the 4WD system. Reduce the vehicle
speed and have your vehicle checked
as soon as possible. It is recom-
mended you visit an INFINITI retailer
for this service.

Instruments and controls

2-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-16

Instruments and controls

If the 4WD warning light turns on
when driving on dry or hard surfaced
roads:

— in the 4H(I) position, shift the

4WD shift switch to AUTO

— in the 4L(O) position, stop the

vehicle and shift the transmission
shift lever to the N (Neutral)
position and shift the 4WD shift
switch to AUTO

If the warning light is still on after the
above operations, have your vehicle
checked as soon as possible. It is
recommended you visit an INFINITI
retailer for this service.

Forward Emergency Braking

(FEB) system warning light

This light comes on when the ignition switch
is placed in the ON position. It turns off after
the engine is started.
This light illuminates when the Forward
Emergency Braking (FEB) with pedestrian
detection system is set to OFF on the lower
display.
If the light illuminates when the FEB with
pedestrian detection system is ON, it may
indicate that the system is unavailable. See

“Forward Emergency Braking (FEB) with
pedestrian detection” (P.5-95) for more de-
tails.

Low tire pressure warning light

Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors
the tire pressure of all tires except the spare.
The low tire pressure warning light warns of
low tire pressure or indicates that the TPMS
is not functioning properly.
After the ignition switch is pushed ON, this
light illuminates for about 1 second and
turns off.

Low tire pressure warning:

If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
"Tire Pressure Low Add Air" warning also
appears in the vehicle information display.
The tire pressure for each tire will also be
displayed.
When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure
warning light does not automatically turn
off when the tire pressure is adjusted. After
the tire is inflated to the recommended
pressure, the vehicle must be driven at

speeds above 16 MPH (25 km/h) to activate
the TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge to
check the tire pressure.
The "Tire Pressure Low Add Air" warning
appears each time the ignition switch is
placed in the ON position as long as the
low tire pressure warning light remains
illuminated.
For additional information, see “Vehicle
information display” (P.2-20), “Tire Pressure
Monitoring System (TPMS)” (P.5-5) and
“Tire Pressure Monitoring System (TPMS) ”
(P.6-3).

TPMS malfunction:

If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is pushed ON. The light will remain on
after 1 minute. Have the system checked. It
is recommended you visit an INFINITI re-
tailer for this service. The "Tire Pressure Low
Add Air" warning does not appear if the low
tire pressure warning light illuminates to
indicate a TPMS malfunction.
For additional information, see “Tire Pres-
sure Monitoring System (TPMS)” (P.5-5).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

If the light does not illuminate with
the ignition switch pushed ON, have
the vehicle checked as soon as possi-
ble. It is recommended you visit an
INFINITI retailer for this service.

If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location
and stop the vehicle as soon as
possible. Driving with under-inflated
tires may permanently damage the
tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn the
low tire pressure warning light OFF.
If the light still illuminates while
driving after adjusting the tire pres-
sure, a tire may be flat or the TPMS
may be malfunctioning. If you have a
flat tire, replace it with a spare tire as
soon as possible. If no tire is flat and
all tires are properly inflated, it is

r e c o m m e n d e d y o u c o n s u l t a n
INFINITI retailer.

Since the spare tire is not equipped
with the TPMS, when a spare tire is
mounted or a wheel is replaced, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The light
will remain on after 1 minute. Have
your tires replaced and/or TPMS
system reset as soon as possible. It
is recommended you visit an INFINITI
retailer for these services.

Replacing tires with those not origin-
ally specified by INFINITI could affect
the proper operation of the TPMS.

CAUTION

The TPMS is not a substitute for the
regular tire pressure check. Be sure to
check the tire pressure regularly.

If the vehicle is being driven at speeds
of less than 16 MPH (25 km/h), the
TPMS may not operate correctly.

Be sure to install the specified size of
tires to the four wheels correctly.

Malfunction Indicator Light

(MIL)

If the malfunction indicator light comes on
steady or blinks while the engine is running,
it may indicate a potential emission control
malfunction.
The malfunction indicator light may also
come on steady if the fuel-filler cap is loose
or missing, or if the vehicle runs out of fuel.
Check to make sure the fuel-filler cap is
installed and closed tightly, and that the
vehicle has at least 3 US gallons (14 liters) of
fuel in the fuel tank.
After a few driving trips, the

light should

turn off if no other potential emission
control system malfunction exists.
If this indicator light remains on for 20
seconds and then blinks for 10 seconds
when the engine is not running, it indicates
that the vehicle is not ready for an emission
control system inspection/maintenance test.
(See “Readiness for Inspection/Mainte-
nance (I/M) test” (P.10-34).)

Operation:

The malfunction indicator light will come on
in one of two ways:

Malfunction indicator light on steady —

An emission control system malfunction
has been detected. Check the fuel-filler

Instruments and controls

2-17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti QX80 (2021 year). Manual in english - page 6
