Illustrated table of contents

WAA0130X

Seat belt for 3rd row center seat
(P.1-25)

Roof-mounted curtain side-impact and
rollover supplemental air bags (P.1-52)

Head Restraints (P.1-13)

— Front-seat Active Head Restraints
(P.1-17)

Seat belts (P.1-18)

Front seat-mounted side-impact sup-
plemental air bags (P.1-52)

Supplemental front-impact air bags
(P.1-52)

Child restraint anchor points (for top
tether strap child restraint) (P.1-44,
P.1-48)

3rd row seats (P.1-8)
— Child restraints (P.1-31)

LATCH (Lower Anchors and Tethers
for CHildren) system (P.1-34)

10. Armrest (2nd row seat) (P.1-10)
11. 2nd row seats (P.1-5)

— Child restraints (P.1-31)

12. Seat belt pretensioner (P.1-67)
13. Front armrest (P.1-10)
14. Front seats (P.1-4)

— Occupant classification sensors
(weight sensors) (P.1-58)

15. Front passenger air bag status light

(P.1-60)

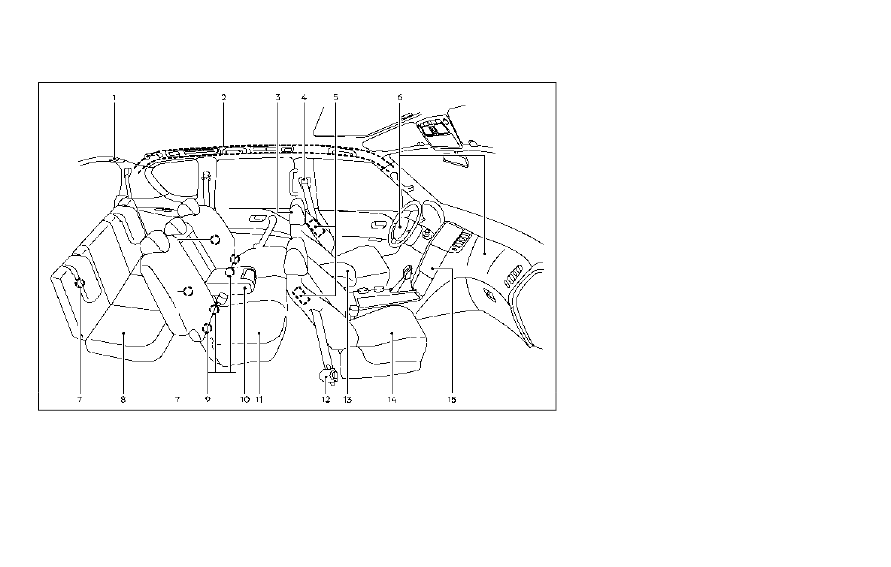

SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC1126X

Hood (P.3-21)

Windshield wiper and washer
— Switch operation (P.2-36)
— Rain-sensing auto wiper system
(P.2-38)
— Wiper blade replacement (P.8-15)

— Window washer fluid (P.8-10)

Moonroof (P.2-70)

Power windows (P.2-68)

Roof rack (P.2-67)

Towing hook (P.6-18)

Front view camera (P.4-3)

Sensors
— Camera aiding sonar function
(P.4-17)

Headlight washers (if so equipped)
(P.2-45)

10. Fog light (P.2-47)
11. Headlight (P.2-40)

— Adaptive Front lighting System
(AFS) (if so equipped) (P.2-45)

12. Front parking light/daytime running

light/front turn signal light (P.2-40)

13. Tires

— Wheel and tires (P.8-27, P.10-9)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System
(TPMS) (P.2-16, P.5-5)

14. Outside mirrors (P.3-37)

— Side view camera (P.4-3)
— Welcome light (P.2-72)

15. Side turn signal lights (P.8-23)
16. Doors

— Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-15)
— Remote engine start (if so equipped)
(P.3-19)

Illustrated table of contents

0-3

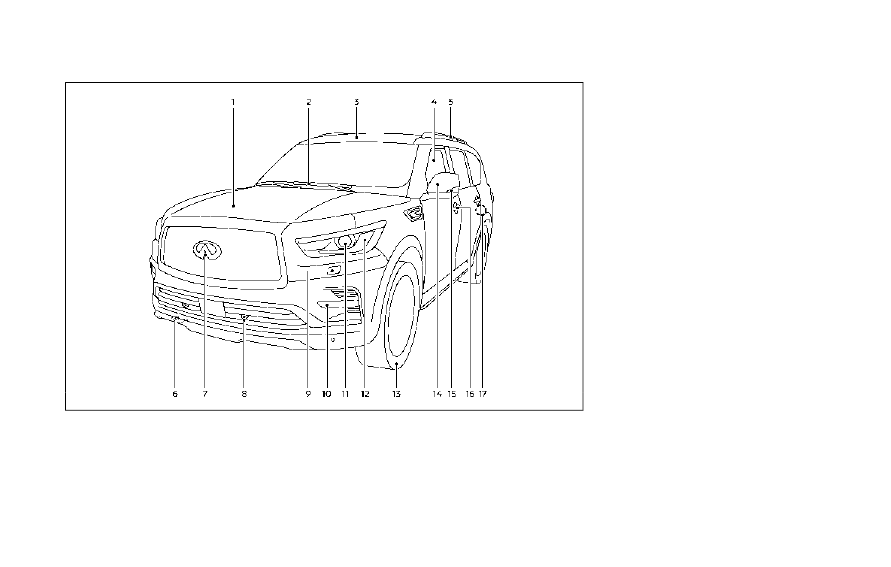

EXTERIOR FRONT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC1127X

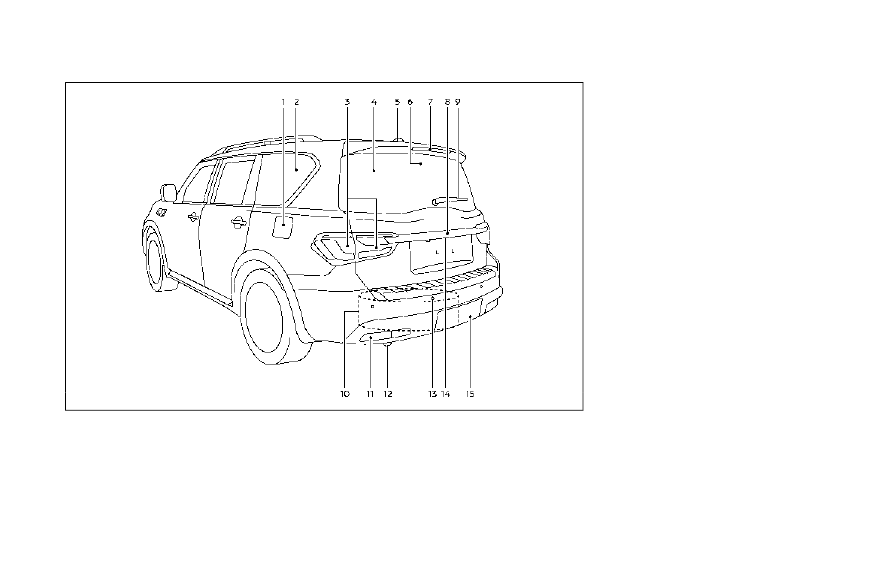

Fuel-filler door (P.3-26)
— Fuel information (P.10-4)

Antenna (P.4-37)

Rear combination light (P.8-23)

Rear window defroster (P.2-39)

Satellite antenna (P.4-38)

Smart Rearview Mirror camera (if so
equipped) (P.3-31)

High-mounted stop light (P.8-23)

Liftgate (P.3-22)
— Intelligent Key system (P.3-7)

Rear window wiper and washer
— Switch operation (P.2-39)
— Window washer fluid (P.8-10)

10. Spare tire (under the vehicle) (P.6-3)
11. Rear turn signal light

— Switch operation (P.2-46)

12. Towing hook (P.6-18)
13. Sensors

— Camera aiding sonar function
(P.4-17)

14. Rear view camera (P.4-3)
15. Trailer hitch (P.10-23)

Illustrated table of contents

0-5

EXTERIOR REAR

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-6

Illustrated table of contents

WAA0131X

Cargo light (P.2-75)

Cup holders (3rd row seat) (P.2-62)

Rear ventilators (P.4-27)

Coat hooks (P.2-65)

Rear personal lights (P.2-72)

Door armrest
— Power window controls (P.2-68)
— Power door lock switch (P.3-5)
— Outside rearview mirror remote con-
trol switch (driver’s side) (P.3-37)

Automatic drive positioner switch
(P.3-40)

Sun visors (P.3-30)

Map lights (P.2-72)

10. Moonroof switch (P.2-70)
11. E-Call (SOS) button (if so equipped)

(P.2-59)

12. Sunglasses holder (P.2-62)
13. Inside rearview mirror (P.3-30)

— Smart Rearview Mirror (if so
equipped) (P.3-31)
— HomeLink

universal transceiver

(P.2-75, P.2-79)

14. Cargo area

— Power outlet (P.2-56)
— Cargo floor box (P.2-66)
— Luggage hooks (P.2-66)
— Jacking tools (P.6-5)

15. Rear console box (P.2-64)

— Cup holders (2nd row seat) (if so
equipped) (P.2-60)
— Pocket (if so equipped) (P.2-64)

16. Cup holders (2nd row seat) (if so

equipped) (P.2-60)

17. Mobile Entertainment System (MES) (if

so equipped) (See INFINITI InTouch

Owner’s Manual.)

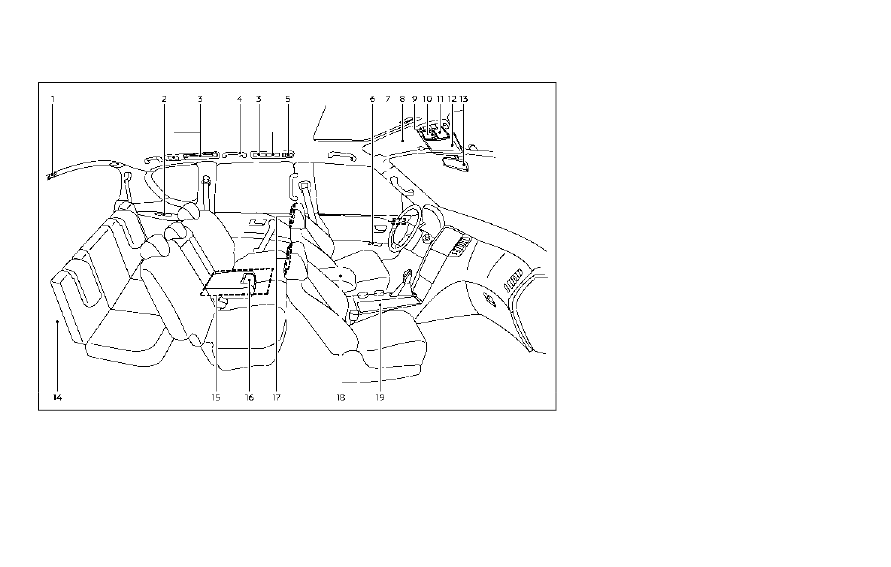

PASSENGER COMPARTMENT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-8

Illustrated table of contents

WAA0132X

Power liftgate switch (if so equipped)
(P.3-22)

Heated steering wheel switch (P.2-47)

Instrument brightness control switch
(P.2-46)

TRIP/RESET switch for twin trip od-
ometer (P.2-7)

Headlight, fog light and turn signal
switch
— Headlight (P.2-40)
— Turn signal (P.2-46)

— Fog light (P.2-47)

Steering-wheel-mounted controls (left
side)
— Audio control steering switch (See
INFINITI InTouch

Owner’s Manual.)

— Hands-Free Phone System switch
(See INFINITI InTouch

Owner’s

Manual.)
— Trip computer switch (P.2-31)

Wiper and washer switch (P.2-36)

Steering-wheel-mounted controls
(right side)
— C r u i s e c o n t r o l s y s t e m ( i f s o
equipped) (P.5-62)
— Intelligent Cruise Control (ICC) sys-
tem (if so equipped) (P.5-64)

Dynamic driver assistance switch (if so
equipped)
— Lane Departure Prevention (LDP)
system (if so equipped) (P.5-22)
— Distance Control Assist (DCA) sys-
tem (if so equipped) (P.5-84)
— Blind Spot Intervention

(BSI) sys-

tem (if so equipped) (P.5-41)

10. Shift lever (P.5-17)
11. INFINITI controller (See INFINITI In-

Touch

Owner’s Manual.)

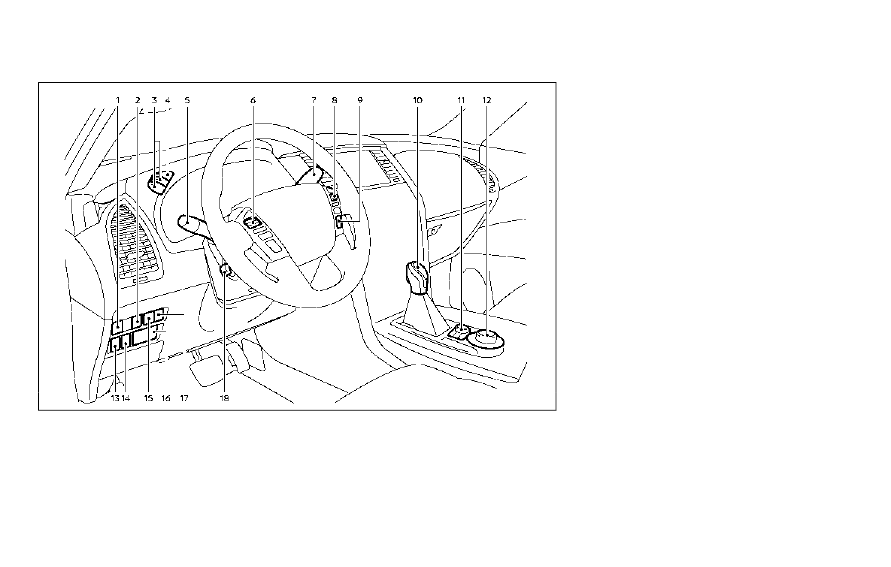

COCKPIT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

12. Four-Wheel Drive (4WD) shift switch

(if so equipped) (P.5-113)/SNOW
mode switch (P.2-52)/TOW mode
switch (P.2-53)/Vehicle Dynamic Con-
trol (VDC) OFF switch (P.5-125)

13. Headlight aiming control (if so

equipped) (P.2-44)

14. Power liftgate main switch (P.3-22)
15. Warning systems switch (P.2-52)

— Lane Departure Warning (LDW)
(P.5-22)
— Blind Spot Warning (BSW) (P.5-31)

16. Remote tip-up 2nd row seat switch (if

so equipped) (P.1-6)

17. Rear door alert switch (P.2-54)
18. Electric tilting/telescopic steering

wheel switch (P.3-29)

Illustrated table of contents

0-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-10

Illustrated table of contents

WAA0133X

Side ventilator (P.4-27)

Meters and gauges (P.2-6)

Hazard warning flasher switch (P.6-2)

Center ventilator (P.4-27)

Upper touch screen display (upper dis-
play) (See INFINITI InTouch

Owner’s

Manual.)
— Around View

Monitor (P.4-3)

— Navigation system (See INFINITI
InTouch

Owner’s Manual.)

Lower touch screen display (lower dis-
play) (See INFINITI InTouch

Owner’s

Manual.)

Heater and air conditioner control
(P.4-28)
— Heated seats switch (P.2-48)
— Climate controlled seats switch (if so
equipped) (P.2-50)
— Defroster switch (P.2-39)

Front passenger air bag status light
(P.1-60)

Audio system (See INFINITI InTouch

Owner’s Manual.)

10. Front passenger supplemental air bag

(P.1-52)

11. Fuse box (P.8-20)
12. Parking brake (P.5-22)
13. Hood release handle (P.3-21)
14. Steering wheel

— Horn (P.2-48)
— Driver supplemental air bag (P.1-52)
— Power steering system (P.5-123)

15. Push-button ignition switch (P.5-12)
16. Front console

— Power outlet (P.2-56)
— USB connection port (See Infiniti
InTouch Owner’s Manual.)

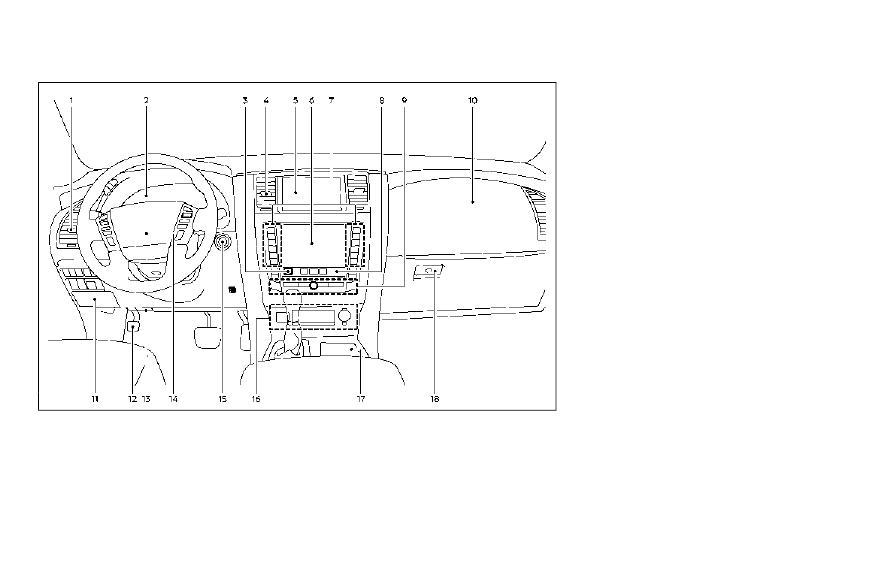

INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-12

Illustrated table of contents

JVC1182X

Tachometer (P.2-8)

Warning and indicator lights (P.2-11)

Vehicle information display (P.2-20)/
Odometer/twin trip odometer (P.2-7)

Speedometer (P.2-7)

Engine coolant temperature gauge
(P.2-8)

Fuel gauge (P.2-9)

METERS AND GAUGES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAA0134X

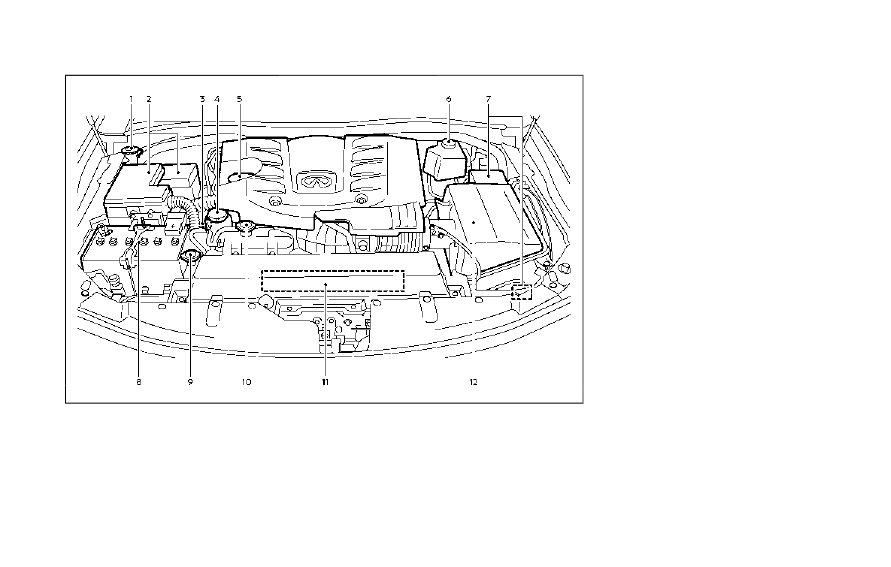

VK56VD ENGINE

Window washer fluid reservoir
(P.8-10)

Fuse/fusible link holder (P.8-18)

Engine oil dipstick (P.8-6)

Power steering fluid reservoir (P.8-8)

Engine oil filler cap (P.8-6)

Brake fluid reservoir (P.8-9)

Fuse/fusible link holder (P.8-18)

Battery (P.8-11)

Radiator filler cap (P.8-4)

10. Engine coolant reservoir (P.8-4)

11. Drive belts (P.8-13)
12. Air cleaner (P.8-14)

Illustrated table of contents

0-13

ENGINE COMPARTMENT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-14

Illustrated table of contents

Red light

Name

Page

Automatic Transmission (AT)
oil temperature warning light

2-12

Automatic Transmission (AT)
park warning light

2-12

Brake warning light

2-12

Charge warning light

2-13

Engine oil pressure warning
light

2-13

Master warning light

2-14

Seat belt warning light

2-14

Security indicator light

2-14

Supplemental air bag warn-
ing light

2-14

Yellow

light

Name

Page

Adaptive Front lighting Sys-
tem (AFS) indicator light (if so
equipped)

2-15

Anti-lock Braking System
(ABS) warning light

2-15

Automatic Transmission (AT)
check warning light

2-15

Check suspension indicator
light

2-15

Four-Wheel Drive (4WD)
warning light (4WD models)

2-15

Forward Emergency Braking
(FEB) system warning light

2-16

Low tire pressure warning
light

2-16

Malfunction Indicator Light
(MIL)

2-17

Master warning light

2-18

Vehicle Dynamic Control
(VDC) off indicator light

2-18

Vehicle Dynamic Control
(VDC) warning light

2-18

Other

light

Name

Page

Exterior light indicator

2-19

Front fog light indicator light

2-19

Front passenger air bag sta-
tus light

2-19

High beam assist indicator
light

2-19

High beam indicator light

2-19

TOW mode indicator light

2-19

Turn signal/hazard indicator
lights

2-19

WARNING AND INDICATOR LIGHTS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS0133

WARNING

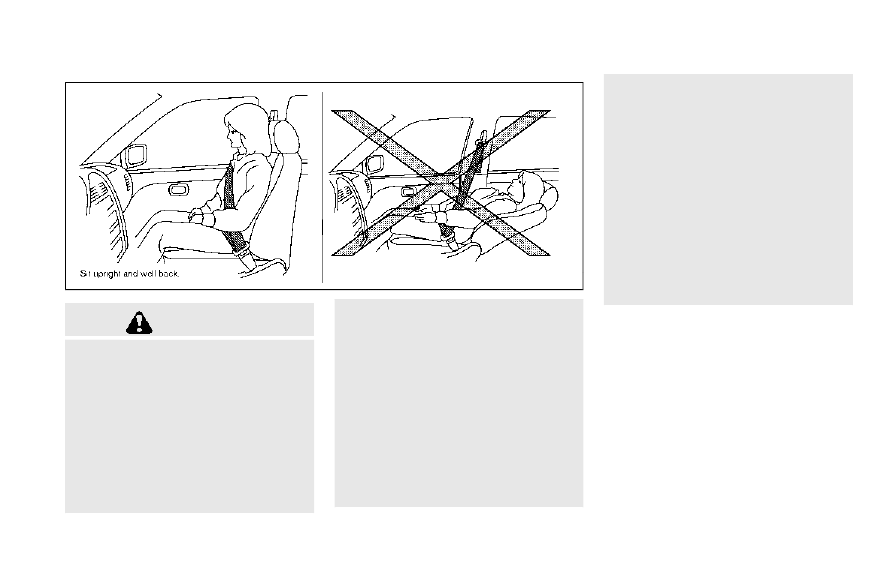

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and
receive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.

For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat with

both feet on the floor and adjust the
seat belt properly. See “Precautions
on seat belt usage” (P.1-18).

After adjustment, gently rock in the
seat to make sure it is securely
locked.

Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious accidents.

To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not

leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly
become high enough to cause a sig-
nificant risk of injury or death to
people and pets.

The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured is
increased.

Safety — seats, seat belts and supplemental restraint system

1-3

SEATS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4

Safety — seats, seat belts and supplemental restraint system

FRONT SEATS

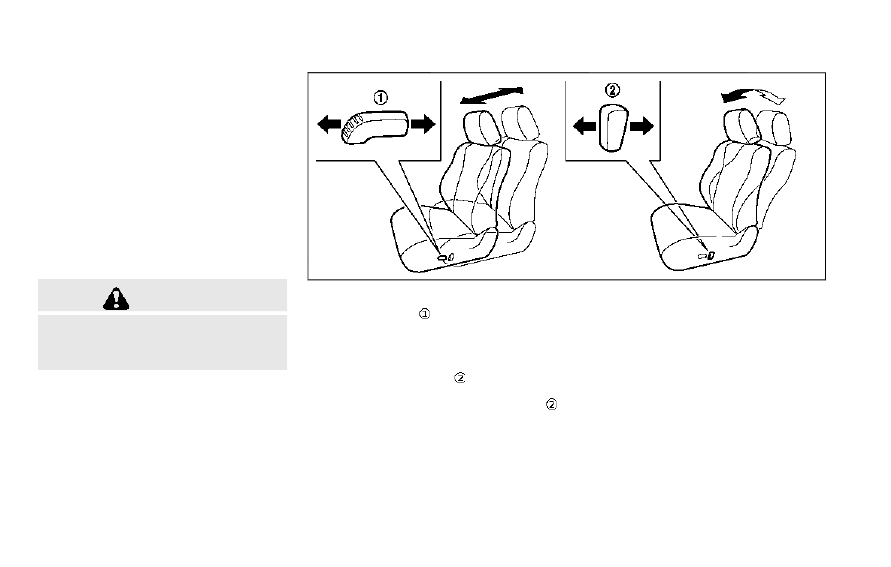

Front power seat adjustment

Operating tips:

The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.

Do not operate the power seat switch for

a long period of time when the engine is
off. This will discharge the battery.

See “Automatic drive positioner” (P.3-40)
for the seat position memory function.

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damages.

SSS1051

Forward and backward:

Moving the switch

forward or backward

will slide the seat forward or backward to
the desired position.

Reclining:

Move the recline switch

backward until

the desired angle is obtained. To bring the
seatback forward again, move the switch
forward.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. (See “Precautions on seat belt
usage” (P.1-18).) Also, the seatback can be
reclined to allow occupants to rest when the

vehicle is stopped and the transmission is in
the P (Park) position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS1052

Seat lifter:

1. Pull up or push down the adjusting

switch to adjust the seat height until
the desired position is achieved.

2. Tilt up or down the adjusting switch to

adjust the front angle of the seat until
the desired position is achieved (for
driver’s seat).

SSS1053

Lumbar support:

The lumbar support feature provides lower
back support to the occupants.
Push the front or back end of the switch to
adjust the seatback lumbar area.

2ND ROW SEATS

WARNING

Never allow anyone to ride in the
cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in ser-
ious injury in an accident or sudden
stop.

When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured in
an accident or sudden stop.

Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than the
seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.

Safety — seats, seat belts and supplemental restraint system

1-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-6

Safety — seats, seat belts and supplemental restraint system

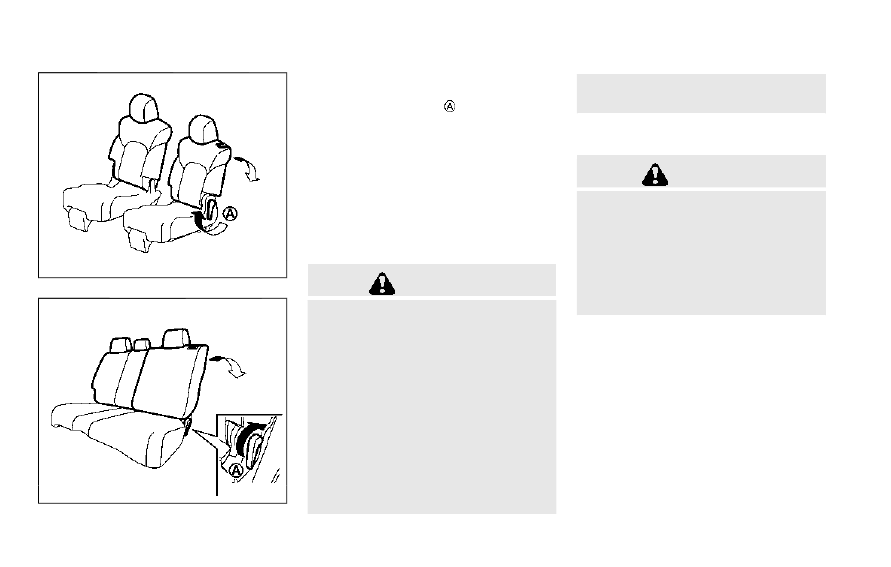

SSS1081

Captain’s seat

SSS1065

Bench seat

Reclining

Pull the reclining lever

and position the

seatback at the desired angle. Release the
reclining lever after positioning the seat at
the desired angle.
To return the seatback, pull the lever.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
to help obtain proper seat belt fit. (See
“Precautions on seat belt usage” (P.1-18).)
The seatback may also be reclined to allow
occupants to rest when the vehicle is parked.

WARNING

For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat with
both feet on the floor and adjust the
seat belt properly. See “Precautions
on seat belt usage” (P.1-18).

After adjustment, check to be sure
the seat is securely locked.

Entry to 3rd row seat

CAUTION

Do not drive with the 2nd row seat
tipped up.

Be careful not to allow the 2nd row
seat to pinch, hit any part of your
body or other people when operating
the 2nd row seat. Make sure the seat
path is clear of all objects before
moving the seat.

The 2nd row seat can be tipped forward for
easy entry to or exit from the 3rd row seat.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti QX80 (2021 year). Manual in english - page 1
