3-28

Pre-driving checks and adjustments

SPA2328

MANUAL OPERATION (if so
equipped)

Tilt or telescopic operation

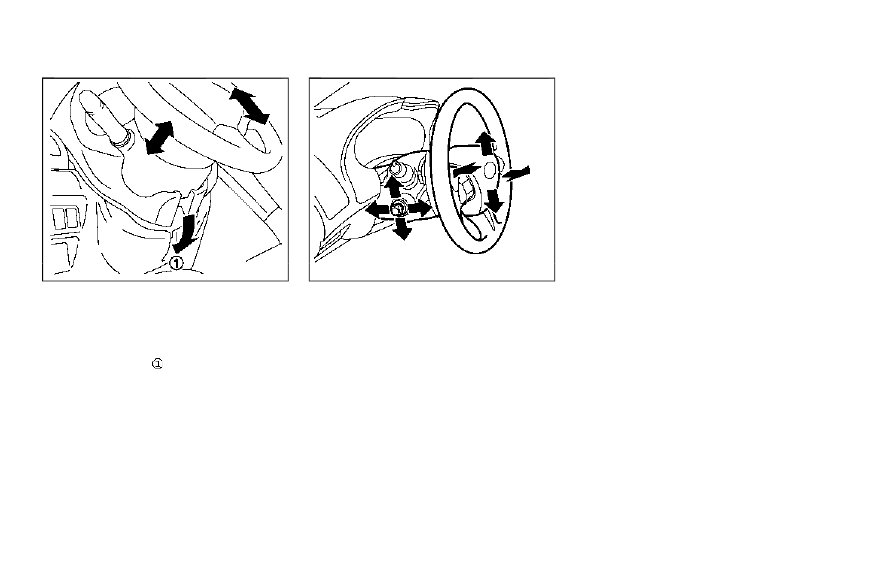

Pull the lock lever

down and adjust the

steering wheel up, down, forward or rear-
ward to the desired position.
Push the lock lever up securely to lock the
steering wheel in place.

JVP0205X

ELECTRIC OPERATION (if so
equipped)

Tilt or telescopic operation

Move the switch to adjust the steering
wheel up or down, forward or rearward to
the desired position.

Entry/Exit function operation:

The memory seat system will make the
steering wheel move up automatically when
the driver’s door is opened with the ignition
switch in the LOCK position. This lets the
driver get into and out of the seat more
easily.

For more information, see “Memory seat”
(P.3-33).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPA2471

1. To block glare from the front, swing

down the sun visor

2. To block glare from the side, remove the

sun visor from the center mount and
swing the visor to the side

3. Slide the sun visor

in or out as needed.

SPA2447

INSIDE MIRROR

Adjust the height and the angle of the inside
mirror to the desired position.

Pre-driving checks and adjustments

3-29

SUN VISORS

MIRRORS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-30

Pre-driving checks and adjustments

SPA2450-A

Automatic anti-glare type

The inside mirror is designed so that it
automatically changes reflection according
to the intensity of the headlights of the
following vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed
to the ON position.
The anti-glare system also operates for the
outside mirrors (if so equipped).
When the anti-glare system is turned on, the
indicator light

will illuminate and excessive

glare from the headlights of the vehicle
behind you will be reduced.
Push the “

” switch

to make the inside

mirror operate normally. The indicator light
will turn off. Push the “I” switch

to turn the

system on.

Do not allow any object to cover the sensors

or apply glass cleaner on them. Doing so

will reduce the sensitivity of the sensor,
resulting in improper operation.

For the HomeLink

Universal Transceiver

operation, see “HomeLink

Universal Trans-

ceiver” (P.2-59).

OUTSIDE MIRRORS

WARNING

Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.

JVP0246X

Adjusting outside mirrors

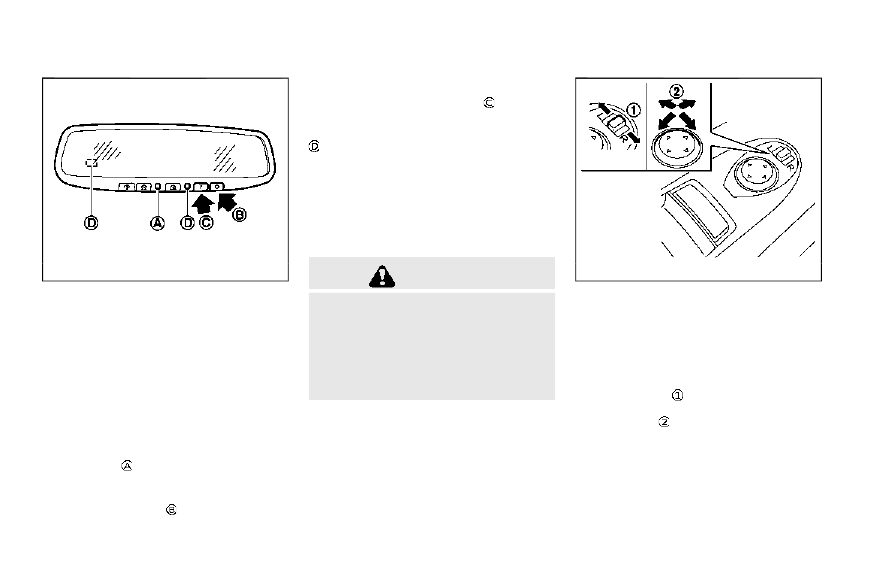

The outside mirror control switch is located
on the driver’s armrest.
The outside mirror will operate only when
the ignition switch is in the ACC or ON
position.
Move the switch

right or left to select the

right or left side mirror, then adjust using the
control switch

Defrosting outside mirrors

The outside mirrors will be heated when the
rear window defroster switch is operated.
If the engine is started using the remote start
function (if so equipped) when the outside

-------------------------------------------------------------------------------------------------------------------------------------------------------------

air temperature, the interior temperature
and the engine coolant temperature are
low, the rear window glass and outside
mirror defroster may turn on automatically.
For additional information about the remote
engine start function, see “Remote engine
start” (P.3-19).

SPA2738

Foldable outside mirrors

Power folding type (if so equipped):

The outside mirror remote control operates
when the ignition switch is in the ACC or ON
position.
The outside mirrors automatically fold when
the outside mirror folding switch is pushed
to the CLOSE position

. To unfold, push to

the OPEN position

If mirrors are manually operated or bumped,
the mirror body can become loose at the
pivot point. To correct electronic mirror
operation, cycle mirrors by pushing CLOSE
until completely closed, then push OPEN
until the mirror is in the OPEN position.

WARNING

Do not drive with the mirrors stored. You
will be unable to see behind the vehicle.

CAUTION

Continuously performing the fold/
unfold operation of the outside mir-
ror may cause the switch to stop the
operation.

Do not touch the mirrors while they
are moving. Your hand may be
pinched, and the mirror may malfunc-
tion.

If the mirrors were folded or unfolded
by hand, there is a chance that the
mirror will move forward or back-
ward during driving. If the mirrors
were folded or unfolded by hand, be
sure to adjust them again electrically
before driving.

Pre-driving checks and adjustments

3-31

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-32

Pre-driving checks and adjustments

SPA1829

Manual folding type (if so equipped):

Fold the outside mirror by pushing it toward
the rear of the vehicle.

Reverse tilt-down feature (if so
equipped)

When backing up the vehicle, the right and
left outside mirrors will turn downward
automatically to provide better rear visibility.
1. Push the ignition switch to the ON

position.

2. Move the shift lever to the R (Reverse)

position.

3. Select the right or left side mirror by

operating the outside mirror control

switch.

4. The outside mirror surface moves down-

ward.

When one of the following conditions has
occurred, the outside mirror surface will
return to its original position.

The shift lever is moved to any position

other than R (Reverse).

The outside mirror control switch is set to

the center position.

The ignition switch is pushed to the OFF

position.

Automatic anti-glare (if so
equipped)

The outside mirrors are designed so that
they automatically change reflection ac-
cording to the intensity of the headlights of
the vehicle following you.
The anti-glare system will be automatically
turned on when the ignition switch is placed
in the ON position.

SIC3869

VANITY MIRROR

To use the front vanity mirror, pull down the
sun visor and pull up the cover.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The memory seat system has two features:

Entry/exit function

Memory storage

ENTRY/EXIT FUNCTION

This system is designed so that the driver’s
seat and steering column will automatically
move when the shift lever is in the P (Park)
position. This allows the driver to get into
and out of the driver’s seat more easily.
The driver’s seat will slide backward and the
steering wheel will move up when the
driver’s door is opened with the ignition
switch in the LOCK position.
The driver’s seat and steering wheel will
return to the previous positions when the
ignition switch is pushed to the ACC posi-
tion.
The driver’s seat will not return to the
previous positions if the seat or steering
adjusting switch is operated when the seat is
at the exit position.

Cancel or activate entry/exit func-
tion

All the following conditions must be met
before cancelling or activating the entry/exit
function.

The ignition switch is placed in the LOCK

position.

The entry/exit function is not in opera-

tion.

The following switches are not operated.

— Seat memory switches
— Power seat switches
— Electric tilting/telescopic steering

wheel switch

The entry/exit function can be activated or
canceled by pushing and holding the SET
switch for more than 10 seconds.
The entry/exit function can also be acti-
vated or canceled if the [Lift Steering Wheel
on Exit] or [Slide Driver Seat Back on Exit]
key is turned to ON or OFF in the [Settings]
menu on the lower display. (See the INFINITI
InTouch

Owner’s Manual. The displayed

keys on the lower display may vary depend-
ing on models, specifications and software
versions.)

Initialize entry/exit function

If the battery cable is disconnected, or if the
fuse opens, the entry/exit function will not
work though this function was set on before.
In such a case, after connecting the battery
or replacing with a new fuse, open and close
the driver’s door more than two times after
the ignition switch is switched from the ON
position to the LOCK position. The entry/
exit function will be activated.

JVP0240X

MEMORY STORAGE

Two positions for the driver’s seat, steering
column and outside mirrors can be stored in
the memory switch. Follow these procedures
to use the memory system.
1. Adjust the driver’s seat, steering column

and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information,
see “Seats” (P.1-2), “Tilt/telescopic
steering” (P.3-27) and “Outside mirrors”
(P.3-30).

2. Push the SET switch and, within 5

seconds, push the memory switch (1 or
2) fully for at least 1 second.

Pre-driving checks and adjustments

3-33

MEMORY SEAT (if so equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-34

Pre-driving checks and adjustments

The indicator light for the pushed mem-
ory switch will stay on for approximately
5 seconds after pushing the switch.
When the memory is stored in the
memory switch (1 or 2), a buzzer will
sound.
If memory is stored in the same memory
switch, the previous memory will be
deleted.

Confirming memory storage

Push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 seconds.
When the memory has stored in position,
the indicator light will stay on for approxi-
mately 5 seconds.

Selecting the memorized position

1. Move the shift lever to the P (Park)

position.

2. Push the memory switch (1 or 2) fully for

at least 1 second.
The driver’s seat, steering column and
outside mirrors will move to the memor-
ized position with the indicator light
flashing, and then the light will stay on
for approximately 5 seconds.

Linking log-in function to a stored
memory position

The log-in function can be linked to a stored
memory position with the following proce-
dure.
1. Place the ignition switch in the ON

position while carrying an Intelligent
Key that was registered to the vehicle
with the log-in function. For more de-
tails, see “Log-in function” (P.3-15).

2. Adjust the position of the driver’s seat,

steering column and outside mirrors
manually. See “Seats” (P.1-2), “Tilt/tele-
scopic steering” (P.3-27) and “Outside
mirrors” (P.3-30).

3. Place the ignition switch in the OFF

position.

The next time you log in (selecting the user
on the display) after placing the ignition
switch in the ON position while carrying the
Intelligent Key, the system will automatically
adjust to the memorized driving position.

SYSTEM OPERATION

The memory seat system will not work or
will stop operating under the following
conditions:

When the vehicle speed is above 0 MPH

(0 km/h) or 4 MPH (7 km/h) for some
limited functions such linking an Intelli-

gent Key to the vehicle when the power
source is turned on from off or during the
Exit function.

When any of the memory switches are

pushed while the memory seat is operat-
ing.

When the adjusting switch for the dri-

ver’s seat and steering column is turned
on while the memory seat is operating.

When the seat has already been moved

to the memorized position.

When no seat position is stored in the

memory switch.

When the shift lever is moved from the P

(Park) position to any other position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-2

Monitor, climate, audio, phone and voice recognition systems

Refer to the INFINITI InTouch

Owner’s

Manual that includes the following informa-
tion.

Navigation system (if so equipped)

Audio system

Bluetooth

Hands-Free Phone system

INFINITI InTouch

Services (if so

equipped)

SiriusXM Traffic

(if so equipped)

SiriusXM

Travel Link (if so equipped)

SiriusXM

Radio

Viewing information

Other settings

Voice recognition (if so equipped)

Meter settings

General system information

Android Auto

Apple CarPlay

WARNING

Do not adjust the display controls,
heater and air conditioner controls or
audio controls while driving so that
full attention may be given to vehicle
operation.

If you noticed any foreign objects
entering the system hardware, spilled
liquid on the system, or noticed
smoke or fumes coming out from the
system, or any other unusual opera-
tion is observed, stop using the
system immediately and contact the
nearest INFINITI retailer. Ignoring
such conditions may lead to an acci-
dent, fire or electric shock.

Do not disassemble or modify this
system. If you do, it may lead to an
accident, fire, or electric shock.

Park the vehicle in a safe location and
apply the parking brake to view
images on the touch screen display.

CAUTION

Do not use the system when the
engine is not running for extended

periods of time to prevent battery
discharge.

The glass screen on the liquid crystal
display may break if it is hit with a
hard or sharp object. If the glass
screen breaks, do not touch it. Doing
so could result in an injury.

Extreme temperature conditions [be-
low −4°F (−20°C) and above 158°F
(70°C)] could affect the performance
of the system.

INFINITI INTOUCH

OWNER’S MANUAL

SAFETY PRECAUTIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAE0191X

1. Upper touch-screen display (upper dis-

play)

2. Lower touch-screen display (lower dis-

play)

3. MENU button

WARNING

Failure to follow the warnings and
instructions for proper use of the Rear-
View Monitor system could result in
serious injury or death.

The RearView Monitor is a conveni-
ence but it is not a substitute for
proper backing. Always turn and look
out the windows, and check mirrors
to be sure that it is safe to move
before operating the vehicle. Always
back up slowly.

The system is designed as an aid to
the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.

The distance guide line and the
vehicle width line should be used as
a reference only when the vehicle is
on a level paved surface. The distance
viewed on the monitor is for refer-
ence only and may be different than
the actual distance between the
vehicle and displayed objects.

Monitor, climate, audio, phone and voice recognition systems

4-3

REARVIEW MONITOR (if so equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-4

Monitor, climate, audio, phone and voice recognition systems

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automatically
shows a rear view of the vehicle in the upper
display when the shift lever is shifted into
the R (Reverse) position. When activating
the RearView Monitor, the guide lines, the
icons and the messages may not be dis-
played immediately.
The radio can still be heard while the Rear-
View Monitor is active.

WAE0234X

To display the rear view, the RearView
Monitor system uses a camera

located

just above the vehicle’s license plate.

REARVIEW MONITOR SYSTEM
OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse)
position to operate the RearView Monitor.

WAE0241X

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the bumper line

are displayed on

the monitor.

Distance guide lines:

Indicate distances from the bumper.

Red line

: approx. 1.5 ft (0.5 m)

Yellow line

: approx. 3 ft (1 m)

Green line

: approx. 7 ft (2 m)

Vehicle width guide lines

Indicate the approximate vehicle width.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Predictive course lines

Indicate the predictive course when backing
up. The predictive course lines will be
displayed on the monitor when the shift
lever is in the R (Reverse) position and the
steering wheel is turned. The predictive
course lines will move depending on how
much the steering wheel is turned and will
not be displayed while the steering wheel is
in the neutral position.
The vehicle width guide lines and the width
of the predictive course lines are wider than
the actual width and course.

DIFFERENCE BETWEEN PRE-
DICTIVE AND ACTUAL DIS-
TANCES

The displayed guidelines and their locations
on the ground are for approximate reference
only. Objects on uphill or downhill surfaces
or projecting objects will be actually located
at distances different from those displayed
in the monitor relative to the guide lines
(refer to illustrations). When in doubt, turn
around and view the objects as you are
backing up, or park and exit the vehicle to
view the positioning of objects behind the
vehicle.

WAE0525X

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
farther than it appears on the monitor.

WAE0526X

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.

Monitor, climate, audio, phone and voice recognition systems

4-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-6

Monitor, climate, audio, phone and voice recognition systems

WAE0527X

Backing up near a projecting object

The predictive course lines

do not touch

the object in the display. However, the
vehicle may hit the object if it projects over
the actual backing up course.

SAA2244

Backing up behind a projecting
object

The position

is shown farther than the

position

in the display. However, the

position

is actually at the same distance

as the position

. The vehicle may hit the

object when backing up to the position

the object projects over the actual backing
up course.

HOW TO PARK WITH PREDIC-
TIVE COURSE LINES

WARNING

If the tires are replaced with different
sized tires, the predictive course lines
may not be displayed correctly.

On a snow-covered or slippery road,
there may be a difference between
the predictive course lines and the
actual course line.

The displayed lines will appear
slightly off to the right because the
rearview camera is not installed in the
rear center of the vehicle.

If the battery is disconnected or
becomes discharged, the predictive
course lines may be displayed incor-
rectly. If this occurs, please perform
the following procedures:

— Turn the steering wheel from lock

to lock while the engine is running.

— Drive the vehicle on a straight

road for more than 5 minutes.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAE0528X

1. Visually check that the parking space is

safe before parking your vehicle.

2. The rear view of the vehicle is displayed

on the screen

when the shift lever is

moved to the R (Reverse) position.

WAE0529X

3. Slowly back up the vehicle adjusting the

steering wheel so that the predictive
course lines

enter the parking space

4. Maneuver the steering wheel to make

the vehicle width guide lines

parallel to

the parking space

while referring to

the predictive course lines.

5. When the vehicle is parked in the space

completely, move the shift lever to the P
(Park) position and apply the parking
brake.

REARVIEW MONITOR SETTINGS

The RearView Monitor settings can be
changed using the following procedures.
1. Push the MENU button.
2. Touch [Settings] on the lower display.
3. Touch [Camera].
The displayed keys on the lower display may
vary depending on models, specifications
and software versions.

Monitor, climate, audio, phone and voice recognition systems

4-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-8

Monitor, climate, audio, phone and voice recognition systems

Available setting items:

Setting Items

Action

Predictive Course Lines

When this item is turned on, the predictive course lines
are displayed on the rear view monitor screen. (See
“How to park with predictive course lines” (P.4-6).)

Display Settings
(Available only when cam-
era screen is displayed on
the upper display.)

Brightness

Adjust display settings by touching the “+”/“-” key.

Contrast

Tint

Color

Black Level

NOTE:

Do not adjust any of the RearView Monitor settings while the vehicle is moving. Make sure the parking brake is firmly applied.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to oper-
ate the vehicle in accordance with these
system limitations could result in serious
injury or death.

The system cannot completely elim-
inate blind spots and may not show
every object.

Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range lim-
itation. The system will not show
small objects below the bumper, and
may not show objects close to the
bumper or on the ground.

Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.

Objects in the RearView Monitor will
appear visually opposite compared to
when viewed in the rearview and
outside mirrors.

Use the displayed lines as a reference.
The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.

Make sure that the trunk lid is
securely closed when backing up.

Do not put anything on the rearview
camera. The rearview camera is in-
stalled above the license plate.

When washing the vehicle with high-
pressure water, be sure not to spray
it around the camera. Otherwise,
water may enter the camera unit
causing water condensation on the
lens, a malfunction, fire or an electric
shock.

Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric shock.

The following are operating limitations and
do not represent a system malfunction:

When the temperature is extremely high

or low, the screen may not clearly display
objects.

When strong light is directly coming on

the camera, objects may not be displayed
clearly.

Vertical lines may be seen in objects on

the screen. This is due to strong reflected
light from the bumper.

The screen may flicker under fluorescent

light.

The colors of objects on the RearView

Monitor may differ somewhat from the
actual color of objects.

Objects on the monitor may not be clear

in a dark environment.

There may be a delay when switching to

the RearView Monitor.

If dirt, rain or snow accumulates on the

camera, the RearView Monitor may not
display object clearly. Clean the camera.

Do not use wax on the camera lens. Wipe

off any wax with a clean cloth dampened
with a diluted mild cleaning agent, then
wipe with a dry cloth.

Monitor, climate, audio, phone and voice recognition systems

4-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Q50 (2021 year). Manual in english - page 11
