To open the sunshade:

∙ To fully open the sunshade, slide the

switch

䊊

toward the OPEN position to

the first detent.

∙ To fully open the sunshade and the

moonroof together, slide the switch

䊊

toward the OPEN position to the second
detent.

To close the sunshade:

∙ To fully close the sunshade, slide the

switch

䊊

toward the CLOSE position to

the second detent. If the moonroof is
open, both the moonroof and the sun-
shade will close automatically.

∙ If the switch is slid

䊊

toward the CLOSE

position to the first detent while the
moonroof is open, only the moonroof will
close. The sunshade will remain open.

To stop the sunshade during operation, push
the switch

䊊

, or

䊊

at the desired posi-

tion.

WARNING

∙ To avoid personal injury, keep your

hands, fingers and head away from the
sunshade arm, the arm rail and sunshade
inlet port.

∙ Do not allow children near the sunshade

system. They could be injured.

∙ Do not place objects on or near the sun-

shade. This could cause improper opera-
tion or damage it.

∙ Do not pull or push the sunshade. This

could cause improper operation or dam-
age it.

CAUTION

∙ Do not place objects (such as newspa-

pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may entangle
these objects in the sunshade when it is
extending or retracting, causing im-
proper operation or damage to the
sunshade.

∙ Do not push the sunshade arm with your

hands, etc., as this may deform it. Im-
proper operation or damage to the sun-
shade may result.

∙ Do not put any object into the sunshade

inlet port as this may result in improper
operation or damage the sunshade.

∙ Do not hang any object on the arm rail as

this may result in improper operation or
damage the sunshade.

∙ Do not forcefully pull the sunshade. Do-

ing so may elongate the sunshade. Im-
proper operation or damage to the sun-
shade may result.

2-70

Instruments and controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The interior lights will automatically turn on
and stay on for a period of time when:

∙ The doors are unlocked by the Intelligent

Key, a key or the request switch while all
doors are closed and the ignition switch is
in the OFF position.

∙ The doors and/or liftgate is opened.

∙ The switch is individually pushed.

When the ON switch

䊊

is pushed, the inte-

rior lights illuminate.

When the DOOR/OFF switch

䊊

is pushed,

the interior lights do not illuminate unless
individually pushed.

NOTE:

The footwell lights and step lights illuminate
when the driver and passenger doors are
open regardless of the interior light switch
position. These lights will turn off automati-
cally after a period of time while doors are
open to prevent the battery from becoming
discharged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery.

MAP LIGHTS

To turn the map lights on, push the switches.
To turn them off, push the switches again.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery.

LIC3841

LIC3842

INTERIOR LIGHTS

Instruments and controls

2-71

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERSONAL LIGHTS

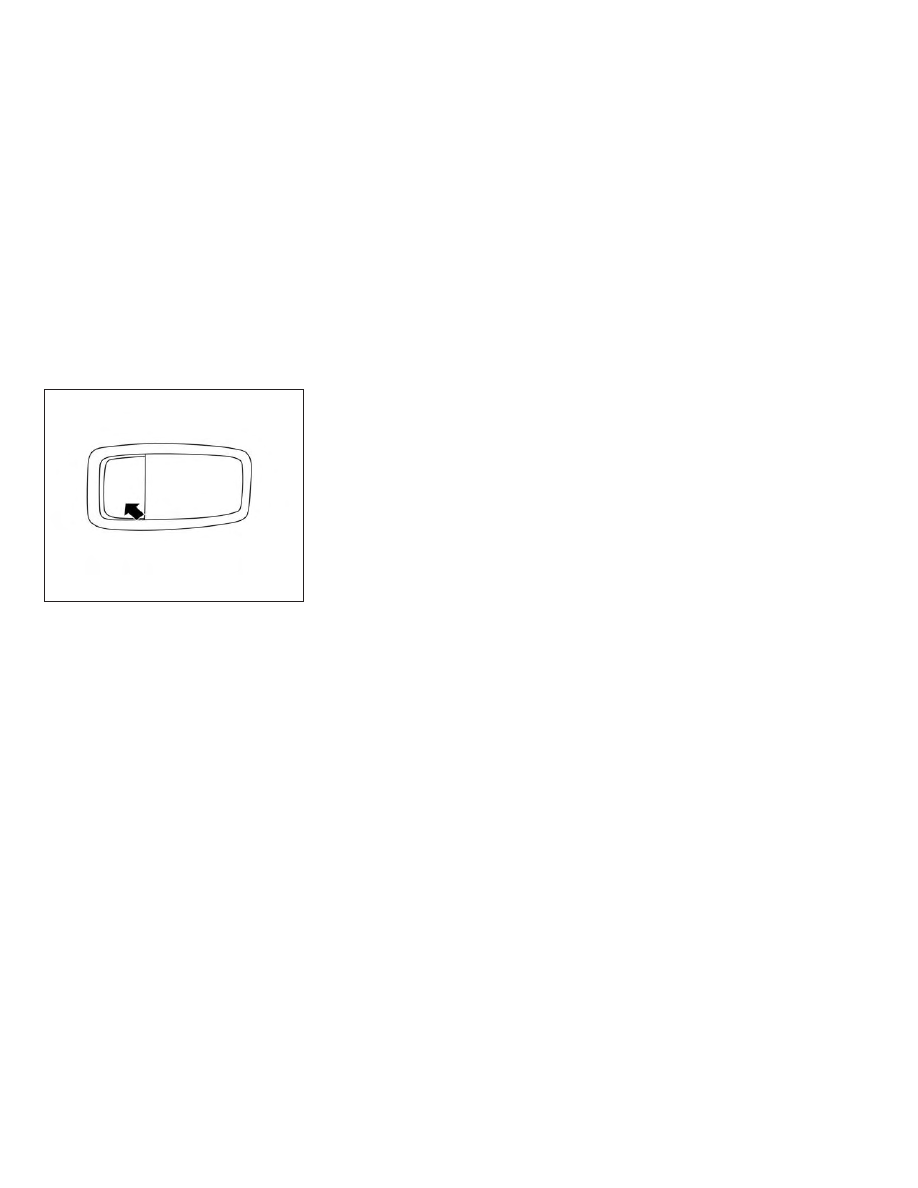

To turn the rear personal lights on, push the
switch. To turn them off, push the switch
again.

CARGO LIGHT

The light illuminates when the liftgate is
opened. When the liftgate is closed, the light
goes off.

The light will go off after a period of time if
the liftgate is left open, unless the ignition
switch is placed in the ON position.

For additional information, refer to “Exterior
and interior lights” in the “Do-it-yourself” sec-
tion of this manual.

The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-held
transmitters into one built-in device.

HomeLink® Universal Transceiver:

∙ Will operate most radio frequency de-

vices such as garage doors, gates, home
and office lighting, entry door locks and
security systems.

∙ Is powered by your vehicle’s battery. No

separate batteries are required. If the ve-
hicle’s battery is discharged or is discon-
nected, HomeLink® will retain all pro-
gramming.

When the HomeLink® Universal Transceiver
is programmed, retain the original transmit-
ter for future programming procedures (Ex-
ample: new vehicle purchases). Upon sale of
the vehicle, the programmed HomeLink®
Universal Transceiver buttons should be
erased for security purposes. For additional
information,

refer

“Programming

HomeLink®” in this section.

Rear personal lights

LIC3907

HOMELINK® UNIVERSAL
TRANSCEIVER (if so equipped)

2-72

Instruments and controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

∙ Do not use the HomeLink® Universal

Transceiver with any garage door opener
that lacks safety stop and reverse fea-
tures as required by federal safety stan-
dards. (These standards became effec-
tive for opener models manufactured
after April 1, 1982). A garage door
opener which cannot detect an object in
the path of a closing garage door and
then automatically stop and reverse,
does not meet current federal safety
standards. Using a garage door opener
without these features increases the risk
of serious injury or death.

∙ During the programming procedure your

garage door or security gate will open
and close (if the transmitter is within
range). Make sure that people or objects
are clear of the garage door, gate, etc.
that you are programming.

∙ Your vehicle’s engine should be turned off

while programming the HomeLink® Uni-
versal Transceiver. Do not breathe ex-
haust gases; they contain colorless and
odorless carbon monoxide. Carbon mon-
oxide is dangerous. It can cause uncon-
sciousness or death.

PROGRAMMING HOMELINK®

If you have any questions or are having diffi-
culty programming your HomeLink® but-
tons, refer to the HomeLink® web site at:
www.homelink.com

call

1-800-355-

3515.

NOTE:

Place the ignition switch in the ACC position
when programming HomeLink®. It is also
recommended that a new battery be placed
in the hand-held transmitter of the device
being

programmed

HomeLink®

for

quicker programming and accurate trans-
mission of the radio frequency.

1. Position the end of your hand-held

transmitter 1–3 in (2–8 cm) away from
the HomeLink® surface, keeping the
HomeLink® indicator light

䊊

in view.

LIC2365

Instruments and controls

2-73

-------------------------------------------------------------------------------------------------------------------------------------------------------------

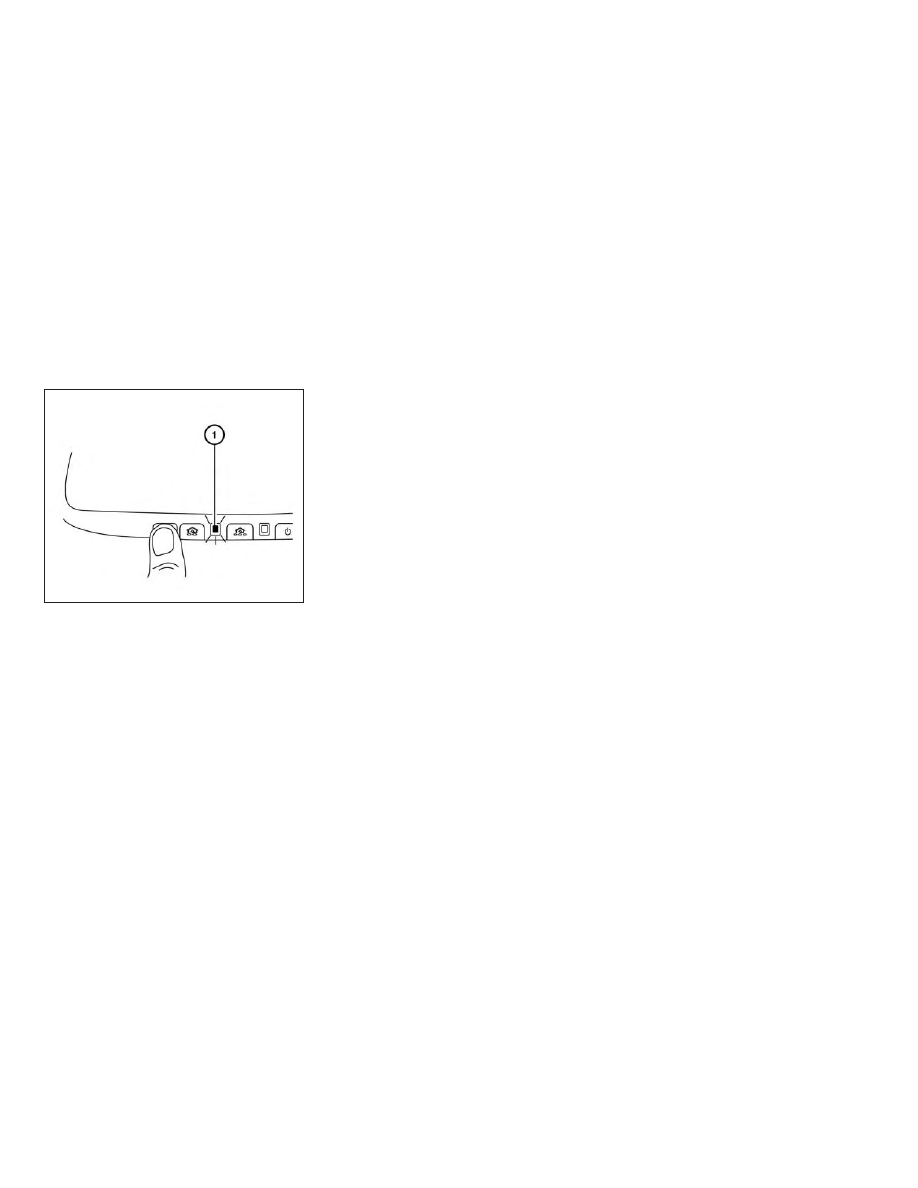

2. Using both hands, simultaneously press

and hold the desired HomeLink® button
and hand-held transmitter button. DO
NOT release until the HomeLink® indi-
cator light

䊊

flashes slowly and then

rapidly. When the indicator light flashes
rapidly, both buttons may be released.
(The rapid flashing indicates successful
programming.)

NOTE:

Some devices may require you to replace
Step 2 with the cycling procedure noted in
“Programming HomeLink® for Canadian
customers and gate openers” in this section.

3. Press

and

hold

the

programmed

HomeLink® button and observe the in-
dicator light.

∙ If

the

indicator

light

䊊

solid/continuous,

programming

complete and your device should acti-
vate when the HomeLink® button is
pressed and released.

∙ If the indicator light

䊊

blinks rapidly

for 2 seconds and then turns to a
solid/continuous light, continue with
Steps 4-6 for a rolling code device. A
second person may make the follow-
ing steps easier. Use a ladder or other
device. Do not stand on your vehicle to
perform the next steps.

4. At the receiver located on the garage

door opener motor in the garage, locate
the “learn” or “smart” button (the name
and color of the button may vary by
manufacturer but it is usually located
near where the hanging antenna wire is
attached to the unit). If there is difficulty

locating the button, reference the ga-
rage door opener’s manual.

5. Press and release the “learn” or “smart”

button.

6. Return to the vehicle and firmly press

and hold the trained HomeLink® button
for 2 seconds and release. Repeat the
“press/hold/release” sequence up to
three times to complete the training pro-
cess. HomeLink® should now activate
your rolling code equipped device.

7. If you have any questions or are having

difficulty programming your HomeLink®
buttons, refer to the HomeLink® web
site

at:

www.homelink.com

call

1-800-355-3515.

PROGRAMMING HOMELINK®
FOR CANADIAN CUSTOMERS
AND GATE OPENERS

Canadian radio-frequency laws require trans-
mitter signals to “time-out” (or quit) after sev-
eral seconds of transmission – which may not
be long enough for HomeLink® to pick up the
signal during training. Similar to this Canadian
law, some U.S. gate operators are designed to
“timeout” in the same manner.

LIC2366

2-74

Instruments and controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you live in Canada or you are having diffi-
culties training a gate operator or garage
door opener by using the “Training” proce-
dures, replace “Programming HomeLink®”
Step 2 with the following:

NOTE:

When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.

1. For additional information, refer to “Pro-

gramming HomeLink®” step 1 in this
section.

2. Using both hands, simultaneously press

and hold the desired HomeLink® button
and the hand-held transmitter button.
During training, your hand-held trans-
mitter may automatically stop transmit-
ting. Continue to press and hold the de-
sired HomeLink® button while you press
and re-press (“cycle”) your hand-held
transmitter every 2 seconds until the fre-
quency signal has been learned. The
HomeLink® indicator light will flash
slowly and then rapidly after several sec-
onds upon successful training. DO NOT
release until the HomeLink® indicator
light flashes slowly and then rapidly.
When the indicator light flashes rapidly,

both buttons may be released. The rapid
flashing indicates successful training.
Proceed

with

“Programming

HomeLink®” step 3 to complete.
If the device was unplugged during the
programming procedure, remember to
plug it back in when programming is
completed.

OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER

The HomeLink® Universal Transceiver, after
it is programmed, can be used to activate the
programmed device. To operate, simply press
and release the appropriate programmed
HomeLink® Universal Transceiver button.
The amber indicator light will illuminate while
the signal is being transmitted.

For convenience, the hand-held transmitter
of the device may also be used at any time.

PROGRAMMING TROUBLE-
DIAGNOSIS

If the HomeLink® does not quickly learn the
hand-held transmitter information:

∙ replace the hand-held transmitter batter-

ies with new batteries.

∙ position the hand-held transmitter with

its battery area facing away from the
HomeLink® surface.

∙ press and hold both the HomeLink® and

hand-held transmitter buttons without
interruption.

∙ position the hand-held transmitter 1 - 3 in

(2 - 8 cm) away from the HomeLink®
surface. Hold the transmitter in that po-
sition for up to 15 seconds. If HomeLink®
is not programmed within that time, try
holding the transmitter in another posi-
tion – keeping the indicator light in view
at all times.

If you continue to have programming difficul-
ties, please contact the INFINITI Consumer
Affairs Department. The phone numbers are
located in the Foreword of this manual.

CLEARING THE PROGRAMMED
INFORMATION

The following procedure clears the pro-
grammed information from both buttons. In-
dividual buttons cannot be cleared. However,
individual buttons can be reprogrammed. For
additional information, refer to “Reprogram-
ming a single HomeLink® button” in this sec-
tion.

Instruments and controls

2-75

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To clear all programming:

1. Press

and

hold

the

two

outer

HomeLink® buttons until the indicator
light begins to flash in approximately
10 seconds. Do not hold for longer than
20 seconds.

2. Release both buttons.

HomeLink® is now in the programming mode
and can be programmed at any time begin-
ning with “Programming HomeLink®” -
Step 1.

REPROGRAMMING A SINGLE
HOMELINK® BUTTON

To reprogram a HomeLink® Universal Trans-
ceiver button, complete the following:

1. Press and hold the desired HomeLink®

button. DO NOT release the button.

2. The indicator light will begin to flash af-

ter 20 seconds. Without releasing the
HomeLink® button, proceed with “Pro-
gramming HomeLink®” - Step 1.

For

questions

comments,

contact

HomeLink®

at:

www.homelink.com

1–800–355–3515 (except Mexico).

The HomeLink® Universal Transceiver but-
ton has now been reprogrammed. The new
device can be activated by pressing the
HomeLink® button that was just pro-
grammed. This procedure will not affect any
other programmed HomeLink® buttons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change
the codes of any non-rolling code device that
has been programmed into HomeLink®.
Consult the Owner’s Manual of each device
or call the manufacturer or dealer of those
devices for additional information.

When your vehicle is recovered, you will
need to reprogram the HomeLink® Univer-
sal Transceiver with your new transmitter
information.

FCC Notice:

For USA:

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.

NOTE:

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.

For Canada:

This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.

2-76

Instruments and controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Intelligent Keys (two sets)

Mechanical key

Key number plate (one plate)

INFINITI INTELLIGENT KEY

Your vehicle can only be driven with the Intel-
ligent Keys which are registered to your vehi-
cle’s Intelligent Key System components and
INFINITI Vehicle Immobilizer System compo-
nents.

Never leave the keys in the vehicle.

As many as four Intelligent Keys can be reg-
istered and used with one vehicle. The new
keys must be registered prior to use with the
Intelligent Key System and INFINITI Vehicle
Immobilizer System of your vehicle. It is rec-
ommended that you visit an INFINITI retailer
for this service. Since the registration process
requires erasing all memory in the Intelligent
Key components when registering new keys,
be sure to take all Intelligent Keys that you
have to an INFINITI retailer.

A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle.

If you lose your keys, it is recommended that
you visit an INFINITI retailer for duplicates by
using the key number. INFINITI does not re-
cord key numbers so it is very important to
keep track of your key number plate.

A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can be
duplicated without knowing the key number.

CAUTION

∙ Be sure to carry the Intelligent Key with

you when driving. The Intelligent Key is a
precision device with a built-in transmit-
ter. To avoid damaging it, please note the
following:

– The Intelligent Key is water resistant;

however, wetting may damage the In-
telligent Key. If the Intelligent Key
gets wet, immediately wipe until it is
completely dry.

– Do not bend, drop or strike it against

another object.

– If the outside temperature is below

14°F (-10°C), the battery of the Intel-
ligent Key may not function properly.

Type A (if so equipped)

WPD0427

Type B (if so equipped)

LPD2052

KEYS

3-2

Pre-driving checks and adjustments

-------------------------------------------------------------------------------------------------------------------------------------------------------------

– Do not place the Intelligent Key for an

extended period in a place where tem-
peratures exceed 140°F (60°C).

– Do not change or modify the Intelli-

gent Key.

– Do not use a magnet key holder.

– Do not place the Intelligent Key near

an electric appliance such as a televi-
sion set or a personal computer.

– Do not allow the Intelligent Key to

come into contact with water or salt
water, and do not wash it in a washing
machine. This could affect the system
function.

If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key from the vehicle. This may pre-
vent the unauthorized use of the Intelligent
Key to operate the vehicle. For information
regarding the erasing procedure, it is recom-
mended that you visit an INFINITI retailer.

Mechanical key

The Intelligent Key contains the mechanical
key.

To remove the mechanical key, release the
lock knob on the back of the Intelligent Key.

To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.

Use the mechanical key to lock or unlock the
driver’s door and glove box if they are
equipped with a key cylinder.

CAUTION

Always carry the mechanical key installed
in the Intelligent Key slot.

For additional information, refer to “Doors” in
this section and “Storage” in the “Instruments
and controls” section of this manual.

Valet hand-off

When you have to leave a key with a valet,
give them the Intelligent Key itself and keep
the mechanical key with you to protect your
belongings.

To prevent the glove box from being opened
during valet hand-off, follow the procedure
below.

1. Remove the mechanical key from the In-

telligent Key.

2. Lock the glove box with the mechanical

key.

3. Hand the Intelligent Key to the valet and

keep the mechanical key with you.

For additional information, refer to “Storage”
in the “Instruments and controls” section of
this manual.

SPA1951

Pre-driving checks and adjustments

3-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INFINITI VEHICLE IMMOBILIZER
SYSTEM KEYS

You can only drive your vehicle using the
Intelligent Keys which are registered to the
INFINITI Vehicle Immobilizer System compo-
nents in your vehicle.

The mechanical key can be used for all the
locks.

Never leave the keys in the vehicle.

Additional or replacement keys:

If you still have a key, the key number is not
necessary when you need extra INFINITI Ve-
hicle Immobilizer System keys. Your existing
key can be duplicated without knowing the
key number. As many as four INFINITI Ve-
hicle Immobilizer System keys can be used
with one vehicle. You should bring all
INFINITI Vehicle Immobilizer System keys
that you have to the INFINITI retailer for
registration. This is because the registration
process will erase the memory of all key
codes previously registered into the INFINITI
Vehicle Immobilizer System. After the regis-
tration process, these components will only
recognize keys coded into the INFINITI Ve-
hicle Immobilizer System during registration.

Any key that is not given to the retailer at the
time of registration will no longer be able to
start your vehicle.

CAUTION

Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt wa-
ter. This could affect system function.

When the doors are locked using one of the
following methods, the doors cannot be
opened using the outside door handles. The
doors must be unlocked to open the doors.

WARNING

∙ Always have the doors locked while driv-

ing. Along with the use of seat belts, this
provides greater safety in the event of an
accident by helping to prevent persons
from being thrown from the vehicle. This
also helps keep children and others from
unintentionally opening the doors, and
will help keep out intruders.

∙ Before opening any door, always look for

and avoid oncoming traffic.

∙ To help avoid risk of injury or death

through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows and/or inadver-
tent door lock activation, do not leave
children, people who require the assis-
tance of others and/or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of in-
jury or death to people and/or pets.

DOORS

3-4

Pre-driving checks and adjustments

-------------------------------------------------------------------------------------------------------------------------------------------------------------

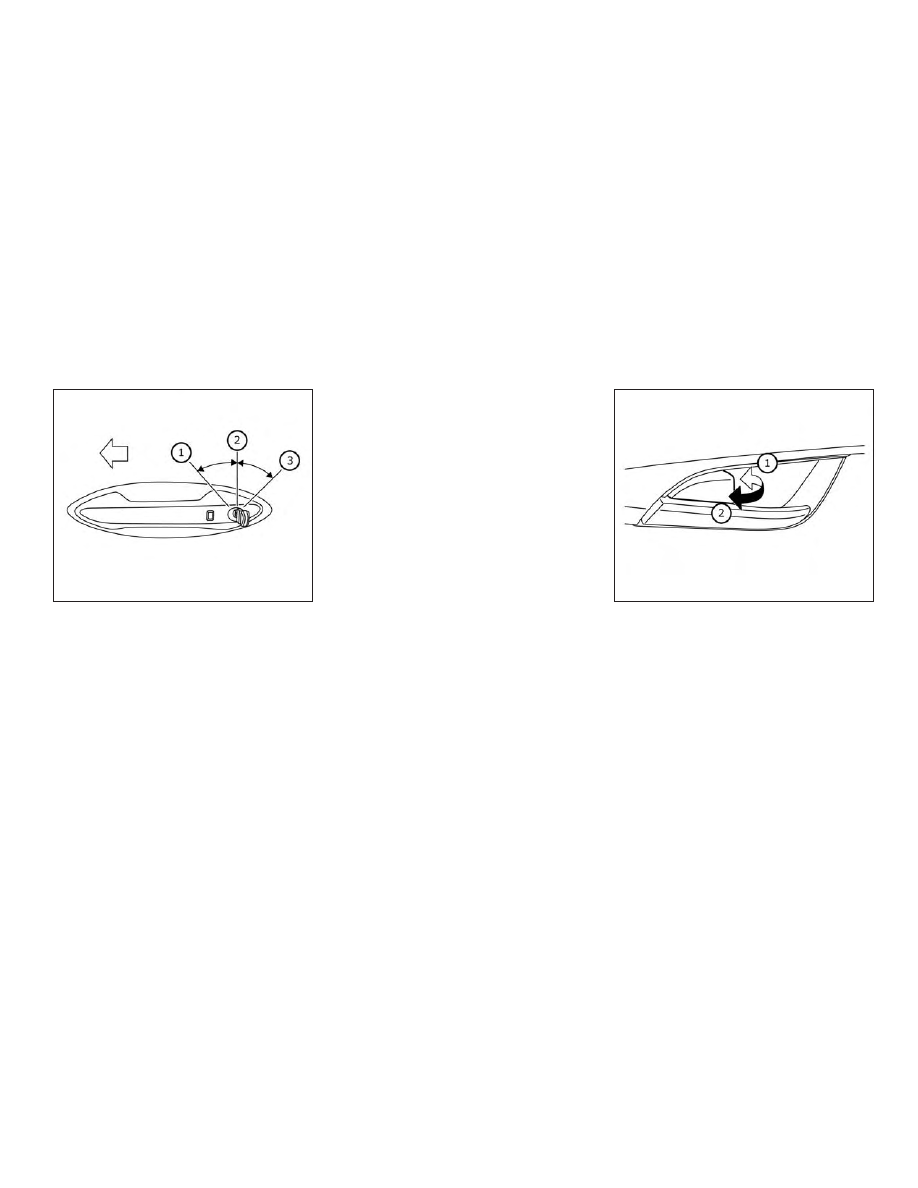

LOCKING WITH KEY

To lock or unlock the vehicle, turn the key as
shown.

Manual

To lock the doors and liftgate, turn the key
toward the front of the vehicle

䊊

To unlock the driver’s door, turn the key to-
ward the rear of the vehicle

䊊

, then return it

to the neutral position

䊊

To unlock all doors and the liftgate, turn the
key toward the rear of the vehicle again

䊊

within 60 seconds of unlocking the driver’s
door.

LOCKING WITH INSIDE LOCK
KNOB TYPE A (if so equipped)

To lock the door without the key, move the
inside lock to the lock position

䊊

, then close

the door.

To unlock the door without the key, move the
inside lock knob to the unlock position

䊊

Front doors

LPD2750

Inside lock

LPD2714

Pre-driving checks and adjustments

3-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

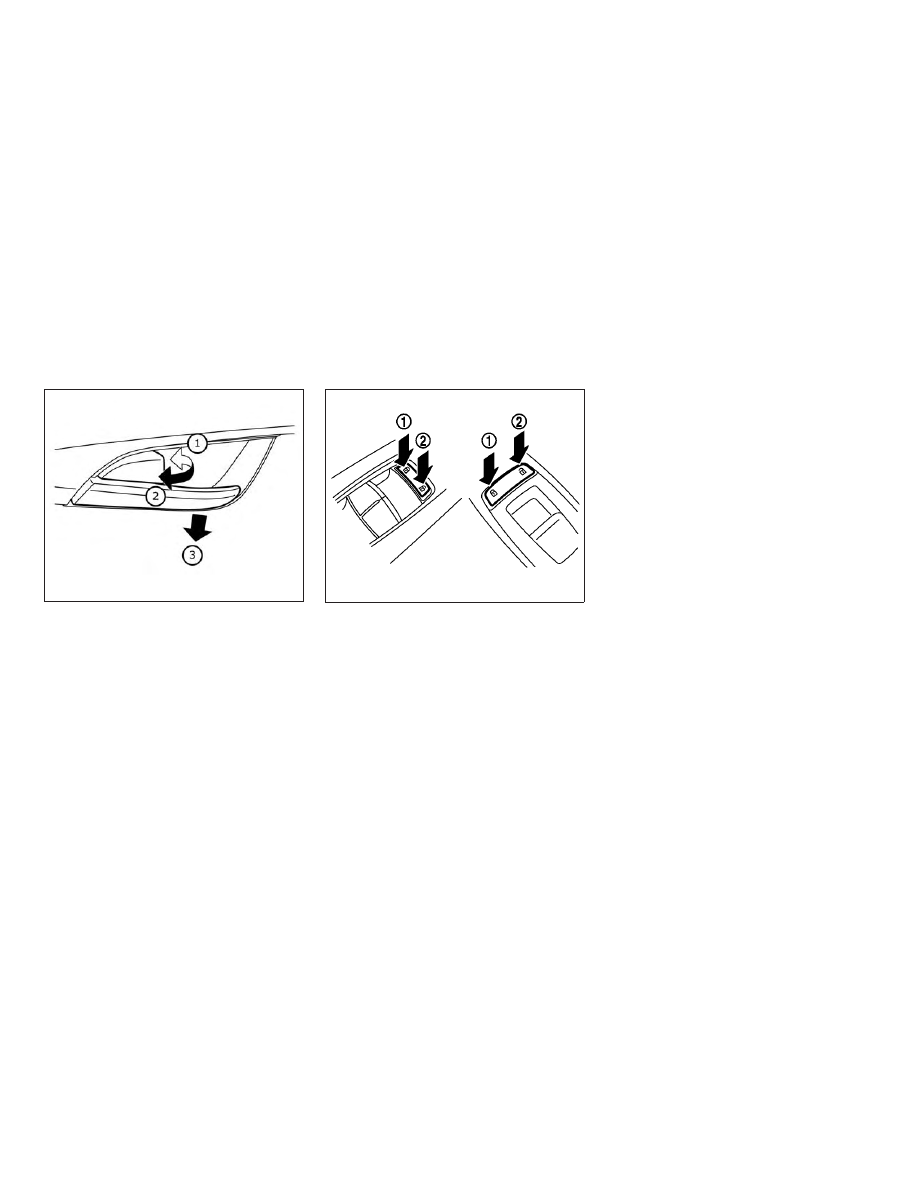

LOCKING WITH INSIDE LOCK
KNOB TYPE B (if so equipped)

To lock the door without the key, move the
inside lock knob to the lock position

䊊

, then

close the door.

To unlock the door without the key, move the
inside lock knob to the unlock position

䊊

For front doors, the door can also be un-
locked by pulling on the inside handle lever
one time

䊊

LOCKING WITH POWER DOOR
LOCK SWITCH

To lock all the doors without a key, push the
door lock switch (driver’s or front passenger’s
side) to the lock position

䊊

. When locking the

door this way, be certain not to leave the key
inside the vehicle.

To unlock all the doors without a key, push
the door lock switch (driver’s or front passen-
ger’s side) to the unlock position

䊊

Lockout protection

If the Intelligent Key is left in the vehicle while
any door is open, all doors will unlock auto-
matically and a warning chime will sound af-
ter the door is closed.

This function helps to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.

AUTOMATIC DOOR LOCKS

∙ All doors lock automatically when the ve-

hicle speed reaches 15 mph (24 km/h).

∙ All doors unlock automatically when the

transmission is placed in the P (Park) po-
sition or when the ignition switch is
placed in the OFF position.

NOTE:

The automatic door unlock function can be
changed using “Vehicle Settings” of the
lower touch-screen display. For additional
information, refer to the separate INFINITI
InTouch™ Owner’s Manual.

Inside lock

LPD2713

SPA2727

3-6

Pre-driving checks and adjustments

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHILD SAFETY REAR DOOR
LOCK

Child safety locks help prevent the rear doors
from being opened accidentally, especially
when small children are in the vehicle.

The child safety lock levers are located on the
edge of the rear doors.

When the lever is in the LOCK position, the
door can be opened only from the outside.

WARNING

∙ Radio waves could adversely affect elec-

tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.

∙ The Intelligent Key transmits radio

waves when the buttons are pressed. The
FAA advises the radio waves may affect
aircraft navigation and communication
systems. Do not operate the Intelligent
Key while on an airplane. Make sure the
buttons are not operated unintentionally
when the unit is stored for a flight.

∙ Before leaving the vehicle, engage the P

(Park) position and check that the elec-
tronic parking brake warning light is illu-
minated to confirm that the electronic
parking brake is applied. The electronic
parking brake warning light will remain
on for a period of time after the driver’s
door is locked.

∙ Make sure to engage the P (Park) posi-

tion and apply the parking brake when
parking your vehicle, riding on or off the
vehicle or loading luggage. Failure to do
so could cause the vehicle to move or roll
away unexpectedly and result in serious
personal injury or property damage.

The Intelligent Key system can operate all the
door locks using the remote control function
or pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or
conditions may affect the Intelligent Key sys-
tem operation.

Be sure to read the following before using the
Intelligent Key system.

CAUTION

∙ Be sure to carry the Intelligent Key with

you when operating the vehicle.

∙ Never leave the Intelligent Key in the ve-

hicle when you leave the vehicle.

The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may

LPD2753

INFINITI INTELLIGENT KEY SYSTEM

Pre-driving checks and adjustments

3-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti QX50 (2019 year). Manual - part 10
