2-14
Instruments and controls
vehicle in a safe place. Turn the engine off,
restart the engine, resume driving and set
the ICC system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the
vehicle is still driveable under normal con-
ditions, have the vehicle checked. It is
recommended you visit an INFINITI retailer
for this service.
Lane Departure Warning
(LDW) indicator light (orange; if so
equipped)
When the ignition switch is placed in the ON
position, the light will come on in orange,
turn green, and then turn off. This indicates
that the Lane Departure Warning (LDW)
and Lane Departure Prevention (LDP) sys-
tems are operational.
While the LDW and/or LDP system is on,
the light will blink in orange and a warning
chime will sound if the vehicle is traveling
close to either the left or the right of a
traveling lane with detectable lane markers.
If the light comes on in orange and remains
on, it may indicate that the LDW and LDP
systems are not functioning properly. Have
the systems checked. It is recommended you
visit an INFINITI retailer for this service.
See “Lane Departure Warning (LDW)/Lane
Departure Prevention (LDP)” (P.5-22).
Low tire pressure warning light
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors
the tire pressure of all tires except the spare.
The low tire pressure warning light warns of
low tire pressure or indicates that the TPMS
is not functioning properly.
After the ignition switch is pushed ON, this
light illuminates for about 1 second and
turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A

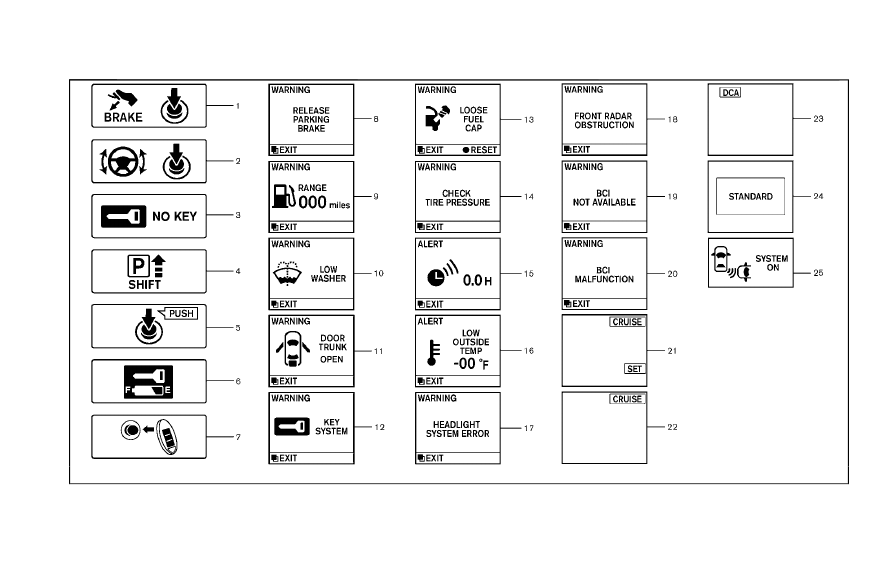

CHECK TIRE PRESSURE warning also
appears in the vehicle information display.
If you select tire pressure information in the
display, the LOW PRESSURE warning mes-
sage will be displayed. The tire pressure for
each tire will also be displayed.
When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure
warning light does not automatically turn
off when the tire pressure is adjusted. After
the tire is inflated to the recommended
pressure, the vehicle must be driven at
speeds above 16 MPH (25 km/h) to activate
the TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge to
check the tire pressure.
The CHECK TIRE PRESSURE warning is
active as long as the low tire pressure
warning light remains illuminated.
For additional information, see “Vehicle
information display” (P.2-20), “Tire Pressure
Monitoring System (TPMS)” (P.5-5) and
“Tire Pressure Monitoring System (TPMS)”
(P.6-3).
TPMS malfunction:
If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is pushed ON. The light will remain on
after the 1 minute. Have the system checked.
It is recommended you visit an INFINITI
retailer for this service. The CHECK TIRE
PRESSURE warning does not appear if the
low tire pressure warning light illuminates to
indicate a TPMS malfunction.
For additional information, see “Tire Pres-
sure Monitoring System (TPMS)” (P.5-5).
