Illustrated table of contents

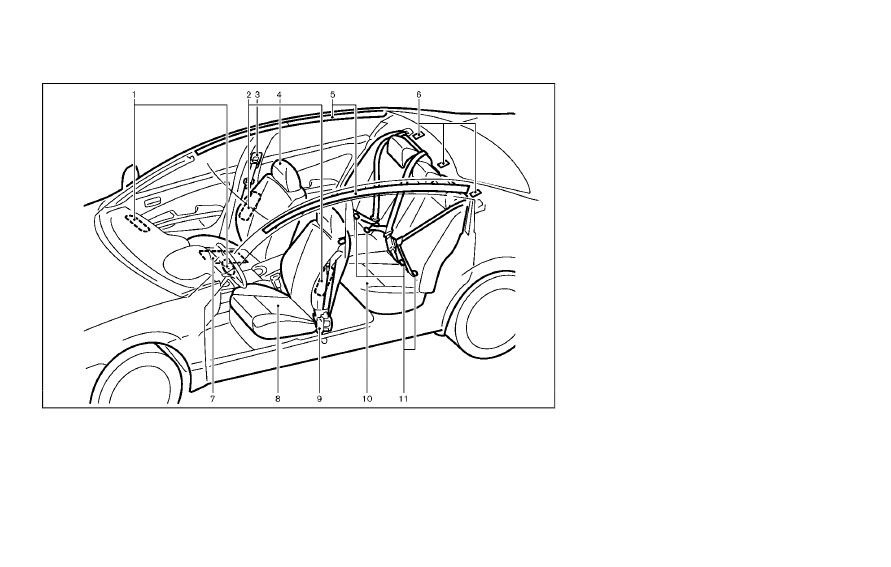

SSI0715

Supplemental front-impact air bags
(P.1-38)

Front seat-mounted side-impact sup-
plemental air bags (P.1-38)

Seat belts (P.1-10)

Head restraints (P.1-5)

Roof-mounted curtain side-impact and
rollover supplemental air bags (P.1-38)

Child restraint anchor points (for top
tether strap child restraint) (P.1-23,
P.1-30, P.1-34)

Occupant classification sensor (pattern
sensor) (P.1-44)

Front seats (P.1-3)

Seat belts with pretensioners (P.1-50)

10. Rear seats

— Child restraints (P.1-19)

11. LATCH (Lower Anchors and Tethers

for CHildren) system (P.1-21)

SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC0984X

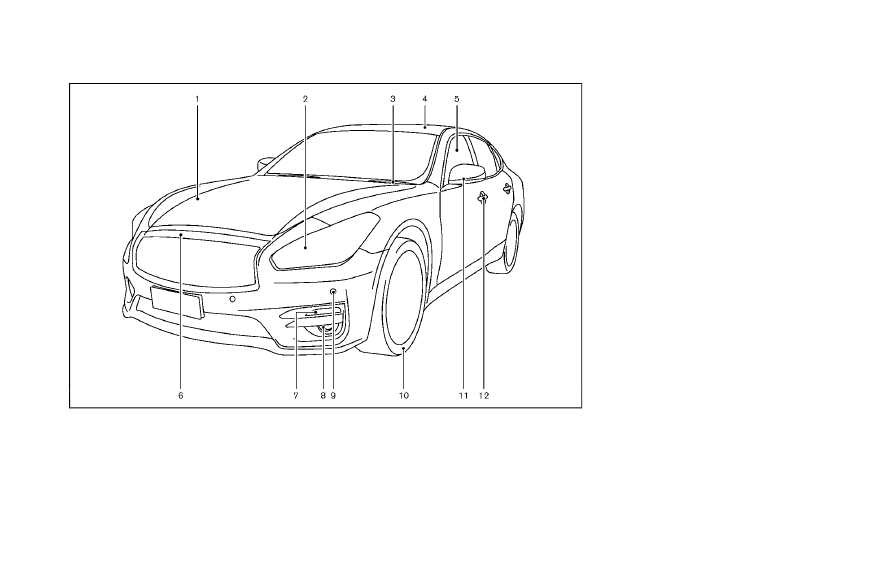

Hood (P.3-17)

Headlight
— Operation (P.2-34)
— Adaptive Front lighting System
(AFS) (if so equipped) (P.2-36)

Windshield wiper and washer

— Operation (P.2-32)
— Maintenance (P.8-21)

Moonroof (P.2-54)

Power windows (P.2-51)

Front view camera (if so equipped)
(P.4-10)

Turn signal
— Operation (P.2-34)

Fog light (P.2-39)

Sonar sensor (if so equipped)
— Camera aiding sonar function
(P.4-23)

10. Tires

— Wheel and tires (P.8-30, P.10-12)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System
(TPMS) (P.2-14, P.5-5)

11. Outside mirrors (P.3-26)

— Side turn signal light (P.2-39)
— Side view camera (if so equipped)
(P.4-10)

12. Doors

— Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
— Welcome light (P.2-56)

Illustrated table of contents

0-3

EXTERIOR FRONT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-4

Illustrated table of contents

JVC0698X

Trunk
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
— Trunk lid (P.3-18)

High-mounted stop light (P.8-27)

Rear combination light (P.8-27)

Satellite antenna (P.4-38)

Rear window defroster (P.2-34)

Sonar sensor (if so equipped)
— Camera aiding sonar function
(P.4-23)

Rear view camera (P.4-3, P.4-10)

Fuel-filler door
— Operation (P.3-22)
— Fuel information (P.10-6)

Child safety rear door locks (P.3-6)

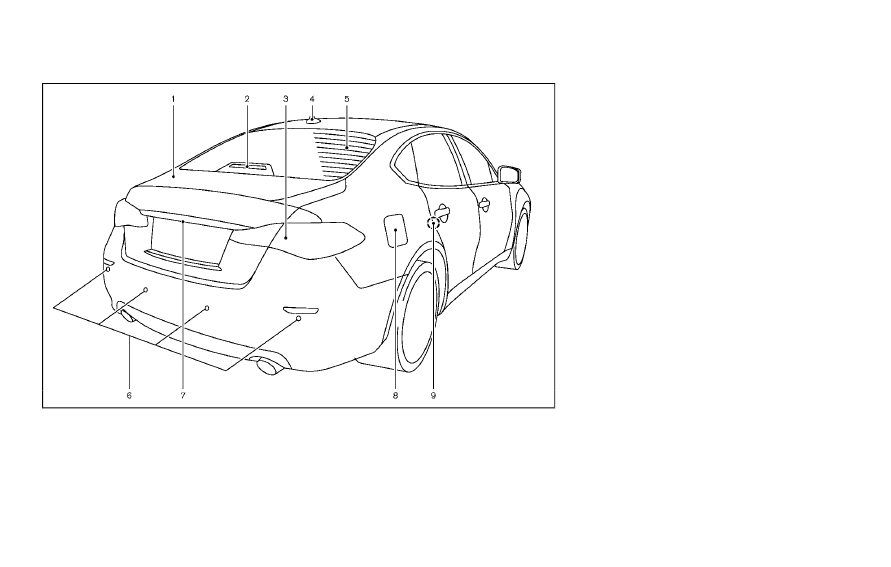

EXTERIOR REAR

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC1096X

Rear sunshade (if so equipped) (P.2-55)

Rear spot light (if so equipped) (P.2-58)

Coat hooks (P.2-50)

Rear personal light (if so equipped)
(P.2-57)

Sun visors (P.3-25)

Microphone
— Bluetooth

Hands-Free Phone sys-

tem*

Power windows (P.2-51)

Moonroof switch (P.2-54)

Map light (P.2-57)

— Active noise cancellation system
(P.5-128)
— SOS call switch* (if so equipped)

10. Sunglasses holder (P.2-48)
11. Inside rearview mirror

— Operation (P.3-25)
— HomeLink

(P.2-60)

12. Trunk pass-through/Rear armrest

(P.1-4)

13. Rear cup holders (P.2-47)/Seat heater

switch (if so equipped) (P.2-41)

14. Rear pocket (if so equipped) (P.2-50) or

power outlet (if so equipped) (P.2-46)

15. Console box

— Power outlet (P.2-46)
— USB connection port*
— Auxiliary input jack*

16. Front cup holders (P.2-47)
*:

Refer to the INFINITI InTouch

Own-

er’s Manual.

Illustrated table of contents

0-5

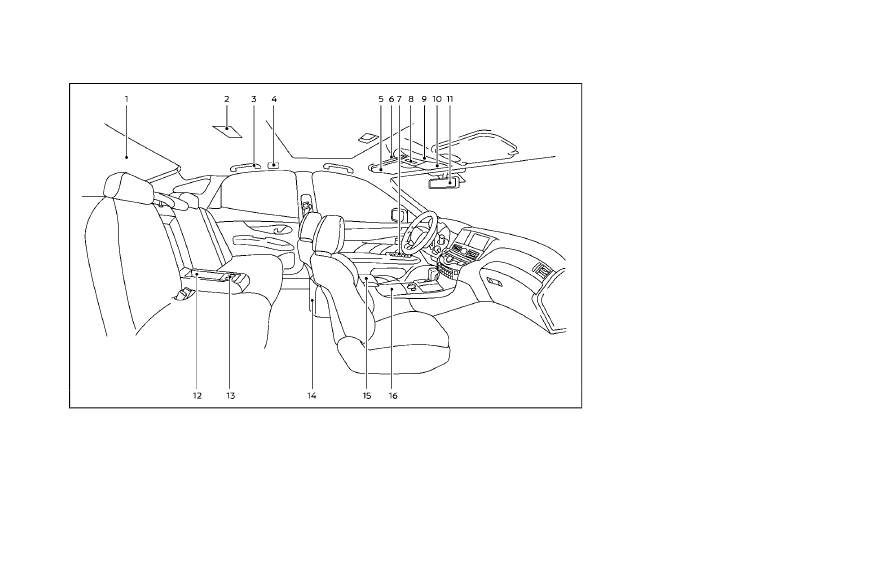

PASSENGER COMPARTMENT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-6

Illustrated table of contents

JVC1098X

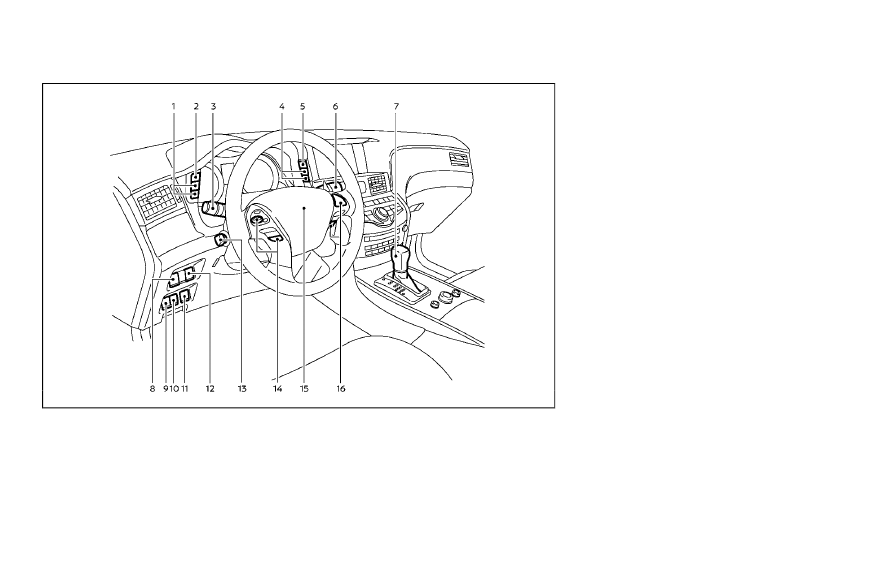

Instrument brightness control switch
(P.2-38)

Adaptive Front lighting System (AFS)
switch (if so equipped) (P.2-36)

Headlight, fog light and turn signal
switch (P.2-34)

Trip computer switch (P.2-27)

TRIP/RESET switch for twin trip od-
ometer (P.2-7)

Windshield wiper and washer switch
(P.2-32)

Shift lever (P.5-15)

Vehicle Dynamic Control (VDC) OFF
switch (P.5-123)

Rear sunshade switch (if so equipped)
(P.2-55)

10. Steering heater switch (if so equipped)

(P.2-40)

11. Trunk lid release switch (P.3-18)
12. W a r n i n g s y s t e m s s w i t c h ( i f s o

equipped) (P.5-22, P.5-32)

13. Electric tilting/telescopic steering

wheel lever (P.3-24)

14. Steering-wheel-mounted controls (left

side)
- Audio control steering switch*
- Voice recognition system switch*
- Bluetooth

Hands-Free Phone Sys-

tem switch*

15. Steering wheel

— Horn (P.2-40)
— Driver supplemental air bag (P.1-38)
— Heated steering wheel (if so
equipped) (P.2-40)

16. Steering-wheel-mounted controls

(right side)
— Cruise control switches (P.5-65)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-67)
— Dynamic driver assistance switch (if
so equipped) (P.5-22, P.5-41, P.5-88)

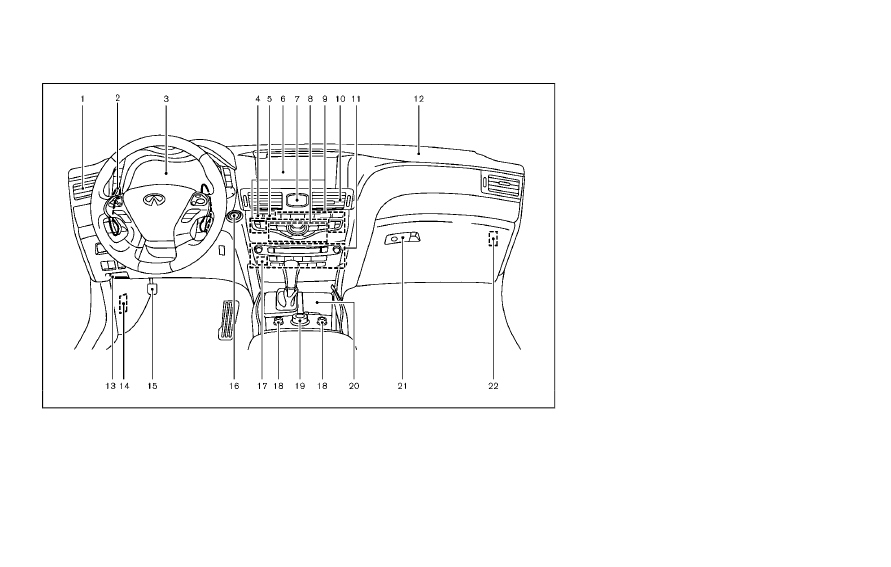

COCKPIT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-8

Illustrated table of contents

JVO0130X

Side ventilator (P.4-32)

Paddle shifter (if so equipped) (P.5-17)

Meters and gauges (P.2-6)

Hazard warning flasher switch (P.6-2)

Rear window and outside mirror
defroster switch (P.2-34)

Center display*
— Navigation system* (if so equipped)
— Around View

Monitor (if so

equipped) (P.4-10)
— RearView Monitor (if so equipped)
(P.4-3)

Clock (P.2-45)

Center multi-function control panel*

Automatic climate control system
(P.4-32)

10. Center ventilator (P.4-32)
11. Audio system*
12. Front passenger supplemental air bag

(P.1-38)

13. Hood release handle (P.3-17)
14. Fuse box cover (P.8-23)
15. Parking brake

— Parking (P.5-19)

16. Push-button ignition switch (P.5-10)
17. Front passenger air bag status light

(P.1-46)

18. Climate controlled seat switch (if so

equipped) (P.2-43) or Seat heater
switch (if so equipped) (P.2-41)

19. INFINITI Drive Mode Selector (P.5-20)
20. Storage box (P.2-50)

— Power outlet (P.2-46)

21. Glove box lid release handle (P.2-48)
22. Trunk release power cancel switch

(P.3-20)

Refer to the INFINITI InTouch

Own-

er’s Manual.

INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIC4317

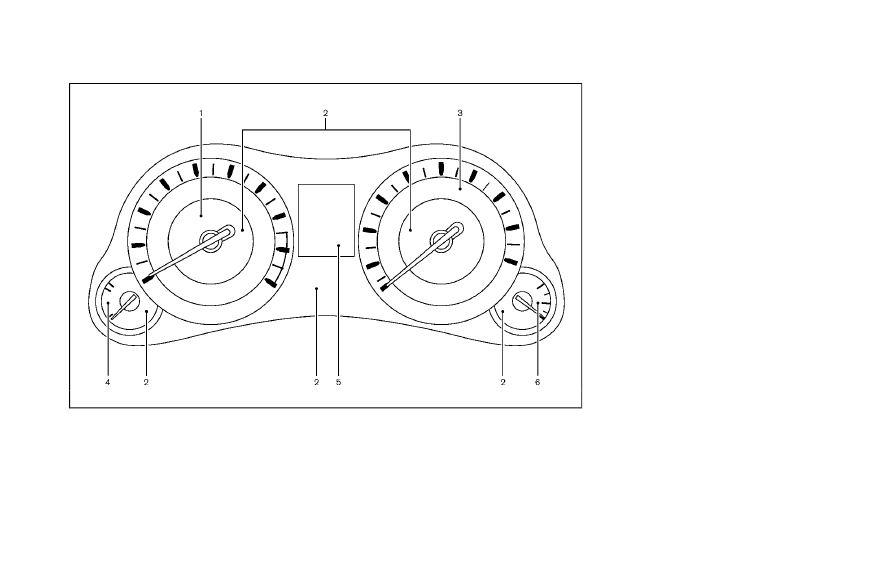

Tachometer (P.2-8)

Warning/Indicator lights (P.2-10)

Speedometer (P.2-7)

Engine coolant temperature gauge
(P.2-8)

Vehicle information display (P.2-20)/

Odometer/twin trip odometer (P.2-7)

Fuel gauge (P.2-9)

Illustrated table of contents

0-9

METERS AND GAUGES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-10

Illustrated table of contents

SDI2538

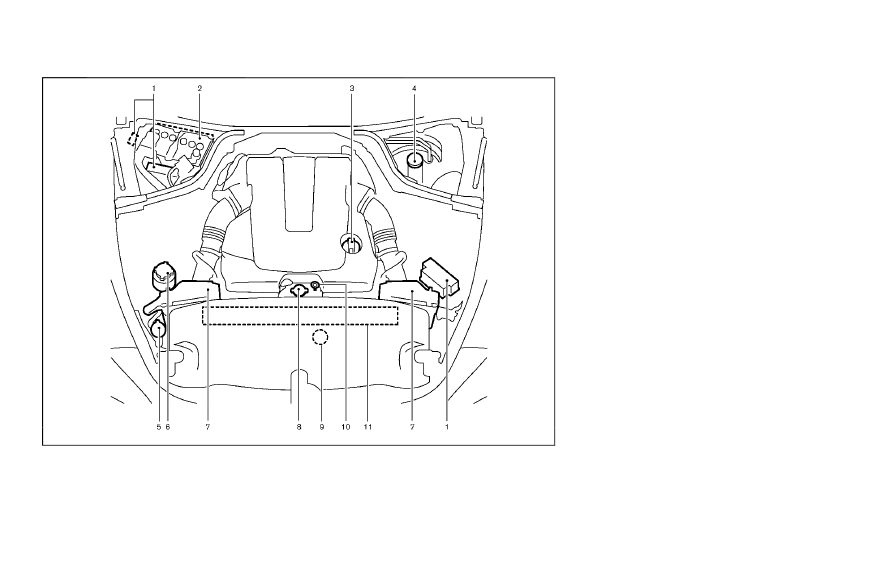

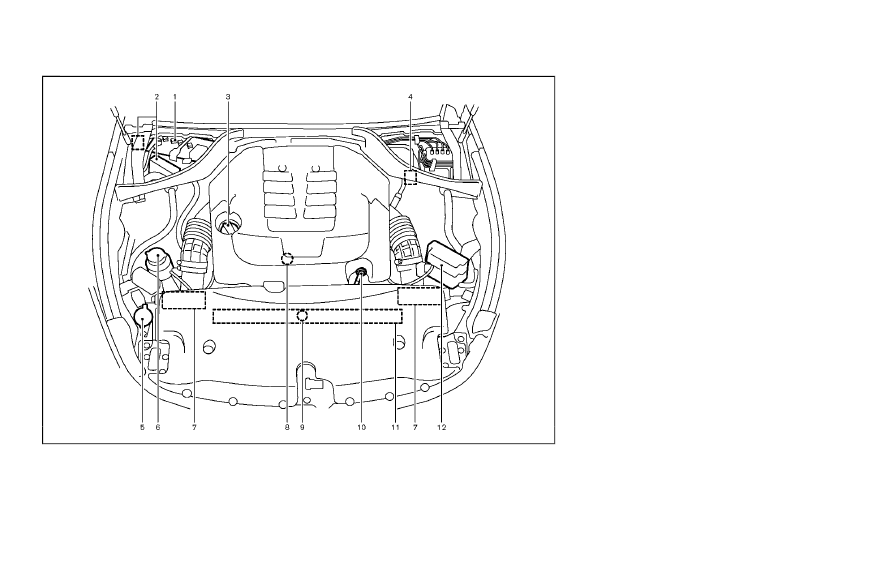

VK56VD ENGINE

Battery (P.8-16)

Fuse/fusible link holder (P.8-23)

Engine oil filler cap (P.8-10)

Brake fluid reservoir (P.8-14)

Window washer fluid reservoir (P.8-15)

Power steering fluid reservoir (P.8-14)

Air cleaner (P.8-19)

Radiator filler cap (P.8-8)

Engine coolant reservoir (P.8-8)

10. Engine oil dipstick (P.8-10)
11. Drive belts (P.8-18)
12. Fuse/fusible link holder (P.8-23)

ENGINE COMPARTMENT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC0538X

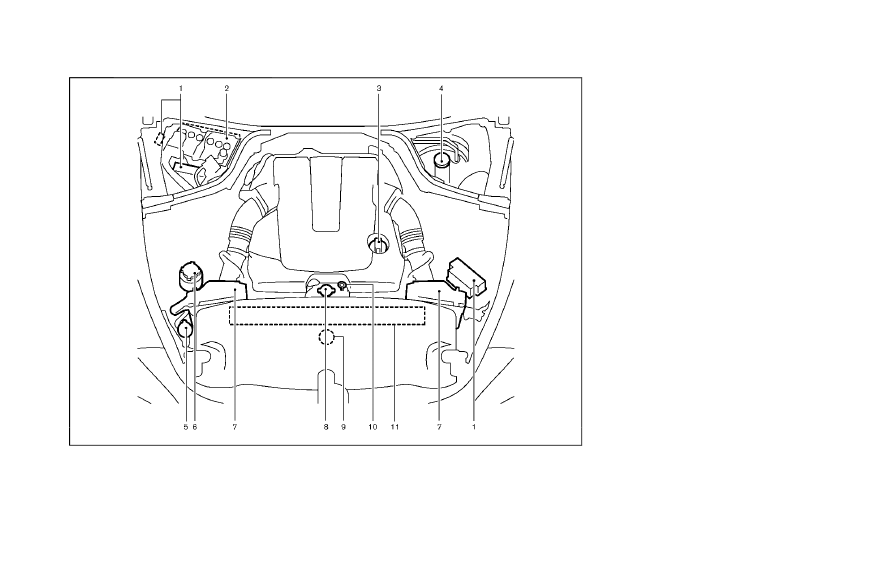

VQ37VHR ENGINE

Type A

Fuse/fusible link holder (P.8-23)

Battery (P.8-16)

Engine oil filler cap (P.8-10)

Brake fluid reservoir (P.8-14)

Window washer fluid reservoir (P.8-15)

Power steering fluid reservoir (P.8-14)

Air cleaner (P.8-19)

Radiator filler cap (P.8-8)

Engine coolant reservoir (P.8-8)

10. Engine oil dipstick (P.8-10)
11. Drive belts (P.8-18)

Illustrated table of contents

0-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-12

Illustrated table of contents

JVC0539X

Type B

Fuse/fusible link holder (P.8-23)

Battery (P.8-16)

Engine oil filler cap (P.8-10)

Brake fluid reservoir (P.8-14)

Window washer fluid reservoir (P.8-15)

Power steering fluid reservoir (P.8-14)

Air cleaner (P.8-19)

Radiator filler cap (P.8-8)

Engine coolant reservoir (P.8-8)

10. Engine oil dipstick (P.8-10)
11. Drive belts (P.8-18)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

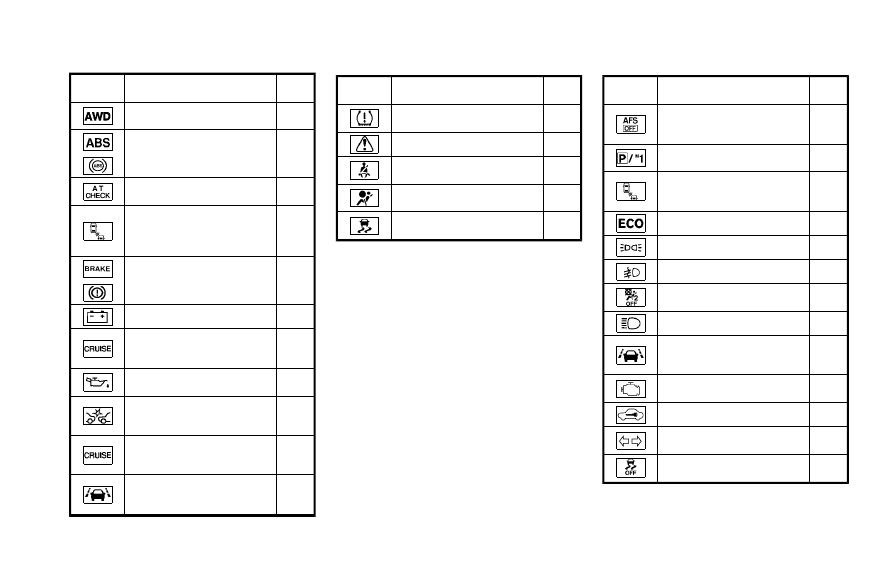

Warning

light

Name

Page

All-Wheel Drive (AWD)
warning light (if so equipped)

2-11

Anti-lock Braking System
(ABS) warning light

2-11

Automatic Transmission
check warning light

2-12

Blind Spot Warning (BSW)/
Blind Spot Intervention (BSI)
system warning light (or-
ange) (if so equipped)

2-12

Brake warning light

2-12

Charge warning light

2-13

Distance Control Assist
(DCA) system warning light
(orange) (if so equipped)

2-13

Engine oil pressure warning
light

2-13

Forward Emergency Braking
(FEB) system warning light (if
so equipped)

101

Intelligent Cruise Control
(ICC) system warning light
(orange) (if so equipped)

2-13

Lane Departure Warning
(LDW) indicator light (or-
ange) (if so equipped)

2-14

Warning

light

Name

Page

Low tire pressure warning
light

2-14

Master warning light

2-15

Seat belt warning light and
chime

2-15

Supplemental air bag warn-
ing light

2-16

Vehicle Dynamic Control
(VDC) warning light

2-16

Indicator

light

Name

Page

Adaptive Front lighting Sys-
tem (AFS) off indicator light
(if so equipped)

2-16

Automatic Transmission (AT)
position indicator light

2-17

Blind Spot Intervention (BSI)
ON indicator light
(green) (if so equipped)

2-17

ECO drive indicator light

2-17

Exterior light indicator

2-17

Front fog light indicator light

2-17

Front passenger air bag sta-
tus light

2-17

High beam indicator light

2-17

Lane Departure Prevention
(LDP) ON indicator light
(green) (if so equipped)

2-17

Malfunction Indicator Light
(MIL)

2-18

Security indicator light

2-18

Turn signal/hazard indicator
lights

2-19

Vehicle Dynamic Control
(VDC) off indicator light

2-19

Illustrated table of contents

0-13

WARNING AND INDICATOR LIGHTS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2

Safety — Seats, seat belts and supplemental restraint system

SSS0133

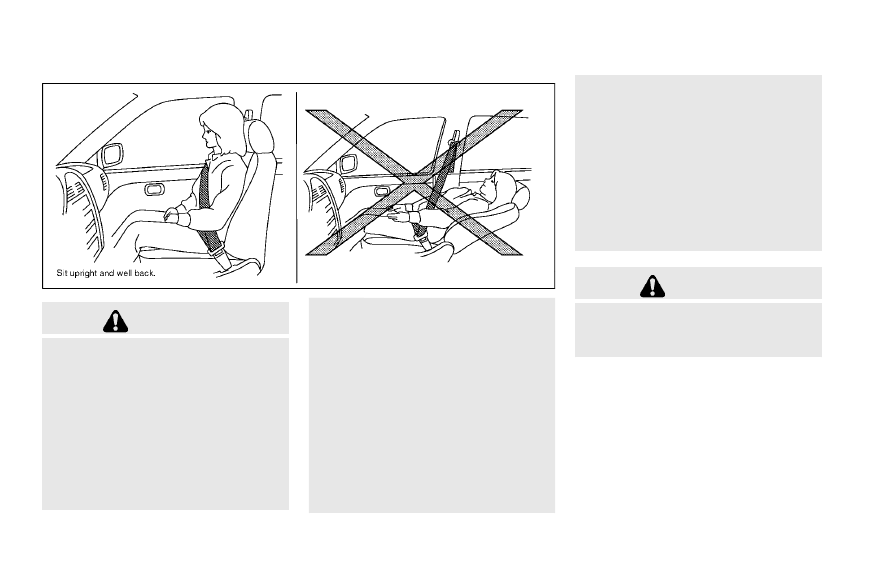

WARNING

. Do not ride in a moving vehicle when

the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and
receive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.

. For the most effective protection

when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat with

both feet on the floor and adjust the
seat belt properly. See “Precautions
on seat belt usage” (P.1-10).

. Do not leave children unattended

inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious accidents.

. To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-

hicle on a warm day can quickly
become high enough to cause a sig-
nificant risk of injury or death to
people and pets.

. The seatback should not be reclined

further than necessary for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured is
increased.

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damages.

SEATS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FRONT SEATS

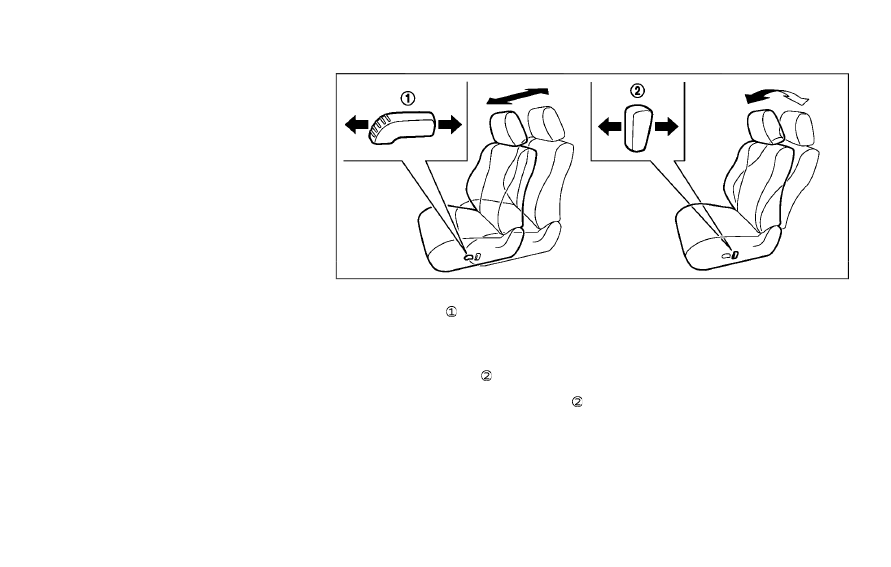

Front power seat adjustment

Operating tips:
. The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.

. Do not operate the power seat switch for

a long period of time when the engine is
off. This will discharge the battery.

See “Automatic drive positioner” (P.3-28)
for the seat position memory function.

SSS1051

Forward and backward:
Moving the switch

forward or backward

will slide the seat forward or backward to
the desired position.

Reclining:
Move the recline switch

backward until

the desired angle is obtained. To bring the
seatback forward again, move the switch
forward.

The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. (See “Precautions on seat belt
usage” (P.1-10).) Also, the seatback can be
reclined to allow occupants to rest when the

vehicle is parked.

Safety — Seats, seat belts and supplemental restraint system

1-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Q70 (2019 year). Manual - part 1
