Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

2-60

Instruments and controls

SIC4493

TRAY

To open the tray, push the lid

. To close,

push the lid down.
The USB and/or iPod

connector port is

located inside the tray. (See “Audio sys-
tem” (P.4-53) or “iPod

player operation”

(P.4-82).)

SIC3505

COAT HOOKS

The coat hooks are equipped at the rear
assist grips.

CAUTION

Do not place items which are more than 2 lb
(1 kg) on the hook.

SIC4446

LUGGAGE HOOKS

WARNING

Always make sure that the cargo is
properly secured. Use the suitable ropes
and hooks.

Unsecured cargo can become dangerous
in an accident or sudden stop.

Never allow anyone to ride in the
luggage area. It is extremely dangerous
to ride in a cargo area inside of a vehicle.
In a collision, people riding in these
areas are more likely to be seriously

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(155,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

injured or killed.

Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts.

The child restraint top tether strap may
be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously
injured or killed in a collision if the top
tether strap is damaged.

Be sure everyone in your vehicle is in a
seat and using a seat belt properly.

CAUTION

Do not apply a total load of more than 22 lb
(10 kg)

or 7 lb (3 kg)

to the hook.

JVI0309X

CARGO FLOOR BOX

Push the handle to open the cargo floor
board

JVI1169X

ROOF RACK

Always distribute the luggage evenly on
the roof rack. Do not load more than 221 lb
(100 kg) on the roof rails. Observe the
maximum load limit shown on the cross-
bars or roof carriers when you attach them
on the roof rails. It is recommended to visit
an INFINITI retailer for crossbar or other
equipment information.
Be careful that your vehicle does not
exceed the Gross Vehicle Weight Rating
(GVWR) or its Gross Axle Weight Rating
(GAWR front and rear). The GVWR and
GAWR are located on the F.M.V.S.S. or C.V.
M.S.S. certification label (located on the

Instruments and controls

2-61

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(156,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

2-62

Instruments and controls

driver’s door pillar). For more information
regarding GVWR and GAWR, see “Vehicle
loading information” (P.10-14).

WARNING

Drive extra carefully when the vehicle is
loaded at or near the cargo carrying
capacity, especially if the significant
portion of that load is carried on the
roof rack.

Heavy loading of the roof rack has the
potential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.

Roof rack load should be evenly dis-
tributed.

Do not exceed maximum roof rack load
weight capacity.

Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injury.

CAUTION

Use care when placing or removing items
from the roof rack. If you cannot comfortably
lift the items onto the roof rack from the
ground, use a ladder or stool.

POWER WINDOWS

WARNING

Make sure that all passengers have their
hands, etc. inside the vehicle while it is
in motion and before closing the win-
dows. Use the window lock switch to
prevent unexpected use of the power
windows.

To help avoid risk of injury or death
through unintended operation of the
vehicle and or its systems, including
entrapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your
vehicle. Additionally, the temperature
inside a closed vehicle on a warm day
can quickly become high enough to
cause a significant risk of injury or death
to people and pets.

The power windows operate when the
ignition switch is in the ON position or for
about 45 seconds after the ignition switch
is pushed to the OFF position. If the driver’s
or front passenger’s door is opened during
this period of about 45 seconds, power to

WINDOWS

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(157,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

the windows is canceled.

SIC4352

Driver side window

Front passenger side window

Rear left passenger side window

Rear right passenger side window

Window lock button

Main power window switch (driver’s

side)

To open or close the window, push down

or pull up

the switch and hold it. The

main switch (driver side switches) will open
or close all the windows.

Locking passengers’ windows

When the lock button

is pushed in, only

the driver side window can be opened or
closed. Push it in again to cancel.

Instruments and controls

2-63

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(158,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

2-64

Instruments and controls

SIC4353

Passenger side power window

switch

The passenger side switch will open or
close only the corresponding window. To
open or close the window, push down or
pull up the switch and hold it.

SIC4354

Automatic operation

To fully open or close the window, com-
pletely push down or pull up the switch
and release it; it need not be held. The
window will automatically open or close all
the way. To stop the window, just push or
lift the switch in the opposite direction.
A light push or pull on the switch will cause
the window to open or close until the
switch is released.

Auto reverse function

WARNING

There are some small distances immediately
before the closed position which cannot be
detected. Make sure that all passengers
have their hands, etc., inside the vehicle
before closing the window.

If the control unit detects something
caught in the window as it is closing, the
window will be immediately lowered.
The auto reverse function can be activated
when the window is closed by automatic
operation when the ignition switch is in the
ON position or for 45 seconds after the
ignition switch is pushed to the OFF
position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(159,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

If the windows do not close auto-

matically

If the power window automatic function
(closing only) does not operate properly,
perform the following procedure to initi-
alize the power window system.
1. Push the ignition switch to the ON

position.

2. Close the door.
3. Open the window completely by oper-

ating the power window switch.

4. Pull the power window switch and hold

it to close the window, and then hold
the switch more than 3 seconds after
the window is closed completely.

5. Release the power window switch.

Operate the window by the automatic
function to confirm the initialization is
complete.

6. Perform steps 2 through 5 above for

other windows.

If the power window automatic function
does not operate properly after performing
the procedure above, have your vehicle
checked. It is recommended you visit an
INFINITI retailer for this service.

WARNING

In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child re-
straints.

Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.

CAUTION

Remove water drops, snow, ice or sand
from the moonroof before opening.

Do not place any heavy object on the
moonroof or surrounding area.

POWER MOONROOF

The moonroof only operates when the
ignition switch is in the ON position.
The moonroof is operational for about 45
seconds, even if the ignition switch is
pushed to the OFF position. If the driver’s
door or the passenger’s door is opened
during this period of about 45 seconds,
power to the moonroof is canceled.

Instruments and controls

2-65

MOONROOF

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(160,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

2-66

Instruments and controls

SIC3243

Sunshade

The sunshade will open automatically
when the moonroof is opened. However,
it must be closed manually.

Tilting the moonroof

To tilt up, first close the moonroof, then
push the UP

side of the moonroof

switch and release it; it need not be held.
To tilt down the moonroof, push the DOWN

side.

Sliding the moonroof

To fully open or close the moonroof, push
the OPEN

or CLOSE

side of the

moonroof switch and release it; it need not
be held. The roof will automatically open or
close all the way. To stop the roof, push the
switch once more while it is opening or
closing.

Auto reverse function

WARNING

There are some small distances immediately
before the closed position which cannot be
detected. Make sure that all passengers
have their hands, etc., inside the vehicle
before closing the moonroof.

If the control unit detects something
caught in the moonroof when it is closing,
the moonroof will be immediately opened.
The auto reverse function can be activated
when the moonroof is closed by automatic
operation when the ignition switch is in the
ON position or for about 45 seconds after
the ignition switch is pushed to the OFF
position.
If the moonroof cannot be closed auto-
matically when the auto reverse function
activates due to a malfunction, push and
hold the CLOSE

side of the moonroof

switch.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.

If the moonroof does not operate

If the moonroof does not operate properly,
perform the following procedure to initi-
alize the moonroof operation system.
1. If the moonroof is open, close it fully by

repeatedly pushing the CLOSE

side

of the moonroof switch.

2. Push and hold the CLOSE

side of the

moonroof switch to tilt the moonroof
up.

3. Release the moonroof switch after the

moonroof moves slightly up and down.

4. Push and hold the OPEN

side of the

moonroof switch to fully tilt the moon-
roof down.

5. Check if the moonroof switch operates

normally.

If the moonroof does not operate properly
after performing the procedure above,
have your vehicle checked. It is recom-
mended you visit an INFINITI retailer for

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(161,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

this service.

SIC3642

To activate or deactivate the welcome light
function, perform the following procedure.
1. Push the ignition switch to the ON

position.

2. Open the driver’s side door.
3. Within 20 seconds after the ignition

switch is pushed to the ON position,
push the door open request switch on
the driver’s side door handle for more
than 5 seconds with the driver’s door
open.

4. A chime sounds when the setting is

completed.

Once the welcome light function is active,

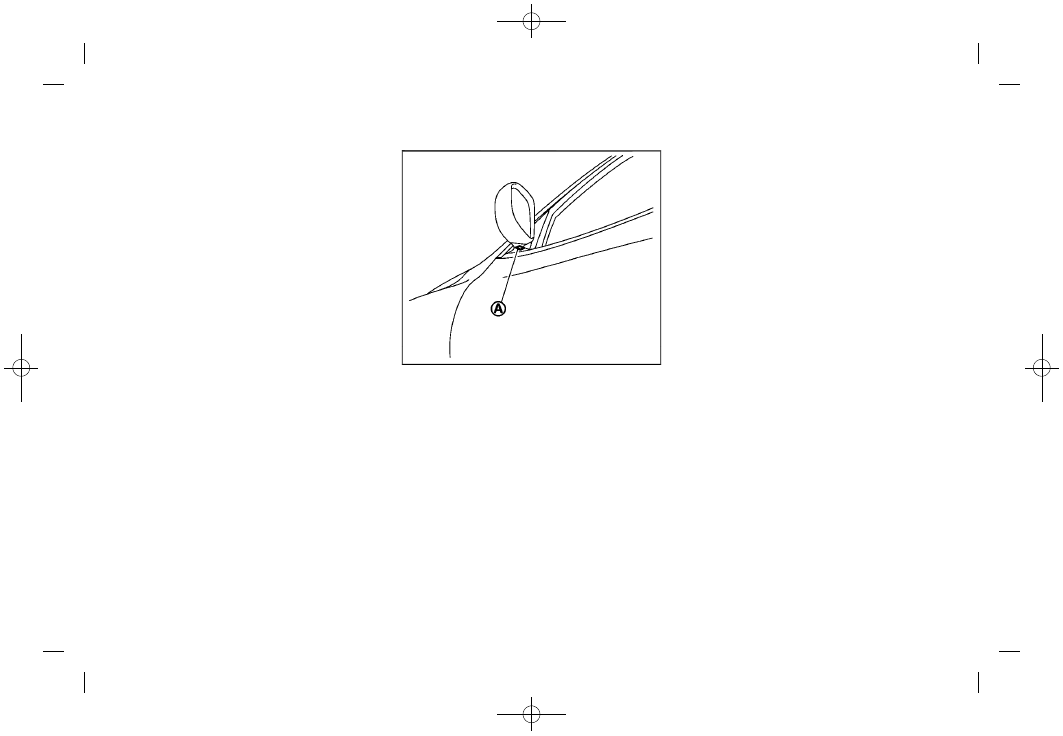

the puddle light

and the passenger

cabin illumination will illuminate when you
approach the vehicle with the Intelligent
Key (within approximately 3.3 ft (1 m) of
the antenna built inside the door handles)
and the following conditions are met.

All doors are closed and locked.

The ignition switch is in the LOCK or OFF

position.

The Intelligent Key is outside the

vehicle.

The puddle light operates within a set

duration.

BATTERY SAVER SYSTEM

The welcome light function will be deacti-
vated automatically to prevent battery
discharge under the following conditions.
To activate the welcome light function
again, unlock any door.
.

If the welcome light function does not

operate within a set duration. Note that
the duration is set to 9 days as the
factory default setting.

If the welcome light function is acti-

vated 15 consecutive times when you
approach and leave the vehicle with the
Intelligent Key without the doors being
unlocked.

Instruments and controls

2-67

WELCOME LIGHT

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(162,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

2-68

Instruments and controls

SIC3249

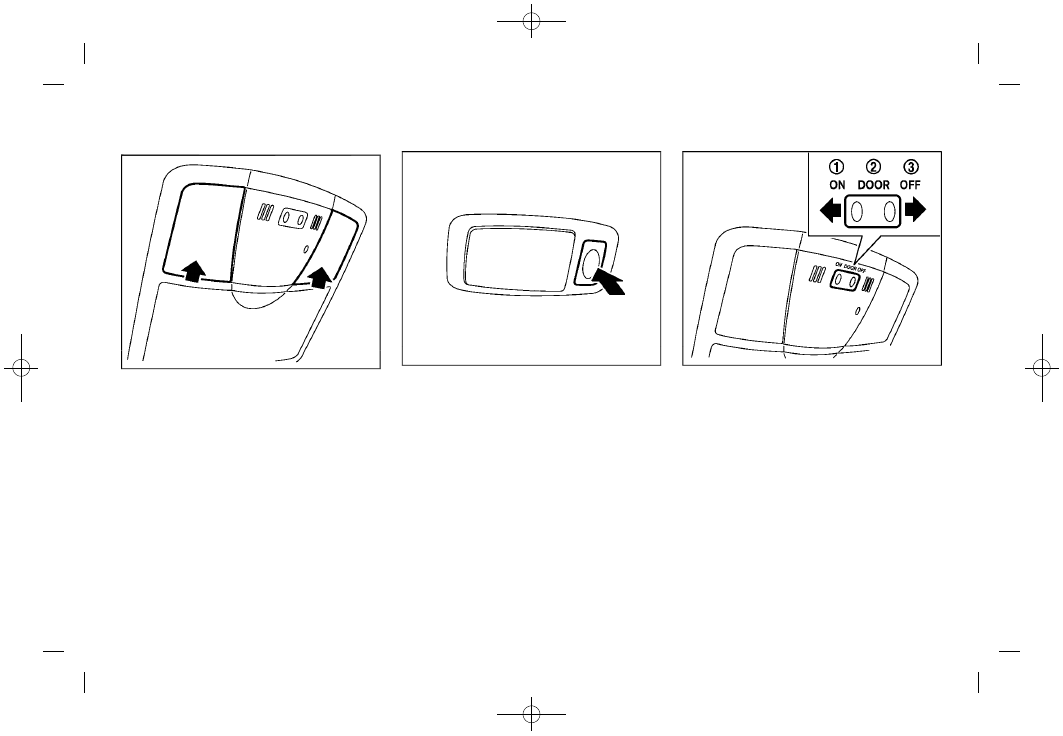

MAP LIGHTS

Push the button as illustrated to turn the
light on or off.

SIC3250

REAR PERSONAL LIGHTS

Push the button as illustrated to turn the
light on or off.

SIC3251

INTERIOR LIGHT CONTROL SWITCH

The interior light control switch has three
positions: ON, DOOR and OFF.

ON position

When the switch is in the ON position

the map lights and rear personal lights will
illuminate.

DOOR position

When the switch is in the DOOR position

, the map lights and rear personal lights

will illuminate under the following condi-
tions:

INTERIOR LIGHTS

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(163,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

ignition switch is switched to the LOCK

or OFF position
— remain on for about 15 seconds.

doors are unlocked by pushing the

UNLOCK button on the Intelligent Key
or door handle request switch with the
ignition switch in the LOCK or OFF
position
— remain on for about 15 seconds.

any door is opened and then closed

with the ignition switch in the LOCK or
OFF position
— remain on for about 15 seconds.

any door is opened with the ignition

switch in the ACC or ON position
— remain on while the door is opened.

When the door is closed, the lights
go off.

The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
When the auto interior illumination is set to
the OFF position (see “Vehicle information
and settings” (P.4-7)), the lights will
illuminate under the following condition:

any door is opened with the ignition

switch in any position
— remain on while the door is opened.

When the door is closed, the lights
go off.

OFF position

When the switch is in the OFF position

the lights will not illuminate, regardless of
the condition.

CAUTION

Do not use for extended periods of time with
the engine stopped. This could result in a
discharged battery.

SIC4448

The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.
When the cover is closed, the light will turn
off.
The lights will also turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.

Instruments and controls

2-69

VANITY MIRROR LIGHTS

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(164,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

2-70

Instruments and controls

SIC4418

The cargo light switch has three positions:
ON

, center

and OFF

ON position
When the switch is in the ON position

the cargo light will illuminate.
Center position
When the switch is in the center position

, the cargo light will illuminate when the

liftgate is opened.
OFF position
When the switch is in the OFF position

the cargo light will not illuminate.

The HomeLink

Universal Transceiver pro-

vides a convenient way to consolidate the
functions of up to three individual hand-
held transmitters into one built-in device.
HomeLink

Universal Transceiver:

Will operate most Radio Frequency (RF)

devices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.

Is powered by your vehicle’s battery. No

separate batteries are required. If the
vehicle’s battery is discharged or is
disconnected, HomeLink

will retain all

programming.

When the HomeLink

Universal Transcei-

ver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases).
Upon sale of the vehicle, the programmed
HomeLink

Universal Transceiver buttons

should be erased for security purposes.
For additional information, refer to “Pro-
gramming HomeLink

” (P.2-71).

WARNING

Do not use the HomeLink

Universal

Transceiver with any garage door opener

that lacks safety stop and reverse
features as required by federal safety
standards. (These standards became
effective for opener models manufac-
tured after April 1, 1982). A garage door
opener which cannot detect an object in
the path of a closing garage door and
then automatically stop and reverse,
does not meet current federal safety
standards. Using a garage door opener
without these features increases the risk
of serious injury or death.

During the programming procedure your
garage door or security gate will open
and close (if the transmitter is within
range). Make sure that people or objects
are clear of the garage door, gate, etc.
that you are programming.

Your vehicle’s engine should be turned
off while programming the HomeLink

Universal Transceiver. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause
unconsciousness or death.

CARGO LIGHT

HomeLink

UNIVERSAL TRANSCEIVER

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(165,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

PROGRAMMING HomeLink

If you have any questions or are having
difficulty programming your HomeLink

buttons, refer to the HomeLink

web site

at: www.homelink.com or call 1-800-355-
3515.

NOTE:
It is also recommended that a new battery
be placed in the hand-held transmitter of
the device being programmed to
HomeLink

for quicker programming and

accurate transmission of the radio-fre-
quency.

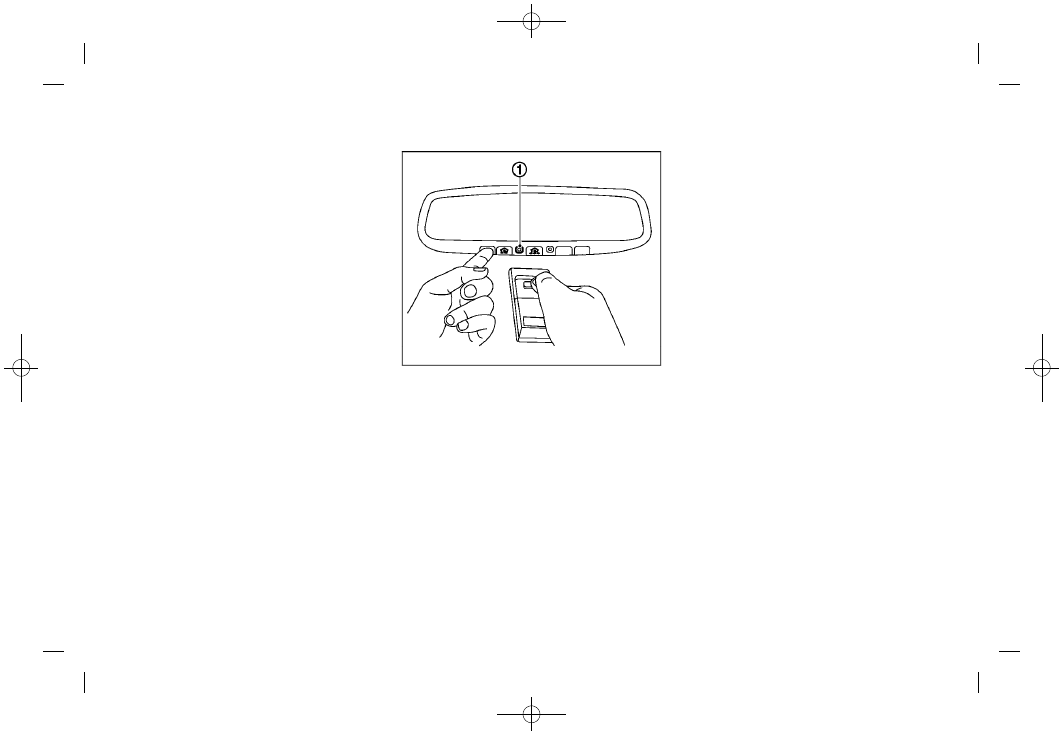

1. Position the end of your hand-held

transmitter 1-3 in (26-76 mm) away
from the HomeLink

surface, keeping

the HomeLink

indicator light

view.

JVI0428X

2. Using both hands, simultaneously

press and hold the desired HomeLink

button and handheld transmitter but-
ton. DO NOT release until the
HomeLink

indicator light

flashes

slowly and then rapidly. When the
indicator light flashes rapidly, both
buttons may be released. (The rapid
flashing indicates successful program-
ming.)

NOTE:
Some devices to be programmed may
require you to replace Step 2 with the
cycling procedure noted in the “Pro-
gramming HomeLink

for Canadian

customers and gate openers” (P.2-72).

Instruments and controls

2-71

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(166,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

2-72

Instruments and controls

JVI0429X

3. Press and hold the programmed

HomeLink

button and observe the

indicator light.

If the indicator light

is solid/

continuous, programming is com-
plete and your device should acti-
vate when the HomeLink

button is

pressed and released.

If the indicator light

blinks

rapidly for two seconds and then
turns to a solid/continuous light,
continue with Steps 4-6 for a rolling
code device. A second person may
make the following steps easier. Use
a ladder or other device. Do not

stand on your vehicle to perform the
next steps.

4. At the receiver located on the garage

door opener motor in the garage, locate
the “learn” or “smart” button (the
name and color of the button may vary
by manufacturer but it is usually
located near where the hanging anten-
na wire is attached to the unit). If there
is difficulty locating the button, refer-
ence the garage door opener’s manual.

5. Press and release the “learn” or

“smart” button.

NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.

6. Return to the vehicle and firmly press

and hold the programmed HomeLink

button for two seconds and release.
Repeat the “press/hold/release” se-
quence up to 3 times to complete the
programming process. HomeLink

should now activate your rolling code
equipped device.

7. If you have any questions or are having

d i f f i c u l t y p r o g r a m m i n g y o u r
HomeLink

buttons, refer to the

HomeLink

web site at: www.

homelink.com or call 1-800-355-3515.

PROGRAMMING HomeLink

FOR

CANADIAN CUSTOMERS AND GATE

OPENERS

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink

to pick up the signal during

programming. Similar to this Canadian
law, some U.S. gate operators are de-
signed to “time-out” in the same manner.
If you live in Canada or you are having
difficulties programming a gate operator or
garage door opener by using the “Pro-
gramming HomeLink

” procedures, re-

place “Programming HomeLink

” Step 2

with the following:

NOTE:
When programming a garage door opener,
etc., unplug the device during the “cy-
cling” process to prevent possible damage
to the garage door opener components.
Step 2: Using both hands, simultaneously
press and hold the desired HomeLink

button and the hand-held transmitter

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(167,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

button. During programming, your hand-
held transmitter may automatically stop
transmitting. Continue to press and hold
the desired HomeLink

button while you

press and re-press (“cycle”) your hand-
held transmitter every two seconds until
the frequency signal has been learned. The
HomeLink

indicator light will flash slowly

and then rapidly after several seconds
upon successful programming. DO NOT
release until the HomeLink

indicator light

flashes slowly and then rapidly. When the
indicator light flashes rapidly, both but-
tons may be released. The rapid flashing
indicates successful programming.
Proceed with “Programming HomeLink

”

step 3 to complete.
Remember to plug the device back in when
programming is completed.

OPERATING THE HomeLink

UNI-

VERSAL TRANSCEIVER

The HomeLink

Universal Transceiver, after

it is programmed, can be used to activate
the programmed device. To operate, simply
press and release the appropriate pro-
grammed HomeLink

Universal Transcei-

ver button. The amber indicator light will
illuminate while the signal is being trans-

mitted.
For convenience, the hand-held transmitter
of the device may also be used at any time.

PROGRAMMING TROUBLESHOOT-

ING

If the HomeLink

does not quickly learn the

hand-held transmitter information:
.

replace the hand-held transmitter bat-

teries with new batteries.

position the hand-held transmitter with

its battery area facing away from the
HomeLink

surface.

press and hold both the HomeLink

and

hand-held transmitter buttons without
interruption.

position the hand-held transmitter 1-3

in (26-76 mm) away from the
HomeLink

surface. Hold the transmit-

ter in that position for up to 15
seconds. If HomeLink

is not pro-

grammed within that time, try holding
the transmitter in another position -
keeping the indicator light in view at all
times.

If you have any questions or are having
difficulty programming your HomeLink

buttons, refer to the HomeLink

web site

at: www.homelink.com or 1-800-355-

3515.

CLEARING THE PROGRAMMED IN-

FORMATION

The following procedure clears the pro-
grammed information from both buttons.
Individual buttons cannot be cleared.
However, individual buttons can be repro-
grammed, see “Reprogramming a single
HomeLink

button” (P.2-73).

To clear all programming

1. Press and hold the two outer

HomeLink

buttons until the indicator

light begins to flash in approximately
10 seconds. Do not hold for longer than
20 seconds.

2. Release both buttons.
HomeLink

is now in the programming

mode and can be programmed at any time
beginning with “Programming HomeLink

”

- Step 1.

REPROGRAMMING A SINGLE

HomeLink

BUTTON

To reprogram a HomeLink

Universal

Transceiver button, complete the following.
1. Press and hold the desired HomeLink

button. Do not release the button.

Instruments and controls

2-73

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(168,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

2-74

Instruments and controls

2. The indicator light will begin to flash

after 20 seconds. Without releasing the
HomeLink

button, proceed with “Pro-

gramming HomeLink

” - Step 1.

For questions or comments, contact
HomeLink

at: www.homelink.com or 1-

800-355-3515.
The HomeLink

Universal Transceiver but-

ton has now been reprogrammed. The new
device can be activated by pushing the
HomeLink

button that was just pro-

grammed. This procedure will not affect
any other programmed HomeLink

but-

tons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change
the codes of any non-rolling code device
t h a t h a s b e e n p r o g r a m m e d i n t o
HomeLink

. Consult the Owner’s Manual

of each device or call the manufacturer or
retailer of those devices for additional
information.
When your vehicle is recovered, you will
need to reprogram the HomeLink

Uni-

versal Transceiver with your new transmit-
ter information.

FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.

NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Opera-
tion is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including inter-
ference that may cause undesired opera-
tion of the device.

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti QX80/QX (2017 year). Manual - part 10
