SUPPLEMENTAL AIR BAG WARNING

LABELS

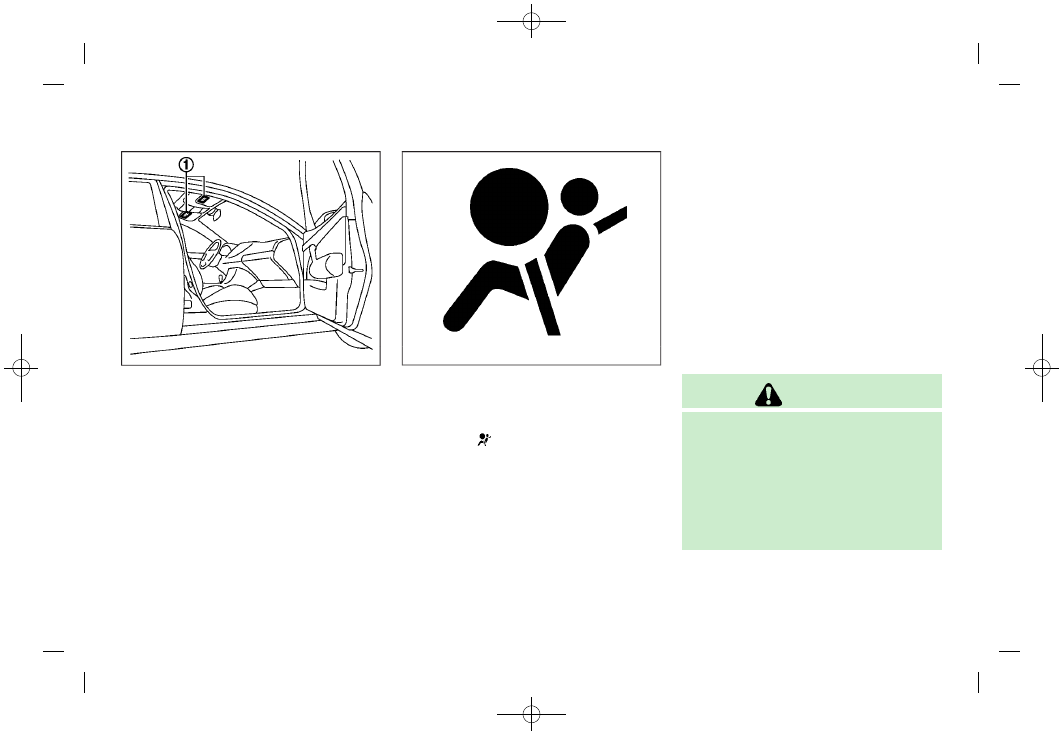

Warning labels about the supplemental
front-impact air bag systems are placed in
the vehicle as shown in the illustration.

SRS air bag

The warning labels

are located on the

surface of the sun visors.

SPA1097

SUPPLEMENTAL AIR BAG WARNING

LIGHT

The supplemental air bag warning light,
displaying

in the instrument panel,

monitors the circuits for the air bag
systems, pretensioners and all related
wiring.
When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.
If any of the following conditions occur, the
air bag and/or pretensioner systems need

servicing:
.

The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

The supplemental air bag warning light

flashes intermittently.

The supplemental air bag warning light

does not come on at all.

Under these conditions, the air bag and/or
pretensioner systems may not operate
properly. They must be checked and
repaired. It is recommended you visit an
INFINITI retailer for this service.

WARNING

If the supplemental air bag warning light is
on, it could mean that the front air bag, side
air bag, curtain air bag and/or pretensioner
systems will not operate in an accident. To
help avoid injury to yourself or others, have
your vehicle checked as soon as possible. It
is recommended you visit an INFINITI retailer
for this service.

Safety — Seats, seat belts and supplemental restraint system

1-55

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(76,1)

Model: 2017MY INFINITI QX50(J50) OM17E00J50U0 ]

1-56

Safety — Seats, seat belts and supplemental restraint system

REPAIR AND REPLACEMENT PROCE-

DURE

The front air bags, side air bags, curtain air
bags and pretensioners are designed to
activate on a one-time-only basis. As a
reminder, unless it is damaged, the sup-
plemental air bag warning light will remain
illuminated after inflation has occurred.
These systems should be repaired and/or
replaced as soon as possible. It is recom-
mended you visit an INFINITI retailer for
this service.
When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioners and related
parts should be pointed out to the person
conducting the maintenance. The ignition
switch should always be in the LOCK
position when working under the hood or
inside the vehicle.

WARNING

Once a front air bag, side air bag or
curtain air bag has inflated, the air bag
module will not function again and must
be replaced. Additionally, the activated
pretensioner must also be replaced. The

air bag module and pretensioner system
should be replaced. It is recommended
you visit an INFINITI retailer for this
service. However, the air bag module and
pretensioner system cannot be repaired.

The front air bag, side air bag, curtain air
bag systems and the pretensioner sys-
tem should be inspected if there is any
damage to the front end or side portion
of the vehicle. It is recommended you
visit an INFINITI retailer for this service.

If you need to dispose of a supplemental
air bag or pretensioner systems or scrap
the vehicle, it is recommended you visit
an INFINITI retailer. Correct supplemen-
tal air bag and pretensioner system
disposal procedures are set forth in the
appropriate INFINITI Service Manual.
Incorrect disposal procedures could
cause personal injury.

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(81,1)

Model: 2017MY INFINITI QX50(J50) OM17E00J50U0 ]

SSI0623

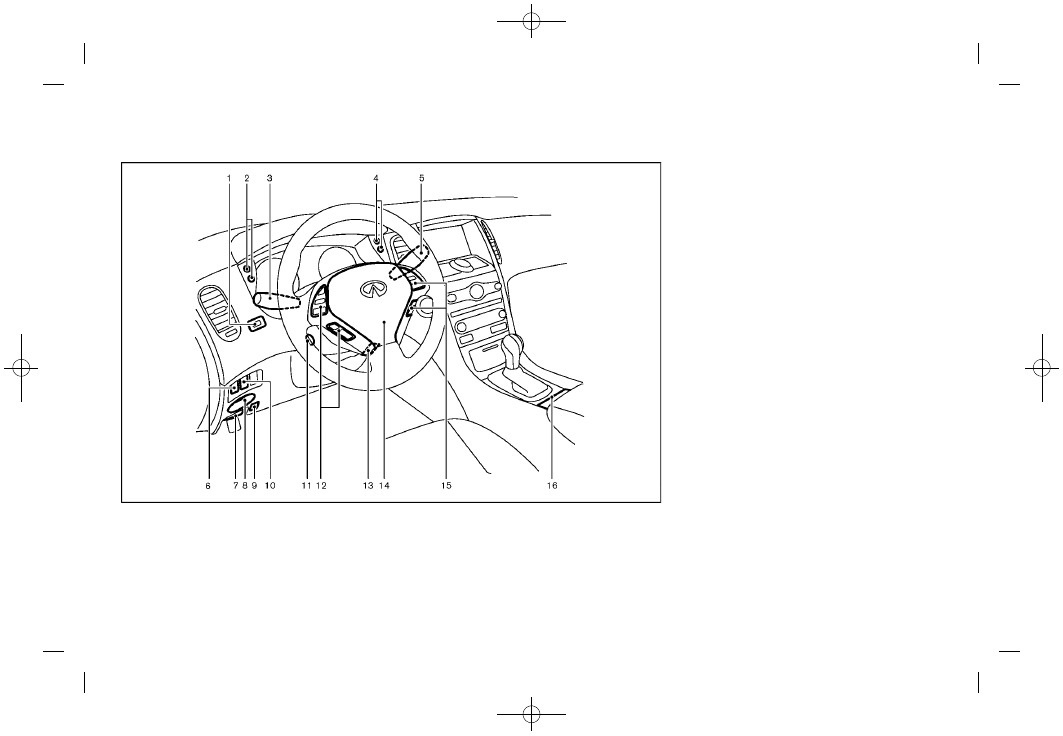

TRIP/RESET switch for twin trip od-
ometer (P.2-7)

Instrument brightness control switch
(P.2-38)

Headlight, fog light and turn signal
switch (P.2-34)

Trip computer switch (P.2-26)

Windshield wiper and washer switch
(P.2-31)

Sonar system OFF switch (if so
equipped) (P.5-79) or warning sys-
tems switch (if so equipped)
— Forward Collision Warning (FCW)
(P.5-60)
— Lane Departure Warning (LDW)
(P.5-19)
— Blind Spot Warning (BSW)
(P.5-27)

Hood release handle (P.3-16)

Intelligent Key port (P.5-12)

Vehicle Dynamic Control (VDC) OFF
switch (P.5-85)

10. Intelligent Brake Assist (IBA) off

switch (if so equipped) (P.2-42)

11. Electric tilting/telescopic steering

wheel lever (if so equipped) (P.3-20)

12. Steering-wheel-mounted controls

(Left side)
— For audio system (P.4-95)
— For Bluetooth

Hands-Free Phone

System (with navigation system)
(P.4-98)
— For Bluetooth

Hands-Free Phone

System (without navigation system)
(P.4-109)
— For INFINITI Voice Recognition Sys-
tem (if so equipped) (P.4-123)

Instruments and controls

2-3

COCKPIT

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(82,1)

Model: 2017MY INFINITI QX50(J50) OM17E00J50U0 ]

2-4

Instruments and controls

13. Manual tilting/telescopic steering

wheel lever (if so equipped) (P.3-20)

14. Steering wheel

— Horn (P.2-39)
— Driver supplemental air bag
(P.1-42)

15. Steering-wheel-mounted controls

(right side)
— Cruise control switches (P.5-36)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-38)
— Lane Departure Prevention (LDP)
switch (if so equipped) (P.5-19)

16. Center-console-mounted controls

— Heated seat switches (P.2-40)
— Rear seat power return switches
(if so equipped) (P.1-4)
— SNOW mode switch (P.2-42)

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(83,1)

Model: 2017MY INFINITI QX50(J50) OM17E00J50U0 ]

SSI0624

Side ventilator (P.4-52)

Meters and gauges (P.2-6)

Center ventilator (P.4-52)

Center display (P.4-3)

Clock (P.2-43)

Hazard warning flasher switch (P.6-2)

Center multi-function control panel
— N a v i g a t i o n s y s t e m * ( i f s o
equipped)
— Vehicle information and setting
buttons (P.4-9)
— Bluetooth

Hands-Free Phone Sys-

tem (with navigation system) (P.4-98)
— Bluetooth

Hands-Free Phone Sys-

tem (without navigation system)
(P.4-109)
— Around View

Monitor (if so

equipped) (P.4-30)
— RearView Monitor (if so equipped)
(P.4-23)

Front passenger supplemental air bag
(P.1-42)

Fuse box cover (P.8-18)

10. Parking brake (P.5-18)

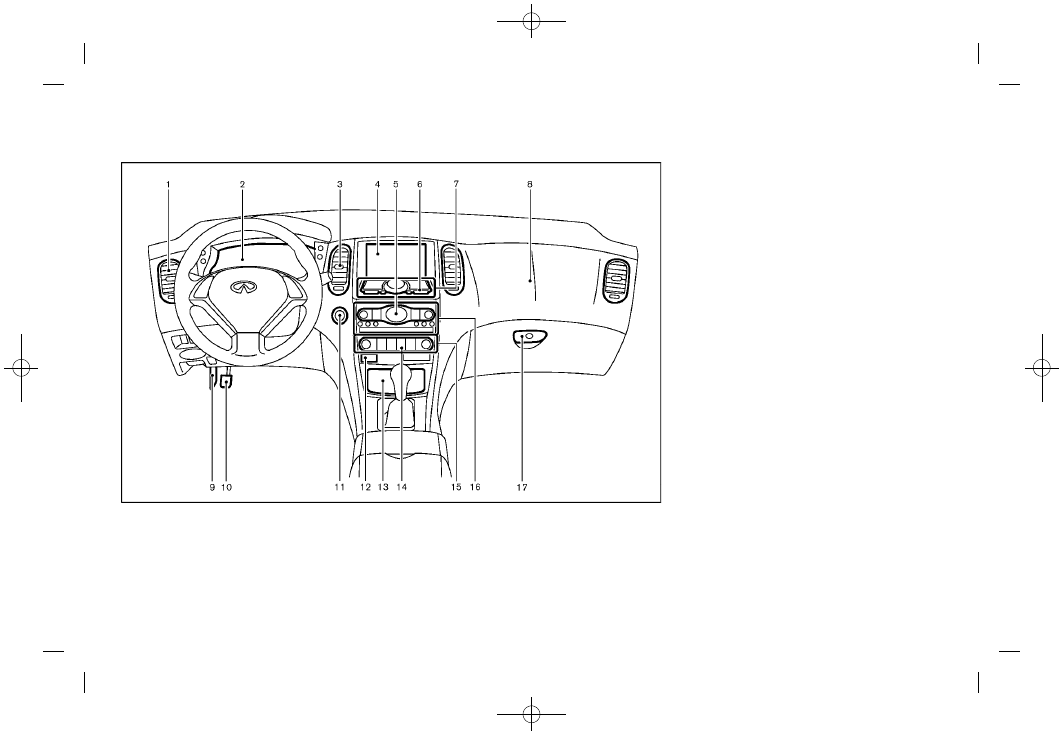

11. Push-button ignition switch (P.5-9)
12. Front passenger air bag status light

(P.1-47)

13. Power outlet (P.2-44)
14. Rear window defroster switch (P.2-33)
15. Automatic climate control system

(P.4-53)

16. Audio system (P.4-61)
17. Glove box lid release handle (P.2-46)

*: Refer to the separate Navigation System
Owner’s Manual.

Instruments and controls

2-5

INSTRUMENT PANEL

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(84,1)

Model: 2017MY INFINITI QX50(J50) OM17E00J50U0 ]

2-6

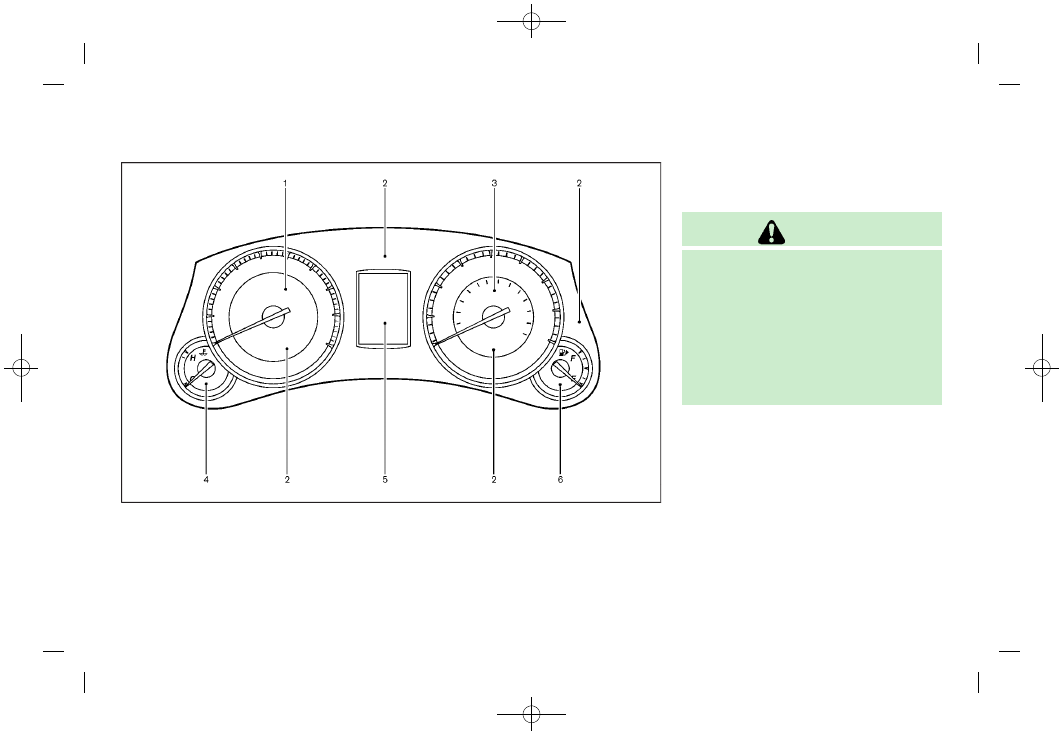

Instruments and controls

SIC4694

Tachometer (P.2-8)

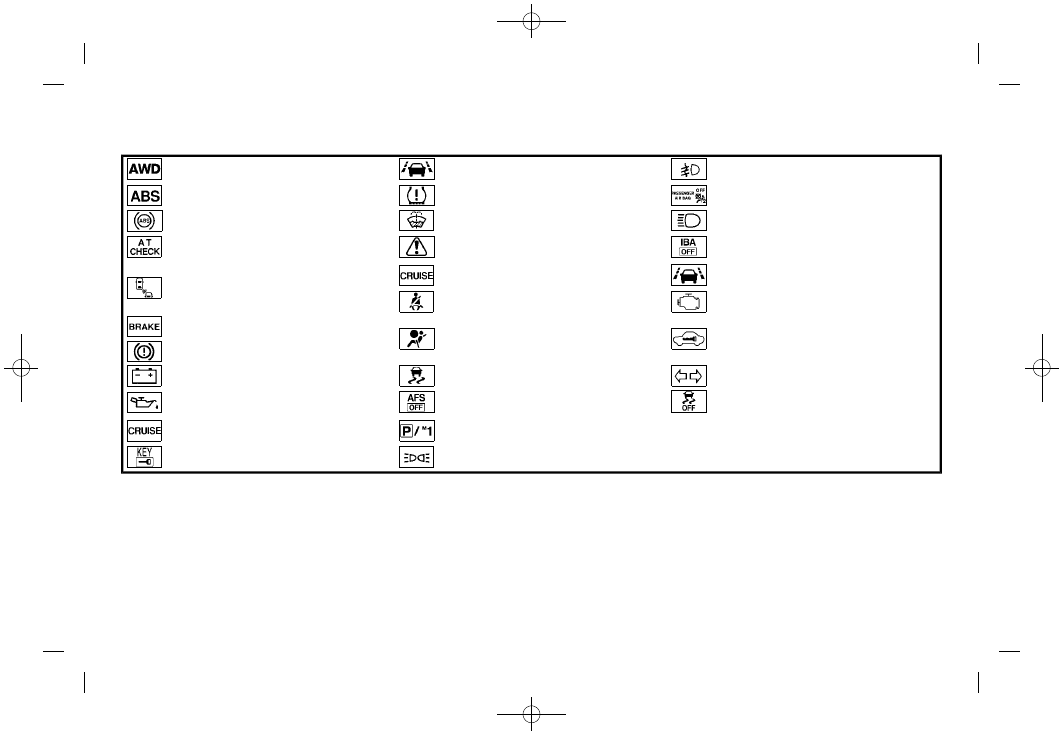

Warning/Indicator lights (P.2-10)

Speedometer (P.2-7)

Engine coolant temperature gauge
(P.2-8)

Vehicle information display (P.2-20)/
Odometer/twin trip odometer (P.2-7)

Fuel gauge (P.2-9)

*: The needle indicators in the speed-
ometer, tachometer, engine coolant tem-
perature gauge and fuel gauge may move

slightly after the ignition switch is pushed
to the OFF position. This is not a malfunc-
tion.

CAUTION

For cleaning, use a soft cloth, dampened
with water. Never use a rough cloth,
alcohol, benzine, thinner or any kind of
solvent or paper towel with a chemical
cleaning agent. They will scratch or
cause discoloration to the lens.

Do not spray any liquid such as water on
the meter lens. Spraying liquid may
cause the system to malfunction.

METERS AND GAUGES

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(85,1)

Model: 2017MY INFINITI QX50(J50) OM17E00J50U0 ]

SIC4695

Speedometer

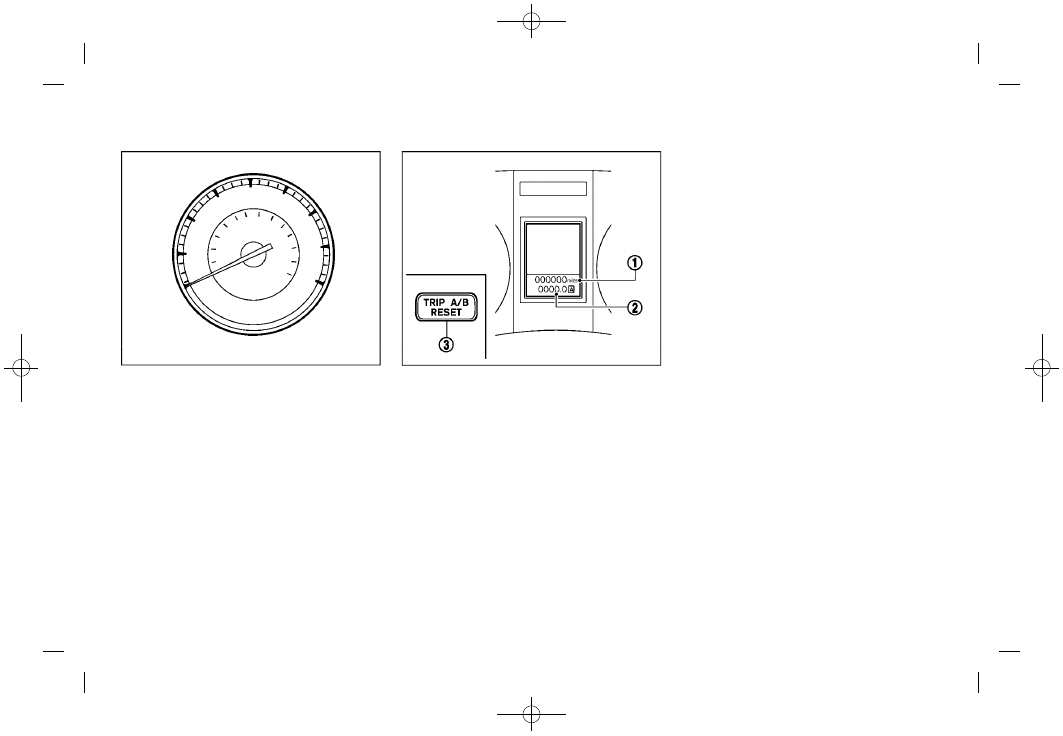

SPEEDOMETER AND ODOMETER
Speedometer

The speedometer indicates vehicle speed
in miles per hour (MPH) and kilometers per
hour (km/h).

JVI0971X

Odometer/twin trip odometer

Odometer/twin trip odometer

The odometer

and twin trip odometer

are displayed on the vehicle informa-

tion display when the ignition switch is in
the ON position.
The odometer records the total distance
the vehicle has been driven.
The twin trip odometer records the dis-
tance of individual trips.

Changing the display:
Pushing the TRIP A/B RESET switch

the bottom left of the combination meter
panel changes the display as follows:
TRIP A ? TRIP B ? TRIP A
Resetting the trip odometer:
Pushing the TRIP A/B RESET switch

for

more than 1 second resets the trip
odometer to zero.
Average fuel economy and distance to
empty information is also available. (See
“Vehicle information display” (P.2-20) and
“How to use STATUS button” (P.4-9).)

Instruments and controls

2-7

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(86,1)

Model: 2017MY INFINITI QX50(J50) OM17E00J50U0 ]

2-8

Instruments and controls

JVI0513X

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (RPM). Do not rev
the engine into the red zone

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce engine
speed. Operating the engine in the red zone
may cause serious engine damage.

SIC4697

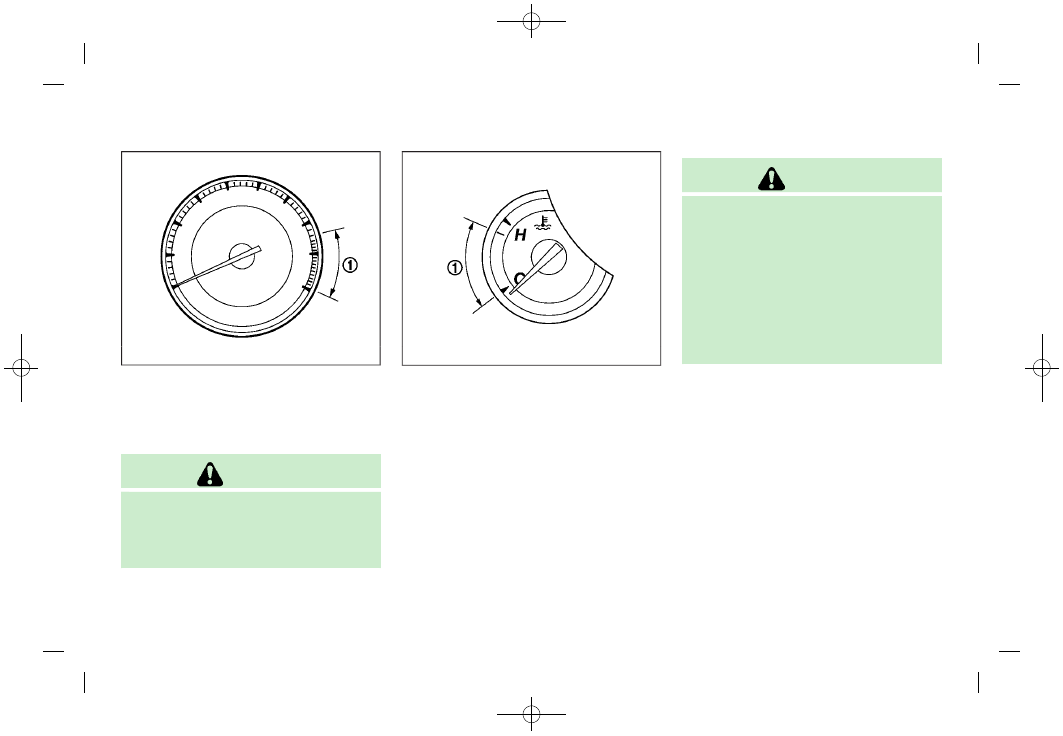

ENGINE COOLANT TEMPERATURE

GAUGE

The gauge indicates the engine coolant
temperature.
The engine coolant temperature is within
the normal range when the gauge needle
points within the zone

shown in the

illustration.
The engine coolant temperature varies with
the outside air temperature and driving
conditions.

CAUTION

If the gauge indicates engine coolant
temperature near the hot (H) end of the
normal range, reduce vehicle speed to
decrease temperature. If gauge is over the
normal range, stop the vehicle as soon as
safely possible. If the engine is overheated,
continued operation of the vehicle may
seriously damage the engine. See “If your
vehicle overheats” (P.6-10) for immediate
action required.

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(87,1)

Model: 2017MY INFINITI QX50(J50) OM17E00J50U0 ]

SIC4698

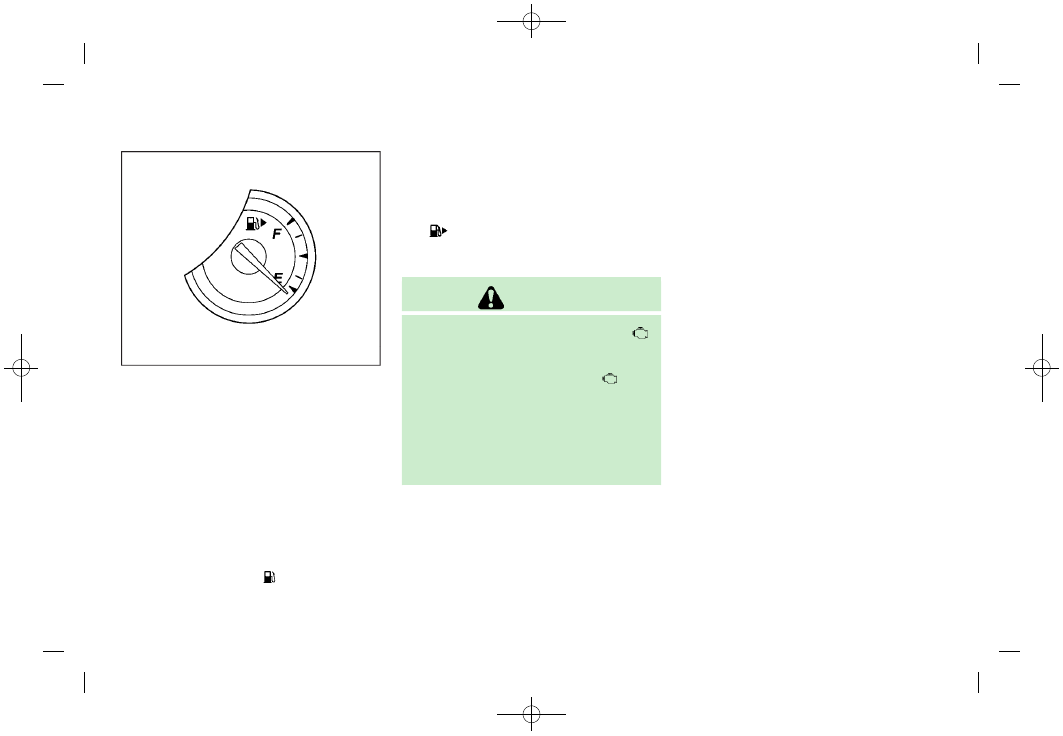

FUEL GAUGE

The gauge indicates the approximate fuel
level in the tank.
The gauge may move slightly during
braking, turning, acceleration, or going up
or down hills.
The gauge needle returns to E (Empty) after
the ignition switch is pushed to the OFF
position.
Refill the fuel tank before the gauge
registers “E” (Empty).
The low fuel warning

appears on the

vehicle information display when the fuel
tank is getting low. Refuel as soon as it is

convenient, preferably before the gauge
reaches “E”. There will be a small reserve
of fuel in the tank when the fuel gauge
needle reaches “E”.
The

indicates that the fuel-filler door is

located on the passenger’s side of the
vehicle.

CAUTION

If the vehicle runs out of fuel, the
malfunction indicator light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the

light

should turn off. If the light remains on
after a few driving trips, have the vehicle
inspected. It is recommended you visit
an INFINITI retailer for this service.

For additional information, see “Mal-
function Indicator Light (MIL)” (P.2-18).

Instruments and controls

2-9

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(88,1)

Model: 2017MY INFINITI QX50(J50) OM17E00J50U0 ]

2-10

Instruments and controls

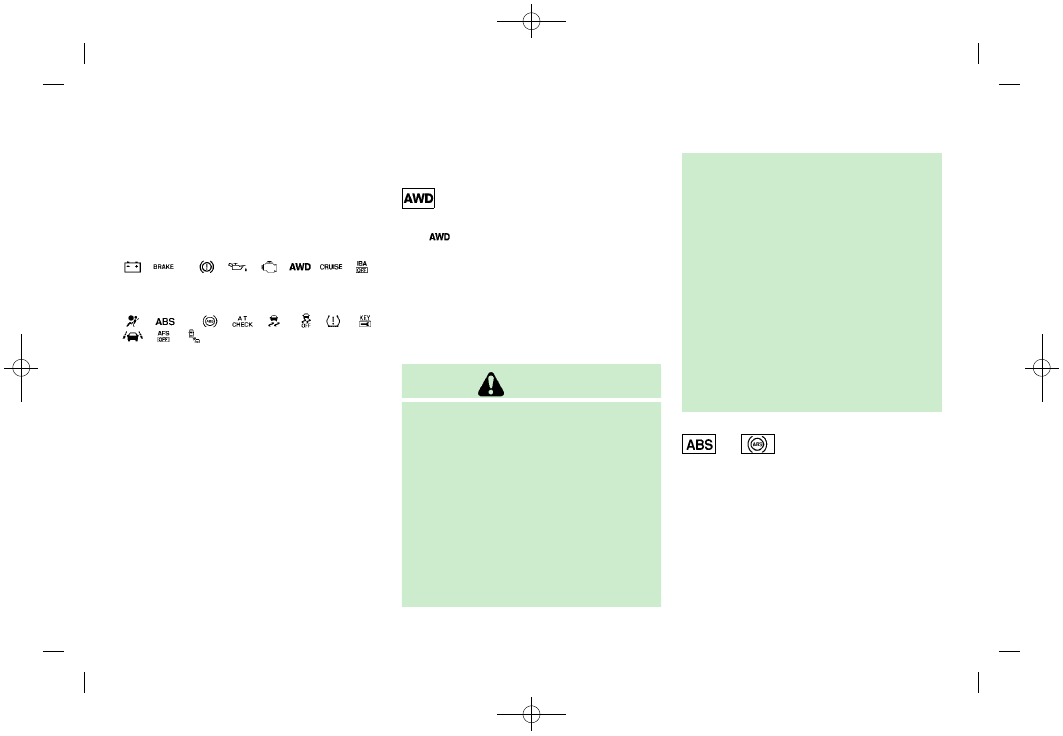

All-Wheel Drive (AWD) warning light (AWD

models)

Lane Departure Warning (LDW) indicator

light (orange) (if so equipped)

Front fog light indicator light

Anti-lock Braking System (ABS) warning

light

Low tire pressure warning light

Front passenger air bag status light

Low washer fluid warning light

High beam indicator light

Automatic transmission check warning light

Master warning light

Intelligent Brake Assist (IBA) off indicator

light (if so equipped)

Blind Spot Warning (BSW) system warning

light (if so equipped)

Preview Function warning light (orange) (if

so equipped)

Lane Departure Warning (LDW) indicator

light (green) (if so equipped)

Seat belt warning light

Malfunction Indicator Light (MIL)

Brake warning light

Supplemental air bag warning light

Security indicator light

Charge warning light

Vehicle Dynamic Control (VDC) warning light

Turn signal/hazard indicator lights

Engine oil pressure warning light

Adaptive Front lighting System (AFS) indi-

cator light (if so equipped)

Vehicle Dynamic Control (VDC) off indicator

light

Intelligent Cruise Control (ICC) system

warning light (orange) (if so equipped)

Automatic transmission position indicator

light

Intelligent Key warning light

Exterior light indicator

WARNING LIGHTS, INDICATOR LIGHTS AND

AUDIBLE REMINDERS

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(89,1)

Model: 2017MY INFINITI QX50(J50) OM17E00J50U0 ]

CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if
so equipped) will come on:

The following lights (if so equipped) will
come on briefly and then go off:

If any light does not come on or operates in
a way other than described, it may indicate
a burned-out bulb and/or a system mal-
function. It is recommended you have the
system checked by an INFINITI retailer.
Some indicators and warnings are also
displayed on the vehicle information dis-
play between the speedometer and tach-
ometer. (See “Vehicle information display”
(P.2-20).)

WARNING LIGHTS

All-Wheel Drive (AWD) warning

light (AWD models)

The

warning light comes on when the

ignition switch is pushed to ON. It turns off
soon after the engine is started.
If the AWD system malfunctions, or the
diameter of the front and the rear wheels
are different, the warning light will either
remain illuminated or blink. (See “All-
Wheel Drive (AWD)” (P.5-74).)

CAUTION

If the warning light comes on while
driving there may be a malfunction in the
AWD system. Reduce the vehicle speed
and have your vehicle checked as soon
as possible. It is recommended you visit
an INFINITI retailer for this service.

If the AWD warning light blinks on when
you are driving:

— blinks rapidly (about twice a sec-

ond):
Pull off the road in a safe area, and
idle the engine. The driving mode will

change to 2WD to prevent the AWD
system from malfunctioning. If the
warning light turns off, you can drive
again.

— blinks slowly (about once every 2

seconds):
Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure is
correct and tires are not worn.

If the warning light is still on after the
above operations, have your vehicle
checked. It is recommended you visit
an INFINITI retailer for this service as
soon as possible.

Anti-lock Braking

System (ABS) warning light

When the ignition switch is in the ON
position, the Anti-lock Braking System
(ABS) warning light illuminates and then
turns off. This indicates the ABS is opera-
tional.
If the ABS warning light illuminates while
the engine is running, or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked. It is

Instruments and controls

2-11

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(90,1)

Model: 2017MY INFINITI QX50(J50) OM17E00J50U0 ]

2-12

Instruments and controls

recommended you visit an INFINITI retailer
for this service.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally, but without anti-
lock assistance. (See “Brake system” (P.5-
80).)

Automatic transmission check

warning light

When the ignition switch is pushed to the
ON position, the light comes on for 2
seconds. If the light comes on at any other
time, it may indicate the transmission is
not functioning properly. It is recom-
mended you visit an INFINITI retailer to
check and repair the transmission.

Blind Spot Warning (BSW)

system warning light (if so

equipped)

If the light comes on and remains on, it
may indicate that the BSW system is not
functioning properly. Although the vehicle
is still driveable, have the system checked.
It is recommended you visit an INFINITI
retailer for this service. See “Blind Spot
Warning (BSW)” (P.5-27).

Brake warning light

This light functions for both the parking
brake and the foot brake systems.
Parking brake indicator:
When the ignition switch is in the ON
position, the light comes on when the
parking brake is applied.
Low brake fluid warning light:
When the ignition switch is in the ON
position, the light warns of a low brake
fluid level. If the light comes on while the
engine is running with the parking brake
not applied, stop the vehicle and perform
the following:
1. Check the brake fluid level. Add brake

fluid as necessary. (See “Brake fluid”
(P.8-9).)

2. If the brake fluid level is correct, have

the warning system checked. It is
recommended you visit an INFINITI
retailer for this service.

Anti-lock Braking System (ABS) warning
indicator:
When the parking brake is released and
the brake fluid level is sufficient, if both the
brake warning light and the Anti-lock

Braking System (ABS) warning light illumi-
nate, it may indicate the ABS is not
functioning properly. Have the brake sys-
tem checked, and if necessary repaired. It
is recommended you visit an INFINITI
retailer for this service. (See “Anti-lock
Braking System (ABS) warning light” (P.2-
11).)

WARNING

Your brake system may not be working
properly if the warning light is on.
Driving could be dangerous. If you judge
it to be safe, drive carefully to the
nearest service station for repairs.
Otherwise, have your vehicle towed
because driving it could be dangerous.

Pressing the brake pedal with the engine
stopped and/or low brake fluid level may
increase your stopping distance and
braking will require greater pedal effort
as well as pedal travel.

If the brake fluid level is below the
minimum or MIN mark on the brake fluid
reservoir, do not drive until the brake
system has been checked. It is recom-
mended you visit an INFINITI retailer for

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Q60/G Coupe (2017 year). Manual - part 5
