4-24
Monitor, climate, audio, phone and voice recognition systems
.
Do not put anything on the RearView
camera. The rearview camera is installed
above the license plate.
.
When washing the vehicle with high-
pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing water
condensation on the lens, a malfunction,
fire or an electric shock.
.
Do not strike the camera. It is a precision
instrument. Otherwise, it may malfunc-
tion or cause damage resulting in a fire
or an electric shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the cover.
SAA1896

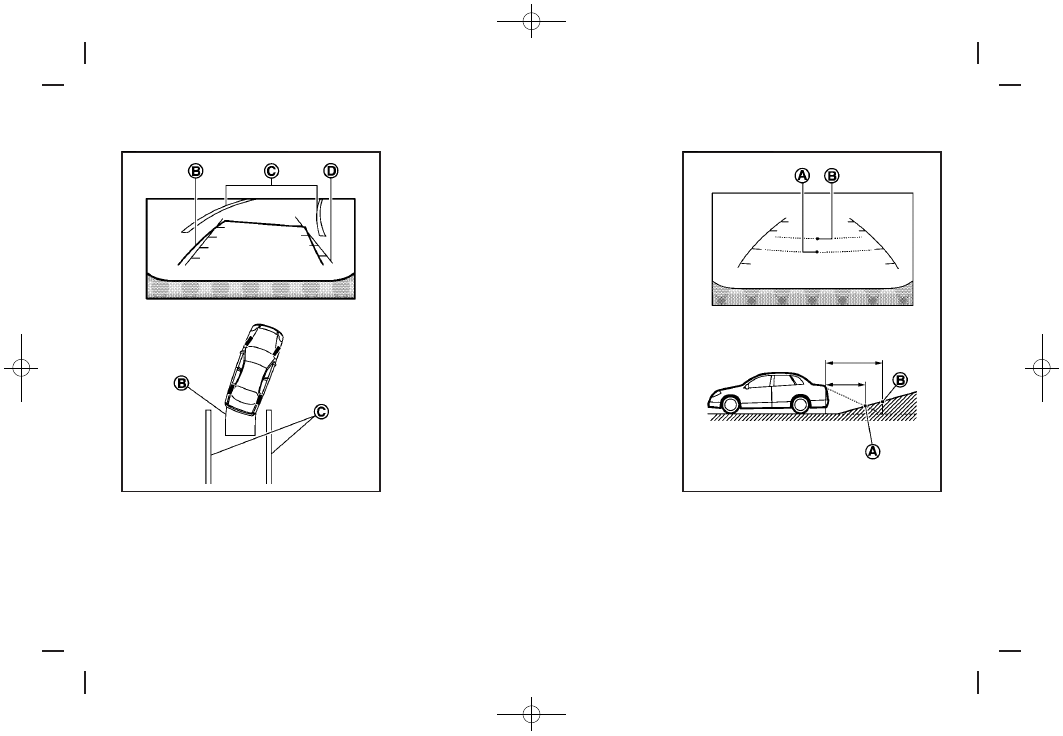

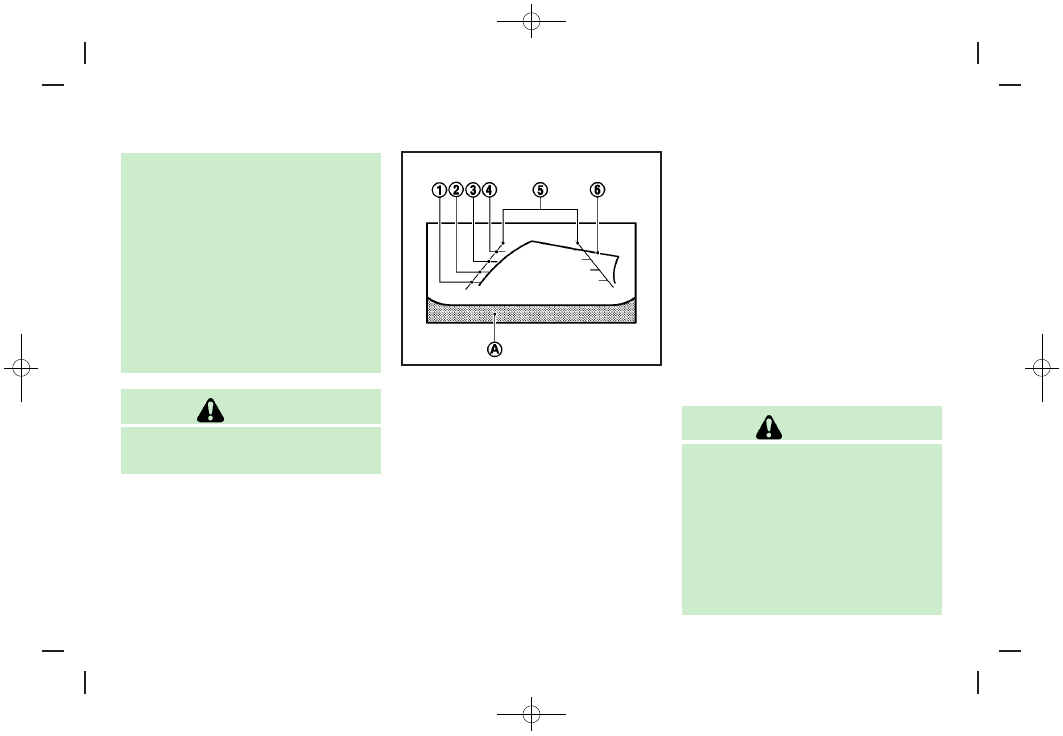

HOW TO READ DISPLAYED LINES
Guiding lines which indicate the vehicle
width and distances to objects with re-
ference to the bumper line
*
A
are dis-
played on the monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*
1
: approx. 1.5 ft (0.5 m)
. Yellow line
*
2
: approx. 3 ft (1 m)
. Green line
*
3
: approx. 7 ft (2 m)
. Green line
*
4
: approx. 10 ft (3 m)
Vehicle width guide lines
*
5
:
Indicate the vehicle width when backing
up.

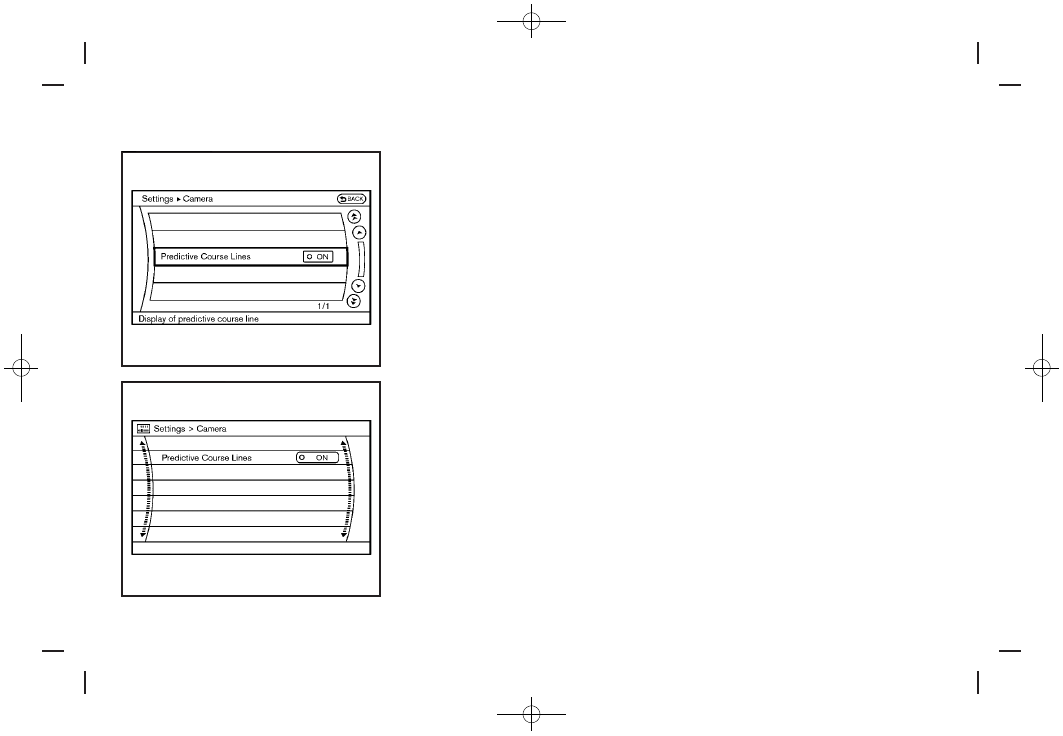

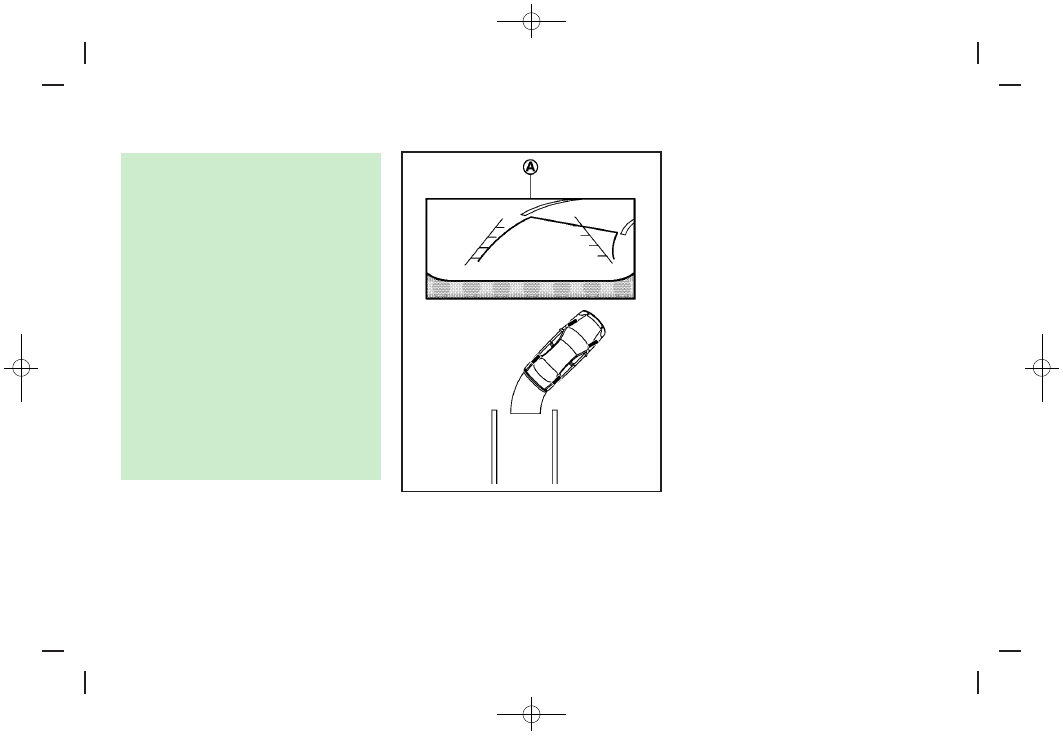

Predictive course lines
*
6
:
Indicate the predictive course when back-
ing up. The predictive course lines will be
displayed on the monitor when the selec-
tor/shift lever is in the “R” (Reverse)
position and the steering wheel is turned.
The predictive course lines will move
depending on how much the steering
wheel is turned and will not be displayed
while the steering wheel is in the neutral
position.
The vehicle width guide lines and the width
of the predictive course lines are wider
than the actual width and course.
WARNING
.
Always turn and check that it is safe to
park your car before backing up. Always
back up slowly.
.
If the tires are replaced with different
sized tires, the predictive course line
may not be displayed correctly.
.
On a snow-covered or slippery road,
there may be a difference between the
predictive course line and the actual
course line.

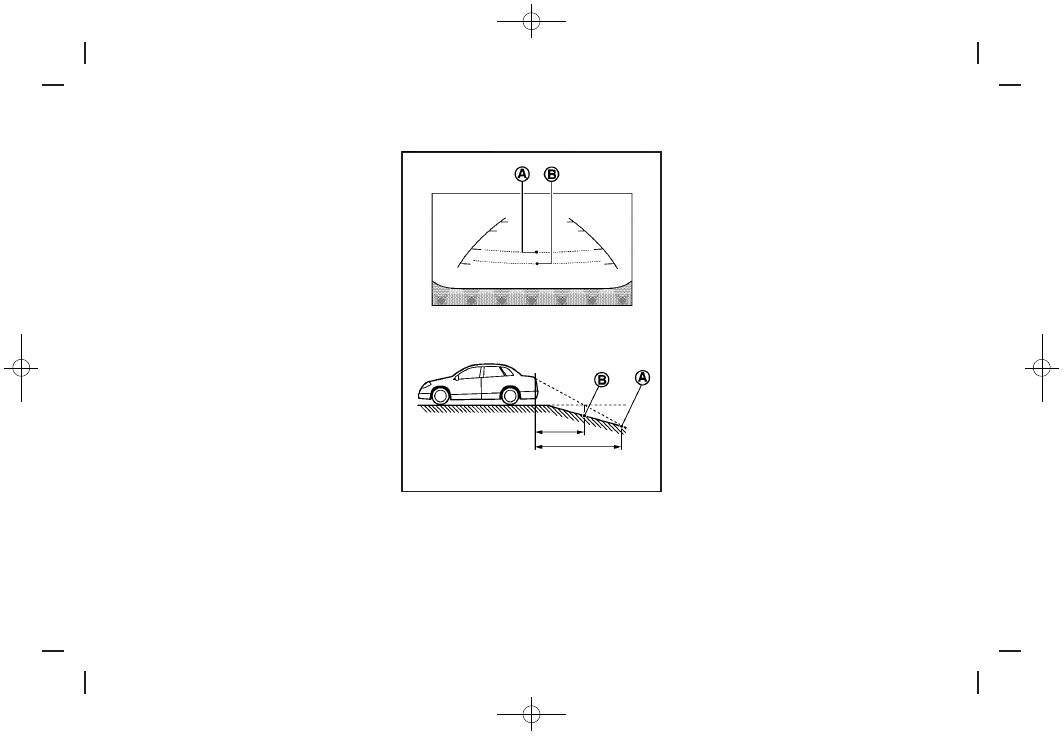

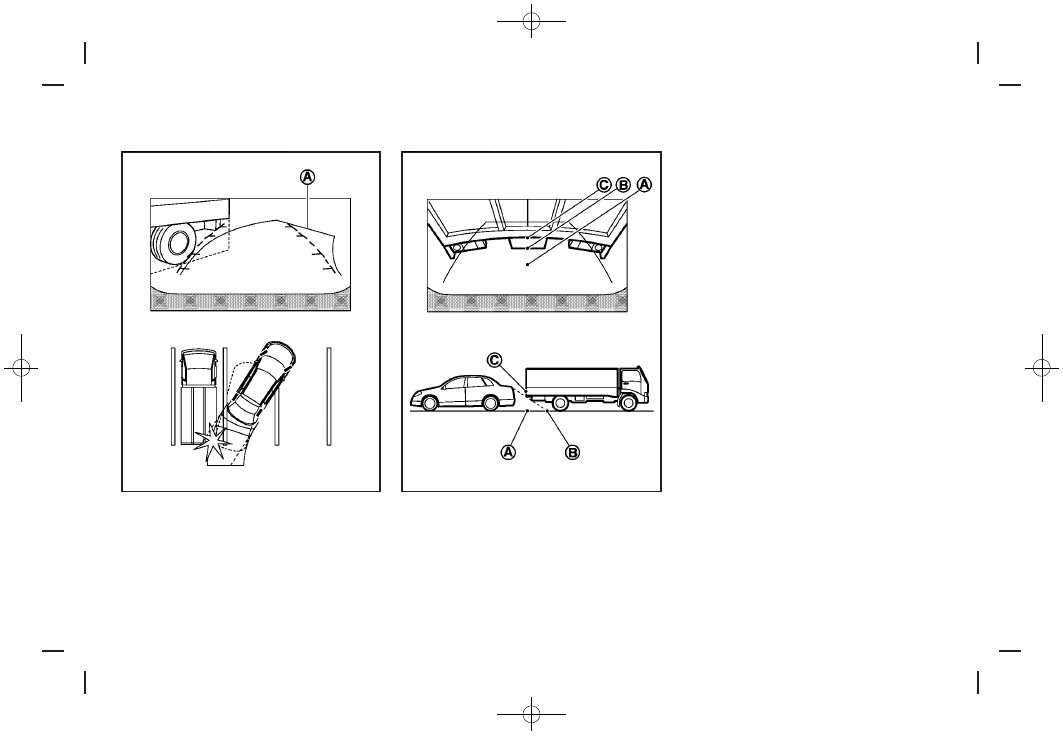

Condition:
