2-58

Instruments and controls

SIC2064

Type A

SIC3869

Type B

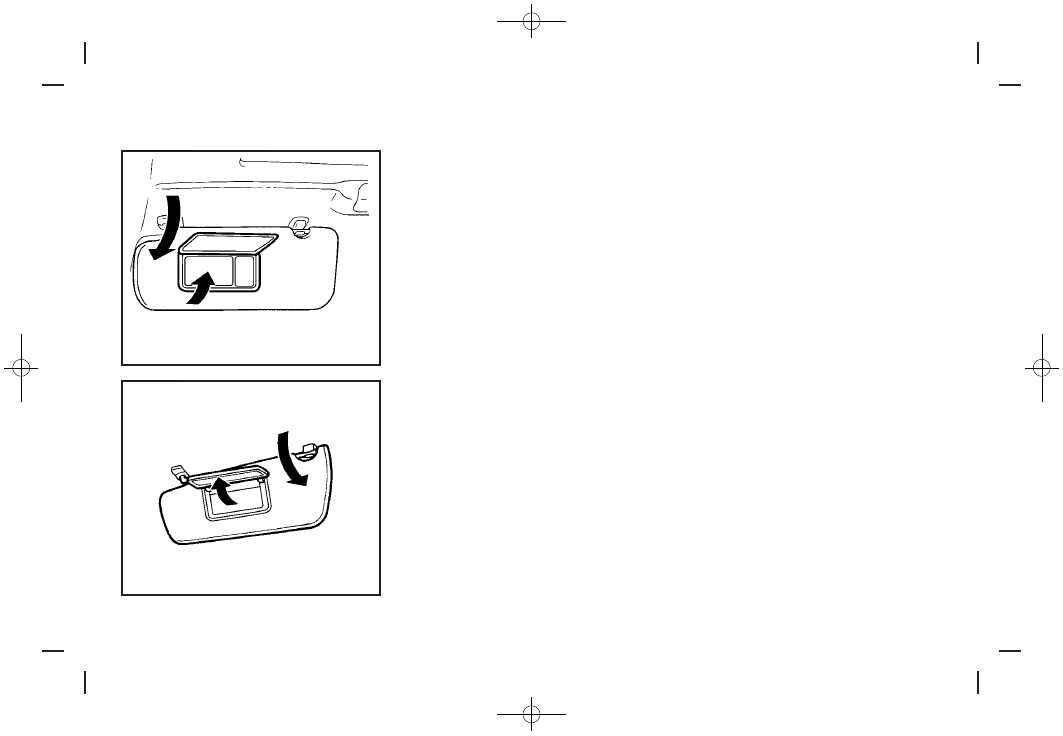

The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.

When the cover is closed, the light will turn
off.

The lights will also turn off after a period
of time when the lights remain illuminated
to prevent the battery from becoming
discharged.

The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the
light will turn off.

The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.

VANITY MIRROR LIGHTS

TRUNK LIGHT

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Black plate (137,1)

[ Edit: 2012/ 7/ 6 Model: V36-D ]

The HomeLink

Universal Transceiver pro-

vides a convenient way to consolidate the
functions of up to three individual hand-
held transmitters into one built-in device.

HomeLink

Universal Transceiver:

. Will operate most Radio Frequency (RF)

devices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.

. Is powered by your vehicle’s battery. No

separate batteries are required. If the
vehicle’s battery is discharged or is
disconnected, HomeLink

will retain all

programming.

When the HomeLink

Universal Transcei-

ver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases).
Upon sale of the vehicle, the programmed
HomeLink

Universal Transceiver buttons

should be erased for security purposes.
For additional information, refer to “Pro-
gramming HomeLink

” (P.2-59).

WARNING

Do not use the HomeLink

Universal

Transceiver with any garage door opener
that lacks safety stop and reverse

features as required by federal safety
standards. (These standards became
effective for opener models manufac-
tured after April 1, 1982). A garage door
opener which cannot detect an object in
the path of a closing garage door and
then automatically stop and reverse,
does not meet current federal safety
standards. Using a garage door opener
without these features increases the risk
of serious injury or death.

During the programming procedure your
garage door or security gate will open
and close (if the transmitter is within
range). Make sure that people or objects
are clear of the garage door, gate, etc.
that you are programming.

Your vehicle’s engine should be turned
off while programming the HomeLink

Universal Transceiver. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause
unconsciousness or death.

PROGRAMMING HomeLink

If you have any questions or are having
difficulty programming your HomeLink

buttons, refer to the HomeLink

web site

at: www.homelink.com or call 1-800-355-
3515.

NOTE:

It is also recommended that a new battery
be placed in the hand-held transmitter of
t h e d e v i c e b e i n g p ro g r a m m e d t o
HomeLink

for quicker programming and

accurate transmission of the radio-fre-
quency.

1. Position the end of your hand-held

transmitter 1 - 3 in (26 - 76 mm) away
from the HomeLink

surface, keeping

the HomeLink

indicator light

view.

Instruments and controls

2-59

HomeLink

UNIVERSAL TRANSCEIVER (if so

equipped)

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Black plate (138,1)

[ Edit: 2012/ 7/ 6 Model: V36-D ]

2-60

Instruments and controls

JVI0428X

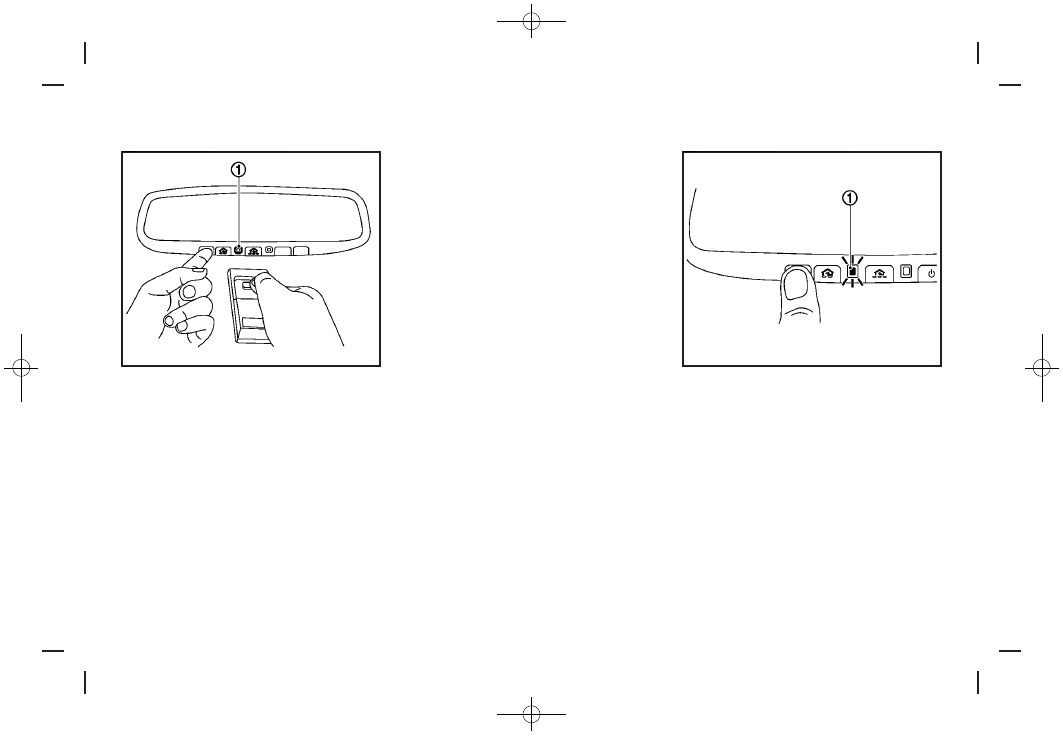

2. Using both hands, simultaneously

press and hold the desired HomeLink

button and handheld transmitter but-
ton. DO NOT release until the
HomeLink

indicator light

flashes

slowly and then rapidly. When the
indicator light flashes rapidly, both
buttons may be released. (The rapid
flashing indicates successful program-
ming.)

NOTE:
Some devices to be programmed may
require you to replace Step 2 with the
cycling procedure noted in the “Pro-
gramming HomeLink

for Canadian

customers and gate openers” (P.2-61).

JVI0429X

3. Press and hold the programmed

HomeLink

button and observe the

indicator light.

If the indicator light

is solid/

continuous, programming is com-
plete and your device should acti-
vate when the HomeLink

button is

pressed and released.

If the indicator light

blinks

rapidly for two seconds and then
turns to a solid/continuous light,
continue with Steps 4-6 for a rolling
code device. A second person may
make the following steps easier. Use
a ladder or other device. Do not

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Black plate (139,1)

[ Edit: 2012/ 7/ 6 Model: V36-D ]

stand on your vehicle to perform the
next steps.

4. At the receiver located on the garage

door opener motor in the garage, locate
the “learn” or “smart” button (the
name and color of the button may vary
by manufacturer but it is usually
located near where the hanging anten-
na wire is attached to the unit). If there
is difficulty locating the button, refer-
ence the garage door opener’s manual.

5. Press and release the “learn” or

“smart” button.

NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.

6. Return to the vehicle and firmly press

and hold the programmed HomeLink

button for two seconds and release.
Repeat the “press/hold/release” se-
quence up to 3 times to complete the
programming process. HomeLink

should now activate your rolling code
equipped device.

7. If you have any questions or are having

d i f f i c u l t y

p r o g r a m m i n g

y o u r

HomeLink

buttons, refer to the

H o m e L i n k

w e b s i t e a t : w w w .

homelink.com or call 1-800-355-3515.

PROGRAMMING HomeLink

FOR

CANADIAN CUSTOMERS AND GATE
OPENERS

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink

to pick up the signal during

programming. Similar to this Canadian
law, some U.S. gate operators are de-
signed to “time-out” in the same manner.

If you live in Canada or you are having
difficulties programming a gate operator or
garage door opener by using the “Pro-
gramming HomeLink

” procedures, re-

place “Programming HomeLink

” Step 2

with the following:

NOTE:

When programming a garage door opener,
etc., unplug the device during the “cy-
cling” process to prevent possible damage
to the garage door opener components.

Step 2: Using both hands, simultaneously
press and hold the desired HomeLink

button and the hand-held transmitter

button. During programming, your hand-
held transmitter may automatically stop
transmitting. Continue to press and hold
the desired HomeLink

button while you

press and re-press (“cycle”) your hand-
held transmitter every two seconds until
the frequency signal has been learned. The
HomeLink

indicator light will flash slowly

and then rapidly after several seconds
upon successful programming. DO NOT
release until the HomeLink

indicator light

flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. The rapid flashing
indicates successful programming.

Proceed with “Programming HomeLink

”

step 3 to complete.

Remember to plug the device back in when
programming is completed.

OPERATING THE HomeLink

UNI-

VERSAL TRANSCEIVER

The HomeLink

Universal Transceiver, after

it is programmed, can be used to activate
the programmed device. To operate, simply
press and release the appropriate pro-
grammed HomeLink

Universal Transceiver

button. The amber indicator light will
illuminate while the signal is being trans-

Instruments and controls

2-61

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Black plate (140,1)

[ Edit: 2012/ 7/ 6 Model: V36-D ]

2-62

Instruments and controls

mitted.

For convenience, the hand-held transmitter
of the device may also be used at any time.

PROGRAMMING TROUBLESHOOT-
ING

If the HomeLink

does not quickly learn

the hand-held transmitter information:

. replace the hand-held transmitter bat-

teries with new batteries.

. position the hand-held transmitter with

its battery area facing away from the
HomeLink

surface.

. press and hold both the HomeLink

and hand-held transmitter buttons
without interruption.

. position the hand-held transmitter 1 - 3

in (26 - 76 mm) away from the
HomeLink

surface. Hold the transmit-

ter in that position for up to 15
seconds. If HomeLink

is not pro-

grammed within that time, try holding
the transmitter in another position -
keeping the indicator light in view at all
times.

If you have any questions or are having
difficulty programming your HomeLink

buttons, refer to the HomeLink

web site

at: www.homelink.com or 1-800-355-3515.

CLEARING THE PROGRAMMED IN-
FORMATION

The following procedure clears the pro-
grammed information from both buttons.
Individual buttons cannot be cleared.
However, individual buttons can be repro-
grammed, see “Reprogramming a single
HomeLink

button” (P.2-62).

To clear all programming

1. P r e s s a n d h o l d t h e t w o o u t e r

HomeLink

buttons until the indicator

light begins to flash in approximately
10 seconds. Do not hold for longer than
20 seconds.

2. Release both buttons.

HomeLink

is now in the programming

mode and can be programmed at any time
beginning with “Programming HomeLink

”

- Step 1.

REPROGRAMMING A SINGLE
HomeLink

BUTTON

To reprogram a HomeLink

Universal

Transceiver button, complete the following.

1. Press and hold the desired HomeLink

button. Do not release the button.

2. The indicator light will begin to flash

after 20 seconds. Without releasing the
HomeLink

button, proceed with “Pro-

gramming HomeLink

” - Step 1.

For questions or comments, contact
HomeLink

at: www.homelink.com or 1-

800-355-3515.

The HomeLink

Universal Transceiver but-

ton has now been reprogrammed. The new
device can be activated by pushing the
HomeLink

button that was just pro-

grammed. This procedure will not affect
any other programmed HomeLink

but-

tons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change
the codes of any non-rolling code device
t h a t h a s

b e e n

p r o g r a m m e d i n t o

HomeLink

. Consult the Owner’s Manual

of each device or call the manufacturer or
retailer of those devices for additional
information.

When your vehicle is recovered, you will
need to reprogram the HomeLink

Uni-

versal Transceiver with your new transmit-
ter information.

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Black plate (144,1)

[ Edit: 2012/ 7/ 6 Model: V36-D ]

3-2

Pre-driving checks and adjustments

A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in
the vehicle. If you lose your keys, see an
INFINITI retailer for duplicates by using the
key number. INFINITI does not record any
key numbers so it is very important to keep
track of your key number plate.

A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, this
key can be duplicated by an INFINITI
retailer.

SPA2222

Intelligent Keys (2 sets)

Mechanical keys (inside the Keys) (2
sets)

Key number plate (1 set)

INTELLIGENT KEY

Your vehicle can only be driven with the
Intelligent Keys which are registered to
your vehicle’s Intelligent Key system com-
ponents and INFINITI Vehicle Immobilizer
System components. As many as 4 Intelli-
gent Keys can be registered and used with
one vehicle. The new keys must be
registered by an INFINITI retailer prior to
use with the Intelligent Key system and

INFINITI Vehicle Immobilizer System of your
vehicle. Since the registration process
requires erasing all memory in the Intelli-
gent Key components when registering
new keys, be sure to take all Intelligent
Keys that you have to the INFINITI retailer.

It is possible that the Intelligent Key
functions become canceled. Contact an
INFINITI retailer.

CAUTION

Be sure to carry the Intelligent Key with
you when driving. The Intelligent Key is a
precision device with a built-in transmit-
ter. To avoid damaging it, please note
the following.

— The Intelligent Key is water resis-

tant; however, wetting may damage
the Intelligent Key. If the Intelligent
Key gets wet, immediately wipe until
it is completely dry.

— Do not bend, drop or strike it

against another object.

— If the outside temperature is below

148F (−108C) degrees, the battery of
the Intelligent Key may not function
properly.

KEYS

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Black plate (145,1)

[ Edit: 2012/ 7/ 6 Model: V36-D ]

— Do not place the Intelligent Key for

an extended period in a place where
temperatures exceed 1408F (608C).

— Do not change or modify the In-

telligent Key.

— Do not use a magnet key holder.

— Do not place the Intelligent Key near

an electric appliance such as a
television set or personal computer.

— Do not allow the Intelligent Key to

come into contact with water or salt
water, and do not wash it in a
washing machine. This could affect
the system function.

If an Intelligent Key is lost or stolen,
INFINITI recommends erasing the ID code
of that Intelligent Key. This will prevent
the Intelligent Key from unauthorized
use to unlock the vehicle. For informa-
tion regarding the erasing procedure,
please contact an INFINITI retailer.

SPA2033

Mechanical key

To remove the mechanical key, release the
lock knob at the back of the Intelligent Key.

To install the mechanical key, firmly insert
it into the Intelligent Key until the lock
knob returns to the lock position.

Use the mechanical key to lock or unlock
the doors, glove box and trunk pass-
through lid, if they are equipped with a
key cylinder.

See “Doors” (P.3-4) and “Trunk lid” (P.3-
18), “Storage” (P.2-44) and “Seats” (P.1-2).

CAUTION

Always carry the mechanical key installed in
the key.

VALET HAND-OFF

When you have to leave a key with a valet,
give them the Intelligent Key itself and
keep the mechanical key with you to
protect your belongings.

To prevent the glove box and the trunk
from being opened during valet hand-off,
follow the procedures below.

1. Push the trunk release power cancel

switch to the CANCEL side.

2. Remove the mechanical key from the

Intelligent Key.

3. Lock the glove box and the trunk pass-

through (for Sedan) with the mechan-
ical key.

4. Hand the Intelligent Key to the valet,

keeping the mechanical key in your
pocket or bag for insertion into the
Intelligent Key when you retrieve your
vehicle.

See “Trunk lid” (P.3-18), “Storage” (P.2-44)

Pre-driving checks and adjustments

3-3

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Black plate (146,1)

[ Edit: 2012/ 7/ 6 Model: V36-D ]

3-4

Pre-driving checks and adjustments

and “Seats” (P.1-2).

WARNING

Always have the doors locked while
driving. Along with the use of seat belts,
this provides greater safety in the event
of an accident by helping to prevent
persons from being thrown from the
vehicle. This also helps keep children
and others from unintentionally opening
the doors, and will help keep out
intruders.

Before opening any door, always look for
and avoid oncoming traffic.

Do not leave children unattended inside
the vehicle. They could unknowingly
activate switches or controls. Unat-
tended children could become involved
in serious accidents.

SPA2527

LOCKING WITH MECHANICAL KEY

The power door lock system allows you to
lock or unlock all doors simultaneously
using the mechanical key.

. Turning the driver’s door key cylinder to

the front of the vehicle

will lock all

doors.

. Turning the driver’s door key cylinder

once to the rear of the vehicle

will

unlock the driver’s door. After returning
the key to the neutral position

turning it to the rear again within 60
seconds will unlock all doors.

DOORS

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Black plate (147,1)

[ Edit: 2012/ 7/ 6 Model: V36-D ]

. You can switch the lock system to the

mode that allows you to open all the
doors when the key is turned once.
(See “How to use SETTING button” (P.4-
14).)

OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY

The driver’s door key operation also allows
you to open and close the window that is
equipped with the automatic open/close
function. (See “Power windows” (P.2-51)).

To open the window, turn the driver’s door
key cylinder to the rear of the vehicle for
longer than 1 second. The door is unlocked
and the window keeps opening while
turning the key.

This function can also be performed by
pushing and holding the door UNLOCK
button of the Intelligent Key. (See “Remote
keyless entry system” (P.3-14).)

To close the window, turn the driver’s door
key cylinder to the front of the vehicle for
longer than 1 second. The door is locked
and the window keeps closing while turn-
ing the key.

SPA1814

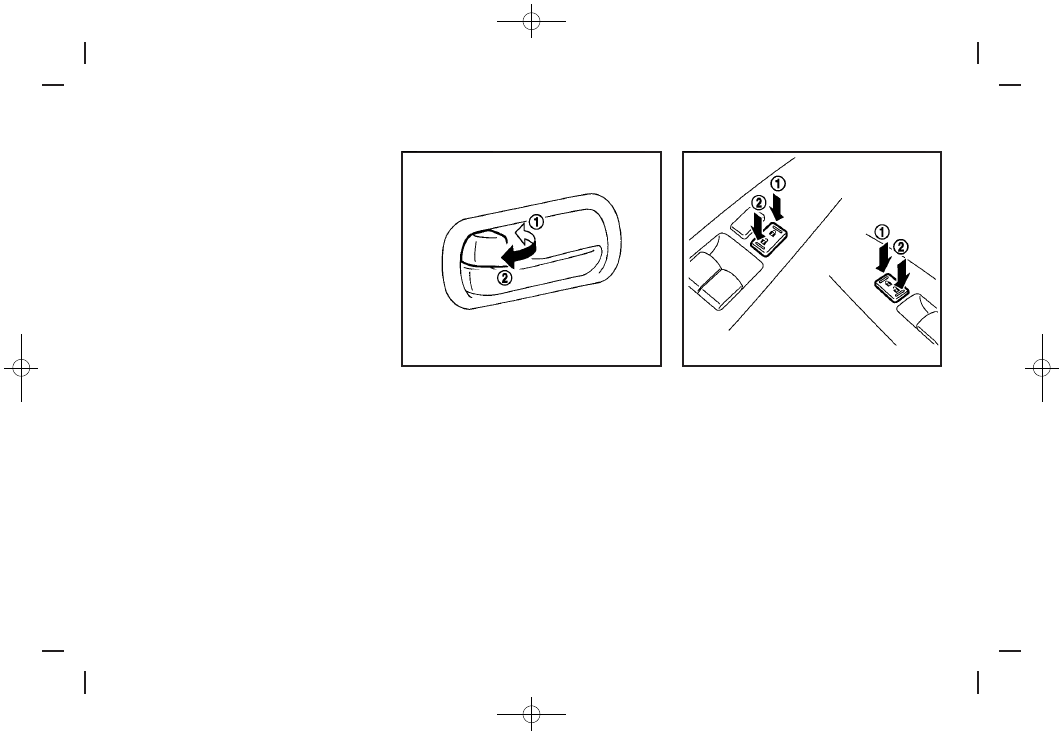

LOCKING WITH INSIDE LOCK KNOB

To lock the door individually, move the
inside lock knob to the lock position

then close the door.

To unlock, move the inside lock knob to the
unlock position

When locking the door without an Intelli-
gent Key, be sure not to leave the
Intelligent Key inside the vehicle.

SPA2300

LOCKING WITH POWER DOOR LOCK
SWITCH

Operating the power door lock switch will
lock or unlock all the doors. The switches
are located on the driver’s and front
passenger’s door armrests.

To lock the doors, push the power door
lock switch to the lock position

with the

driver’s or front passenger’s door open,
then close the door.

When locking the door this way, be certain
not to leave the Intelligent Key inside the
vehicle.

To unlock the doors including the fuel-filler

Pre-driving checks and adjustments

3-5

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Black plate (148,1)

[ Edit: 2012/ 7/ 6 Model: V36-D ]

3-6

Pre-driving checks and adjustments

door, push the power door lock switch to
the unlock position

Lockout protection

When the power door lock switch (driver or
front passenger) is moved to the lock
position with the Intelligent Key in the port
and any door open, all doors will lock and
unlock automatically. With the Intelligent
Key left in the vehicle (not in the Intelligent
Key port) and any door open, all doors will
unlock automatically and a chime will
sound after the door is closed.

These functions help to prevent the In-
telligent Key from being accidentally
locked inside the vehicle.

AUTOMATIC DOOR LOCKS

. All doors lock automatically when the

vehicle speed reaches 15 MPH (24
km/h).

. All doors unlock automatically when the

ignition switch is placed in the OFF
position.

The automatic unlock function can be
deactivated or activated. To deactivate or
activate the automatic door unlock system,
perform the following procedure:

1. Close all doors.

2. Place the ignition switch in the ON

position.

3. Within 20 seconds of performing Step

2, push and hold the power door lock
switch to the

position (UNLOCK) for

more than 5 seconds.

4. When activated, the hazard indicator

will flash twice. When deactivated, the
hazard indicator will flash once.

5. The ignition switch must be placed in

the OFF and ON position again between
each setting change.

When the automatic door unlock system is
deactivated, the doors do not unlock when
the ignition switch is placed in the OFF
position. To unlock the door manually, use
the inside lock knob or the power door lock
switch (driver’s or front passenger’s side).

SPA2470

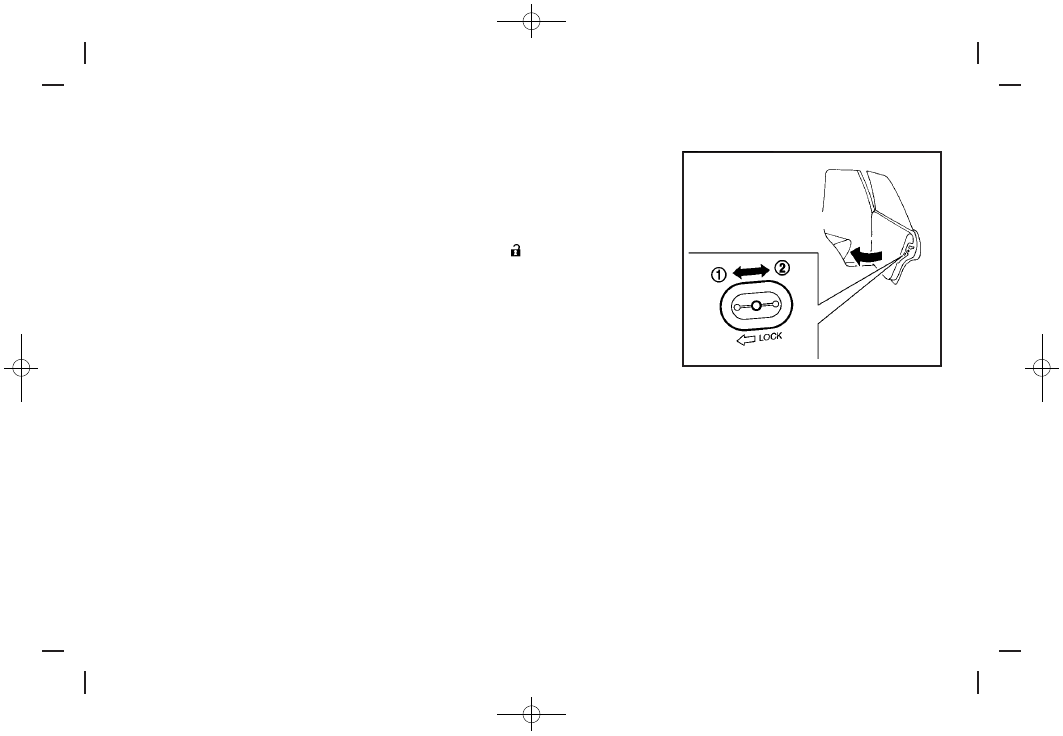

CHILD SAFETY REAR DOOR LOCK
(Sedan)

The child safety rear door lock helps
prevent doors from being opened acciden-
tally, especially when small children are in
the vehicle.

When the levers are in the lock position

, the rear doors can be opened only

from the outside.

To disengage, move the levers to the
unlock position

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Black plate (149,1)

[ Edit: 2012/ 7/ 6 Model: V36-D ]

WARNING

Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufacturer
for the possible influences before use.

The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
during a flight.

The Intelligent Key system can operate all
the doors and the trunk lid using the
remote controller function or pushing the
request switch on the vehicle without
taking the key out from a pocket or purse.
The operating environment and/or condi-
tions may affect the Intelligent Key system
operation.

Be sure to read the following before using
the Intelligent Key system.

CAUTION

Be sure to carry the Intelligent Key with
you when operating the vehicle.

Never leave the Intelligent Key in the
vehicle when you leave the vehicle.

The Intelligent Key is always communicat-
ing with the vehicle as it receives radio
waves. The Intelligent Key system trans-
mits weak radio waves. Environmental
conditions may interfere with the operation
of the Intelligent Key system under the
following operating conditions.

. When operating near a location where

strong radio waves are transmitted,
such as a TV tower, power station and
broadcasting station.

. When in possession of wireless equip-

ment, such as a cellular telephone,
transceiver, and CB radio.

. When the Intelligent Key is in contact

with or covered by metallic materials.

. When any type of radio wave remote

control is used nearby.

. When the Intelligent Key is placed near

an electric appliance such as a perso-

nal computer.

. When the vehicle is parked near a

parking meter.

In such cases, correct the operating condi-
tions before using the Intelligent Key
function or use the mechanical key.

Although the life of the battery varies
depending on the operating conditions,
the battery’s life is approximately 2 years.
If the battery is discharged, replace it with
a new one.

When the Intelligent Key battery is almost
discharged, insert the Intelligent Key into
the Intelligent Key port to start the engine.
Replace the discharged battery with a new
one as soon as possible. For more details,
see “Push-button ignition switch” (P.5-9).

Since the Intelligent Key is continuously
receiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and
personal computer, the battery life may
become shorter.

For information regarding replacement of a
battery, see “Intelligent Key battery repla-
cement” (P.8-26).

As many as 4 Intelligent Keys can be
registered and used with one vehicle. For

Pre-driving checks and adjustments

3-7

INTELLIGENT KEY SYSTEM

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Black plate (150,1)

[ Edit: 2012/ 7/ 6 Model: V36-D ]

3-8

Pre-driving checks and adjustments

information about the purchase and use of
additional Intelligent Keys, contact an
INFINITI retailer.

CAUTION

Do not allow the Intelligent Key, which
contains electrical components, to come
into contact with water or salt water.
This could affect the system function.

Do not drop the Intelligent Key.

Do not strike the Intelligent Key sharply
against another object.

Do not change or modify the Intelligent
Key.

Wetting may damage the Intelligent Key.
If the Intelligent Key gets wet, immedi-
ately wipe until it is completely dry.

If the outside temperature is below 148F
(−108C) degrees, the battery of the
Intelligent Key may not function prop-
erly.

Do not place the Intelligent Key for an
extended period in an area where
temperatures exceed 1408F (608C).

Do not attach the Intelligent Key with a
key holder that contains a magnet.

Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment
and personal computers.

If an Intelligent Key is lost or stolen,
INFINITI recommends erasing the ID code
of that Intelligent Key from the vehicle. This
may prevent the unauthorized use of the
Intelligent Key to operate the vehicle. For
information regarding the erasing proce-
dure, contact an INFINITI retailer.

SPA2538

INTELLIGENT KEY OPERATING
RANGE

The Intelligent Key functions can only be
used when the Intelligent Key is within the
specified operating range from the request
switch

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Black plate (151,1)

[ Edit: 2012/ 7/ 6 Model: V36-D ]

When the Intelligent Key battery is dis-
charged or strong radio waves are present
near the operating location, the Intelligent
Key system’s operating range becomes
narrower, and the Intelligent Key may not
function properly.

The operating range is within 31.50 in (80
cm) from each request switch

If the Intelligent Key is too close to the door
glass, handle or rear bumper the request
switches may not function.

When the Intelligent Key is within the
operating range, it is possible for anyone
who does not carry the Intelligent Key to
push the request switch to lock/unlock the
doors and open the trunk lid.

SPA2407

DOOR LOCKS/UNLOCKS PRECAU-
TION

. Do not push the door handle request

switch with the Intelligent Key held in
your hand as illustrated. The close
distance to the door handle will cause
the Intelligent Key system to have
difficulty recognizing that the Intelli-
gent Key is outside the vehicle.

. After locking with the door handle

request switch, verify the doors are
securely locked by testing them.

. To prevent the Intelligent Key from

being left inside the vehicle or the

trunk, make sure you carry the key with
you and then lock the doors or the
trunk.

. Do not pull the door handle before

pushing the door handle request
switch. The door will be unlocked but
will not open. Release the door handle
once and pull it again to open the door.

. The Intelligent Key system (opening/

closing doors with the door handle
request switch) can be set to remain
inactive. (See “Vehicle information and
settings” (P.4-9).)

Pre-driving checks and adjustments

3-9

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti G Sedan (2013 year). Manual - part 9
