Infiniti M37 (2011 year). Manual - part 7





How to arm the vehicle security
system

1. Close all windows.

The system can be armed even if the windows
are open.

2. Push the ignition switch to the OFF posi-

tion.

3. Remove the Intelligent Key from the ve-

hicle.

4. Close all doors, hood and trunk. Lock all

doors. The doors can be locked with the
Intelligent

Key,

door

handle

request

switch, power door lock switch or me-
chanical key.

5. Confirm that the security indicator light

comes on. The security indicator light
stays on for about 30 seconds. The ve-
hicle security system is now pre-armed.
After about 30 seconds the vehicle secu-
rity system automatically shifts into the
armed phase. The security light begins to
flash once every approximately 3 sec-
onds. If, during this 30-second pre-arm
time period, the door is unlocked, or the
ignition switch is pushed to ACC or ON,
the system will not arm.

Even when the driver and/or passengers are in
the vehicle, the system will activate with all
doors, hood, and trunk lid locked with the igni-
tion switch in the LOCK position. When pushing
the ignition switch to the ACC or ON position, the
system will be released.

Vehicle security system activation

The vehicle security system will give the follow-
ing alarm:

● The headlights blink and the horn sounds

intermittently.

● The alarm automatically turns off after ap-

proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again.

The alarm is activated by:

● Unlocking the door or opening the trunk lid

without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)

● Opening the hood.

How to stop an activated alarm

The alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key. The alarm will not stop if
the ignition switch is pushed to the ACC or ON
position.

If the system does not operate as described
above, have it checked by an INFINITI retailer.

SIC2045

2-28

Instruments and controls


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INFINITI VEHICLE IMMOBILIZER
SYSTEM

The INFINITI Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key.

Never leave these

keys in the vehicle.

This device complies with Part 15 of FCC Rules
and RSS-Gen of IC Rules. Operation is subject to
the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, in-
cluding interference that may cause undesired
operation of this device.

Security indicator light

The security indicator light is located on the
meter panel. It indicates the status of the
INFINITI Vehicle Immobilizer System.

The light blinks after the ignition switch was in
the LOCK, ACC or OFF position. This function
indicates the security systems equipped on the
vehicle are operational.

If the INFINITI Vehicle Immobilizer System is
malfunctioning, this light will remain on while
the ignition switch is in the ON position.

If the light still remains on and/or the engine will
not start, see an INFINITI retailer for INFINITI Ve-
hicle Immobilizer System service as soon as
possible. Please bring all Intelligent Keys that
you have when visiting an INFINITI retailer for
service.

SIC2045

Instruments and controls

2-29


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

In freezing temperatures the washer solution
may freeze on the windshield and obscure your
vision which may lead to an accident. Warm
windshield with the defroster before you wash
the windshield.

CAUTION

● Do not operate the washer continuously for

more than 30 seconds.

● Do not operate the washer if the reservoir

tank is empty.

● Do not fill the window washer reservoir tank

with washer fluid concentrates at full
strength.

Some

methyl

alcohol

based

washer fluid concentrates may permanently
stain the grille if spilled while filling the win-
dow washer reservoir tank.

● Pre-mix washer fluid concentrates with wa-

ter to the manufacturer’s recommended lev-
els before pouring the fluid into the window
washer reservoir tank. Do not use the win-
dow washer reservoir tank to mix the washer
fluid concentrate and water.

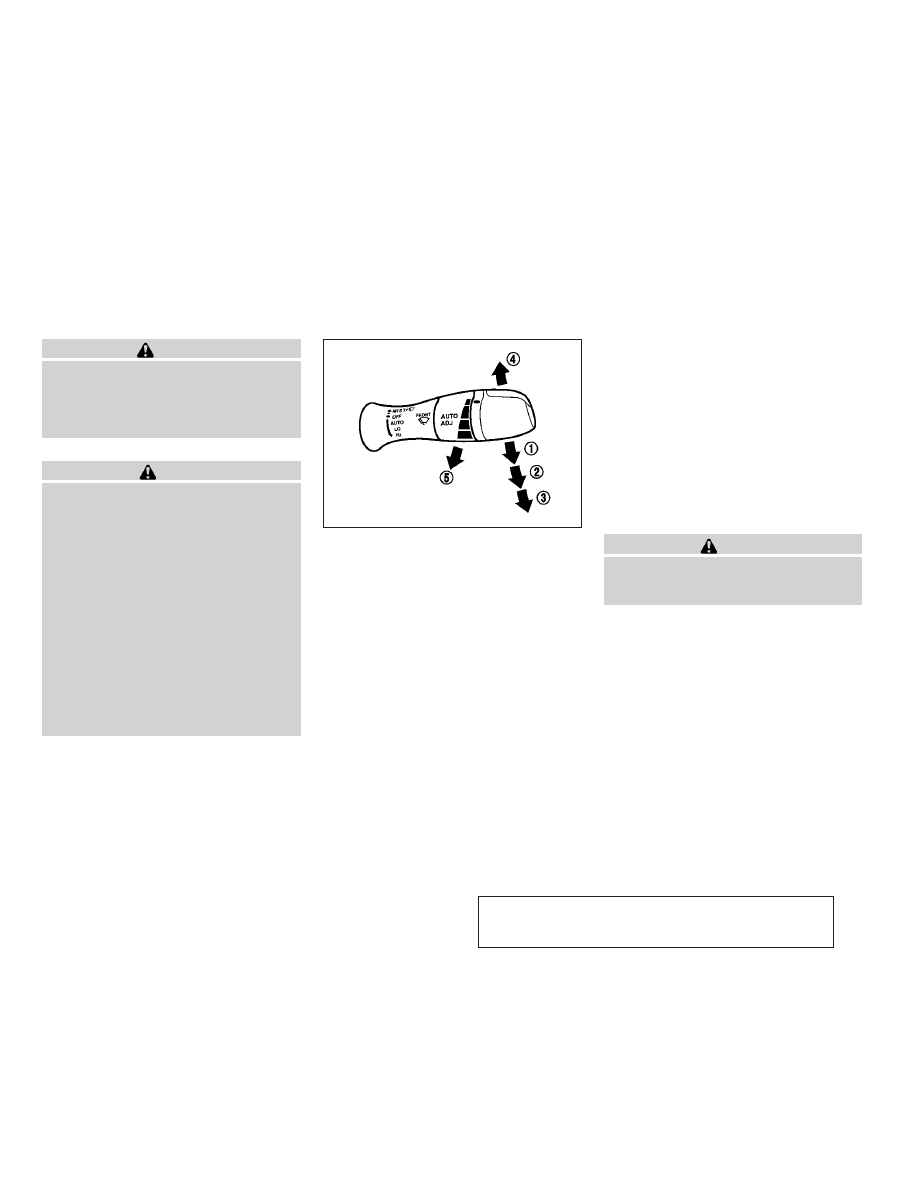

The windshield wiper and washer operates
when the ignition switch is in the ON position.

Push the lever down to operate the wiper at the
following speed:

1

AUTO — operates the rain-sensing auto

wiper system. (See “RAIN-SENSING AUTO
WIPER SYSTEM” later in this section.)

2

LO — continuous low speed operation

3

HI — continuous high speed operation

4

MIST — one sweep operation of the wiper

Pull the lever toward you

5

to operate the

washer. Then the wiper will also operate several
times.

Pulling up the wiper arm:

The wiper arm should be in the up position
when replacing the wiper.

To pull up the wiper arm, push up

4

twice, the

wiper operation stops in mid-operation. The
wiper arm can be pulled up.

The selector lever should be in the P (Park)
position.

To replace the wiper arm, place the wiper arm in
the down position and then push the lever

4

up once.

CAUTION

Do not operate the windshield wiper while the
wiper arm is pulled up. The wiper arm may be
damaged.

Wiper drip wipe system:

The wiper will also operate once about 3 sec-
onds after the washer and wiper are operated.
This operation is to wipe washer fluid that has
dripped on the windshield.

SIC4281

WINDSHIELD WIPER AND WASHER SWITCH

2-30

Instruments and controls


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

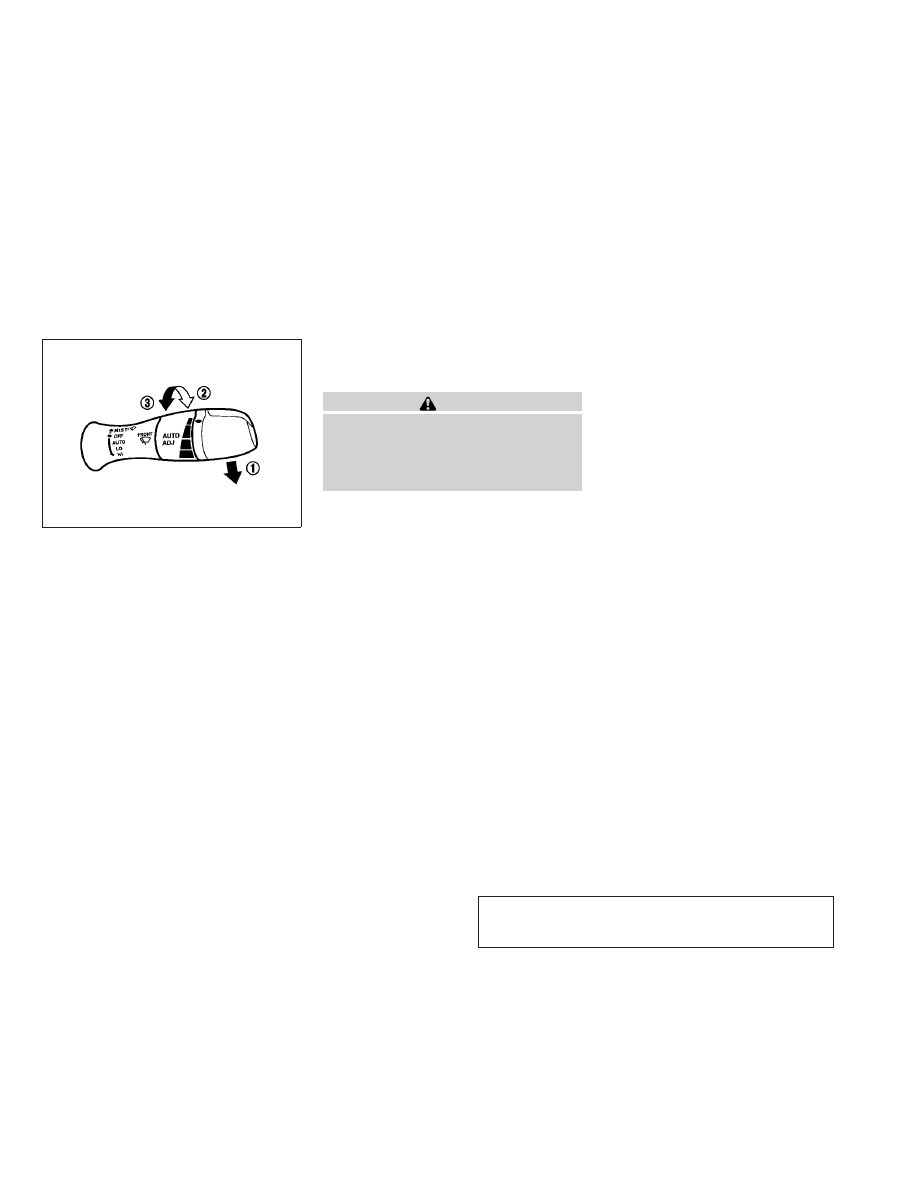

RAIN-SENSING AUTO WIPER SYSTEM

The rain-sensing auto wiper system can auto-
matically turn on the wipers and adjust the
wiper speed depending on the rainfall and the
vehicle speed by using the rain sensor located
on the upper part of the windshield.

To set the rain-sensing auto wiper system, push
the lever down to the AUTO position

1

. The

wiper will sweep once while the ignition switch
is in the ON position.

The rain sensor sensitivity level can be adjusted
by turning the knob toward the front

2

(High)

or toward the rear

3

(Low).

● High — High sensitive operation
● Low — Low sensitive operation

To turn the rain-sensing auto wiper system off,
push up the lever to the OFF position, or pull
down the lever to the LO or HI position.

CAUTION

Do not touch the rain sensor and around it when
the wiper switch is in the AUTO position and the
ignition switch is in the ON position. The wipers
may operate unexpectedly and cause to an in-
jury or a wiper damage.

● The rain-sensing auto wipers are intended for

use during rain. If the switch is left in the
AUTO position, the wipers may operate unex-
pectedly when dirt, fingerprints, oil film or
insects are stuck on or around the sensor.
The wipers may also operate when exhaust
gas or moisture affect the rain sensor.

● The rain-sensing auto wipers may not oper-

ate if rain does not hit the rain sensor even if
it is raining.

● When the windshield glass is coated with

water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is small.

● Be sure to turn off the rain-sensing auto wiper

system when you use a car wash.

● Using genuine wiper blades is recommended

for proper operation of the rain-sensing auto
wiper system. (See “WINDSHIELD WIPER
BLADES” in the “8. Maintenance and do-it-
yourself” section for wiper blade replace-
ment.)

SIC4190

Instruments and controls

2-31


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To defog/defrost the rear window glass and
outside mirrors, start the engine and push the
switch

1

on. The indicator light

2

will come

on. Push the switch again to turn the defroster
off.

It will automatically turn off in approximately 30
minutes.

CAUTION

When cleaning the inner side of the rear win-
dow, be careful not to scratch or damage the
rear window defroster.

XENON HEADLIGHTS

WARNING

HIGH VOLTAGE

● When xenon headlights are on, they produce

a high voltage. To prevent an electric shock,
never attempt to modify or disassemble.
Always have your xenon headlights replaced
at an INFINITI retailer.

● Xenon headlights provide considerably more

light than conventional headlights. If they
are

not

correctly

aimed,

they

might

temporarily blind an oncoming driver or the
driver ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your vehicle to
an INFINITI retailer and have the headlights
adjusted correctly.

When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.

● The life of xenon headlights will be shortened

by frequent on-off operation. It is generally
desirable not to turn off the headlights for
short intervals (for example, when the ve-
hicle stops at a traffic signal). Even when the
daytime running lights are active (Canada
only), the xenon headlights do not turn on.
This way the life of the xenon headlights is
not reduced.

● If the xenon headlight bulb is close to burn-

ing out, the brightness will drastically de-
crease, the light will start blinking, or the
color of the light will become reddish. If one
or more of the above signs appear, contact an
INFINITI retailer.

SIC4330

REAR WINDOW AND OUTSIDE MIRROR
DEFROSTER SWITCH

HEADLIGHT AND TURN SIGNAL SWITCH

2-32

Instruments and controls


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

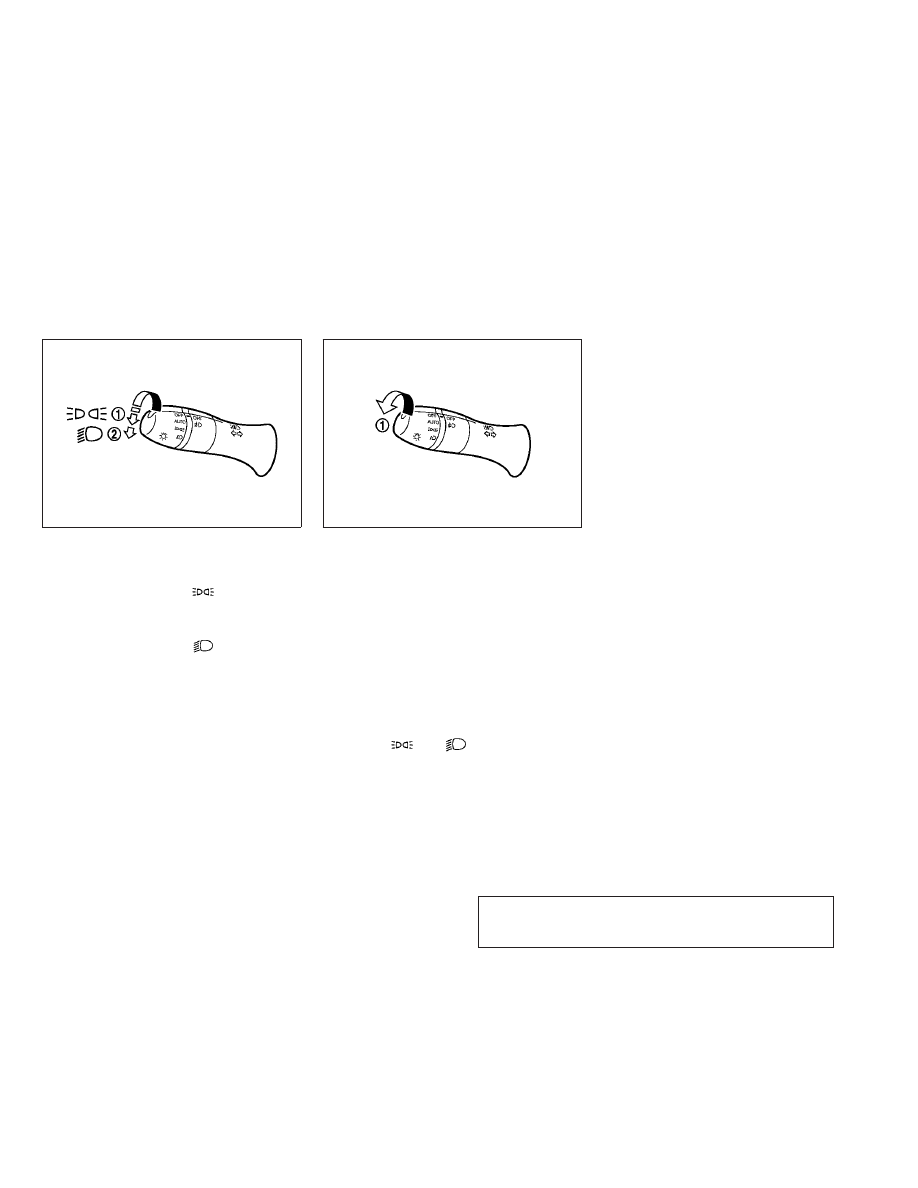

HEADLIGHT SWITCH

Lighting

1

Turn the switch to the

position:

The front park, side marker, tail and license
plate lights will come on.

2

Turn the switch to the

position:

Headlights will come on and all the other
lights remain on.

Autolight system

The autolight system allows the headlights to
be set so they turn on and off automatically.

To set the autolight system:

1. Make sure the headlight switch is in the

AUTO position

1

.

2. Push the ignition switch to the ON posi-

tion.

3. The autolight system automatically turns

the headlights on and off.

To turn the autolight system off, turn the switch

to the OFF,

or

position.

The autolight system can turn on the headlights
automatically when it is dark and turn off the
headlights when it is light.

For US models: The headlights will also be
turned on automatically at twilight or in rainy
weather (when the windshield wiper is operated
continuously).

If the ignition switch is pushed to the OFF
position and one of the doors is opened and
this condition is continued, the headlights re-
main on for 5 minutes.

Automatic headlights off delay :

You can keep the headlights on for up to 180
seconds after you push the ignition switch to
OFF and open any door then close all the doors.

You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF) to 180
seconds. The factory default setting is 45 sec-
onds.

For automatic headlights off delay setting, see
“Light Off Delay” in the “4. Monitor, climate,
audio, phone and voice recognition systems”
section.

SIC3267

SIC3268

Instruments and controls

2-33


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

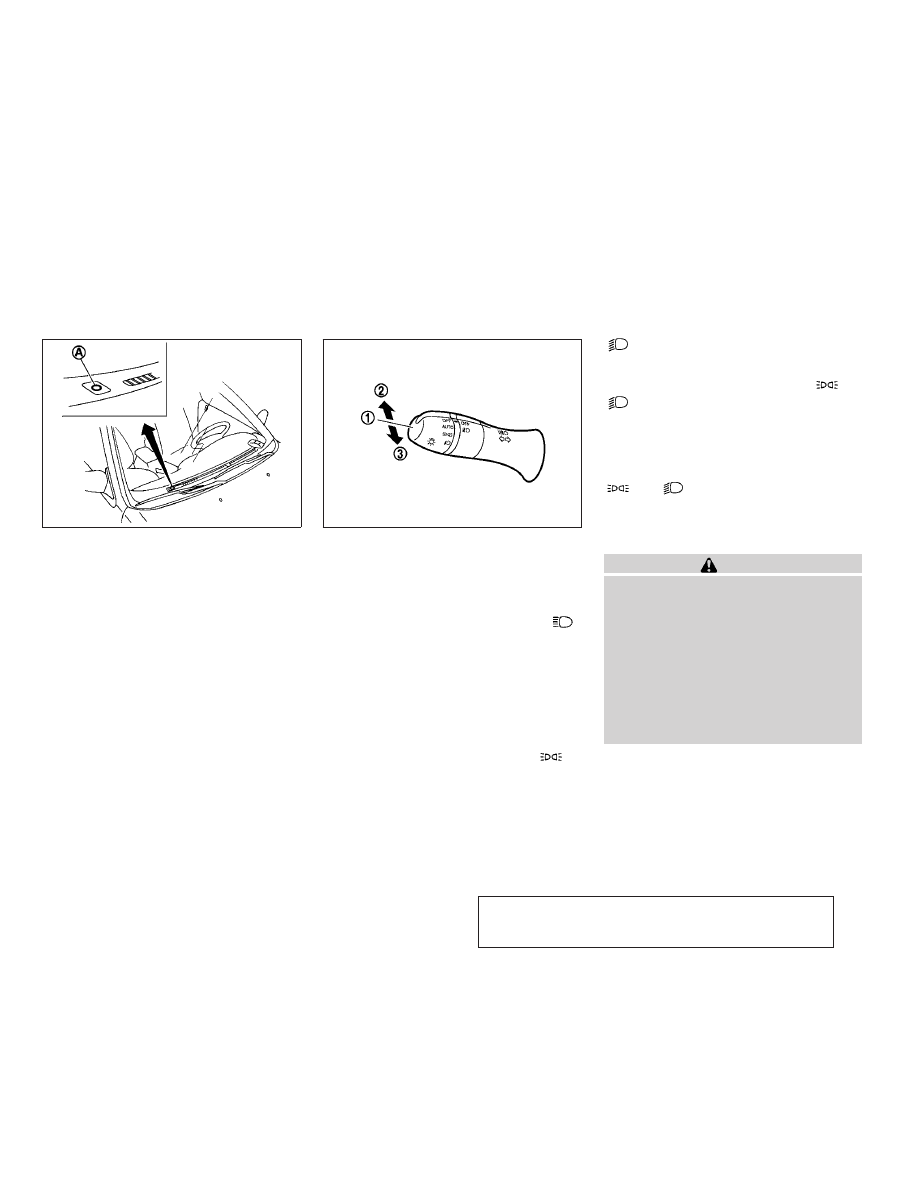

Be sure not to put anything on top of the photo
sensor

A

located on the top of the instrument

panel. The photo sensor controls the autolight;
if it is covered, the photo sensor reacts as if it is
dark and the headlights will illuminate.

Headlight beam select

1

To select the low beam, put the lever in the
neutral position as shown.

2

To select the high beam, push the lever

forward while the switch is in the
position. Pull it back to select the low beam.

3

Pulling the lever toward you will flash the

headlight high beam even when the head-
light switch is in the OFF position.

Battery saver system

A chime will sound when the driver side door is

opened with the light switch in the

or

position and the ignition switch in the

ACC, OFF or LOCK position.

When the headlight switch is in the

or

position while the ignition switch is in

the ON position, the lights will automatically
turn off 5 minutes after the ignition switch has
been pushed to the OFF position.

When the headlight switch remains in the

or

position after the lights auto-

matically turn off, the lights will turn on when
the ignition switch is pushed to the ON posi-
tion.

CAUTION

● When you turn on the headlight switch again

after the lights automatically turn off, the
lights will not turn off automatically. Be sure
to turn the light switch to the OFF position
when you leave the vehicle for extended pe-
riods of time, otherwise the battery will be
discharged.

● Never leave the light switch on when the

engine is not running for extended periods of
time even if the headlights turn off
automatically.

SAA0642A

SIC3269

2-34

Instruments and controls


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Daytime running light system
(Canada only)

The daytime running lights automatically illumi-
nate when the engine is started with the park-
ing brake released. The daytime running lights
operate with the headlight switch in the OFF

position or in the

position. Turn the

headlight switch to the

position for full

illumination when driving at night.

If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illumi-
nate once the parking brake is released. The
daytime running lights will remain on until the
ignition switch is pushed to the OFF position.

Adaptive Front lighting System (AFS)
(if so equipped)

The Adaptive Front lighting System (AFS) will
automatically adjust the headlights (low beam)
toward the turning direction to improve the
driver’s view. When the headlight switch is ON
and the driver operates the steering wheel in a
turn, the AFS system will be activated.

The AFS will operate:

● when the headlight switch is ON.
● when the selector lever is in any position

other than P (Park) or R (Reverse).

● when the vehicle is driven at above 16 MPH

(25 km/h) for the left-side headlight. Note
that the right-side low beam headlight will
swivel but the left side will not swivel when
the vehicle is below 3 MPH (5 km/h) and the
steering wheel is turned. The vehicle must
attain a speed above 16 MPH (25 km/h)
before AFS activates the left-side headlight.

To turn the AFS off, push the AFS switch. (The
AFS OFF indicator light will illuminate.) Push the
switch again to turn the system on again.

AFS will also adjust the headlight to a proper
axis automatically, depending on the number of
occupants in the vehicle, the load the vehicle is
carrying and the road conditions.

If the AFS OFF indicator light blinks after the
ignition switch has been pushed to the ON
position, this may indicate that the AFS is not
functioning properly. Have the system checked
by an INFINITI retailer. When the engine is
started, the headlights will vibrate to check the
system condition. This is not a malfunction.

SIC4333

Instruments and controls

2-35


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

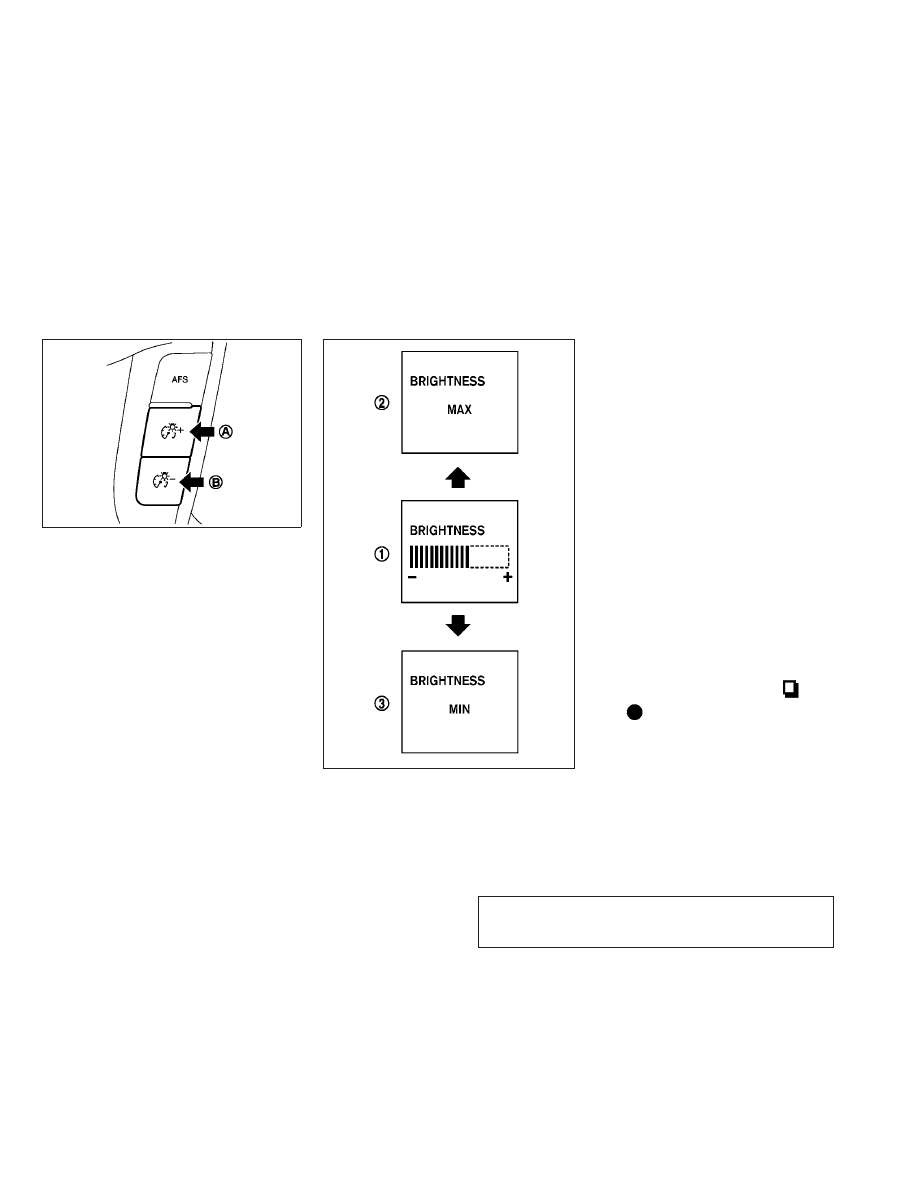

Instrument brightness control

The instrument brightness control switch can be
operated when the ignition switch is in the ON
position. When the switch is operated, the dot
matrix liquid crystal display switches to the
brightness adjustment mode.

Push the upper switch

A

to brighten the

instrument panel lights. The bar

1

moves to

the + side. When reaching the maximum bright-
ness, “MAX” appears on the display

2

.

Push the lower switch

B

to dim the instrument

panel lights. The bar

1

moves to the

⫺ side.

When reaching the minimum brightness, “MIN”
appears on the display

3

. However, “MIN”

does not appear during the nighttime.

The dot matrix liquid crystal display returns to
the normal display under the following condi-
tions:

● when the instrument brightness control

switch is not operated for more than 5
seconds.

● when the side or front of the

switch or

switch on the right side of the com-

bination meter panel is pushed.

SIC4331

SIC3270

2-36

Instruments and controls


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

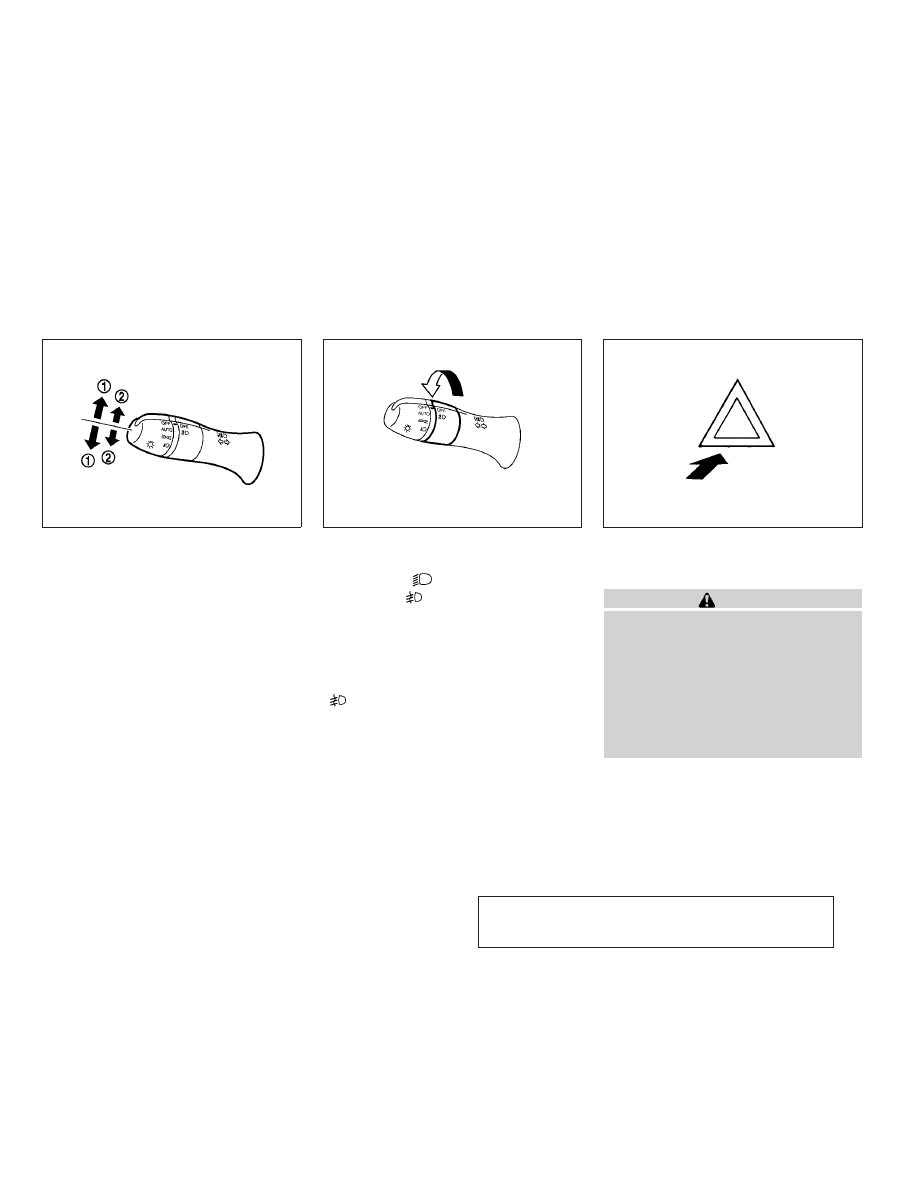

TURN SIGNAL SWITCH

1

Turn signal

Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.

2

Lane change signal

To indicate a lane change, move the lever up or
down to the point where lights begin flashing.

FOG LIGHT SWITCH

To turn the fog lights on, turn the headlight

switch to the

position, then turn the

switch to the

position. To turn them off,

turn the switch to the OFF position.

The headlights must be on for the fog lights to
operate.

When the headlight switch is in the AUTO
position, turning the fog light switch to the

position will turn on the headlights, fog

lights and the other lights while the ignition
switch is in the ON position or the engine is
running.

Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights will flash.

WARNING

● If stopping for an emergency, be sure to

move the vehicle well off the road.

● Do not use the hazard warning flashers while

moving on the highway unless unusual cir-
cumstances force you to drive so slowly that
your vehicle might become a hazard to other
traffic.

● Turn signals do not work when the hazard

warning flasher lights are on.

SIC3271

SIC3272

SIC2574

HAZARD WARNING FLASHER SWITCH

Instruments and controls

2-37


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The flasher can be actuated with the ignition
switch in any position.

When an impact that could activate the supple-
mental air bags is detected, the hazard warning
flasher lights blink automatically. If the hazard
warning flasher switch is pushed, the hazard
warning flashers will turn off.

WARNING

Do not turn the hazard warning flasher switch
to off until you can make sure that it is safe to
do so. Also, the hazard flasher warning may not
blink automatically depending on the force of
impact.

Some state laws may prohibit the use of the
hazard warning flasher switch while driving.

The heated steering wheel system is designed
to operate only when the surface temperature of
the steering wheel is below 68°F (20°C).

Push the heated steering wheel switch to warm
the steering wheel after the engine starts. The
indicator light

1

on the switch will illuminate.

If the surface temperature of the steering wheel
is below 68°F (20°C), the system will heat the
steering wheel and cycle off and on to maintain
a temperature above 68°F (20°C). The indicator
light will remain on as long as the system is on.

Push the switch again to turn the heated steer-
ing wheel system off manually. The indicator
light will turn off.

NOTE:

If the surface temperature of the steering wheel
is above 68°F (20°C) when the switch is turned
on, the system will not heat the steering wheel.
This is not a malfunction.

SIC4401

HEATED STEERING WHEEL (if so equipped)

2-38

Instruments and controls


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

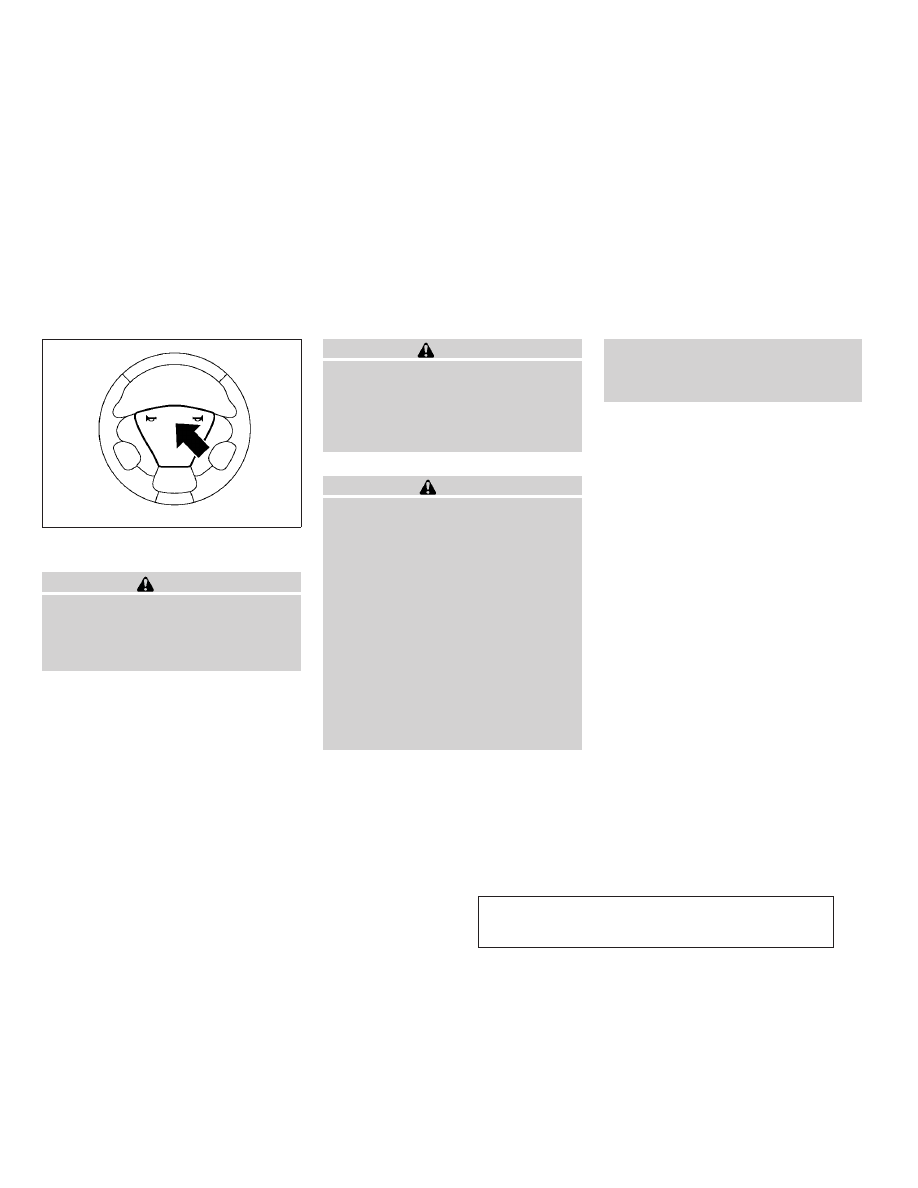

To sound the horn, push the center pad area of
the steering wheel.

WARNING

Do not disassemble the horn. Doing so could
affect proper operation of the supplemental
front air bag system. Tampering with the
supplemental front air bag system may result
in serious personal injury.

WARNING

Do not use or allow occupants to use the seat
heater if you or the occupants cannot monitor
elevated seat temperatures or have an inability
to feel pain in body parts that contact the seat.
Use of the seat heater by such people could
result in serious injury.

CAUTION

● The battery could run down if the seat heater

is operated while the engine is not running.

● Do not use the seat heater for extended pe-

riods or when no one is using the seat.

● Do not put anything on the seat which insu-

lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated.

● Do not place anything hard or heavy on the

seat or pierce it with a pin or similar object.
This may result in damage to the heater.

● Any liquid spilled on the heated seat should

be removed immediately with a dry cloth.

● When cleaning the seat, never use gasoline,

thinner, or any similar materials.

● If any abnormalities are found or the heated

seat does not operate, turn the switch off
and have the system checked by an INFINITI
retailer.

SIC4332

HORN

HEATED SEATS (if so equipped)

Instruments and controls

2-39


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

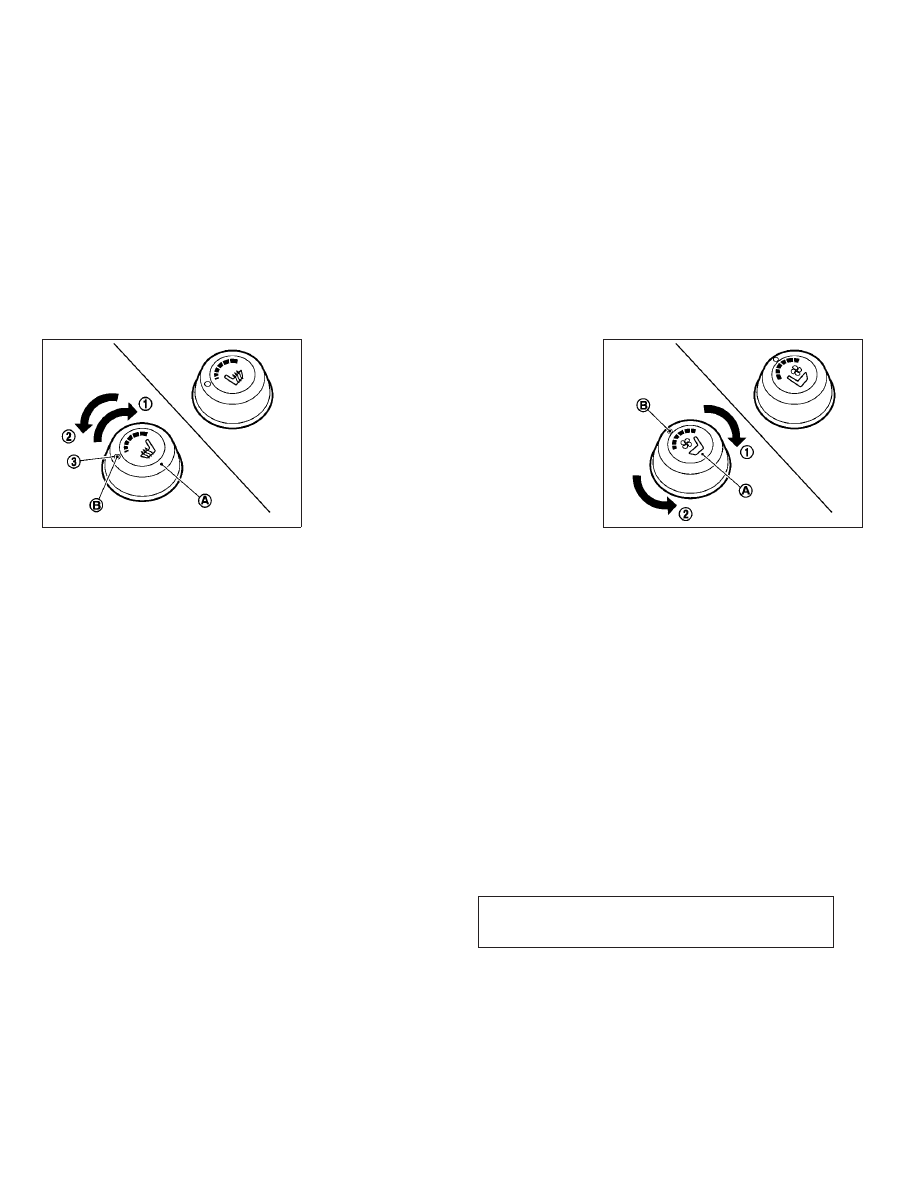

The front seats are warmed by built-in heaters.
The switches located on the center console can
be operated independently of each other.

1. Start the engine.

2. Turn the control knob

A

to the right

1

and select the desired heat range.

● For high heat, turn the knob to the right

1

.

● For low heat, turn the knob to the left

2

.

● The indicator light

B

will illuminate when

the heater is on.

3. To turn off the heater, return the knob to

the OFF position

3

. Make sure that the

indicator light turns off.

The heater is controlled by a thermistor,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.

When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.

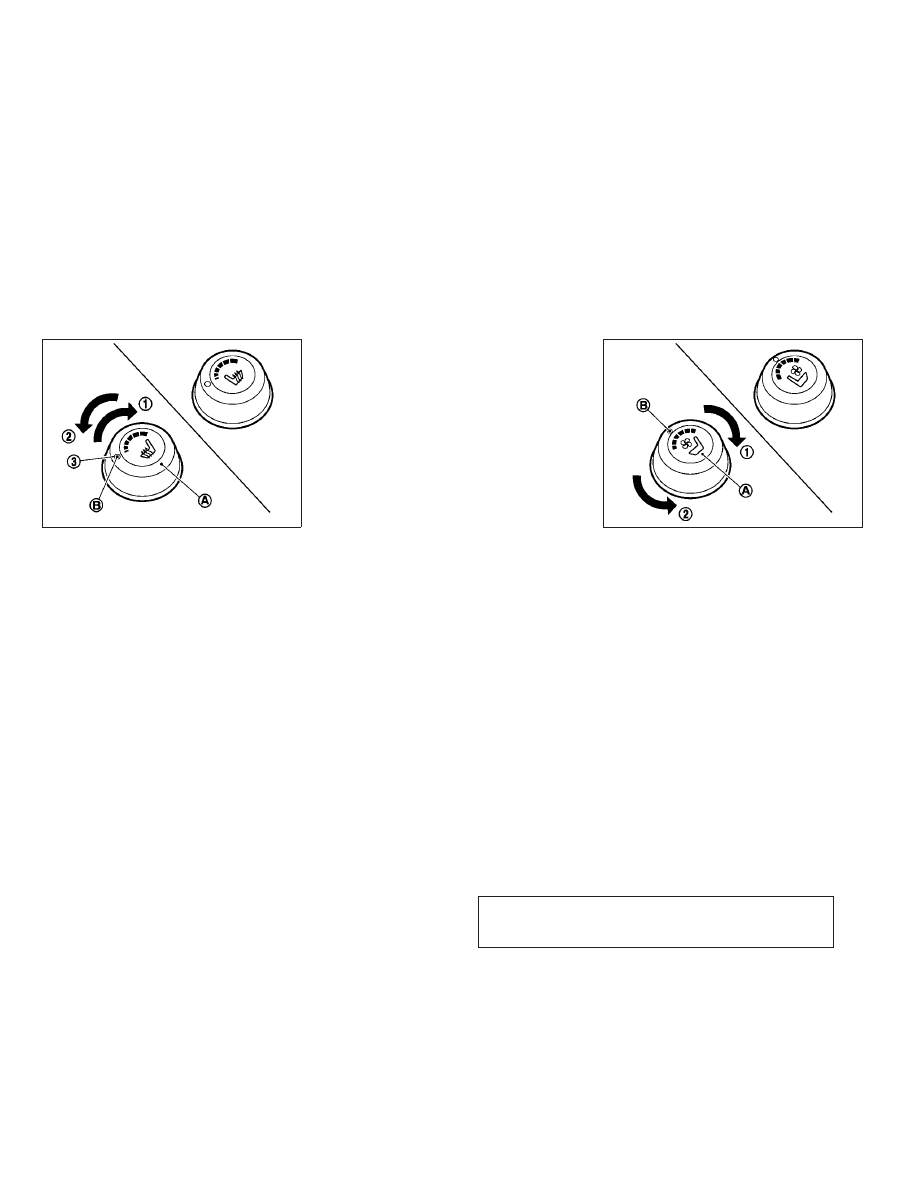

The climate controlled seat warms up or cools
down the front seats by blowing warm or cool
air from the surface of the seat. The switches
located on the center console can be operated
independently of each other.

1. Start the engine.

2. Turn the control knob

A

to the heat side

1

or to the cool side

2

. The indicator

light

B

on the control knob will illumi-

nate.

3. Adjust the temperature using the control

knob

A

.

SSS0911

SIC4334

CLIMATE CONTROLLED SEATS (if so
equipped)

2-40

Instruments and controls


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. When the vehicle’s interior is warmed or

cooled, and/or before you leave the ve-
hicle, be sure to turn the control knob to
the OFF position (center). The indicator
light

B

on the control knob goes off at

the OFF position.

To check the air filter for the climate con-
trolled seat, contact an INFINITI retailer.

WARNING

Do not use or allow occupants to use the seat
heater if you or the occupants cannot monitor
elevated seat temperatures or have an inability
to feel pain in body parts that contact the seat.
Use of the seat heater by such people could
result in serious injury.

CAUTION

● The battery could run down if the climate

controlled seat is operated while the engine
is not running.

● Do not use the climate controlled seat for

extended periods or when no one is using
the seat.

● Do not put anything on the seat which insu-

lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated.

● Do not place anything hard or heavy on the

seat or pierce it with a pin or similar object.
This may result in damage to the climate
controlled seat.

● Any liquid spilled on the seat should be re-

moved immediately with a dry cloth.

● The climate controlled seat has an air filter.

Do not operate climate controlled seat with-
out an air filter. This may result in damage to
the system.

● When cleaning the seat, never use gasoline,

thinner, or any similar materials.

● If any malfunctions are found or the climate

controlled seat does not operate, turn the
switch off and have the system checked by
an INFINITI retailer.

The warning systems switch will turn on and off
the Lane Departure Warning (LDW) system, the
Blind Spot Warning (BSW) system and the For-
ward Collision Warning (FCW) system at the
same time.

The FCW system will sound a warning chime
and the vehicle ahead detection indicator light
blinks to alert the driver if the vehicle is travel-
ing close to the vehicle ahead. (See “FORWARD
COLLISION WARNING (FCW) SYSTEM” in the “5.
Starting and driving” section.)

The LDW system will sound a warning chime
and blink the lane departure warning light
(orange) to alert the driver if the vehicle is
traveling close to either the left or the right of a

SIC4335

WARNING SYSTEMS SWITCH (if so
equipped)

Instruments and controls

2-41


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

traveling lane with detectable lane markers.
(See

“LANE

DEPARTURE

WARNING

(LDW)

SYSTEM/LANE DEPARTURE PREVENTION (LDP)
SYSTEM” in the “5. Starting and driving” sec-
tion.)

The Blind Spot Warning (BSW)/Blind Spot Inter-
vention (BSI) indicator lights, located next to
the outside mirrors, will illuminate if the radar
sensors detect a vehicle in the detection zone. If
the turn signal is activated in the direction of
the detected vehicle, a chime sounds twice and
the BSW/BSI indicator light will flash. (See
“BLIND SPOT WARNING (BSW) SYSTEM/BLIND
SPOT INTERVENTION™ (BSI) SYSTEM” in the “5.
Starting and driving” section.)

The warning systems switch is automatically
turned on when the engine is started, and the
warning systems ON indicator

1

on the switch

illuminates.

To cancel the warning systems, push the warn-
ing systems switch to turn off the system. The
warning systems ON indicator will turn off.

NOTE:

If you continue to push the warning systems
switch from off to on for over 4 seconds, a chime
will sound. This will change the default status of
the LDW, BSW and FCW systems to OFF so that
these systems will not automatically turn on
when the engine is started. If this procedure is
repeated, the default status will return to ON.

The vehicle should be driven with the Intelligent
Brake Assist (IBA) system on for most driving
conditions.

The Intelligent Brake Assist (IBA) system will
sound a warning chime and the vehicle ahead
detection indicator light blinks to alert the
driver when the vehicle is traveling too close to
the vehicle ahead. The system will also apply
the brake control if necessary.

To turn off the system, push the IBA OFF switch.

The

indicator will illuminate.

The IBA system will remain in the last ON or OFF
state it was left in until it is manually changed
by pushing the IBA OFF switch.

SIC4337

INTELLIGENT BRAKE ASSIST (IBA) OFF
SWITCH (if so equipped)

2-42

Instruments and controls


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

See “INTELLIGENT BRAKE ASSIST (IBA) SYSTEM”
in the “5. Starting and driving” section.

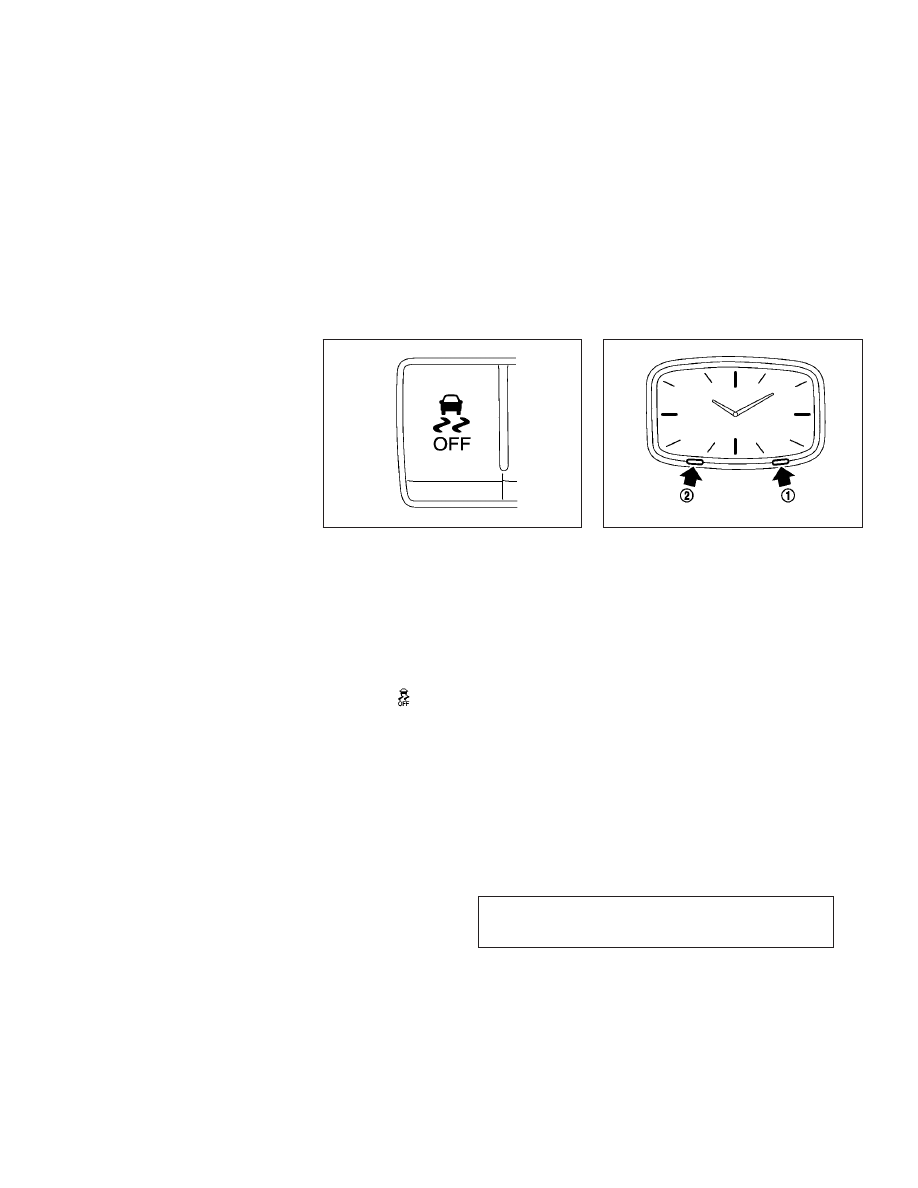

The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.

If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.

To turn off the VDC system, push the VDC OFF

switch. The

indicator will illuminate.

Push the VDC OFF switch again or restart the
engine to turn on the system. (See “VEHICLE
DYNAMIC CONTROL (VDC) SYSTEM” in the “5.
Starting and driving” section.)

If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.

ADJUSTING THE TIME

1. To set the clock forward, push the button

1

.

2. To set the clock backward, push the but-

ton

2

.

3. To move forward or backward faster, push

and hold the button more than 5 seconds.

For details about display clock adjustment (if so
equipped), see “HOW TO USE SETTING BUTTON”
in the “4. Monitor, climate, audio, phone and
voice recognition systems” section.

SIC4336

SIC4338

VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH

CLOCK

Instruments and controls

2-43


07/15/10—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     5      6      7      8     ..
