System Description

NBEL0401

DESCRIPTION

NBEL0401S01

1. Operation Flow

NBEL0401S0101

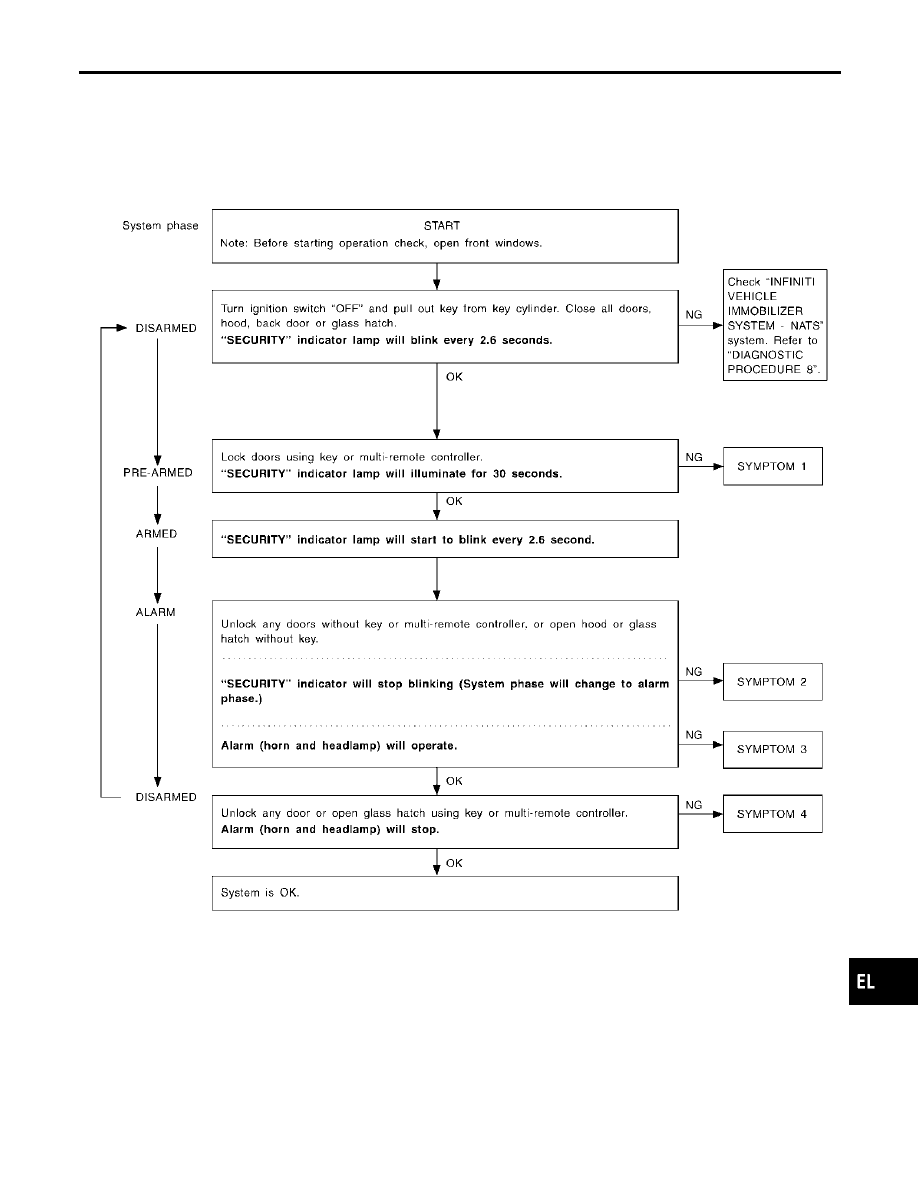

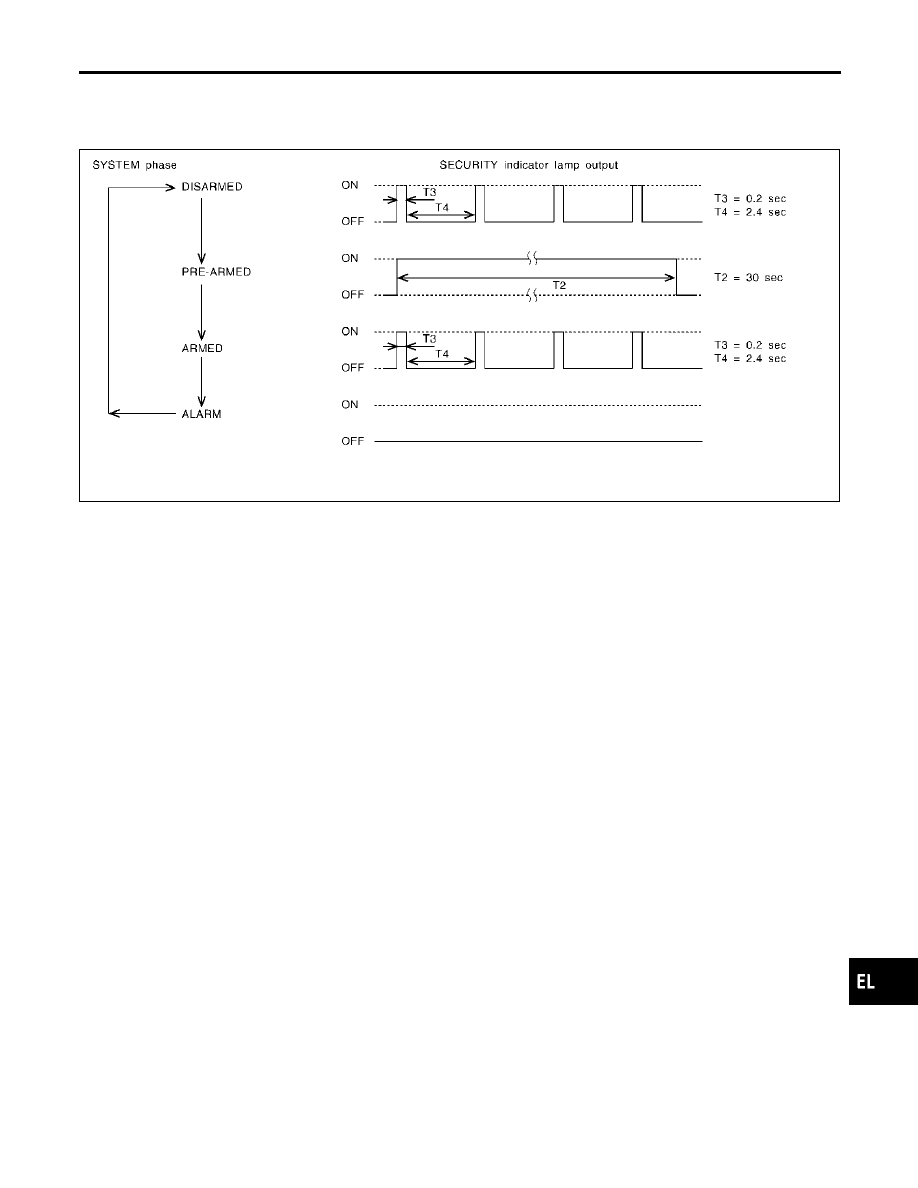

SEL334W

2. Setting The Vehicle Security System

NBEL0401S0102

Initial condition
1) Ignition switch is in OFF position.
Disarmed phase
When the vehicle security system is in the disarmed phase, the security indicator lamp blinks every 2.6 sec-
onds.
Pre-armed phase and armed phase
When the following operation 1) or 2) is performed, the vehicle security system turns into the “pre-armed”
phase. (The security indicator lamp illuminates.)
1) Smart entrance control unit receives LOCK signal from key cylinder switch or keyfob after hood, glass

hatch and all doors are closed.

2) Hood, glass hatch and all doors are closed after front doors are locked by key, lock/unlock switch or key-

fob.

After about 30 seconds, the system automatically shifts into the “armed” phase (the system is set). (The
security indicator lamp blinks every 2.6 seconds.)

3. Canceling The Set Vehicle Security System

NBEL0401S0103

When the following 1) or 2) operation is performed, the armed phase is canceled.
1) Unlock the doors with the key or keyfob.
2) Open the glass hatch with the key or keyfob.

4. Activating The Alarm Operation of The Vehicle Security System

NBEL0401S0104

Make sure the system is in the armed phase. (The security indicator lamp blinks every 2.6 seconds.)
When the following operation 1) or 2) is performed, the system sounds the horns and flashes the headlamps
for about 50 seconds.
1) Engine hood, glass hatch or any door is opened during armed phase.
2) Disconnecting and connecting the battery connector before canceling armed phase.

POWER SUPPLY AND GROUND

NBEL0401S02

Power is supplied at all times

through 7.5A fuse [No. 24, located in the fuse block (J/B)]

to security indicator lamp terminal 1, and

to smart entrance control unit terminal 49.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM

System Description

EL-453

With the ignition switch in the ON or START position, power is supplied

through 7.5A fuse [No. 11, located in the fuse block (J/B)]

to smart entrance control unit terminal 27.

With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 10, located in the fuse block (J/B)]

to smart entrance control unit terminal 26.

Ground is supplied

to smart entrance control unit terminals 43 and 64

through body grounds M77 and M111.

INITIAL CONDITION TO ACTIVATE THE SYSTEM

NBEL0401S03

The operation of the vehicle security system is controlled by the doors, hood and glass hatch.

Pattern A

NBEL0401S0301

To activate the vehicle security system, the smart entrance control unit must receive signals indicating the
doors, hood and glass hatch are closed.
When a door is open, smart entrance control unit terminal 1, 2 or 3 receives a ground signal from each door
switch.
When the hood is open, smart entrance control unit terminal 6 receives a ground signal

from terminal 1 of the hood switch

through body grounds E13 and E41.

When the glass hatch is open, smart entrance control unit terminal 13 receives a ground signal

from terminal 1 of the glass hatch switch

through body grounds B11, B22 and D210.

When smart entrance control unit receives LOCK signal from key cylinder switch or keyfob and none of the
described conditions exist, the vehicle security system will automatically shift to armed mode.

Pattern B

NBEL0401S0302

To activate the vehicle security system, the smart entrance control unit must receive signal indicating any door
(including hood and glass hatch) is opened.
When the front doors are locked with key, lock/unlock switch or keyfob and then all doors are closed, the
vehicle security system will automatically shift to armed mode.

VEHICLE SECURITY SYSTEM ACTIVATION

NBEL0401S04

Pattern A

NBEL0401S0401

With all doors (including hood and glass hatch) closed, if the key is used to lock doors, smart entrance con-
trol unit terminal 33 receives a signal from power window main switch terminal 14.
When key cylinder switch is in LOCK position, ground is supplied

to power window main switch terminal 4

from terminal 3 of the front door key cylinder switch LH

through terminal 2 of front door key cylinder switch LH

through body grounds M77 and M111, or

smart entrance control unit terminal 11 receives a ground signal

from terminal 1 of the back door key cylinder switch

through body grounds B11, B22 and D210.

If this signal, or lock signal from keyfob is received by the smart entrance control unit, the vehicle security
system will activate automatically.
NOTE:
Vehicle security system can be set even though all doors are not locked.

Pattern B

NBEL0401S0402

With any door (including hood and glass hatch) open, if lock/unlock switch is used to lock doors, smart entrance
control unit terminal 33 receives a LOCK signal

from terminal 14 of power window main switch

through body grounds M77 and M111, or

from terminal 16 of front power window switch RH

VEHICLE SECURITY (THEFT WARNING) SYSTEM

System Description (Cont’d)

EL-454

through body grounds M4, M66 and M147, or

With any door (including hood and glass hatch) open if the key is used to lock doors, smart entrance control
unit terminal 33 receives a LOCK signal from power window main switch terminal 14.
When key cylinder switch LOCK signal ground is supplied

to power window main switch terminal 4

from terminal 3 of the front door key cylinder switch LH

through terminal 2 of front door key cylinder switch LH

through body grounds M77 and M111, or

smart entrance control unit terminal 11 receives a ground signal

from terminal 1 of the back door key cylinder switch

through body grounds B11, B22 and D210.

If these signals and lock signal from keyfob are received by the smart entrance control unit, ground signals
of terminals 1, 2 and 3 are interrupted and all doors are closed, the vehicle security system will activate auto-
matically.
NOTE:
Vehicle security system can be set even though the rear door is not locked.
Once the vehicle security system has been activated, smart entrance control unit terminal 38 supplies ground
to terminal 2 of the security indicator lamp.
The security lamp will illuminate for approximately 30 seconds and then blinks every 2.6 seconds.
Now the vehicle security system is in armed phase.

VEHICLE SECURITY SYSTEM ALARM OPERATION

NBEL0401S05

The vehicle security system is triggered by

opening a door

opening the hood or the glass hatch

detection of battery disconnect and connect.

Once the vehicle security system is in armed phase, if the smart entrance control unit receives a ground sig-
nal at terminal 1, 2, 3 (door switch), 13 (glass hatch switch) or 6 (hood switch), the vehicle security system
will be triggered. The headlamps flash and the horn sounds intermittently.
Power is supplied at all times

through 7.5A fuse (No. 52, located in fuse and fusible link box)

to horn relay terminals 1 and 3.

through 10A fuse (No. 54, located in fuse and fusible link box)

to horn relay terminal 6.

through 15A fuse (No. 60, located in fuse and fusible link box)

to headlamp LH relay terminals 1 and 3,

through 15A fuse (No. 59, located in fuse and fusible link box)

to headlamp RH relay terminals 1 and 3.

When the vehicle security system is triggered, ground is supplied intermittently

to headlamp (LH and RH) relay terminal 2 from smart entrance control unit terminals 21 and 59

through smart entrance control unit terminals 43 and 64.

When headlamp relays (LH and RH) are energized and then power is supplied to headlamps (LH and RH).
The headlamps flash intermittently.
When the vehicle security system is triggered, ground is supplied intermittently

from smart entrance control unit terminal 42

to horn relay terminal 2.

When horn relay are energized, then power is supplied to horn.
The horn sounds intermittently.
The alarm automatically turns off after 50 seconds but will reactivate if the vehicle is tampered with again.

VEHICLE SECURITY SYSTEM DEACTIVATION

NBEL0401S06

To deactivate the vehicle security system, a door or glass hatch must be unlocked with the key or keyfob.
When the key is used to unlock the door, smart entrance control unit terminal 33 receives an UNLOCK sig-
nal from power window main switch terminal 14. Refer to “POWER WINDOW SERIAL LINK” (EL-379).
When key cylinder switch is in UNLOCK position, the ground is supplied

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM

System Description (Cont’d)

EL-455

to power window main switch terminal 6

from the front door key cylinder switch LH terminal 1

through front door key cylinder switch LH terminal 2, and

through body grounds M77 and M111.

When the key is used to open the glass hatch, smart entrance control unit terminal 12 receives a ground sig-
nal from terminal 3 of the back door key cylinder switch.
When the smart entrance control unit receives either one of these signals or unlock signal from keyfob, the
vehicle security system is deactivated. (Disarmed phase)

PANIC ALARM OPERATION

NBEL0401S07

Remote keyless entry system may or may not operate vehicle security system (horn and headlamps) as
required.
When the remote keyless entry system (panic alarm) is triggered, ground is supplied intermittently

from smart entrance control unit terminals 21 and 59

to headlamp (LH and RH) relay terminal 2

from smart entrance control unit terminal 42

to horn relay terminal 2.

The headlamp flashes and the horn sounds intermittently.
The alarm automatically turns off after 25 seconds or when smart entrance control unit receives any signal
from keyfob.

VEHICLE SECURITY (THEFT WARNING) SYSTEM

System Description (Cont’d)

EL-456

NOTE:

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM

System Description (Cont’d)

EL-457

Schematic

NBEL0402

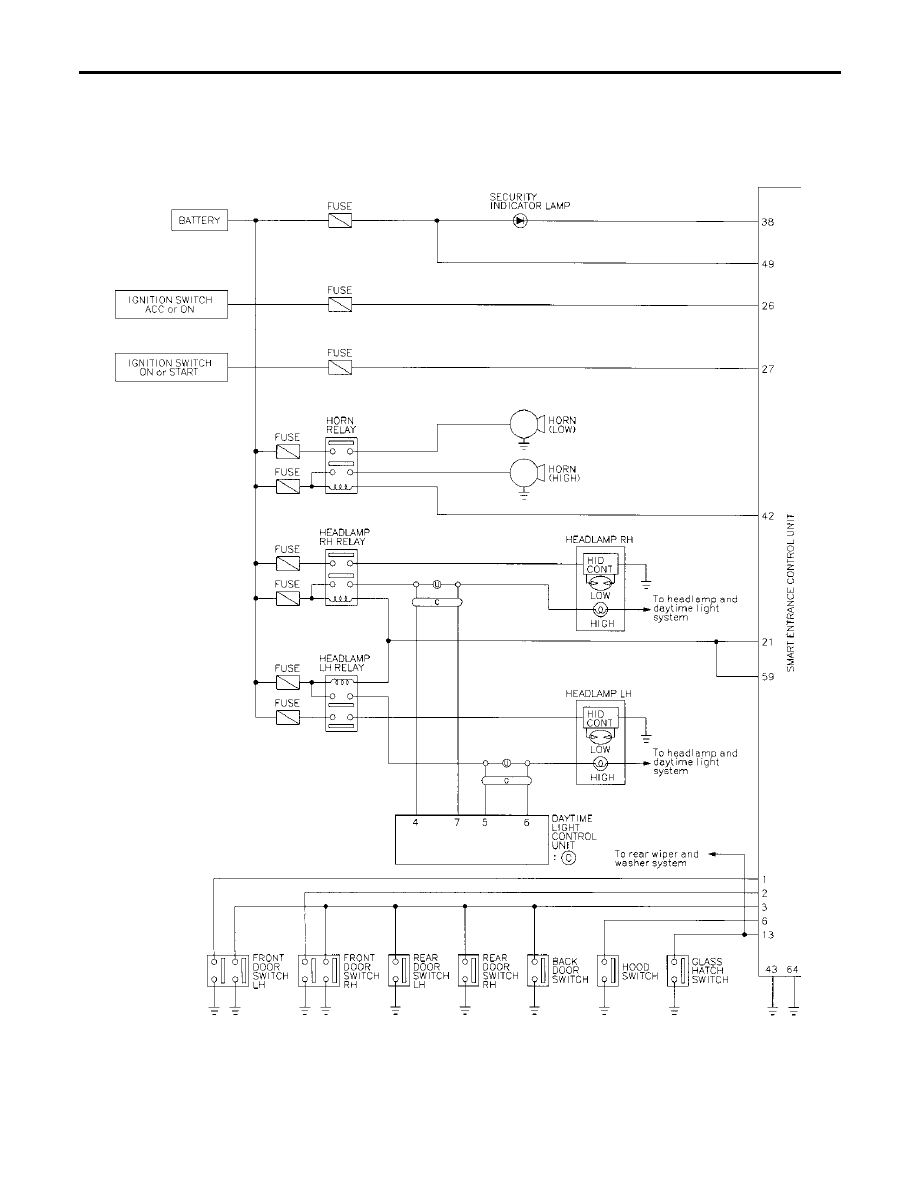

MEL359Q

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Schematic

EL-458

MEL360Q

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Schematic (Cont’d)

EL-459

Wiring Diagram — VEHSEC —

NBEL0403

FIG. 1

NBEL0403S01

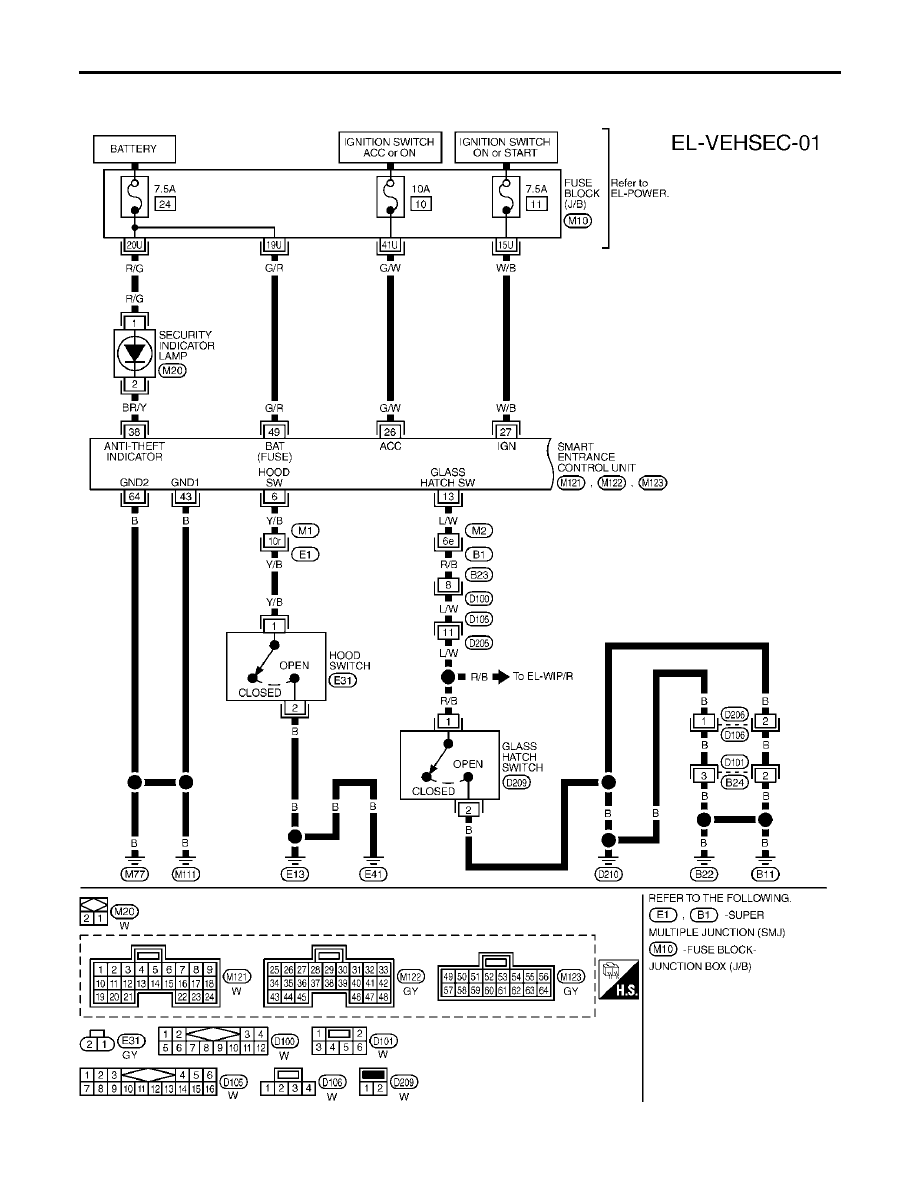

MEL456O

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Wiring Diagram — VEHSEC —

EL-460

FIG. 2

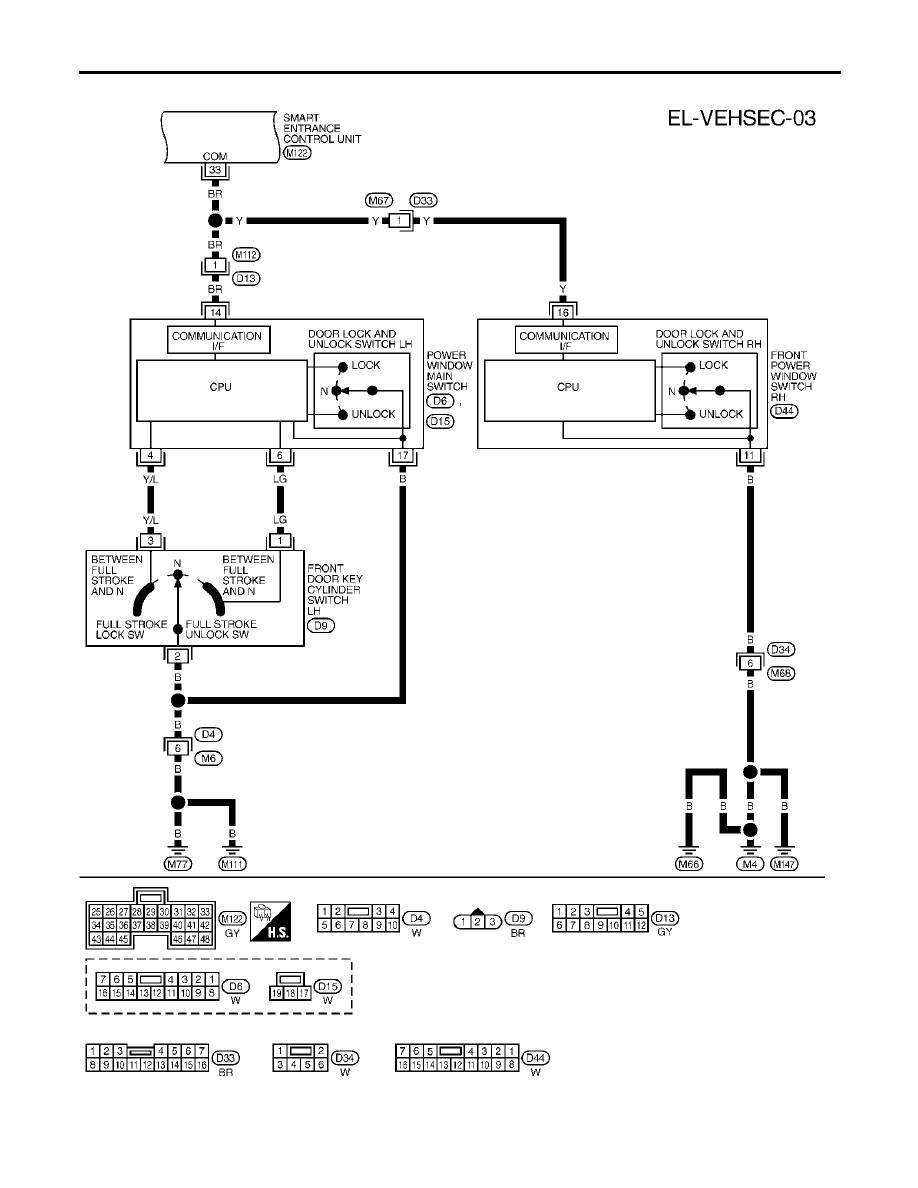

NBEL0403S02

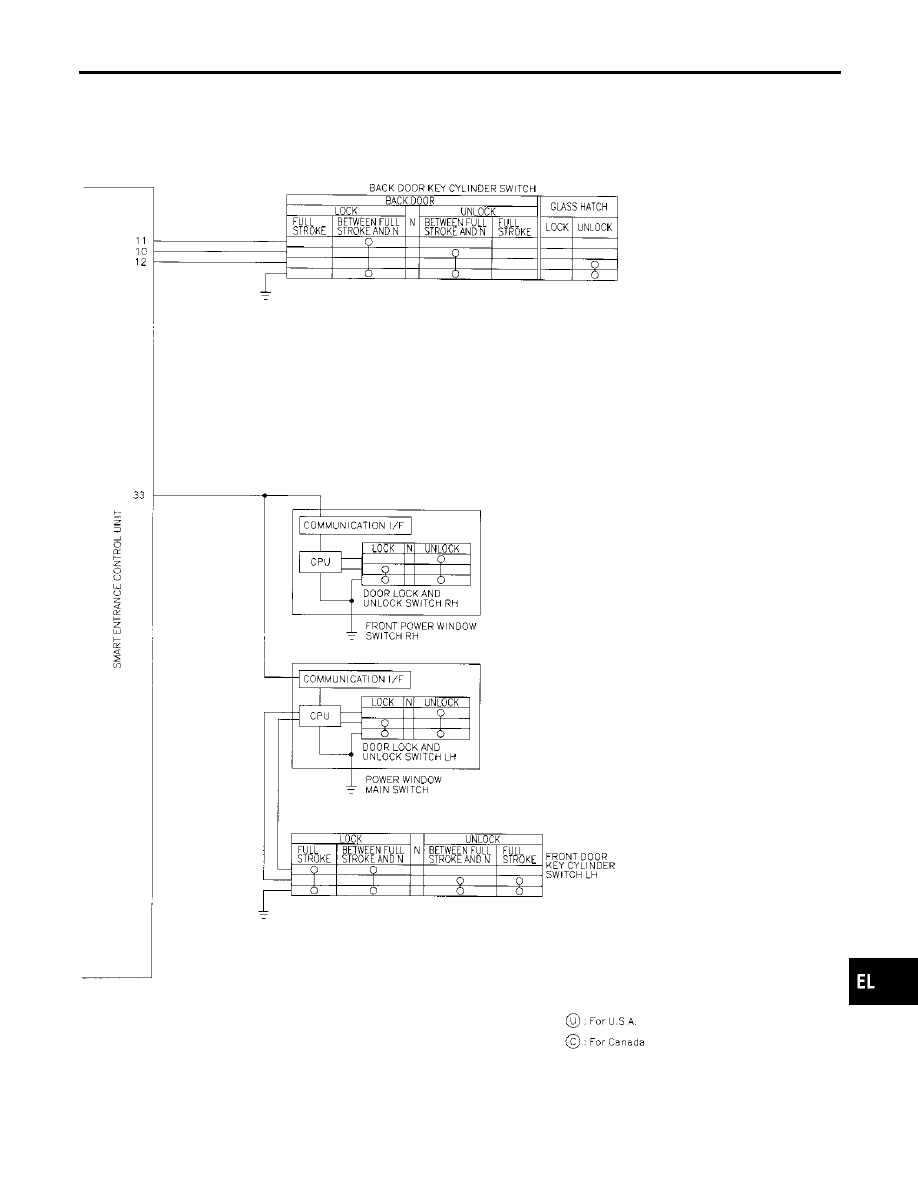

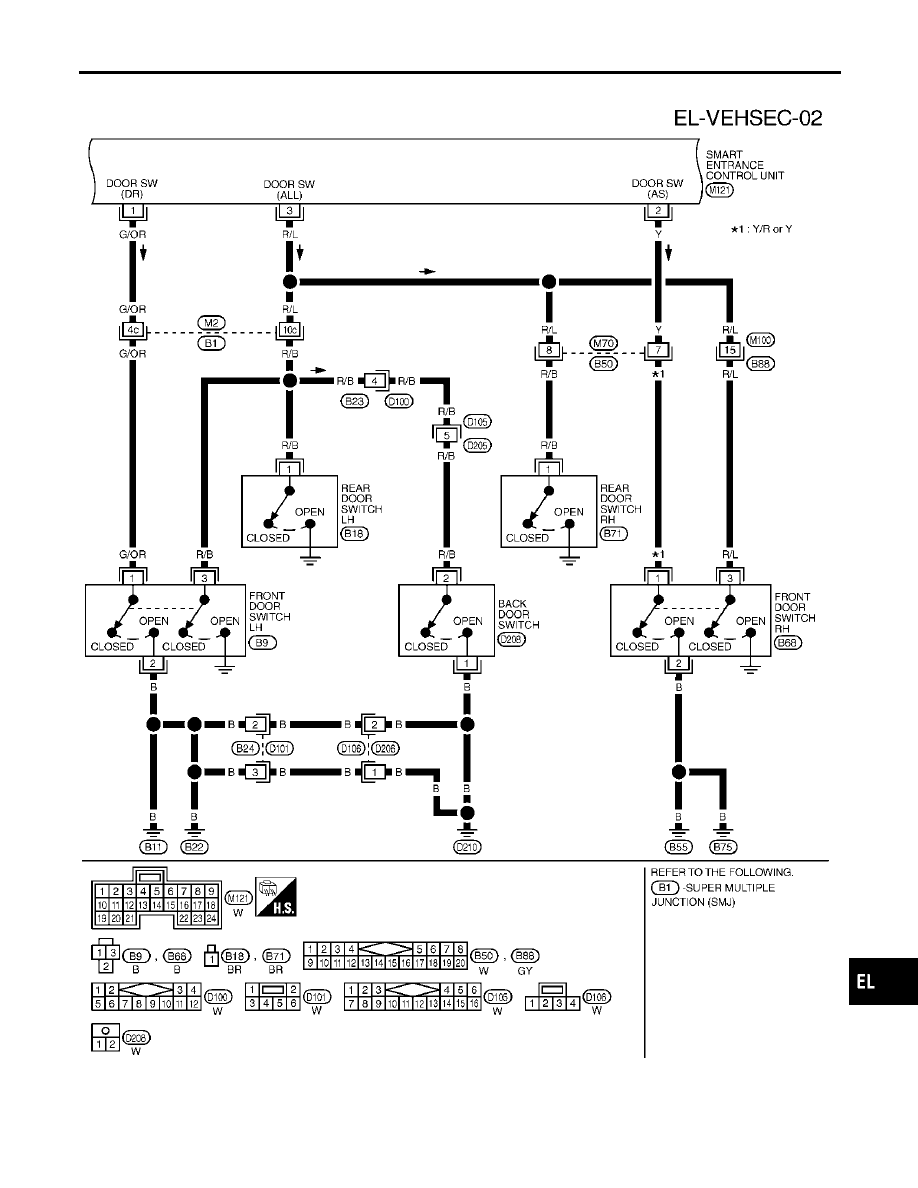

MEL405R

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Wiring Diagram — VEHSEC — (Cont’d)

EL-461

FIG. 3

NBEL0403S03

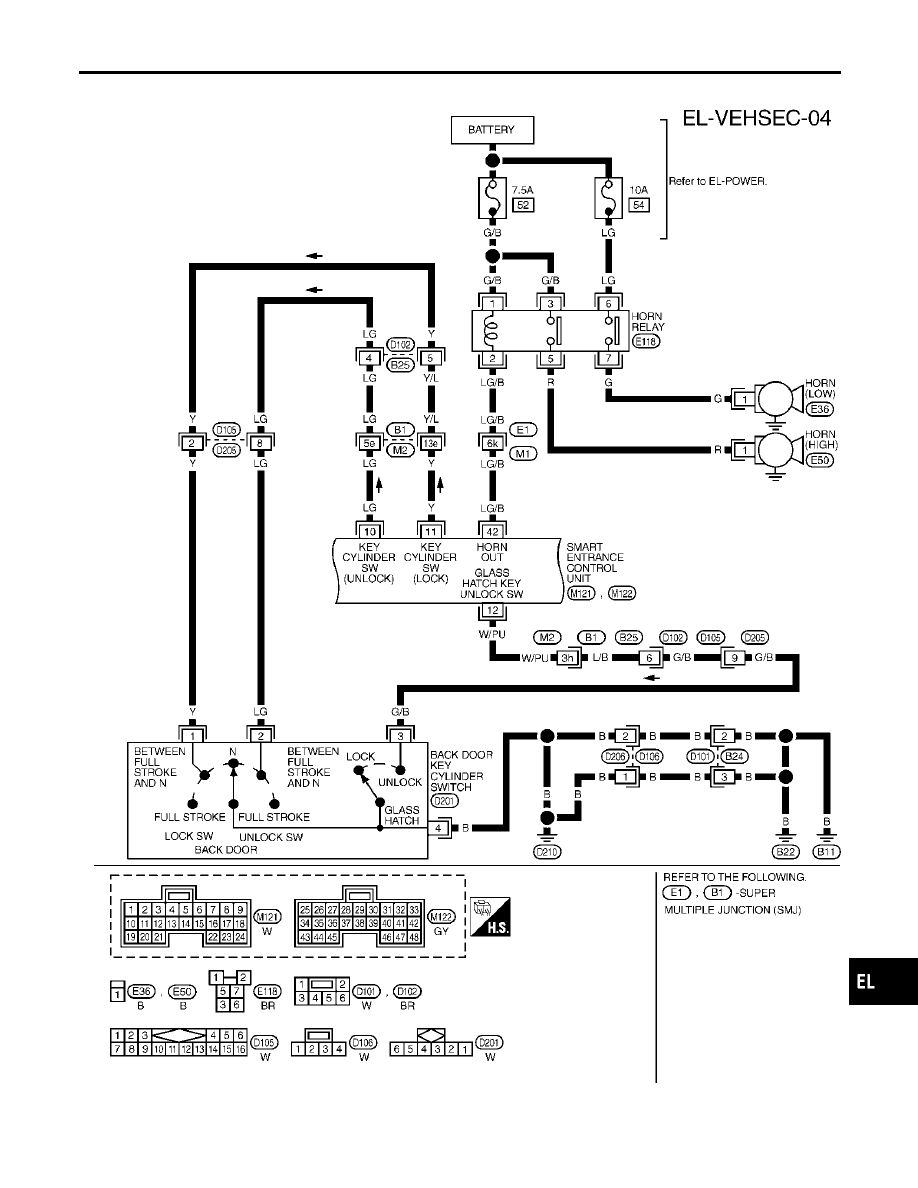

MEL362Q

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Wiring Diagram — VEHSEC — (Cont’d)

EL-462

FIG. 4

NBEL0403S04

MEL623P

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Wiring Diagram — VEHSEC — (Cont’d)

EL-463

FIG. 5

NBEL0403S05

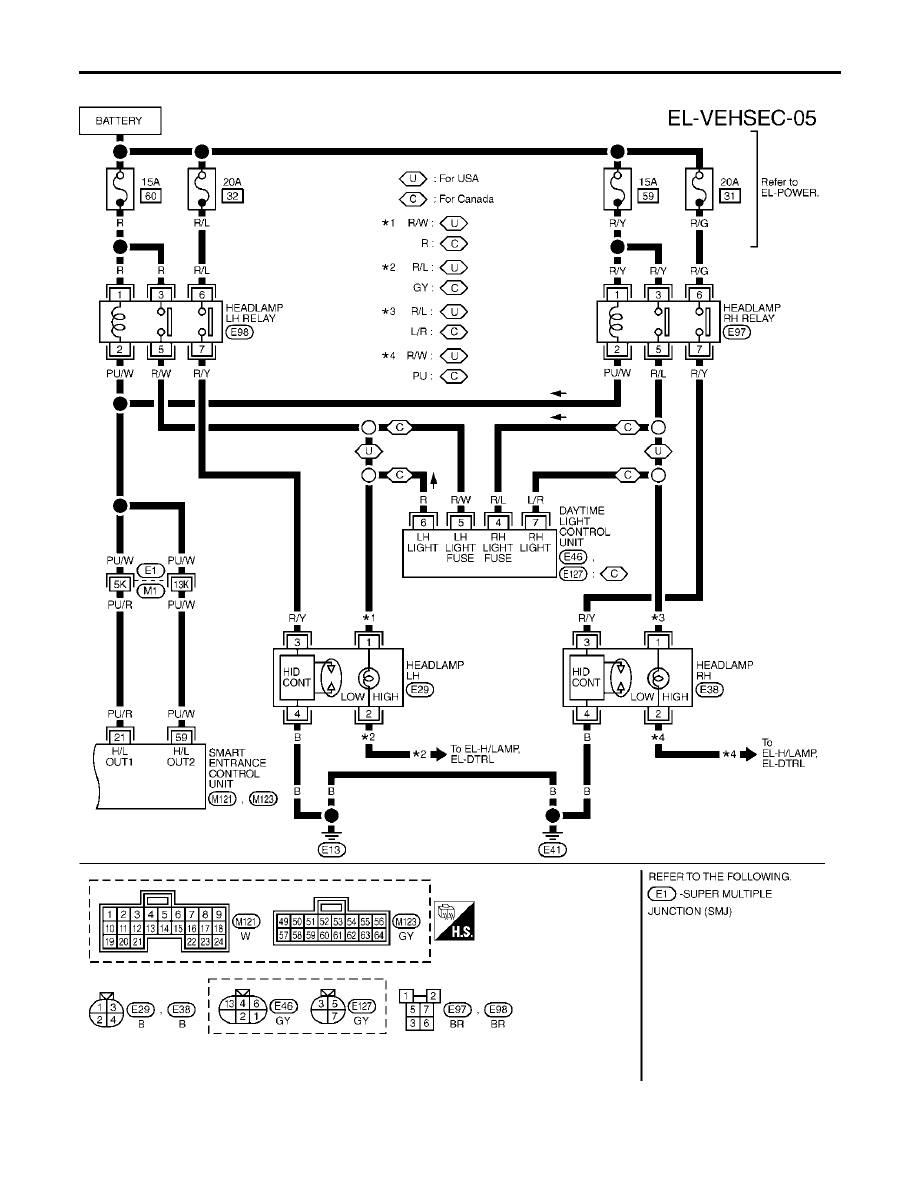

MEL363Q

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Wiring Diagram — VEHSEC — (Cont’d)

EL-464

SEL670Y

CONSULT-II Inspection Procedure

=NBEL0404

“THEFT WAR ALM”

NBEL0404S01

1.

Turn ignition switch “OFF”.

2.

Connect “CONSULT-II” and “CONSULT-II CONVERTER” to
the data link connector.

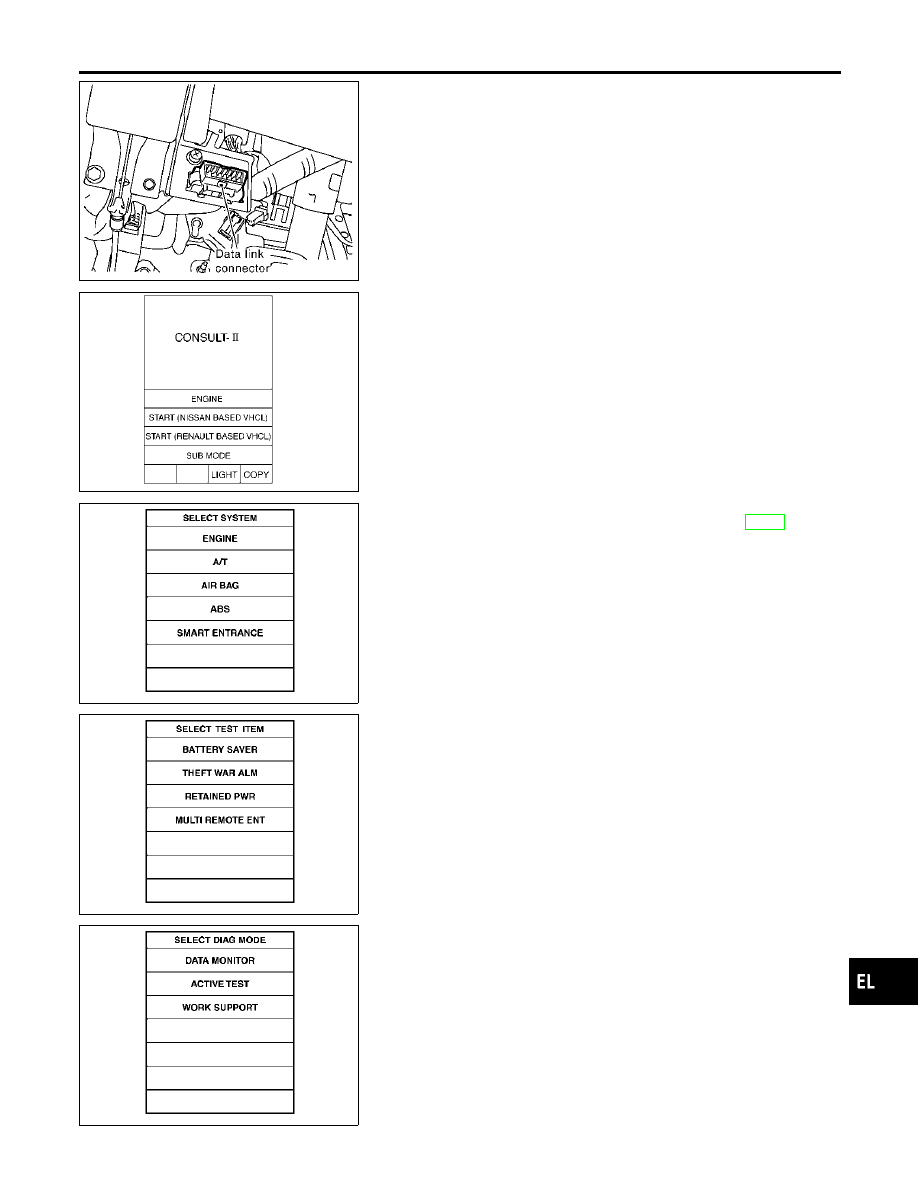

SKIA3098E

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”.

SEL941W

5.

Touch “SMART ENTRANCE”.
If “SMART ENTRANCE” is not indicated, go to GI-42, “CON-
SULT-II Data Link Connector (DLC) Circuit”.

SEL273W

6.

Touch “THEFT WAR ALM”.

SEL274W

7.

Select diagnosis mode.
“DATA MONITOR”, “ACTIVE TEST” and “WORK SUPPORT”
are available.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM

CONSULT-II Inspection Procedure

EL-465

CONSULT-II Application Item

NBEL0491

“THEFT WAR ALM”

NBEL0491S01

Data Monitor

NBEL0491S0101

Monitored Item

Description

IGN ON SW

Indicates [ON/OFF] condition of ignition switch.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch.

TRNK OPNR SW

Indicates [ON/OFF] condition of back door switch.

KEY CYL LK SW

Indicates [ON/OFF] condition of lock signal from key cylinder switch.

KEY CYL UN SW

Indicates [ON/OFF] condition of unlock signal from key cylinder switch.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

TRNK OPN MNTR

Indicates [ON/OFF] condition of back door switch.

TRUNK KEY SW

Indicates [ON/OFF] condition of back door key cylinder switch.

HOOD SWITCH

Indicates [ON/OFF] condition of hood switch.

LOCK SW DR/AS

Indicates [ON/OFF] condition of lock signal from door lock/unlock switch LH and RH.

UNLK SW DR/AS

Indicates [ON/OFF] condition of unlock signal from door lock/unlock LH and RH.

LK BUTTON/SIG

Indicates [ON/OFF] condition of lock signal from keyfob.

UN BUTTON/SIG

Indicates [ON/OFF] condition of unlock signal from keyfob.

TRUNK BTN/SIG

Indicates [ON/OFF] condition of trunk open signal from keyfob.

NOTE:
Even though TRUNK BTN/SIG is actually displayed on the CONSULT-II screen, it is not equipped, therefore, they cannot be activated.

Active Test

NBEL0491S0102

Test Item

Description

THEFT IND

This test is able to check security indicator lamp operation. The lamp will be turned on when
“ON” on CONSULT-II screen is touched.

HORN

This test is able to check vehicle security alarm operation. The alarm will be activated for 0.5
seconds after “ON” on CONSULT-II screen is touched.

HEAD LAMP

This test is able to check vehicle security alarm headlamp operation. The headlamp illumi-
nates for 0.5 seconds after “ON” on CONSULT-II screen is touched.

Work Support

NBEL0491S0103

Test Item

Description

THEFT ALM TRG

The switch which triggered theft warning alarm is recorded. This mode is able to confirm and
erase the record of theft waning alarm. The trigger data can be erased by touching “CLEAR”
on CONSULT-II screen.

SECURITY ALARM SET

Theft warning alarm mode can be changed in this mode. Selects ON-OFF of theft warning
alarm mode.

MODE 1 (ON)/MODE 2 (OFF)

VEHICLE SECURITY (THEFT WARNING) SYSTEM

CONSULT-II Application Item

EL-466

Trouble Diagnoses

=NBEL0406

PRELIMINARY CHECK

NBEL0406S01

The system operation is canceled by turning ignition switch to
“ACC” at any step between START and ARMED in the following
flow chart.

SEL733W

After performing preliminary check, go to symptom chart
below.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Trouble Diagnoses

EL-467

SYMPTOM CHART

NBEL0406S02

REFERENCE PAGE (EL-

)

467

469

470

475

477

479

482

484

434

SYMPTOM

PRELIMINAR

Y

CHECK

POWER

SUPPL

Y

AND

GROUND

CIRCUIT

CHECK

DOOR,

HOOD

AND

GLASS

HA

TCH

SWITCH

CHECK

SECURITY

INDICA

T

O

R

LAMP

CHECK

DOOR

KEY

CYLINDER

SWITCH

CHECK

BACK

DOOR

KEY

CYLINDER

SWITCH

CHECK

VEHICLE

SECURITY

HORN

ALARM

CHECK

VEHICLE

SECURITY

HEADLAMP

ALARM

CHECK

Check

“REMOTE

KEYLESS

ENTR

Y”

system.

1

Vehicle security indicator does not
illuminate for 30 seconds.

X

X

X

X

V

ehicle

security

system

cannot

be

set

by

....

All items

X

X

X

Door outside key

X

X

Back door key

X

X

Remote keyless entry

X

X

2

*1

V

ehicle

security

system

does

not

alarm

when

...

Any door is opened.

X

X

Any door is unlocked
without using key or
keyfob

X

3

V

ehicle

security

alarm

does

not

activate.

All function

X

X

Horn alarm

X

X

Headlamp alarm

X

X

4

V

ehicle

security

system

cannot

be

canceled

by

....

Door outside key

X

X

Back door key

X

X

Remote keyless entry

X

X

X : Applicable
*1: Make sure the system is in the armed phase.

Before starting trouble diagnoses above, perform preliminary
check, EL-467.
Symptom numbers in the symptom chart correspond with those of
preliminary check.

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Trouble Diagnoses (Cont’d)

EL-468















Content      ..     27      28      29      30     ..
