Infiniti QX56 (Z62). Manual - part 984

PG-14

< WIRING DIAGRAM >

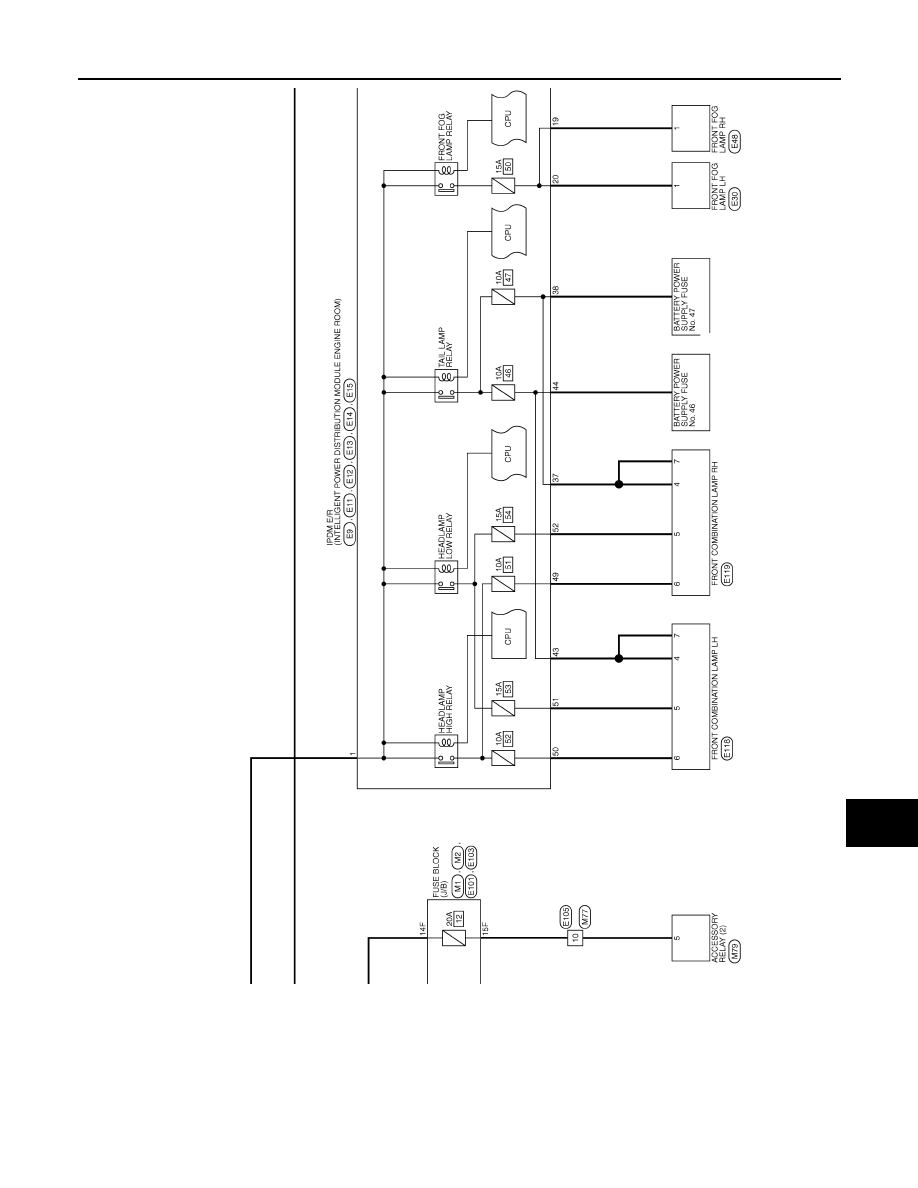

POWER SUPPLY ROUTING CIRCUIT

JCMWM8350GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-15

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM8351GB

PG-16

< WIRING DIAGRAM >

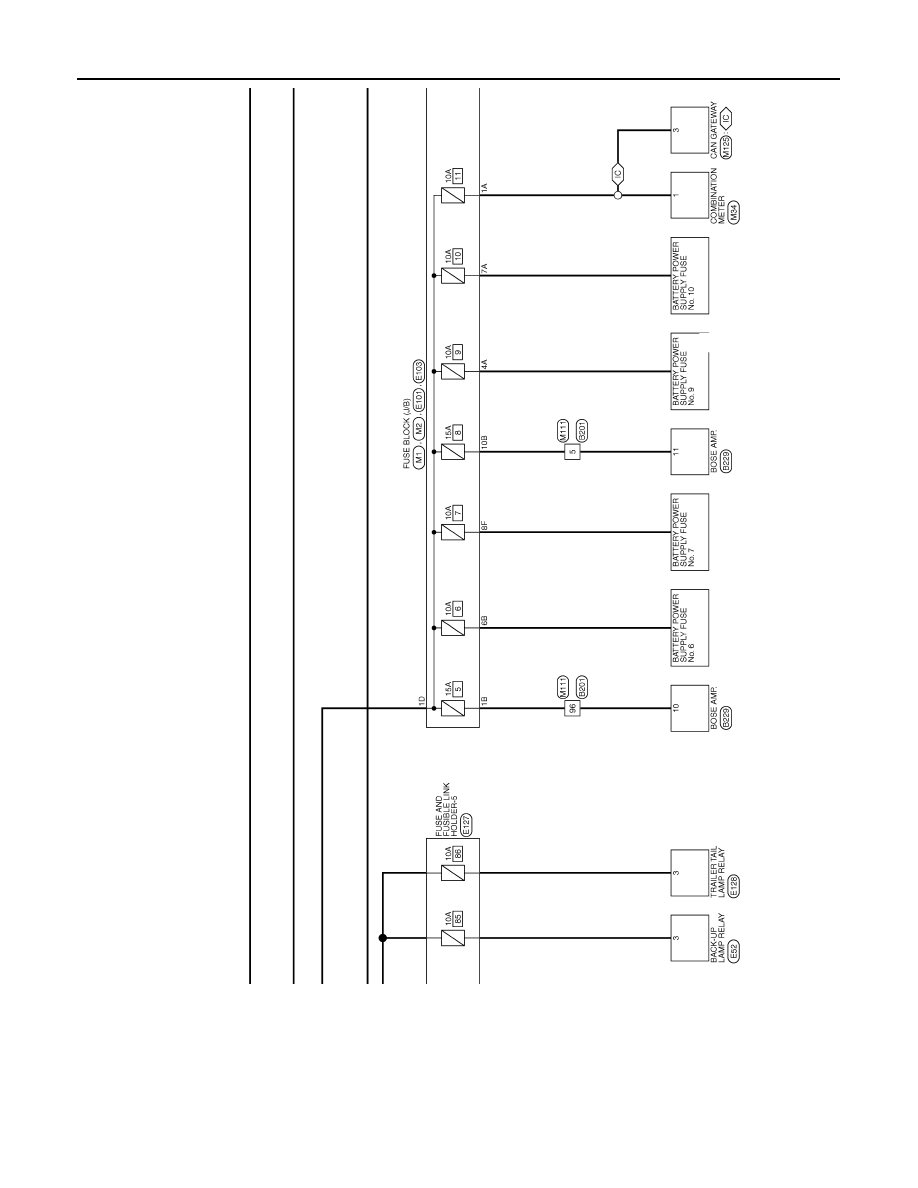

POWER SUPPLY ROUTING CIRCUIT

JCMWM8352GB

PG

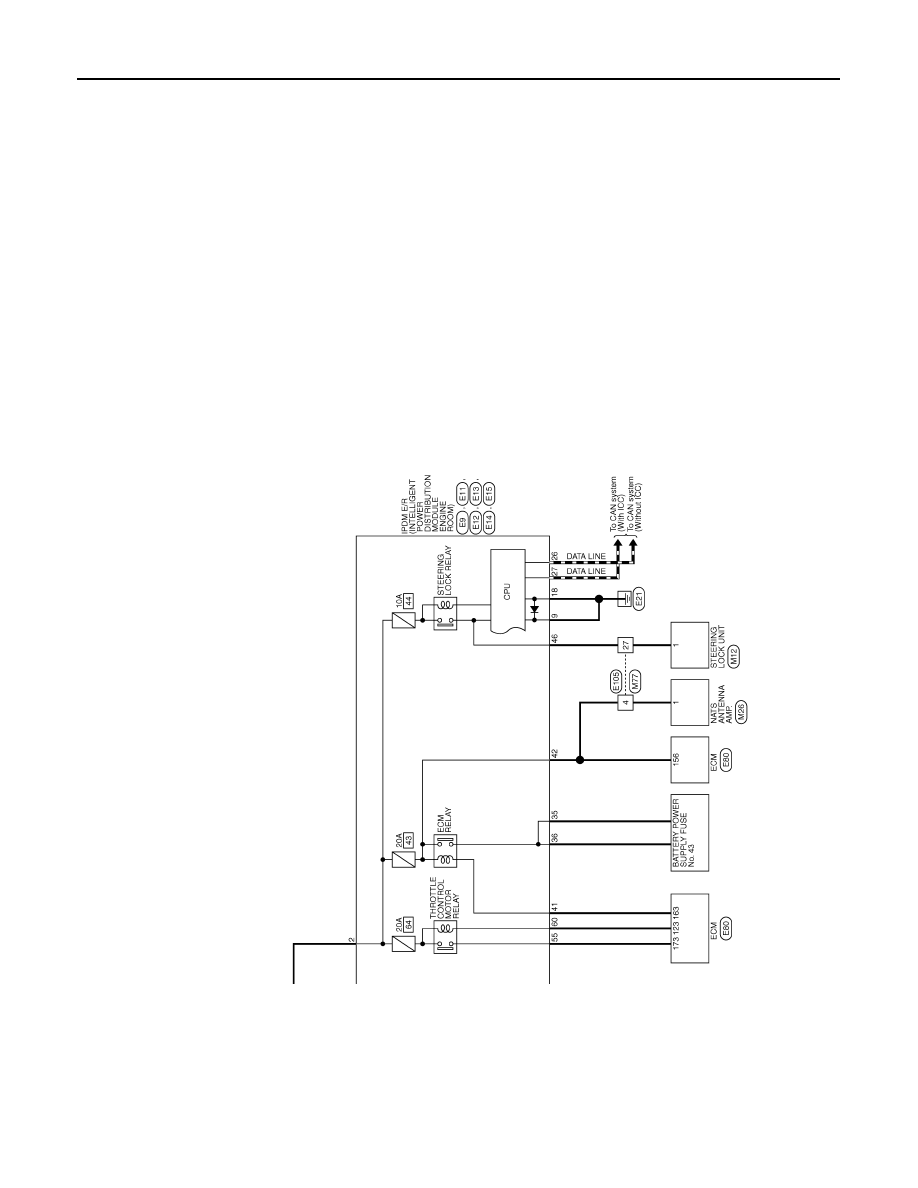

POWER SUPPLY ROUTING CIRCUIT

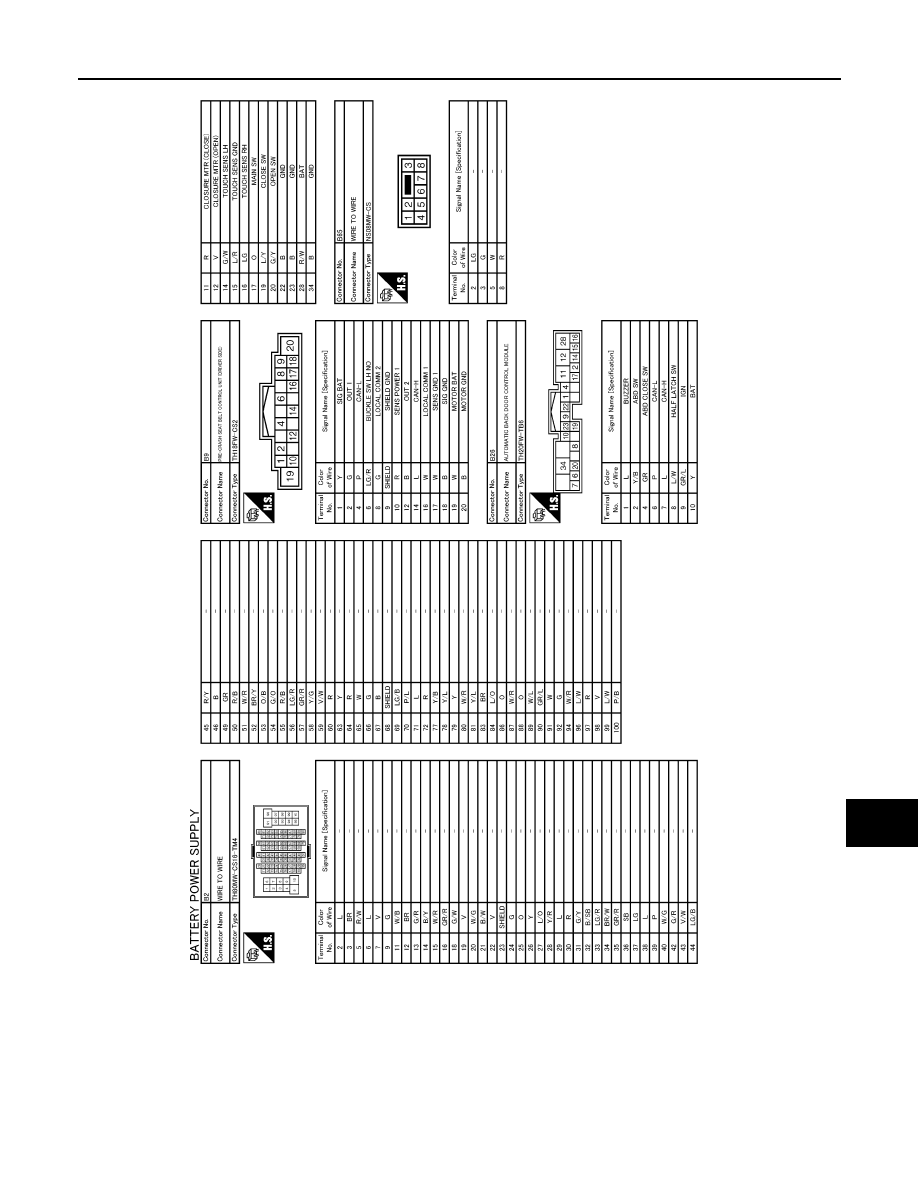

PG-17

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM8353GB
