ECM, IPDM E/R

List of ECU Reference

INFOID:0000000006275889

ECU

Reference

ECM

EC-72, "Reference Value"

EC-93, "Fail-safe"

EC-96, "DTC Inspection Priority Chart"

EC-98, "DTC Index"

IPDM E/R

PCS-15, "Reference Value"

PCS-21, "Fail-Safe"

PCS-22, "DTC Index"

HAC-48

< WIRING DIAGRAM >

[AUTOMATIC AIR CONDITIONING]

AUTOMATIC AIR CONDITIONING SYSTEM

WIRING DIAGRAM

AUTOMATIC AIR CONDITIONING SYSTEM

Wiring Diagram

INFOID:0000000006275890

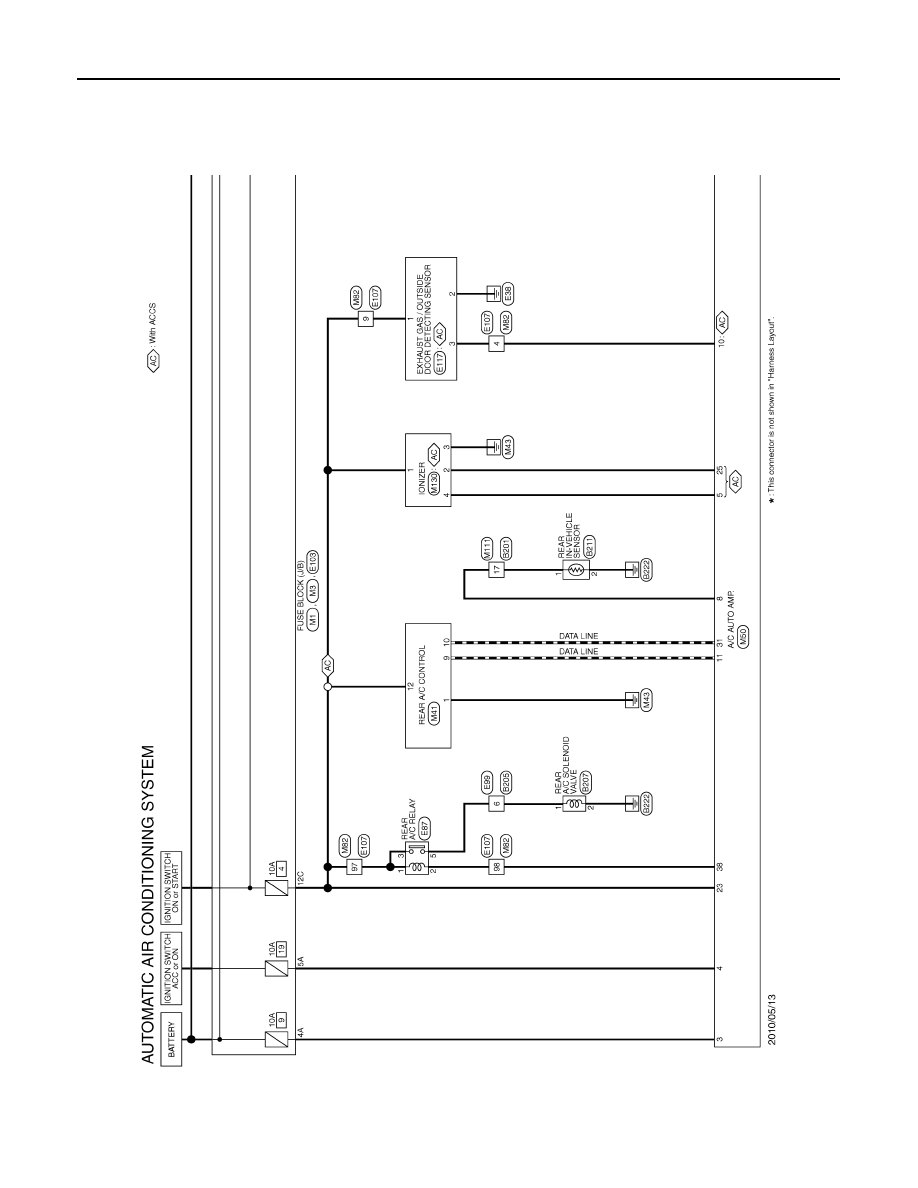

JCIWM0795GB

AUTOMATIC AIR CONDITIONING SYSTEM

HAC-49

< WIRING DIAGRAM >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

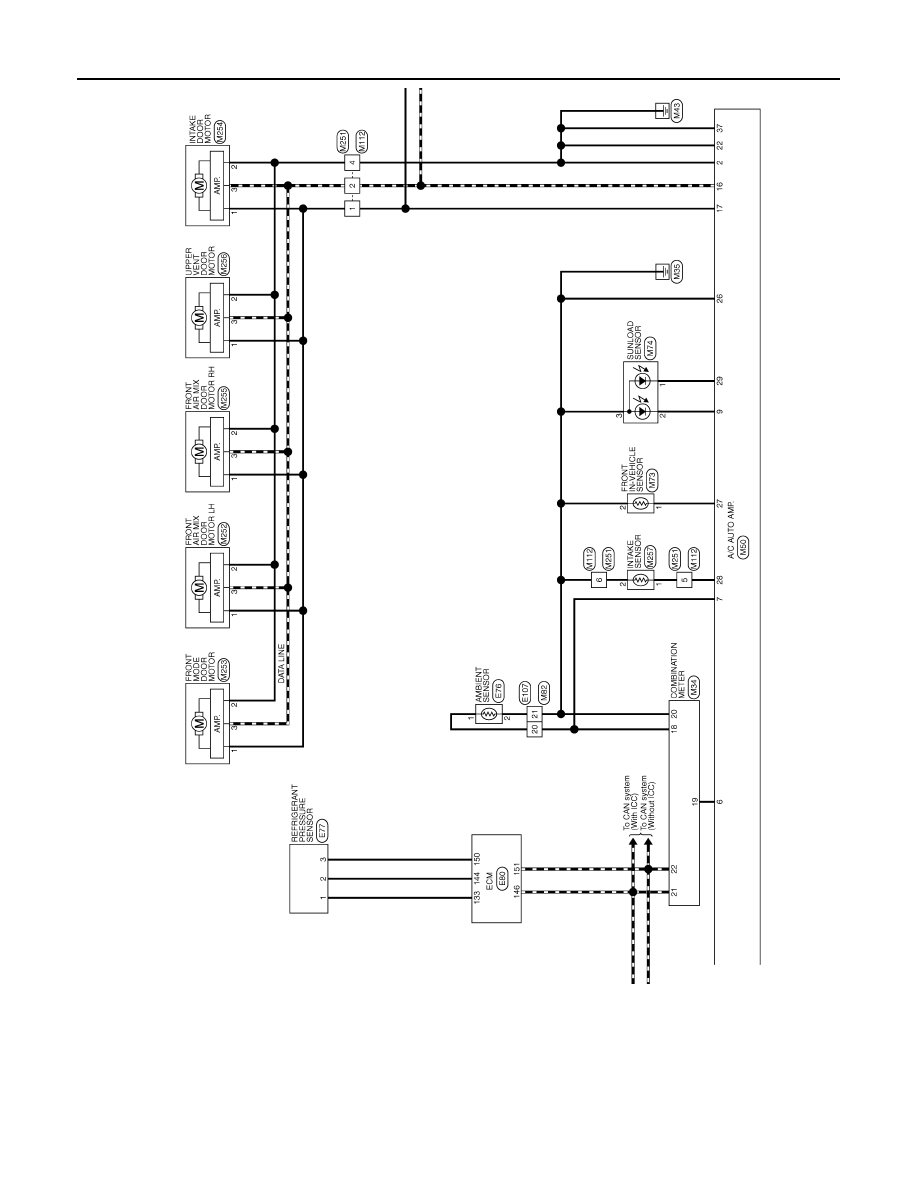

JCIWM0796GB

HAC-50

< WIRING DIAGRAM >

[AUTOMATIC AIR CONDITIONING]

AUTOMATIC AIR CONDITIONING SYSTEM

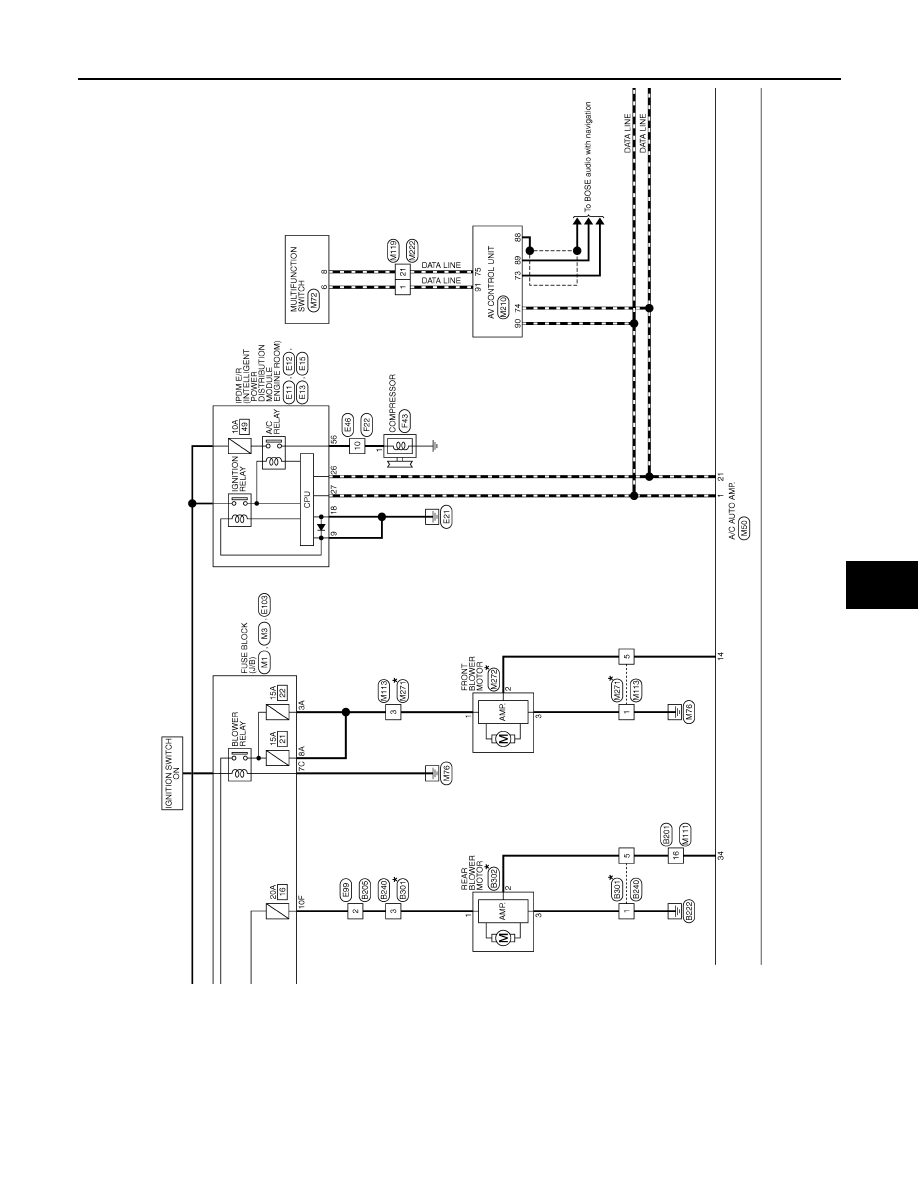

JCIWM0797GB
