EXL-132

< REMOVAL AND INSTALLATION >

[XENON TYPE]

LIGHTING & TURN SIGNAL SWITCH

LIGHTING & TURN SIGNAL SWITCH

Exploded View

INFOID:0000000006369474

The lighting & turn signal switch is integrated in the combination switch.

BCS-82, "Removal and Installation"

.

HAZARD SWITCH

EXL-133

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HAZARD SWITCH

Exploded View

INFOID:0000000006369475

The hazard switch is integrated in the multifunction switch. Refer to

AV-226, "Removal and Installation"

.

EXL-134

< REMOVAL AND INSTALLATION >

[XENON TYPE]

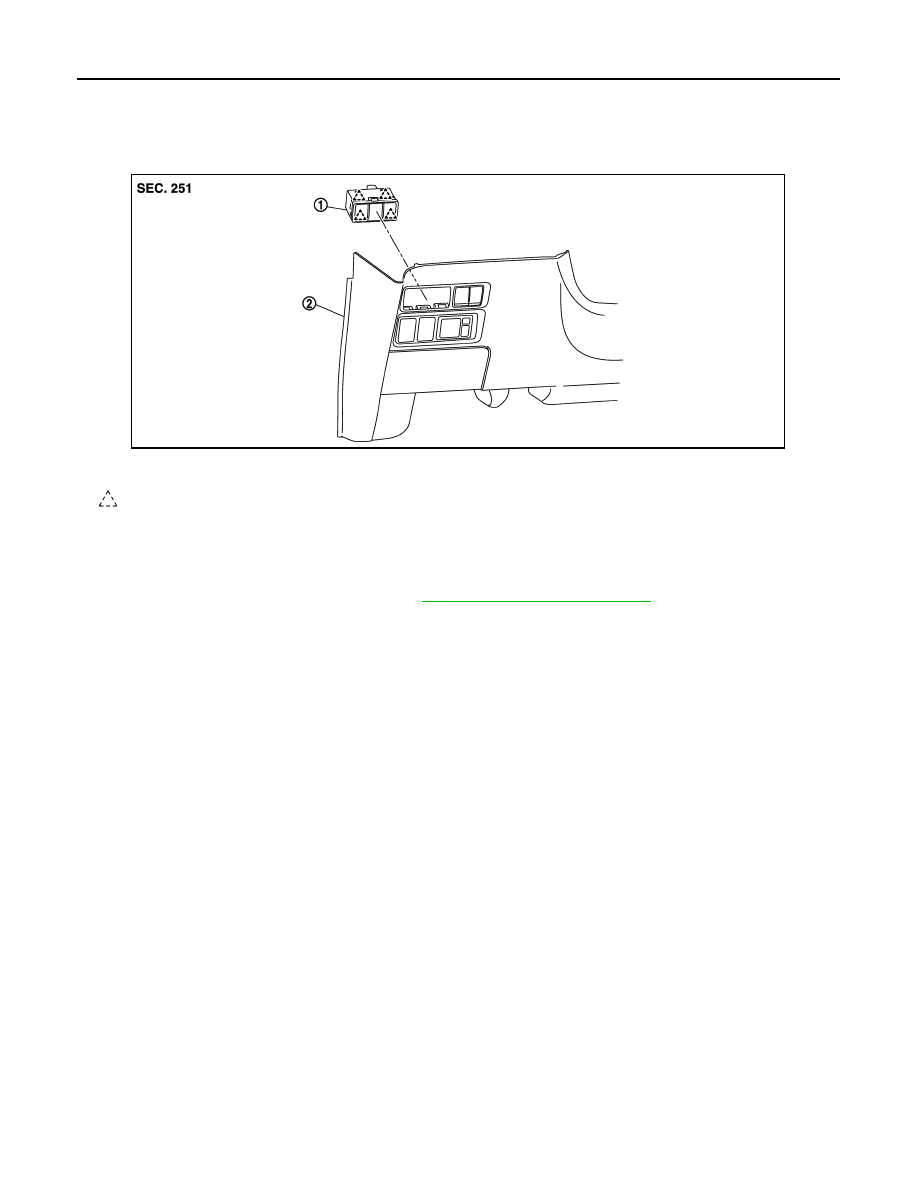

AFS SWITCH

AFS SWITCH

Exploded View

INFOID:0000000006369476

Removal and Installation

INFOID:0000000006369477

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2.

Disengage pawl. And then remove AFS switch.

INSTALLATION

Install in the reverse order of removal.

1.

AFS switch

2.

Instrument lower panel HL

:Pawl

JMLIA1139ZZ

AFS CONTROL UNIT

EXL-135

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

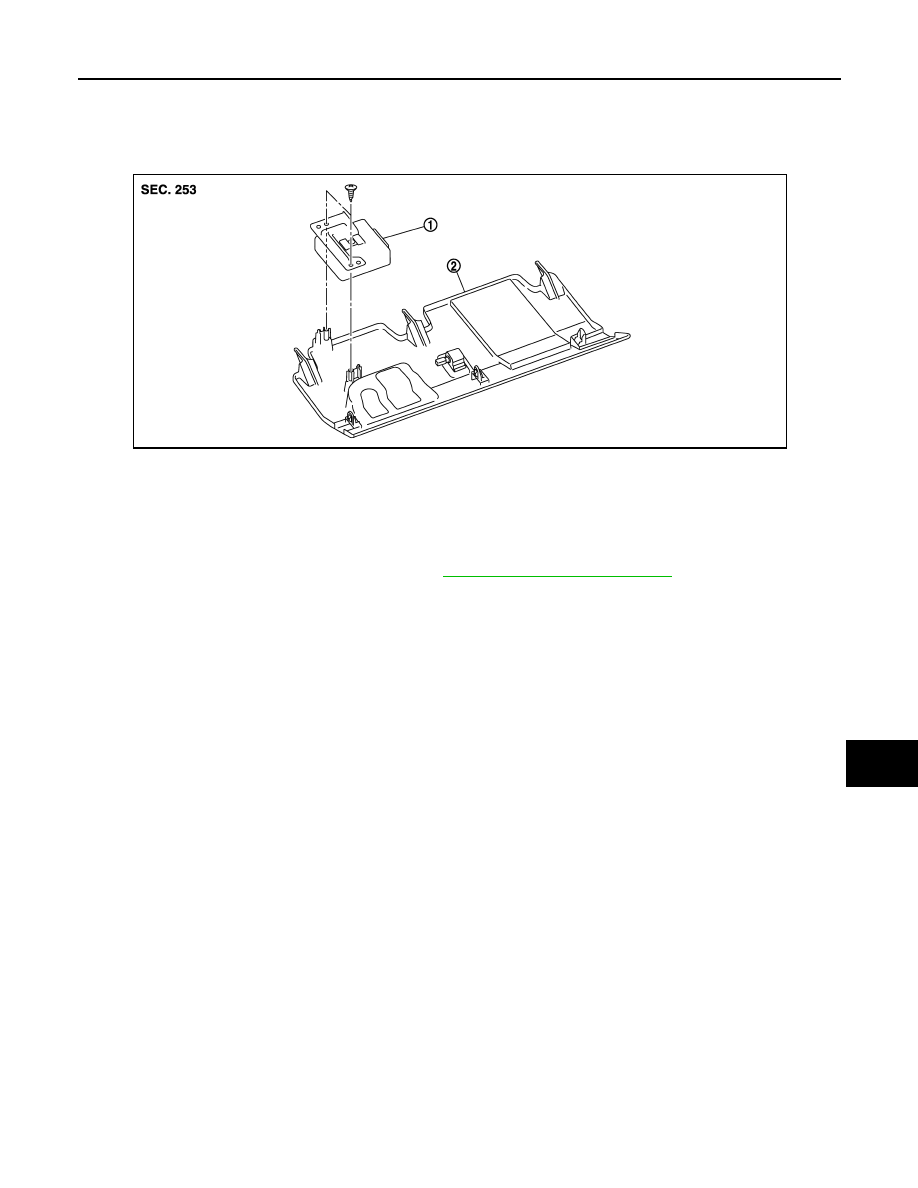

AFS CONTROL UNIT

Exploded View

INFOID:0000000006369478

Removal and Installation

INFOID:0000000006369479

REMOVAL

1.

Remove instrument driver lower panel. Refer to

IP-14, "Removal and Installation"

.

2.

Remove AFS control unit mounting bolt.

3.

Disconnect AFS control unit connector.

4.

Remove AFS control unit.

INSTALLATION

Install in the reverse order of removal.

1.

AFS control unit

2.

Instrument lower cover

JMLIA1138ZZ
